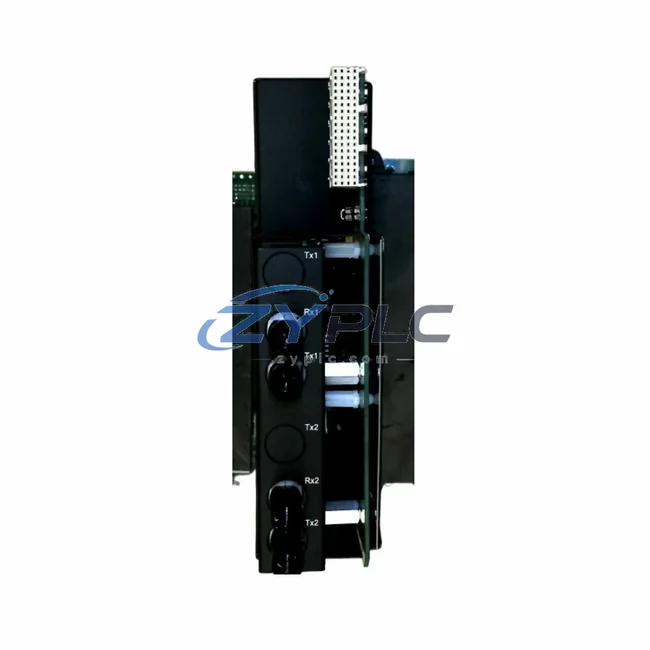

GE UR73FH Protection Relay for UR Series

GE UR73FH Protection Relay for UR Series

The GE UR73FH is a high-performance protection relay module purpose-built for deployment within GE’s Universal Relay (UR) Series platform — one of the most widely adopted protection and control architectures in power utility, industrial generation, and critical infrastructure environments. Rather than functioning as a standalone device, the UR73FH is engineered to operate as an integrated node within a layered automation system, contributing to protection coordination, signal integrity, and system-wide fault response across the full control hierarchy.

In modern industrial automation and power protection architectures, no relay module operates in isolation. The UR73FH is designed to interface seamlessly with the broader UR platform ecosystem, including the UR chassis backplane, communications processors, and I/O expansion modules. Its role spans the protection layer and the control layer simultaneously — receiving analog and digital inputs from field instrumentation, executing protection logic, and communicating status and trip signals upstream to SCADA systems, engineering workstations, and substation automation controllers.

System engineers deploying the UR73FH benefit from its native compatibility with GE’s EnerVista suite, enabling configuration, commissioning, and real-time monitoring without additional protocol converters or middleware. This system integration capability ensures that the UR73FH can be introduced into both greenfield substation designs and brownfield retrofit projects with minimal engineering overhead, preserving existing communication topologies and protection coordination schemes.

From a redundancy and reliability standpoint, the UR73FH supports architectures where protection functions must remain available during partial system failures. When paired with redundant power supply modules such as the UR-series PSM (Power Supply Module) and dual-port communications cards, the overall protection system achieves the high availability demanded by IEEE and IEC protection standards. The module’s deterministic response time ensures that fault clearance occurs within the defined operating windows required by grid codes and plant safety regulations.

Inventory availability, lead time predictability, and long-term supportability are critical considerations for asset managers and maintenance engineers. ZYPLC maintains availability subject to RFQ confirmation of the UR73FH with a warranty terms confirmed during quotation on every unit shipped, supporting both planned capital replacement programs and emergency maintenance scenarios. Each module undergoes functional verification prior to dispatch, ensuring that field installation proceeds without unexpected commissioning delays.

Product Specification Table

System Compatibility Notes

The UR73FH achieves its full operational value when integrated within a coordinated system architecture. At the control layer, it interfaces with GE UR-series CPU modules and communications processors — such as the UR-series 9UL and 9UM communication cards — to relay protection events and status data to the substation automation layer via IEC 61850 or DNP3. This enables seamless integration with SCADA platforms and DCS controllers without requiring custom protocol translation.

At the I/O layer, the UR73FH works in conjunction with UR-series analog input modules and digital I/O expansion cards, receiving current transformer (CT) and voltage transformer (VT) signals from the field. These signals feed the module’s protection algorithms, which execute trip and alarm logic within deterministic time windows. The resulting trip outputs are routed to downstream circuit breaker control circuits, motor protection relays, or contactor control panels depending on the application.

Power supply integrity is maintained through the UR-series PSM (Power Supply Module), which provides regulated DC power to the chassis backplane. In high-availability designs, dual PSM configurations ensure that the UR73FH and co-resident modules remain energized during single power supply failures — a critical requirement in utility substation and continuous process plant environments.

At the network layer, the UR73FH communicates with engineering workstations running GE EnerVista Launchpad software, enabling online parameter changes, event record retrieval, and oscillography data download without interrupting protection functions. This live diagnostic capability reduces planned outage requirements and supports condition-based maintenance strategies.

Human-machine interface integration is achieved through HMI panels connected to the substation LAN, where the UR73FH’s status, metering values, and alarm states are displayed in real time. In larger architectures, the module’s data is aggregated by substation RTUs or IEC 61850 gateways — such as GE’s D25 or SEL-3530 RTAC — before being forwarded to the control center SCADA system.

For terminal and wiring infrastructure, the UR73FH is typically installed alongside UR-series terminal blocks and test switches, which allow secondary injection testing and CT shorting without removing the module from service. This design supports safe maintenance practices and reduces the risk of open-circuit CT faults during relay testing activities.

Industrial Application Notes

Power Utility Substations: The UR73FH is widely deployed in transmission and distribution substations where IEC 61850 station bus communication is required. Its ability to publish GOOSE messages for inter-relay communication enables busbar protection schemes, breaker failure schemes, and transfer trip applications without hardwired pilot channels.

Industrial Generation and Cogeneration Plants: In gas turbine, steam turbine, and combined heat and power (CHP) plant protection panels, the UR73FH provides generator protection functions coordinated with excitation systems, AVRs, and synchronizing relays. Its integration with the plant DCS via Modbus TCP or DNP3 ensures that protection events are logged and alarmed at the central control room.

Petrochemical and Refinery Facilities: Process plants operating high-voltage motors, transformers, and bus sections rely on UR-series protection relays for motor protection, feeder protection, and transformer differential protection. The UR73FH’s robust design tolerates the electromagnetic interference and temperature variations common in refinery switchgear rooms.

Water and Wastewater Treatment: Municipal water authorities deploy UR-series modules in pump station MCCs and primary substation protection panels. The UR73FH’s DNP3 communication capability integrates directly with water SCADA systems, enabling remote monitoring of protection status and fault event retrieval without site visits.

Mining and Mineral Processing: High-current motor feeders, dragline protection panels, and mine substation bus protection schemes benefit from the UR73FH’s multi-function protection capability. Its compatibility with the UR chassis system allows protection engineers to standardize on a single platform across multiple voltage levels and protection applications throughout the mine site.

Product Compatibility FAQ

Q1: Is the UR73FH compatible with existing UR Series chassis and backplanes already installed in my substation?
The UR73FH is designed for installation within GE’s Universal Relay (UR) Series chassis platform. Compatibility depends on the specific chassis model, firmware revision, and slot configuration of your existing installation. We recommend verifying the chassis model number and current firmware version against GE’s UR platform compatibility matrix before ordering. ZYPLC’s technical team can assist with compatibility verification based on your existing system documentation.

Q2: What communication protocols does the UR73FH support, and how does it integrate with our existing SCADA or DCS architecture?
The UR Series platform supports multiple communication protocols including IEC 61850 (GOOSE and MMS), DNP3 (serial and TCP/IP), Modbus RTU/TCP, and IEC 60870-5-103, depending on the communications card installed in the chassis. The UR73FH module participates in the chassis communication architecture, with protocol selection and configuration managed through GE EnerVista software. For system integration into your existing SCADA or DCS, the appropriate communications card and network configuration must be confirmed during the engineering phase.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for commissioning and long-term maintenance?
Every UR73FH unit supplied by ZYPLC carries a warranty terms confirmed during quotation covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each module undergoes functional verification testing. For commissioning support, ZYPLC provides technical documentation and can coordinate with your engineering team on configuration requirements. For long-term maintenance, we recommend maintaining a spare module in your critical spares inventory — ZYPLC supports ongoing supply continuity for UR Series components to minimize your exposure to obsolescence risk.
