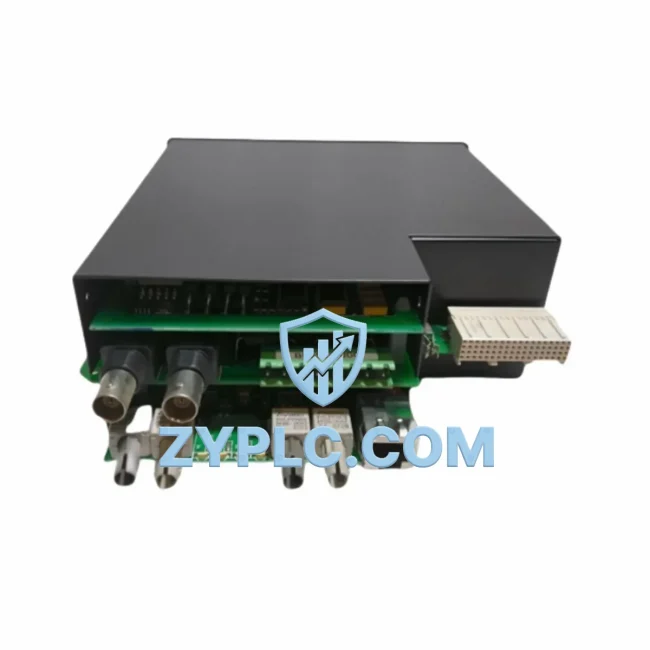

GE UR8FV System-Ready Protection Relay for UR Series Architecture

GE UR8FV System-Ready Protection Relay for UR Series Architecture: Control System Architecture and Upstream-Downstream Coordination

The GE UR8FV is a high-performance protection relay module engineered specifically for deployment within the GE UR Series platform — a modular, rack-based protection and control architecture widely adopted across power utilities, industrial substations, and critical infrastructure environments. Rather than functioning as a standalone device, the UR8FV is designed to operate as an integrated node within a layered automation system, where its role spans the protection layer, the control layer, and the communications layer simultaneously. Understanding the UR8FV in the context of the full UR Series system architecture is essential for engineers responsible for system design, commissioning, and long-term maintenance.

Within the UR Series chassis, the UR8FV occupies a defined slot position and interfaces directly with the UR Series backplane, enabling seamless data exchange with adjacent modules including the CPU module, power supply module, and I/O expansion modules. This backplane-based architecture eliminates point-to-point wiring between functional modules, reducing installation complexity and improving signal integrity across the protection system. The UR8FV’s integration into the backplane also ensures that firmware updates, configuration changes, and diagnostic data can be managed centrally through the UR Series EnerVista software suite, supporting consistent system-wide version control and reducing the risk of configuration drift across multi-relay installations.

At the control layer, the UR8FV works in coordination with the UR Series CPU module to execute protection logic, including overcurrent, differential, distance, and directional protection functions depending on the specific firmware variant loaded. The CPU module handles high-level logic processing and inter-module communication, while the UR8FV contributes dedicated signal conditioning, analog input processing, and output relay driving capability. This division of processing responsibility allows the UR Series architecture to maintain deterministic response times even under high-load conditions, which is critical in applications such as generator protection, transformer differential protection, and busbar protection schemes.

At the I/O layer, the UR8FV interfaces with field devices through its analog and digital I/O terminals, receiving current transformer (CT) and voltage transformer (VT) signals from the primary equipment under protection. These signals are processed internally and compared against configured protection thresholds, with trip and alarm outputs routed through the module’s output relay contacts to circuit breakers, contactors, or annunciator panels. In multi-relay architectures, the UR8FV’s I/O can be coordinated with other UR Series modules such as the UR I/O expansion module and the UR analog output module, enabling complex protection schemes that span multiple feeders or transformer windings within a single substation bay.

At the communications layer, the UR8FV supports standard industrial protocols including IEC 61850 GOOSE messaging, DNP3, and Modbus RTU/TCP, enabling integration with substation automation systems, SCADA platforms, and energy management systems. The IEC 61850 GOOSE capability is particularly significant in modern protection architectures, as it allows the UR8FV to participate in peer-to-peer protection schemes with other IEC 61850-compliant relays — such as the GE UR T35 transformer protection relay, the GE UR D60 line distance relay, and the GE UR C60 breaker protection relay — without relying on hardwired intertripping circuits. This reduces copper wiring requirements, simplifies panel design, and improves the speed and reliability of inter-relay coordination.

At the power supply layer, the UR8FV is powered through the UR Series power supply module, which provides regulated DC power to all modules installed in the chassis. The power supply module supports a wide input voltage range to accommodate both 110V DC and 220V DC station battery systems, and includes internal redundancy options when a dual power supply configuration is deployed. This power architecture ensures that the UR8FV remains operational even during station battery fluctuations or partial power system disturbances, which is a fundamental requirement for protection relay availability in substation environments.

For human-machine interface (HMI) integration, the UR8FV communicates with the UR Series front panel display module and with remote HMI workstations running GE EnerVista UR Setup software. Operators can monitor real-time metering values, protection element status, event records, and fault reports through these interfaces without interrupting relay operation. In larger substation architectures, the UR8FV’s data is aggregated alongside data from other UR Series relays — including the GE UR F60 feeder protection relay and the GE UR M60 motor protection relay — into a unified substation HMI, providing operators with a consolidated view of the entire protection system.

The UR8FV is also designed to support redundant protection architectures. In dual-redundant schemes, two UR8FV modules or two complete UR Series chassis can be configured in a primary/backup arrangement, with automatic switchover logic managed at the system level. This redundancy design is essential in applications where protection system availability directly impacts production continuity, such as in power generation facilities, petrochemical plants, and large-scale manufacturing complexes. The modular nature of the UR Series platform means that a failed UR8FV module can be replaced without removing the entire relay chassis from service, minimizing maintenance downtime and reducing the risk of protection gaps during module replacement.

From a long-term maintenance perspective, the UR8FV benefits from GE Grid Solutions’ commitment to long-term parts availability and firmware support for the UR Series platform. Spare module inventory planning is simplified by the UR Series’ standardized module form factor, which allows a single spare UR8FV to serve as a replacement across multiple relay types within the same chassis generation. All UR8FV modules supplied by ZYPLC are covered by a 12-Month Warranty, providing assurance of module integrity and operational readiness from the date of delivery.

Architecture Specification Table

Coordinated Control System Design

The UR8FV achieves its full capability when deployed as part of a coordinated UR Series system rather than as an isolated relay. A complete UR Series protection bay typically includes the UR Series CPU module as the central processing unit, the UR Series power supply module providing regulated station DC power, and the UR Series chassis backplane interconnecting all modules without external wiring. Analog signal conditioning is handled in coordination with the UR Series analog input module, while digital field signals are managed through the UR Series digital I/O module.

For substation-wide protection coordination, the UR8FV operates alongside other GE UR Series relays including the GE UR T35 transformer protection relay for transformer differential and restricted earth fault protection, the GE UR D60 line distance relay for transmission line protection, and the GE UR C60 breaker protection relay for circuit breaker failure and reclosing functions. In motor protection applications, the GE UR M60 motor protection relay provides complementary protection for large drive systems within the same substation architecture. Communications between these relays are managed through the UR Series communications module, which supports IEC 61850 Ethernet connectivity and serial protocol interfaces for legacy SCADA integration.

At the field device level, the UR8FV’s output contacts interface with ABB or Schneider Electric auxiliary relays and terminal blocks mounted in the same protection panel, providing galvanic isolation between the relay output circuits and the circuit breaker trip coil circuits. This layered panel design — combining the UR8FV with structured terminal modules, surge protection devices, and test switches — represents best practice in modern protection panel engineering and ensures that the UR8FV can be tested and maintained without de-energizing adjacent circuits.

Application in Layered Automation Systems

The GE UR8FV finds application across a broad range of industrial and utility environments where reliable, coordinated protection is a system-level requirement rather than a device-level afterthought.

In power generation and transmission applications, the UR8FV is deployed in generator protection panels, transformer protection bays, and transmission line protection schemes at 110kV and above. Its IEC 61850 GOOSE capability enables high-speed inter-relay tripping without hardwired pilot channels, which is essential in modern digital substation architectures where copper wiring reduction is a design objective.

In petrochemical and refinery environments, the UR8FV protects critical motor feeders, transformer banks, and bus sections within high-voltage switchgear lineups. Its wide operating temperature range and robust construction make it suitable for installation in outdoor relay houses and climate-controlled control rooms alike. The 12-Month Warranty provides procurement teams with confidence in module reliability over the initial operational period.

In water treatment and pumping station applications, the UR8FV provides protection for large pump motors and associated MV switchgear, coordinating with SCADA systems via DNP3 to provide remote monitoring and control of protection element status and metering data. Its modular design allows protection engineers to expand the system by adding I/O modules to the UR Series chassis as the facility grows.

In mining and metallurgical facilities, the UR8FV is used in high-power drive protection applications, where its fast fault detection and configurable protection curves allow it to be tuned to the specific load characteristics of large grinding mills, conveyors, and smelting furnaces. The ability to retrieve detailed fault records through EnerVista software accelerates post-fault analysis and reduces unplanned downtime.

In packaging and discrete manufacturing lines, the UR8FV provides feeder protection for production line power distribution systems, ensuring that a fault on one feeder does not cascade into adjacent production areas. Its integration with the plant-wide SCADA system via Modbus TCP allows maintenance teams to monitor protection system health from the central control room without visiting individual relay panels.

Architecture Engineering FAQ

Q1: Is the GE UR8FV compatible with existing UR Series chassis and backplanes already installed in my substation?
The UR8FV is designed for installation within the GE UR Series chassis platform and is compatible with the standard UR Series backplane used across the UR relay family. However, chassis slot compatibility depends on the specific chassis generation and firmware version in use at your site. It is recommended to verify the chassis model number and firmware revision against GE Grid Solutions’ compatibility matrix before ordering. ZYPLC’s technical team can assist with compatibility verification based on your existing chassis documentation.

Q2: Can the UR8FV be integrated into an IEC 61850 substation automation system alongside relays from other manufacturers?
Yes. The UR8FV supports IEC 61850 Edition 1 and Edition 2 GOOSE messaging and MMS reporting, which are open international standards. This allows the UR8FV to exchange protection signals and metering data with IEC 61850-compliant devices from other manufacturers, including Siemens SIPROTEC, ABB REL, and Schneider Electric Sepam series relays, provided that the IED Configurator tool is used to define the logical node mappings and GOOSE subscriptions correctly. ZYPLC recommends engaging a qualified IEC 61850 system integrator for multi-vendor substation automation projects.

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims on the UR8FV?
All GE UR8FV modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of delivery, covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the module serial number, purchase order reference, and a description of the observed fault. ZYPLC will arrange for module inspection, repair, or replacement as appropriate. Warranty coverage does not extend to damage caused by incorrect installation, overvoltage events, or unauthorized modification of the module.
