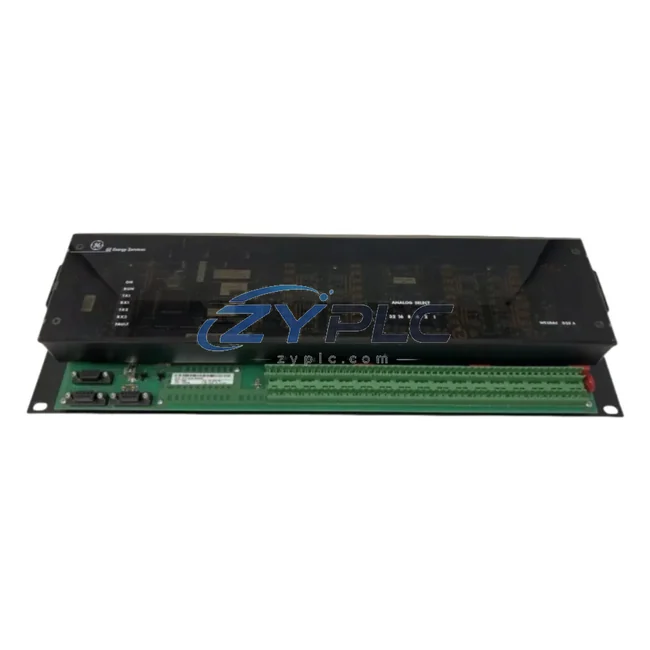

GE WESDAC-D20A-SBA0009-00 Industrial Network Interface for D20 Systems

GE WESDAC-D20A-SBA0009-00: Industrial Data Link for Smart Factory Connectivity

The GE WESDAC-D20A-SBA0009-00 is a high-performance SCADA communication module engineered for the GE D20 Series platform, purpose-built to serve as the critical data bridge between field-level devices and supervisory control systems in modern industrial environments. As industrial sites evolve toward fully connected smart factory architectures, the demand for reliable, protocol-agnostic communication gateways has never been greater. The WESDAC-D20A-SBA0009-00 answers this demand with robust multi-protocol support, deterministic data throughput, and seamless integration across heterogeneous automation networks.

Designed for deployment in substations, utility control rooms, oil and gas facilities, water treatment plants, and discrete manufacturing environments, this module functions as the nerve center of the communication architecture — aggregating data from field instruments, PLCs, remote terminal units (RTUs), and intelligent electronic devices (IEDs), then transmitting structured, time-stamped data upstream to SCADA servers, historian platforms, and enterprise MES/ERP systems. Its compatibility with DNP3, Modbus RTU/TCP, and IEC 61850 makes it one of the most versatile communication interfaces available for GE D20-based control systems.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory or utility substation deployment, the WESDAC-D20A-SBA0009-00 sits at the heart of the communication hierarchy. At the field level, sensors, transducers, and protection relays — such as GE Multilin relay series — generate continuous streams of analog and digital signals. These signals are collected by the GE D20 RTU platform, where the WESDAC module handles protocol encapsulation and data formatting before forwarding structured packets upstream.

When integrated with GE D20E or D20MX controller modules, the WESDAC-D20A-SBA0009-00 enables seamless DNP3 master/slave communication across serial and Ethernet links simultaneously. This dual-channel capability is critical in redundant SCADA architectures where communication path failover must occur within milliseconds to maintain system availability. The module’s unsolicited reporting feature ensures that alarm events from field devices — including breaker trip signals, voltage excursions, and flow anomalies — are pushed to the SCADA master without waiting for the next polling cycle.

Moving up the data chain, the WESDAC module interfaces directly with GE iFIX SCADA and Proficy Historian platforms via Modbus TCP/IP or IEC 61850 MMS, enabling operators to visualize real-time process data on HMI dashboards. In parallel, edge gateway devices — such as the GE Predix Edge or third-party industrial IoT gateways — can subscribe to the same data streams for cloud-based analytics and predictive maintenance workflows.

For remote I/O expansion, the WESDAC-D20A-SBA0009-00 coordinates with GE D20 I/O expansion modules to aggregate distributed analog inputs (4–20 mA, 0–10 V) and digital status points from field junction boxes across the plant floor. This aggregated data is then time-stamped at the source and transmitted with microsecond-level accuracy to the SCADA historian, ensuring data integrity for compliance reporting and post-event analysis.

In drive and motor control applications, the module bridges communication between GE AF-600 FP variable frequency drives and the SCADA layer via Modbus RTU over RS-485, enabling remote speed reference commands, fault diagnostics, and energy consumption monitoring without requiring additional protocol converters. Similarly, in process instrumentation loops, smart transmitters and HART-enabled field devices can be polled through the WESDAC’s serial ports, with HART pass-through capability allowing asset management software to access device diagnostics alongside process values.

The complete data flow — from field signal acquisition through protocol conversion, network transmission, SCADA visualization, and cloud analytics — is managed through a single, cohesive communication backbone anchored by the WESDAC-D20A-SBA0009-00, making it an indispensable component in any GE D20-based industrial network architecture.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is the coexistence of legacy serial-based field devices alongside modern Ethernet-enabled systems. Older RTUs, protection relays, and metering equipment communicate over RS-232 or RS-485 using proprietary or semi-standard protocols, while newer IEDs and controllers demand IEC 61850 or Modbus TCP/IP connectivity. Without a capable protocol gateway at the center of this architecture, data silos form — critical operational data remains trapped within isolated device networks, invisible to SCADA operators and inaccessible to enterprise analytics platforms.

The WESDAC-D20A-SBA0009-00 directly addresses this fragmentation. Its multi-protocol engine simultaneously handles DNP3 master and slave roles, Modbus RTU polling, and IEC 61850 client/server communication, effectively acting as a universal translator between incompatible device ecosystems. This eliminates the need for multiple single-protocol converters, reduces panel wiring complexity, and consolidates communication management into a single, maintainable module.

For remote monitoring and diagnostics, the WESDAC module supports remote configuration and firmware updates over the network, allowing maintenance engineers to adjust polling rates, modify data point mappings, and retrieve diagnostic logs without dispatching field technicians to remote substations or unmanned pump stations. This capability is particularly valuable in geographically dispersed utility networks where site visits are costly and time-consuming.

Production line transparency is another key benefit. By connecting previously isolated machine controllers, drives, and sensors into a unified SCADA data stream, plant managers gain real-time visibility into OEE metrics, energy consumption, and equipment health — enabling data-driven decisions that reduce unplanned downtime and optimize throughput. As production demands grow, the modular architecture of the GE D20 platform allows additional WESDAC communication modules to be added without redesigning the existing network infrastructure, providing a scalable path to full plant digitalization.

Industrial Connectivity FAQ

Q1: What communication protocols does the WESDAC-D20A-SBA0009-00 support, and are they simultaneously active?
The module supports DNP3 (Level 2 and Level 3), Modbus RTU, Modbus TCP/IP, and IEC 61850 MMS/GOOSE. Multiple protocols can be active simultaneously across different physical ports, allowing the module to serve as a master on one network while operating as a slave on another — a critical capability in hierarchical SCADA architectures.

Q2: How does this module handle communication latency in time-critical SCADA applications?
The WESDAC-D20A-SBA0009-00 supports unsolicited reporting and Class 1/2/3 data prioritization under DNP3, ensuring that high-priority alarm events are transmitted immediately without waiting for scheduled polling cycles. This reduces effective alarm latency to sub-second levels in properly configured networks, meeting the requirements of most utility and process control SCADA systems.

Q3: Is the module compatible with third-party SCADA and HMI platforms beyond GE iFIX?
Yes. Because the module communicates via open, industry-standard protocols (DNP3, Modbus TCP/IP, IEC 61850), it is compatible with any SCADA or HMI platform that supports these protocols, including Wonderware InTouch, Ignition by Inductive Automation, Siemens WinCC, and Schneider Electric EcoStruxure. No proprietary drivers are required for standard protocol connections.

Q4: What does the warranty terms confirmed during quotation cover, and how is pre-shipment testing conducted?
Every WESDAC-D20A-SBA0009-00 unit undergoes functional verification testing prior to shipment, including communication port integrity checks, protocol handshake validation, and power supply stability testing. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for configuration assistance, integration troubleshooting, and warranty claim processing.
