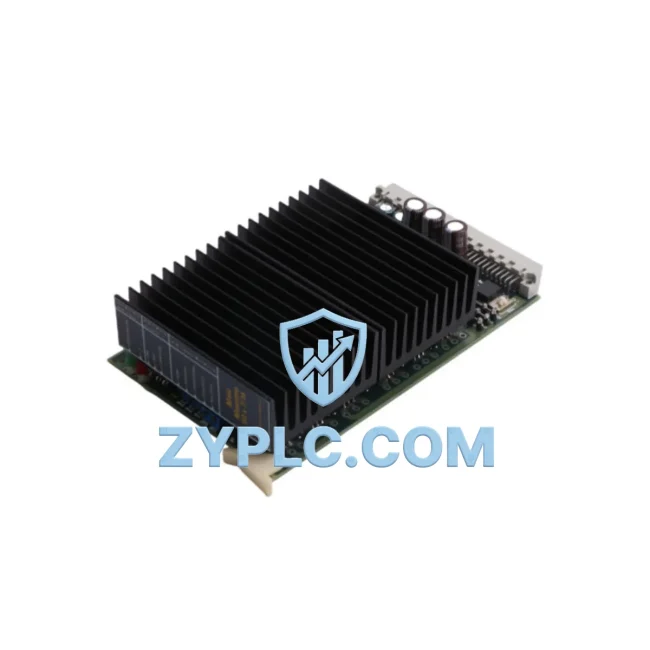

Gefran 60X7/14 System-Ready Servo Drive for Mini Maestro Architecture

Gefran 60X7/14 System-Ready Servo Drive for Mini Maestro Architecture: Control System Coordination and Upstream–Downstream Synergy

In modern industrial automation, no drive operates in isolation. The Gefran 60X7/14 Mini Maestro servo drive is engineered as a precision motion control node within a fully coordinated control system architecture. Whether deployed in a multi-axis packaging line, a continuous process control loop, or a high-cycle discrete manufacturing cell, the 60X7/14 is designed to integrate seamlessly across the control layer, I/O layer, network layer, power layer, HMI layer, and execution layer — delivering system-wide consistency, scalability, redundancy, and long-term maintainability.

The 60X7/14 belongs to Gefran’s Mini Maestro series, a compact yet capable family of servo drives purpose-built for space-constrained control cabinets where performance cannot be compromised. Its architecture-ready design means it is not simply a standalone motion controller — it is a coordinated element within a broader automation ecosystem, capable of receiving motion commands from upper-level PLCs, synchronizing with peer drives on the same motion bus, and reporting real-time status back to supervisory SCADA or HMI systems.

Architecture Specification Table

Coordinated Control System Design

The true value of the Gefran 60X7/14 emerges when it is evaluated within a complete control system rather than as a standalone component. In a typical multi-axis servo architecture, the 60X7/14 operates under the command of a motion controller or PLC — such as a Gefran GFX4-IR programmable controller — which distributes position profiles and synchronization signals across the motion network. Alongside peer drives such as the Gefran 60X7/30 and Gefran 60X7/50 (higher-current variants in the same Mini Maestro family), the 60X7/14 maintains axis-to-axis timing coherence critical for multi-axis coordinated motion.

On the power layer, the 60X7/14 is typically paired with a dedicated Gefran regenerative power supply module or a shared DC bus arrangement, enabling energy recovery during deceleration phases and reducing overall cabinet heat load. Braking resistors — either internal or external — are selected based on duty cycle and inertia load, and Gefran’s application engineering guidelines provide clear sizing rules for the Mini Maestro family.

For I/O expansion, the 60X7/14 interfaces with Gefran distributed I/O modules or third-party I/O terminals mounted on the same DIN rail, allowing the system integrator to extend digital and analog signal capacity without adding complexity to the drive’s internal configuration. Terminal blocks and wiring accessories from the same control cabinet ecosystem ensure clean signal routing and simplified commissioning.

On the network layer, the 60X7/14 supports CANopen communication, enabling it to participate in a synchronized motion network alongside Gefran communication gateway modules that bridge CANopen to higher-level protocols such as PROFIBUS, EtherNet/IP, or Modbus TCP — depending on the plant’s supervisory architecture. This protocol flexibility ensures the Mini Maestro series can be integrated into both legacy and next-generation control platforms without requiring drive replacement.

At the HMI layer, operators interact with the system through panels such as the Gefran GFX4 operator terminal or compatible third-party HMI displays, which provide real-time drive status, fault diagnostics, and parameter access. The 60X7/14’s transparent parameter structure and standardized fault codes reduce the learning curve for maintenance personnel and accelerate troubleshooting during production.

For redundancy-critical applications, the 60X7/14 can be deployed in a hot-standby or cold-standby configuration alongside a spare unit, with parameter sets stored on external memory or uploaded via the drive’s configuration software. This approach — combined with ZYPLC’s in-stock availability and 12-Month Warranty — ensures that replacement lead times do not become a bottleneck in plant uptime management.

Application in Layered Automation Systems

The Gefran 60X7/14 Mini Maestro servo drive finds application across a wide range of industrial sectors where precise, repeatable motion is a process requirement:

Packaging and Converting Lines: In high-speed packaging machinery, the 60X7/14 controls registration, cut-to-length, and web tension axes. Its fast current loop response and encoder feedback accuracy ensure consistent product quality at elevated cycle rates.

Textile and Winding Machinery: Tension control and traverse motion in winding applications demand smooth torque response across a wide speed range. The Mini Maestro series is well-suited to these applications, where motor tuning and inertia matching are critical to product quality.

Process Control and Pumping Systems: In water treatment, chemical dosing, and fluid handling applications, the 60X7/14 provides closed-loop speed and flow control, integrating with process instrumentation via analog references or fieldbus commands from the plant DCS.

Metal Forming and Press Applications: Servo-driven press and forming equipment requires precise position control with high peak torque capability. The 60X7/14’s torque control mode and fast dynamic response make it suitable for these demanding duty cycles.

Mining and Heavy Industry: In conveyor, hoist, and positioning applications within mining and metallurgical environments, the drive’s robust protection features and wide operating temperature range support reliable operation in harsh conditions.

Architecture Engineering FAQ

Q1: Is the Gefran 60X7/14 compatible with third-party PLCs and motion controllers?
Yes. The 60X7/14 supports standard CANopen communication and analog/digital I/O interfaces, making it compatible with motion controllers and PLCs from major automation vendors. System integrators should verify the specific fieldbus protocol and I/O signal levels required by their control platform. ZYPLC’s technical team can assist with compatibility assessment prior to order placement.

Q2: How does the 12-Month Warranty apply, and what does it cover?
All Gefran 60X7/14 units supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects and component failures under normal operating conditions. It does not cover damage resulting from incorrect installation, overvoltage events, or operation outside the specified environmental parameters. Warranty claims are processed directly through ZYPLC’s after-sales support team.

Q3: What is the recommended commissioning procedure for integrating the 60X7/14 into an existing Mini Maestro multi-axis system?
Commissioning should follow Gefran’s standard startup sequence: verify power supply voltage and grounding, configure motor parameters (rated current, encoder type, pole count), perform auto-tuning for current and speed loops, and then validate position accuracy against the motion controller’s reference profile. For multi-axis systems, axis synchronization should be verified under no-load conditions before full production speed is engaged. ZYPLC recommends retaining a spare 60X7/14 unit on-site to minimize downtime risk during the commissioning phase.
