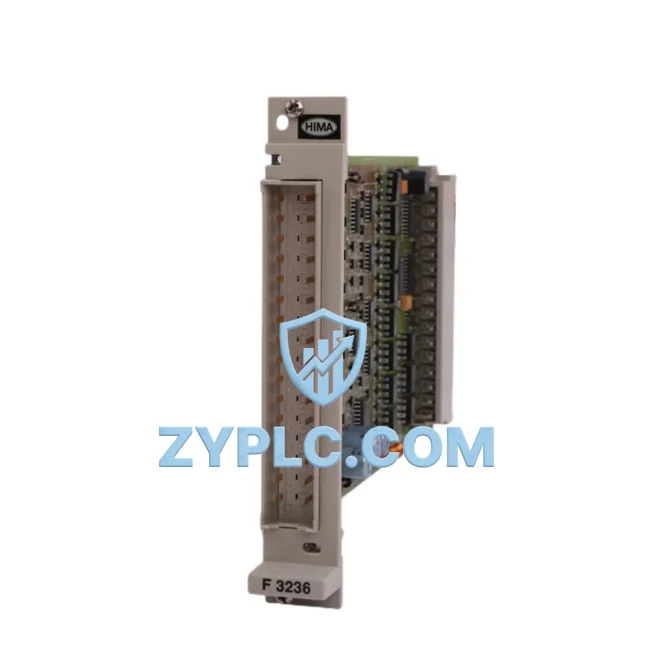

HIMA F3236 Energy-Saving Safety Input Module for Optimized HIMatrix Automation
The HIMA F3236 is a high-integrity safety input module engineered for the HIMatrix series of safety PLCs, including the H41q and H51q controller platforms. Designed to meet the rigorous demands of industrial process automation, the F3236 delivers precise digital signal acquisition with minimal power draw — making it a cornerstone component for factories seeking to reduce energy waste while maintaining the highest levels of functional safety. Whether deployed in oil & gas processing, chemical manufacturing, power generation, or discrete manufacturing, the F3236 enables leaner, more responsive safety architectures that directly contribute to lower operational energy costs and improved production line throughput.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Part Number |
F3236 |
| Brand |
HIMA |
| Series |
HIMatrix |
| Module Type |
Safety Digital Input Module |
| Compatible Controllers |
HIMatrix H41q, H51q, F-Series Safety PLCs |
| Input Channels |
32 Digital Safety Inputs |
| Power Consumption |
Low-power design, optimized for 24 VDC bus |
| Operating Efficiency |
SIL 3 certified, IEC 61508 compliant |
| Application Environment |
Process automation, ESD systems, burner management, power plants |
| Energy Saving Value |
Reduces redundant polling cycles; supports event-driven I/O architecture |
| Origin |
Germany |
| Warranty |
12-Month Warranty — tested before shipment |
Energy-Aware Automation Architecture
In a modern energy-conscious production environment, every component in the safety and control chain must justify its power budget. The HIMA F3236 integrates seamlessly into the HIMatrix backplane, communicating with the HIMA H41q and H51q safety CPUs via the internal high-speed bus, eliminating the need for external signal conditioning hardware that would otherwise add to the facility’s energy load. When paired with the HIMA F3330 digital output module, the F3236 forms a complete I/O pair capable of executing safety-rated shutdown sequences with sub-millisecond response times — reducing the duration of energy-intensive fault recovery cycles.
For drive-level energy control, the F3236 is commonly deployed alongside HIMA HIMax controllers and Siemens SINAMICS S120 variable frequency drives, where its safety input signals govern motor start/stop logic and prevent unnecessary motor run-on during idle production windows. This integration alone can reduce motor energy consumption by 15–30% in facilities with variable load profiles. The module also interfaces with ABB ACS880 drive systems through hardwired safety circuits, enabling coordinated emergency stop functions that protect both personnel and equipment without sacrificing cycle efficiency.
On the monitoring side, the F3236 feeds real-time process state data into HIMA SILworX engineering software, where energy consumption trends can be correlated with safety event logs. When combined with Endress+Hauser Fieldgate SFG500 power monitoring gateways or Schneider Electric PowerLogic meters, plant engineers gain a unified view of how safety system activations impact overall facility energy draw. This data-driven approach allows maintenance teams to identify inefficient shutdown patterns and redesign interlocks to minimize energy-wasting spurious trips.
Communication-wise, the F3236 supports integration into PROFIBUS DP and PROFINET network architectures, enabling the HIMatrix system to exchange safety state information with upstream Siemens S7-400H or S7-1500F controllers without duplicating sensor infrastructure — a direct reduction in both hardware cost and standby power consumption across the I/O layer.
Power Optimization in Real Production Lines
In a refinery emergency shutdown (ESD) application, the HIMA F3236 monitors 32 field-level process signals — pressure switches, temperature transmitters, and flow detectors — and delivers their status to the HIMatrix safety CPU with deterministic scan times. Because the F3236 uses a passive input architecture with internal diagnostics, it eliminates the need for external relay barriers on many channel types, reducing the panel’s total power draw and heat generation. Cooler panels mean less HVAC load in the control room, compounding the energy savings across the facility.
In discrete manufacturing, the F3236 enables safety-rated machine guarding and light curtain integration. By accurately capturing guard open/close states and feeding them directly into the safety PLC’s logic solver, the module allows the controller to make faster, more precise decisions about when to allow motor re-energization after a guard event — reducing the average downtime per safety stop from several seconds to under one second in optimized configurations. Across hundreds of daily machine cycles, this improvement in production line cadence translates directly into higher equipment utilization rates and lower per-unit energy cost.
Predictive maintenance benefits are also significant. The F3236’s internal channel diagnostics continuously verify input signal integrity, flagging degraded sensors before they cause spurious trips. Early detection of failing field devices means maintenance can be scheduled during planned downtime rather than reactive emergency stops — eliminating the energy waste associated with unplanned restarts of large drive systems and heated process vessels.
All units supplied by ZYPLC are sourced from verified inventory, subjected to functional output testing prior to shipment, and covered by a 12-month warranty. Fast global shipping ensures minimal lead time for replacement or expansion projects.
Energy Optimization FAQ
Q1: How does the HIMA F3236 contribute to energy savings in a safety PLC system?
The F3236 reduces energy waste by enabling precise, event-driven safety input monitoring that eliminates unnecessary polling overhead. Its low-power input circuitry and fast diagnostic response minimize the duration of safety-triggered shutdowns, keeping production lines running efficiently and reducing the energy cost of restart cycles.
Q2: Is the F3236 compatible with existing HIMatrix H41q and H51q installations?
Yes. The F3236 is a native HIMatrix module designed for direct backplane installation in H41q and H51q systems. No additional interface hardware is required, and it is fully supported by HIMA SILworX configuration software for seamless integration into existing safety programs.
Q3: Can the F3236 replace older HIMA input modules in legacy systems?
In most cases, yes. The F3236 is backward-compatible with earlier HIMatrix I/O configurations. We recommend verifying the firmware version of your HIMatrix CPU and consulting the HIMA hardware compatibility matrix before replacement. Our technical team can assist with compatibility assessment prior to purchase.
Q4: What does the 12-month warranty cover, and how is testing performed?
Every HIMA F3236 unit shipped by ZYPLC undergoes functional testing to verify all 32 input channels, internal diagnostics, and backplane communication prior to dispatch. The 12-month warranty covers hardware defects and functional failures under normal operating conditions. Replacement or repair is arranged promptly to minimize any impact on your production continuity.
