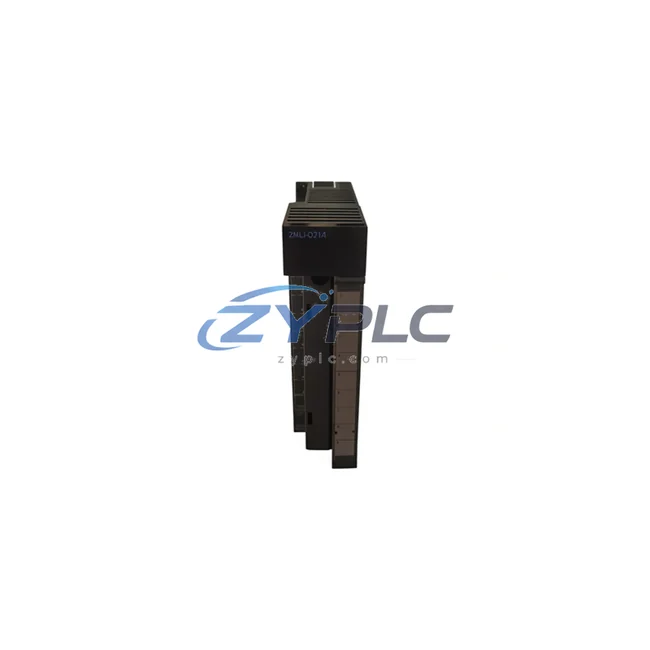

Honeywell 2MLI-D21A-CC Safety Interface for FSC

Honeywell 2MLI-D21A-CC Safety Interface for FSC: system integration Across Control System Layers

In modern industrial automation, no safety component operates in isolation. The Honeywell 2MLI-D21A-CC is a dedicated safety interface module engineered for seamless deployment within the Honeywell FSC (Fail-Safe Controller) platform — a proven, IEC 61508-certified safety control architecture widely adopted across oil & gas, petrochemical, power generation, and process manufacturing industries. This module serves as a critical bridge between the FSC’s central processing layer and field-level I/O instrumentation, enabling deterministic signal conditioning, galvanic isolation, and real-time fault detection within a unified safety loop.

Understanding the 2MLI-D21A-CC requires viewing it not as a standalone component, but as a functional node within a layered control system. Its role spans the I/O layer and the field interface layer, where it conditions analog and digital signals from transmitters, actuators, and field devices before passing validated data upstream to the FSC CPU. This contextual positioning makes it indispensable for engineers designing SIL 2 or SIL 3 safety instrumented systems (SIS) that demand both architectural integrity and long-term maintainability.

Product Specification Table

System Compatibility Notes

The 2MLI-D21A-CC achieves its full value when integrated within a complete FSC control architecture. At the processing core, the Honeywell FSC CPU 10024/H/F executes the safety application logic, communicating with interface modules across the FSC backplane. The 2MLI-D21A-CC connects directly to this backplane, ensuring that field-level digital signals are validated and passed to the CPU with deterministic timing — a requirement for any SIL-rated safety loop.

Power integrity is maintained by the Honeywell FSC Power Supply 10002/1/2, which provides redundant 24 VDC rails to the rack. In high-availability architectures, a secondary power supply module is installed in parallel, ensuring that a single power fault does not interrupt the safety function. The 2MLI-D21A-CC is designed to operate within this redundant power envelope without requiring additional conditioning hardware.

For analog signal acquisition from field transmitters — pressure, temperature, flow — the Honeywell FSC Analog Input Module 10006/2/1 works alongside the 2MLI-D21A-CC to provide a complete I/O layer. While the 2MLI-D21A-CC handles discrete digital inputs (valve position feedback, emergency stop signals, interlock status), the 10006/2/1 manages 4–20 mA process variable inputs, together forming a comprehensive field interface layer within the same FSC rack.

Communication between the FSC rack and the plant DCS or SCADA layer is handled by the Honeywell FSC Communication Gateway 10105/2/1, which supports Modbus RTU, Modbus TCP, and proprietary Honeywell protocols. This gateway enables the safety system to report diagnostic data, module health status, and process values to the supervisory layer without compromising the safety partition — a key requirement in IEC 61511-compliant SIS designs.

For human-machine interface integration, the FSC architecture supports connection to Honeywell Experion PKS operator stations, where safety system status, alarm management, and diagnostic dashboards are presented to control room operators. The 2MLI-D21A-CC’s field-side diagnostics — including wire-break detection and short-circuit monitoring — are surfaced through this HMI layer, enabling rapid fault identification without physical inspection of the field wiring.

Rack expansion is supported through the Honeywell FSC Expansion Backplane 10001/1/1, which allows additional I/O modules to be added to the safety system as the process scope grows. The 2MLI-D21A-CC is fully compatible with this expansion architecture, and multiple units can be installed across primary and expansion racks to support large-scale safety instrumented functions (SIFs) with hundreds of I/O points.

Terminal connectivity at the field wiring level is managed through Honeywell FSC Terminal Modules (series 10050/x/x), which provide screw-terminal or spring-clamp field wiring interfaces that mate directly with the 2MLI-D21A-CC’s signal conditioning circuitry. This modular wiring approach simplifies commissioning, reduces installation errors, and enables hot-swap maintenance without disturbing adjacent field circuits.

In redundant CPU architectures — common in critical applications such as emergency shutdown systems (ESD) and burner management systems (BMS) — the Honeywell FSC Redundancy Module 10003/1/1 synchronizes dual CPU modules, ensuring bumpless switchover in the event of a processor fault. The 2MLI-D21A-CC operates transparently within this redundant architecture, with its I/O data continuously mirrored to both CPUs via the backplane.

Industrial Application Notes

Oil & Gas and Petrochemical: In upstream and downstream hydrocarbon processing, the 2MLI-D21A-CC is deployed within emergency shutdown (ESD) systems to monitor valve position feedback, high-high level switches, and pressure safety switches. Its galvanic isolation prevents ground loops from corrupting safety signals in electrically noisy environments typical of compressor stations and refinery process units.

Power Generation: In gas turbine and steam turbine control systems, the module interfaces with vibration monitoring relays, flame detectors, and overspeed protection circuits. Its deterministic response time ensures that trip signals reach the FSC CPU within the required safety response time (SRT), maintaining compliance with NFPA 85 and IEC 61511 requirements for turbine protection systems.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 2MLI-D21A-CC within chlorine dosing safety systems, pump protection interlocks, and overflow prevention circuits. The module’s robust design tolerates the high-humidity, chemically aggressive environments common in water treatment infrastructure.

Mining and Metallurgy: In conveyor belt safety systems, crusher protection circuits, and ventilation interlock systems, the 2MLI-D21A-CC provides reliable digital input conditioning for pull-cord switches, belt misalignment detectors, and emergency stop stations distributed across large physical distances. Its wire-break detection capability is particularly valuable in mining environments where cable damage is a frequent maintenance concern.

Packaging and Discrete Manufacturing: For machine safety applications requiring IEC 62061 or ISO 13849 compliance, the 2MLI-D21A-CC can be integrated into FSC-based safety systems monitoring light curtains, safety door switches, and two-hand control devices, providing a certified safety interface between field safety devices and the FSC logic solver.

Product Compatibility FAQ

Q1: Is the 2MLI-D21A-CC compatible with all FSC rack configurations, including expanded and redundant CPU architectures?
Yes. The 2MLI-D21A-CC is designed for the Honeywell FSC backplane and is compatible with both standard and expanded rack configurations. It operates correctly in single-CPU and redundant-CPU (1oo2 and 2oo3) architectures, with I/O data automatically mirrored to all active CPUs via the backplane bus. No additional configuration is required to enable redundant operation — the module’s backplane interface handles synchronization transparently.

Q2: What commissioning steps are required when replacing a 2MLI-D21A-CC in a live FSC system, and can it be replaced without a full system shutdown?
In FSC architectures with redundant I/O or hot-standby configurations, the 2MLI-D21A-CC can typically be replaced with a partial bypass procedure that maintains the safety function during module swap. The replacement module must be of the same hardware revision to ensure backplane compatibility. After installation, the FSC CPU performs an automatic self-test and I/O validation cycle. Engineers should verify field wiring continuity via the terminal module before returning the channel to service. Full documentation of the bypass procedure should be maintained in the site’s management of change (MOC) records.

Q3: What does the warranty terms confirmed during quotation cover, and what support is available for long-term spare parts management?
ZYPLC’s warranty terms confirmed during quotation covers the 2MLI-D21A-CC against manufacturing defects and functional failures under normal operating conditions. All units are tested prior to shipment using functional test procedures that verify backplane communication, signal conditioning accuracy, and diagnostic output. For long-term spare parts management, ZYPLC maintains inventory of FSC-series modules to support planned maintenance cycles and emergency replacement requirements. Our technical team can assist with cross-referencing obsolete or discontinued FSC module variants to identify compatible replacements within the current Honeywell FSC product range.
