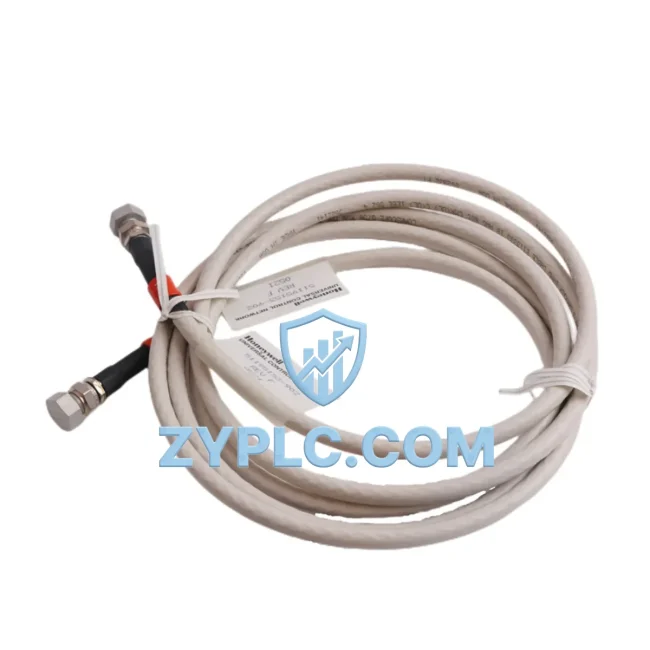

Honeywell 51195153-902 System-Ready Drop Cable for TDC 3000 Architecture

Honeywell 51195153-902 System-Ready Drop Cable for TDC 3000 Architecture: Coordinated Control System Connectivity

The Honeywell 51195153-902 Drop Cable Set (2.5M) is a precision-engineered interconnect component designed to serve as a critical physical link within the TDC 3000 and Experion PKS distributed control system architecture. In large-scale industrial automation environments — spanning power generation, petrochemical refining, water treatment, metallurgy, and continuous process manufacturing — the integrity of every cable assembly directly determines the reliability of the entire control hierarchy. The 51195153-902 is not simply a cable; it is a system-ready element that sustains signal continuity between control layer modules, I/O termination assemblies, and field device interfaces across the full automation stack.

Within the TDC 3000 platform, the drop cable set connects High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) controller nodes to their associated I/O Link modules and field termination assemblies (FTAs). This physical layer connection is foundational: without a correctly specified, properly seated drop cable, even the most sophisticated controller configuration cannot achieve reliable scan cycle performance or deterministic signal delivery. The 51195153-902 ensures that the electrical and mechanical interface between the controller backplane and the I/O subsystem meets Honeywell’s original design tolerances, preserving system consistency across long operational lifecycles.

Architecture Specification Table

Coordinated Control System Design

The 51195153-902 drop cable operates at the intersection of the control layer and the I/O layer — the two most operationally critical tiers in any DCS architecture. In a fully configured TDC 3000 system, the High-Performance Process Manager (HPPM) or Advanced Process Manager (APM) controller module resides in a dedicated controller enclosure or Universal Control Network (UCN) node cabinet. The drop cable physically bridges this controller to the associated I/O Link module, which in turn fans out to multiple Field Termination Assemblies (FTAs) handling analog input, analog output, digital input, and digital output signals from field instruments.

In practice, a single TDC 3000 control cabinet may house multiple controller nodes, each requiring its own correctly routed drop cable set. The 2.5M length of the 51195153-902 is specifically suited to standard cabinet depths and inter-rack spacing, eliminating the need for cable extensions or adapters that could introduce impedance mismatches or connector reliability issues. When paired with the Honeywell 51195153-901 (1.5M variant) or the 51195153-903 (5M variant) in larger marshalling configurations, the 51195153-902 provides the mid-range reach required for most standard panel layouts.

At the network layer, the TDC 3000 architecture relies on the Local Control Network (LCN) and the Universal Control Network (UCN) to coordinate data exchange between controller nodes, the Hiway Gateway, and operator workstations running Honeywell’s HMIWeb or GUS (Global User Station) interface. The drop cable’s role in maintaining clean, low-noise signal paths between the controller backplane and I/O modules directly supports the deterministic scan performance that LCN and UCN communication depends upon. Any degradation in the physical interconnect — whether from cable wear, connector oxidation, or incorrect cable length — can manifest as intermittent I/O faults, increased scan cycle jitter, or communication timeouts at the network layer.

For power layer integrity, the TDC 3000 system typically employs redundant 24VDC power supplies feeding both the controller enclosure and the I/O subsystem. The drop cable set must be routed away from high-voltage power conductors and EMI sources within the control cabinet to preserve signal quality. Proper cable management — including the use of Honeywell-specified cable trays and separation distances — ensures that the 51195153-902 performs to specification throughout its service life. In redundant controller configurations, where a primary HPPM and a secondary HPPM operate in hot-standby mode, each controller node requires its own dedicated drop cable set, making correct inventory of the 51195153-902 essential for maintaining full redundancy capability.

At the human-machine interface layer, operator stations connected via the LCN rely on accurate, real-time I/O data to display process variables, alarm states, and trend histories. The physical reliability of the 51195153-902 drop cable directly underpins the data fidelity that HMI displays depend upon. In Experion PKS environments — where the TDC 3000 I/O subsystem is integrated via the C300 Controller or the Experion LX platform — the drop cable continues to serve as the foundational physical link between legacy I/O modules and the modernized control layer, supporting Honeywell’s Contextual Integration strategy for phased system migration without full I/O replacement.

Application in Layered Automation Systems

Petrochemical and Refining: In continuous process plants operating distillation columns, reactor trains, and heat exchanger networks, the TDC 3000 DCS manages thousands of analog and digital I/O points across multiple process units. The 51195153-902 drop cable is a standard component in the I/O subsystem of these installations, connecting APM or HPPM controllers to FTA panels that interface with pressure transmitters, temperature elements, flow meters, and control valve positioners. Maintaining a spare inventory of 51195153-902 cables is standard practice in turnaround planning for refineries operating on 4- to 6-year maintenance cycles.

Power Generation: Thermal power stations and combined-cycle plants using TDC 3000 for boiler management, turbine control, and balance-of-plant automation require reliable I/O link connectivity across large, distributed control cabinets. The 2.5M length of the 51195153-902 is well-suited to the standard inter-rack spacing found in power plant control rooms, where controller enclosures and I/O marshalling panels are co-located in the same row of cabinets.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities using TDC 3000 or Experion LX for pump station control, chemical dosing, and filtration management benefit from the long-term availability of the 51195153-902 as a serviceable spare. In these environments, where system uptime is directly tied to public health outcomes, the ability to replace a failed drop cable set quickly — backed by a 12-Month Warranty and pre-tested condition — reduces mean time to repair (MTTR) significantly.

Mining and Metallurgy: Mineral processing plants and smelting operations using TDC 3000 for conveyor control, crusher management, and furnace automation operate in high-vibration, high-dust environments that accelerate connector wear. Regular inspection and scheduled replacement of drop cable sets, including the 51195153-902, is a recommended preventive maintenance practice in these applications.

Architecture Engineering FAQ

Q1: Is the 51195153-902 compatible with both TDC 3000 and Experion PKS systems?
Yes. The 51195153-902 Drop Cable Set is designed for use within the TDC 3000 I/O subsystem and remains fully compatible in Experion PKS and Experion LX environments where TDC 3000 I/O modules are retained as part of a Contextual Integration migration strategy. It connects HPPM, APM, and HPM controller nodes to their associated I/O Link modules without requiring any adapter or modification. Customers migrating from TDC 3000 to Experion PKS incrementally can continue to use existing 51195153-902 cable sets throughout the transition period.

Q2: What is the recommended approach for maintaining drop cable inventory in a redundant controller architecture?
In a redundant HPPM or APM configuration, each controller node — primary and secondary — requires its own dedicated drop cable set. Best practice is to maintain a minimum of one spare 51195153-902 per redundant controller pair in the plant’s critical spare parts inventory. For large installations with multiple controller nodes, a ratio of one spare per four installed cables is commonly used. All units supplied by ZYPLC are pre-tested and inspected prior to shipment, covered by a 12-Month Warranty, ensuring that spare inventory is ready for immediate installation without additional bench testing.

Q3: How does cable length selection affect system performance, and when should the 51195153-902 (2.5M) be selected over other length variants?
Cable length selection is determined by the physical distance between the controller module slot and the I/O Link module within the control cabinet or between adjacent cabinets. The 51195153-902 (2.5M) is the standard choice for most single-cabinet and adjacent dual-cabinet configurations where the controller enclosure and I/O marshalling panel are within the same row. Using a cable that is too long introduces unnecessary slack that must be managed within the cabinet, increasing the risk of cable damage and EMI coupling. Using a cable that is too short prevents proper seating of connectors. ZYPLC’s engineering support team can assist with cable length selection based on your specific cabinet layout drawings.
