Honeywell 51198651-100 SPS5785 Energy-Saving Power Supply Module

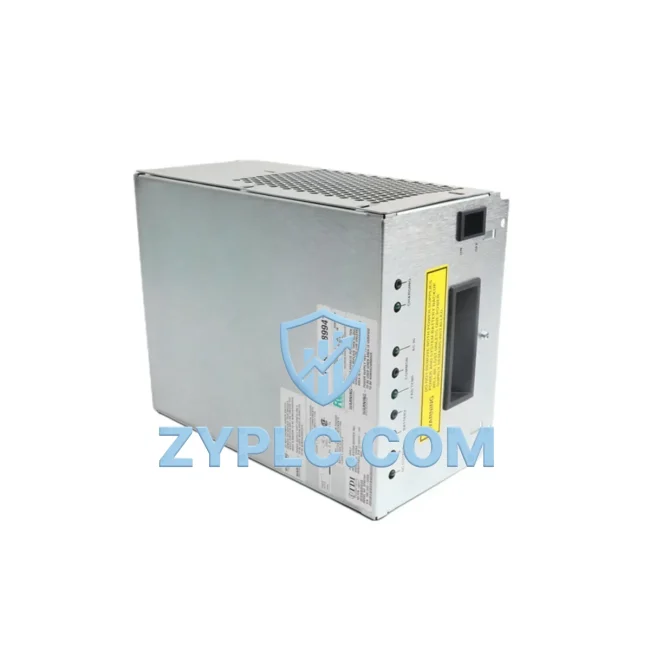

Honeywell 51198651-100 SPS5785 Energy-Saving Power Supply Module: Precision Energy Control for Experion PKS Automation

The Honeywell 51198651-100 SPS5785 is a high-efficiency power supply module engineered for the Experion PKS (Process Knowledge System) Distributed Control System platform. Designed to deliver stable, regulated DC power to critical control nodes across demanding industrial environments, this module plays a central role in reducing unnecessary energy consumption at the power distribution layer — one of the most overlooked sources of energy waste in modern process plants.

In large-scale manufacturing and process automation facilities, power supply inefficiency compounds across dozens of control cabinets. The SPS5785 addresses this directly by maintaining tight output regulation under variable load conditions, minimizing heat dissipation losses, and supporting continuous operation without the energy spikes associated with lower-grade alternatives. For facilities running Honeywell Experion PKS C300 controllers, C200 controllers, or IOLIM I/O Link Interface Modules, a stable and efficient power backbone is not optional — it is the foundation of reliable loop control and energy-aware automation.

Efficiency Performance Table

Energy-Aware Automation Architecture

The Honeywell 51198651-100 SPS5785 does not operate in isolation. Its value is best understood within the broader context of an energy-aware Experion PKS control architecture. In a typical process plant, the power supply module feeds regulated voltage to the Honeywell EPLCG4 Ethernet Gateway and associated Series C I/O modules, which in turn collect real-time field data from transmitters, flow meters, and pressure sensors. Any instability at the power layer propagates upstream — causing erratic PID loop behavior, false alarms, and unnecessary actuator cycling, all of which waste energy.

When paired with Honeywell C300 Process Controllers managing multi-loop regulatory control, the SPS5785 ensures that control execution cycles remain consistent and uninterrupted. Inconsistent power delivery forces controllers to re-initialize communication stacks, increasing CPU load and indirectly raising the energy footprint of the control node. By contrast, a well-regulated supply like the 51198651-100 keeps the C300’s internal bus voltage within tolerance, allowing the controller to execute scan cycles at rated speed without compensatory overhead.

On the drive side, facilities using Honeywell SPS5785-compatible power rails alongside variable frequency drives (VFDs) for motor speed regulation benefit from cleaner DC bus conditions. VFDs controlling pump motors, compressor drives, and conveyor systems are highly sensitive to upstream power quality. A stable 24 VDC supply to the I/O and control layer prevents nuisance trips and allows the VFD’s energy-saving speed profiles to execute without interruption — directly reducing kWh consumption per production cycle.

For energy monitoring integration, the SPS5785 supports coexistence with Honeywell Power Monitor modules and third-party energy meters communicating over HART or Modbus RTU protocols through the Experion PKS data highway. This allows plant energy managers to correlate power supply health data with real-time energy consumption dashboards, enabling proactive identification of inefficient operating zones before they escalate into unplanned downtime.

In redundant power configurations — common in safety-critical applications — the 51198651-100 can be deployed alongside a secondary Honeywell SPS5785 redundant power supply unit, ensuring seamless failover without voltage transients that could disturb sensitive IOLIM I/O Link Interface Modules or FIM Field Interface Modules connected downstream. This architecture eliminates the energy waste associated with emergency restarts and cold-boot sequences following unplanned power interruptions.

Power Optimization in Real Production Lines

In continuous process industries — refining, petrochemical, pharmaceutical, and food & beverage — production line efficiency is measured not just in throughput, but in energy consumed per unit of output. The Honeywell 51198651-100 SPS5785 contributes to this metric in several concrete ways.

Reducing Idle Energy Draw: Many aging DCS installations run power supplies at partial load for extended periods during low-demand shifts. The SPS5785’s regulated output maintains efficiency across a wide load range, avoiding the disproportionate energy losses that occur when older, linear power supplies operate below 50% rated load. This is particularly relevant in batch processing plants where control system power demand fluctuates significantly between active production and standby modes.

Minimizing Unplanned Downtime: Unplanned shutdowns triggered by power supply failures are among the most energy-intensive events in industrial operations. Restarting a process line — purging, re-pressurizing, re-heating, and re-synchronizing control loops — consumes far more energy than continuous operation. By deploying a tested, in-stock 51198651-100 as either a primary or hot-standby unit, maintenance teams can execute planned replacements during scheduled downtime windows, avoiding the energy penalty of emergency restarts.

Optimizing Production Line Tempo: In automated assembly and discrete manufacturing environments integrated with Experion PKS supervisory control, power supply stability directly affects the scan rate consistency of I/O modules. Voltage sag events — even brief ones — can cause I/O modules to miss scan cycles, introducing latency into the control loop and disrupting the production line tempo. The SPS5785’s tight output regulation prevents these micro-interruptions, keeping the line running at its designed cycle rate and maximizing equipment utilization.

Supporting Predictive Maintenance Programs: Modern energy optimization strategies rely on predictive maintenance to avoid the energy waste of reactive repairs. The 51198651-100, when monitored through Experion PKS system health dashboards, provides early warning indicators — such as output voltage drift or increased thermal output — that signal impending failure. Acting on these signals before failure occurs eliminates the energy cost of emergency production stops and allows maintenance resources to be deployed efficiently.

Every unit supplied by ZYPLC undergoes a comprehensive outgoing functional test prior to shipment, verifying output voltage accuracy, load regulation performance, and ripple characteristics. This ensures that the module arrives ready for immediate installation without the energy waste associated with field commissioning failures or return-and-replace cycles.

Energy Optimization FAQ

Q1: How does the Honeywell 51198651-100 SPS5785 contribute to energy savings in an Experion PKS system?
The SPS5785 maintains stable, regulated 24 VDC output across variable load conditions, reducing the energy losses associated with voltage instability, unnecessary actuator cycling, and controller re-initialization. In redundant configurations, it eliminates the energy cost of unplanned restarts by enabling seamless failover without voltage transients.

Q2: Is the 51198651-100 compatible with both C200 and C300 Experion PKS controller nodes?
Yes. The SPS5785 is designed for use within the Honeywell Experion PKS platform and is compatible with C200 and C300 controller chassis configurations, as well as associated Series C I/O modules and IOLIM interface modules. Always verify your specific chassis revision and power budget requirements before installation.

Q3: What is the replacement and testing process when ordering from ZYPLC?
All 51198651-100 SPS5785 units are tested prior to shipment using functional load testing procedures that verify output voltage, regulation accuracy, and ripple performance. Units are shipped with documentation confirming test results. ZYPLC maintains in-stock inventory to support urgent replacement requirements, minimizing production downtime.

Q4: What warranty coverage is provided, and what does it include?
ZYPLC provides a 12-month warranty on the Honeywell 51198651-100 SPS5785 from the date of shipment. The warranty covers functional defects identified under normal operating conditions consistent with the module’s rated specifications. Warranty claims are supported by ZYPLC’s technical team, with replacement units dispatched from in-stock inventory to minimize any impact on production continuity.
