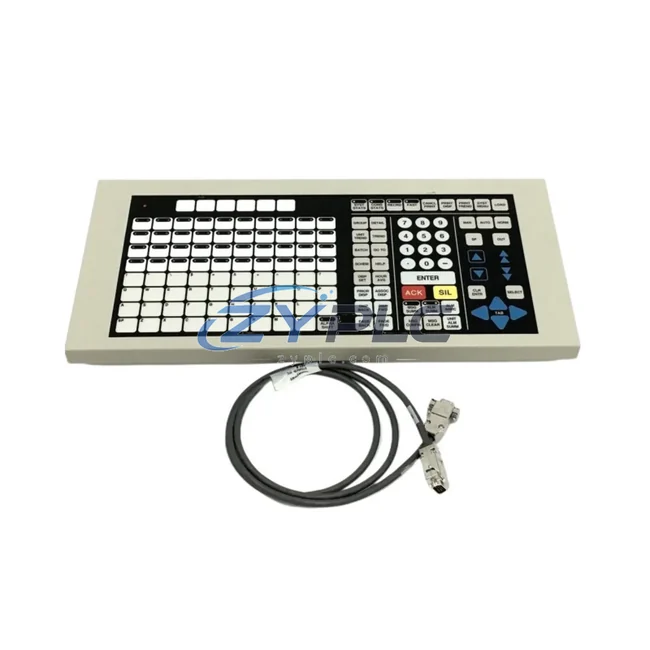

Honeywell 51402497-200 Industrial Operator Keyboard for TDC 3000

Honeywell 51402497-200 Industrial Operator Keyboard: Precision Data Link for TDC 3000 DCS Networks

The Honeywell 51402497-200 is a purpose-engineered Operator Keyboard designed for seamless integration within the TDC 3000 Distributed Control System (DCS) architecture. As a critical human-machine interface node, this unit bridges operator commands with the real-time data flows that run across Local Control Network (LCN) and Universal Control Network (UCN) segments — the backbone communication layers of Honeywell’s TDC 3000 platform. In smart factory environments where milliseconds matter, the 51402497-200 delivers deterministic, low-latency input processing that keeps process control loops stable and responsive.

Industrial sites operating TDC 3000 systems rely on a tightly integrated chain of hardware: from field-level sensors and transmitters feeding live process values into Honeywell PM (Process Manager) and AM (Advanced Manager) controllers, through the LCN data highway, and up to operator consoles where decisions are made. The 51402497-200 sits at the operator layer of this chain, providing the tactile, reliable input interface that process engineers and control room operators depend on during normal operations, alarm response, and emergency shutdowns.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding the 51402497-200 requires understanding the data flow architecture of the TDC 3000 ecosystem. At the field level, process variables — temperature, pressure, flow, and level — are captured by smart transmitters and fed into Honeywell HPM (High-Performance Process Manager) modules via the UCN. The HPM executes control algorithms and passes real-time data up through the LCN data highway to the operator tier.

At the operator tier, the Honeywell US (Universal Station) and GUS (Global User Station) workstations receive this data and render it as process graphics, trend displays, and alarm summaries. The 51402497-200 Operator Keyboard connects directly to these stations, giving operators a dedicated, ergonomically optimized input device for navigating displays, acknowledging alarms, entering setpoints, and executing control actions — all without the latency or reliability concerns of generic PC peripherals.

Upstream, the LCN connects to Honeywell NIM (Network Interface Module) gateways that bridge TDC 3000 networks with plant-wide Ethernet infrastructure, enabling data exchange with Honeywell Experion PKS SCADA servers and historian platforms. This integration allows the operator actions entered via the 51402497-200 to be logged, time-stamped, and made available for audit trails, production reporting, and remote monitoring by plant management systems.

In multi-loop and multi-unit plants, the TDC 3000 architecture also incorporates Honeywell AM (Application Module) nodes for advanced regulatory and supervisory control, and Honeywell HG (Hiway Gateway) modules for connecting legacy process equipment. The 51402497-200 supports operator interaction across all these connected subsystems from a single, unified console interface — a key advantage in complex petrochemical, refining, and power generation facilities where operators must manage hundreds of control loops simultaneously.

For sites transitioning toward IIoT and edge computing architectures, the TDC 3000 platform’s NIM and gateway modules can relay operator-initiated commands and process data to edge gateways and cloud historians, extending the reach of the 51402497-200’s input actions into enterprise-level analytics and remote operations centers.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is data isolation — the inability to move process data freely between field devices, control systems, and business intelligence platforms. The TDC 3000 architecture, and the operator interface hardware like the 51402497-200, was designed to address this at the control room level, but many plants still struggle with fragmented data flows between their DCS and modern SCADA, MES, or ERP systems.

The 51402497-200 supports a unified operator experience across the TDC 3000 network, reducing the risk of operator error caused by switching between incompatible interfaces. When paired with Honeywell’s NIM and gateway solutions, the operator actions and process responses captured through this keyboard can be routed to plant historians and SCADA platforms, breaking down the data silos that prevent real-time production transparency.

For plants running mixed-generation control infrastructure — combining TDC 3000 nodes with newer Honeywell Experion PKS C300 controllers or third-party PLCs — the LCN/UCN protocol framework provides a stable, deterministic communication backbone that prevents the protocol mismatches and data gaps that plague heterogeneous automation environments. The 51402497-200 ensures that operators always have a reliable, low-latency input path into this network, regardless of the complexity of the underlying system architecture.

Remote diagnostics and predictive maintenance are also enabled through this integrated architecture. By logging operator inputs and correlating them with process historian data, maintenance teams can identify patterns that precede equipment failures, schedule proactive interventions, and reduce unplanned downtime — all without requiring physical presence in the control room.

Every Honeywell 51402497-200 unit supplied by ZYPLC undergoes pre-shipment functional testing to verify communication integrity, key response, and interface compatibility with TDC 3000 console hardware. Units are shipped with full documentation and are backed by a warranty terms confirmed during quotation, with global express logistics to minimize lead times for critical spare parts requirements.

Industrial Connectivity FAQ

Q1: Is the Honeywell 51402497-200 compatible with both TDC 3000 and TPS (Total Plant Solution) systems?
Yes. The 51402497-200 is designed for the TDC 3000 DCS platform, which shares hardware and network architecture with the Honeywell TPS system. It is compatible with Universal Station (US) and Global User Station (GUS) console configurations used in both TDC 3000 and TPS environments.

Q2: What communication protocols does the 51402497-200 support, and how does it integrate with SCADA systems?
The 51402497-200 operates within the LCN (Local Control Network) and UCN (Universal Control Network) protocol framework native to TDC 3000. Integration with SCADA platforms such as Honeywell Experion PKS is achieved through NIM (Network Interface Module) gateways that bridge the LCN to plant Ethernet, enabling real-time data exchange and operator action logging in SCADA historians.

Q3: How does ZYPLC ensure network stability and communication reliability for this unit before shipment?
Each 51402497-200 unit undergoes pre-shipment functional testing covering key input response, LCN interface signal integrity, and console communication verification. Units are inspected against OEM specifications and shipped with test documentation. A warranty terms confirmed during quotation covers any communication or hardware defects identified after installation.

Q4: Can the 51402497-200 be used in expanded or upgraded TDC 3000 systems with additional HPM or AM nodes?
Yes. The TDC 3000 architecture supports modular expansion through additional HPM, AM, and NIM nodes on the LCN data highway. The 51402497-200 Operator Keyboard interfaces with the operator console layer and is not affected by the addition of new control or application modules — it continues to provide full operator access to all connected nodes as the system scales.
