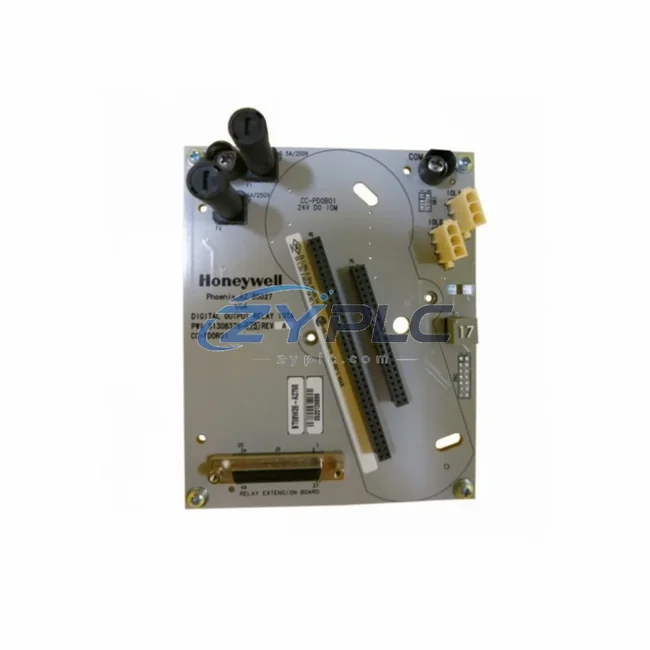

Honeywell 83957061-002 Digital Output Relay for MasterLogic

Honeywell 83957061-002 Digital Output Relay for MasterLogic

The Honeywell 83957061-002 is a digital output relay module engineered for deployment within the MasterLogic programmable automation controller platform. Designed to serve as a critical interface between the control layer and field-level actuators, this module delivers reliable relay-switched outputs that bridge the logic decisions of the CPU with real-world switching demands across industrial environments. Its role within a layered automation architecture is not limited to simple signal switching — it functions as a system-consistent output node that supports coordinated control, deterministic response, and long-term operational stability across the full control hierarchy.

In modern industrial control system design, the output layer must maintain electrical isolation, signal integrity, and mechanical reliability across thousands of switching cycles. The 83957061-002 addresses these requirements through its relay contact architecture, which provides galvanic isolation between the controller backplane and field devices. This isolation is essential in environments where inductive loads, motor starters, solenoid valves, and pilot lights share the same control cabinet, as it prevents transient voltages from propagating back into the CPU or communication modules.

Within the MasterLogic system architecture, the 83957061-002 is designed to slot into the standard MasterLogic rack and backplane, ensuring seamless I/O expansion without additional interface hardware. The module communicates with the MasterLogic CPU — such as the ML200 or ML300 series processors — through the internal backplane bus, enabling deterministic scan-cycle updates and synchronized output execution. This tight integration with the CPU layer ensures that output state changes are reflected within the controller’s I/O image table with minimal latency, supporting time-critical control sequences in process and discrete manufacturing applications.

From a system architecture perspective, the 83957061-002 occupies the output layer of a five-tier control hierarchy: the CPU and memory layer at the top, followed by the communication and network layer, the I/O and signal conditioning layer where this module resides, the power distribution layer, and finally the field device and actuator layer. Each tier must be engineered for compatibility, and the 83957061-002 is specifically validated for use within MasterLogic rack assemblies, ensuring that engineers do not face unexpected compatibility issues during commissioning or system expansion.

For system architects designing redundant control platforms, the 83957061-002 supports deployment in configurations where output modules are mirrored across primary and secondary racks. When paired with a MasterLogic redundancy CPU module and a redundancy communication link module, the output layer can be structured to maintain field device control even during a controller switchover event. This capability is particularly valuable in continuous process industries such as petrochemical refining, power generation, and water treatment, where unplanned output interruptions carry significant operational and safety consequences.

Maintenance engineers benefit from the module’s standardized form factor and backplane connector design, which allows hot-swap replacement in systems configured for online module exchange. Combined with the MasterLogic programming environment’s forced I/O and diagnostic capabilities, technicians can verify output channel status, identify relay contact wear, and perform loop checks without taking the entire rack offline. This reduces mean time to repair and supports the long-term maintainability goals of facilities operating under strict uptime requirements.

ZYPLC supplies the Honeywell 83957061-002 with a warranty terms confirmed during quotation, covering manufacturing defects and ensuring that replacement units meet original factory specifications. Our inventory is sourced through verified supply channels, and each unit undergoes pre-shipment inspection to confirm physical integrity and connector condition. export shipping options available is available to support urgent maintenance requirements and new system commissioning timelines.

Product Specification Table

System Compatibility Notes

The 83957061-002 achieves its full value when deployed as part of a coordinated MasterLogic control system rather than as a standalone component. In a typical MasterLogic rack assembly, the module operates alongside the MasterLogic ML300 CPU module, which executes the control program and manages the I/O scan cycle. The CPU communicates with all rack-mounted modules — including the 83957061-002 — through the MasterLogic backplane, which provides both power distribution and data exchange within the rack enclosure.

Power to the rack is supplied by a dedicated MasterLogic power supply module, which conditions incoming AC or DC supply voltage and delivers regulated DC power to the backplane. Proper power supply sizing is essential when the 83957061-002 is installed alongside high-density I/O modules, as relay output modules typically draw more backplane current than solid-state output equivalents due to coil energization requirements.

On the input side of the control loop, the 83957061-002 works in conjunction with MasterLogic digital input modules and analog input modules that gather process signals from field sensors, limit switches, and transmitters. The CPU processes these inputs, executes the control logic, and updates the output image table — triggering the relay contacts on the 83957061-002 to switch field devices such as motor contactors, solenoid valves, and alarm annunciators.

For applications requiring network connectivity, the MasterLogic platform supports Ethernet communication modules and serial communication modules that enable the controller to exchange data with SCADA systems, distributed control systems, and HMI terminals. The MasterLogic HMI interface — whether a panel-mounted operator terminal or a PC-based SCADA workstation — provides operators with real-time visibility into output channel states, including the relay contact status managed by the 83957061-002.

In cabinet-level design, the relay outputs of the 83957061-002 are typically wired through terminal block assemblies and protected by fuse terminal modules or circuit breakers to safeguard both the relay contacts and the field wiring. For inductive loads, surge suppression modules or RC snubber circuits are recommended to extend relay contact life and reduce electromagnetic interference within the control cabinet.

Industrial Application Notes

The Honeywell 83957061-002 is suited for deployment across a wide range of industrial sectors where relay output switching is required within a structured PLC-based control architecture.

In manufacturing and discrete production lines, the module controls conveyor drives, pneumatic actuators, and machine interlocks, providing the reliable switching performance required for high-cycle-rate operations. In power generation and electrical substation applications, relay outputs are used to operate circuit breaker trip coils, alarm relays, and auxiliary switching circuits, where galvanic isolation is a non-negotiable design requirement.

In petrochemical and refinery process control systems, the 83957061-002 manages pump start/stop sequences, valve actuator commands, and emergency shutdown relay circuits within safety-instrumented system architectures. In water and wastewater treatment facilities, the module controls pump stations, dosing systems, and aeration blowers as part of a distributed MasterLogic control network spanning multiple process areas.

In mining and metallurgical operations, the module’s robust relay contact design supports the high-current switching demands of conveyor belt drives, crusher motor starters, and ventilation fan controls. In packaging and material handling systems, the 83957061-002 provides the output switching required for reject gates, diverter arms, and labeling machine actuators within high-speed production environments.

Product Compatibility FAQ

Q1: Is the Honeywell 83957061-002 compatible with all MasterLogic rack configurations, and can it be mixed with other I/O module types in the same rack?
The 83957061-002 is designed for installation in standard MasterLogic racks and is compatible with the MasterLogic backplane architecture. It can be installed in any available I/O slot within the rack alongside digital input modules, analog I/O modules, and communication modules, provided that the total backplane current draw does not exceed the power supply module’s rated output. Engineers should consult the MasterLogic system configuration guide to verify slot assignments and power budgeting before finalizing the rack layout.

Q2: How does the 83957061-002 support redundant control architectures, and what additional components are required to implement output redundancy?
In redundant MasterLogic configurations, output redundancy is typically achieved at the system level by deploying mirrored racks with independent power supplies and CPU modules connected via a redundancy link. The 83957061-002 can be installed in both the primary and secondary racks, with field wiring connected to the active rack’s output terminals. During a switchover event, the redundancy CPU module transfers control to the secondary rack, and the corresponding output module assumes control of the field devices. A MasterLogic redundancy communication module is required to synchronize the I/O image tables between the two racks and ensure bumpless transfer of output states.

Q3: What does the warranty terms confirmed during quotation cover for the Honeywell 83957061-002, and what is the process for warranty claims through ZYPLC?
The warranty terms confirmed during quotation provided by ZYPLC covers manufacturing defects, component failures, and functional non-conformance identified under normal operating conditions within the specified environmental and electrical ratings of the module. Physical damage resulting from incorrect installation, overvoltage events, or misapplication is not covered. To initiate a warranty claim, customers should contact ZYPLC at plc.sales@zyplc.com or +86 19859288691 with the order reference, unit serial number, and a description of the observed fault. ZYPLC will arrange for unit inspection and, where applicable, replacement with an equivalent verified unit.
