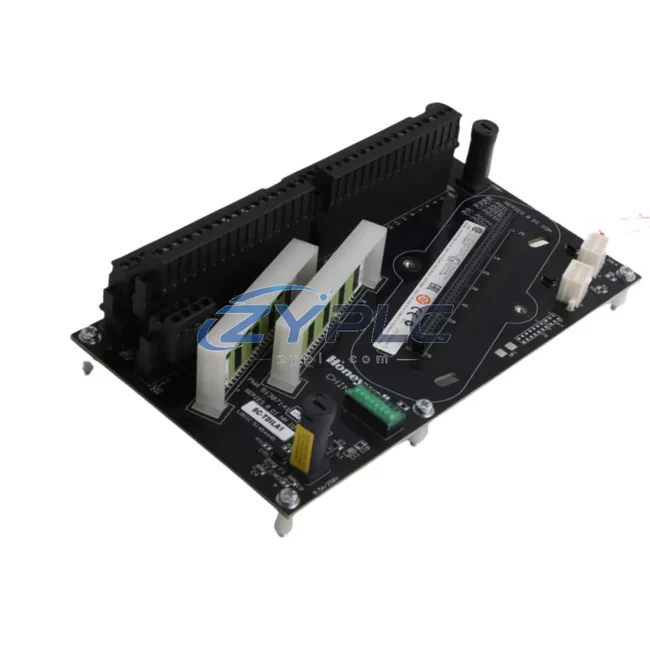

Honeywell 8C-TDILA1 51307141-175 Accumulation Module for 8C Series

Honeywell 8C-TDILA1 51307141-175 Accumulation Module for 8C Series

The Honeywell 8C-TDILA1 (Part No. 51307141-175) is a Digital Input Accumulation Module engineered for seamless integration within the Honeywell 8C Series distributed control system (DCS) architecture. Designed to operate as a precision signal acquisition node within multi-layer industrial automation environments, this module plays a critical role in bridging field-level discrete signals to the process control layer, ensuring data integrity, system consistency, and long-term operational reliability across demanding industrial applications.

In modern DCS architectures, every I/O module must function not as a standalone component but as a coordinated element within a layered control hierarchy. The 8C-TDILA1 fulfills this requirement by providing high-density digital input accumulation capabilities that align with the signal flow requirements of Honeywell’s Experion PKS and TDC 3000 control platforms. Its architecture-ready design ensures that system engineers can deploy it within existing 8C Series cabinets without compromising rack integrity, backplane communication, or redundancy configurations.

From the control layer perspective, the 8C-TDILA1 interfaces directly with Honeywell’s C300 Controller or MC-TDOY22 output modules, enabling synchronized data exchange across the process control network. At the I/O layer, it operates alongside complementary modules such as the 8C-TAIX11 Analog Input Module and 8C-TAOX11 Analog Output Module, forming a cohesive I/O subsystem capable of handling both discrete and analog signal types within the same rack assembly. This co-deployment capability reduces cabinet footprint and simplifies wiring discipline across multi-loop control strategies.

At the network layer, the module communicates via Honeywell’s FTE (Fault Tolerant Ethernet) backbone, ensuring that accumulated digital input data is transmitted to the supervisory layer with minimal latency and maximum reliability. This is particularly important in applications where pulse counting, event accumulation, or high-frequency discrete signal monitoring is required. The FTE architecture also supports redundant network paths, ensuring that a single network failure does not interrupt data acquisition continuity.

Power integrity is maintained through the 8C Series power distribution system, typically supplied by the MC-PDPY22 or equivalent 8C Series Power Supply Module. The 8C-TDILA1 draws regulated DC power from the backplane, eliminating the need for external field power conditioning and reducing the risk of ground loop interference in sensitive measurement circuits. This design philosophy is consistent across the 8C Series platform, allowing maintenance engineers to replace or hot-swap modules without de-energizing adjacent I/O channels.

For human-machine interface (HMI) integration, the accumulated digital input data processed by the 8C-TDILA1 is made available to Honeywell’s Experion Station or third-party SCADA systems via OPC-DA or OPC-UA protocols. This enables operators to monitor pulse totals, event counts, and discrete state transitions in real time, supporting both process optimization and regulatory compliance reporting. The module’s data output is fully compatible with Honeywell’s Universal Control Network (UCN) and FOUNDATION Fieldbus gateway configurations, providing flexibility for hybrid architecture deployments.

At the execution layer, the 8C-TDILA1 supports integration with motor control centers, variable frequency drives (VFDs), and relay output modules such as the MC-TDOY22, enabling closed-loop control strategies that respond dynamically to accumulated input thresholds. This capability is essential in applications such as batch processing, flow totalization, and energy metering, where precise event counting directly influences downstream actuator commands.

Product Specification Table

System Compatibility Notes

The 8C-TDILA1 achieves its full operational value when deployed as part of a coordinated 8C Series control system architecture. In a typical Honeywell Experion PKS installation, the module occupies a designated slot within the 8C Series I/O Rack, sharing the backplane with modules such as the 8C-TAIX11 Analog Input Module for continuous process variable acquisition and the 8C-TAOX11 Analog Output Module for proportional control signal generation. This co-location within the same rack assembly minimizes signal propagation delays and simplifies the overall cabinet layout.

The Honeywell C300 Process Controller serves as the primary control engine coordinating data from the 8C-TDILA1, executing control algorithms that respond to accumulated pulse counts or discrete event thresholds. In redundant configurations, a secondary C300 controller operates in hot-standby mode, ensuring bumpless transfer in the event of a primary controller failure. This redundancy architecture is further supported by the MC-PDPY22 Power Supply Module, which provides dual-redundant power feeds to the I/O rack, eliminating single points of failure at the power distribution layer.

For applications requiring digital output responses to accumulated input events, the MC-TDOY22 Digital Output Module is typically deployed in the same rack or an adjacent rack, enabling the control system to trigger relay outputs, solenoid valves, or motor starters based on pulse count thresholds defined in the C300 controller logic. This tight integration between input accumulation and output execution is a hallmark of the 8C Series architecture’s closed-loop design philosophy.

Network connectivity is managed through the Honeywell ESVT FTE Switch or equivalent managed Ethernet switch, which provides the fault-tolerant network backbone connecting I/O racks, controllers, and operator stations. In geographically distributed installations, Honeywell’s ControlNet or FOUNDATION Fieldbus Gateway Modules extend the control network to remote I/O panels, allowing the 8C-TDILA1 to function as part of a plant-wide digital input accumulation strategy without requiring dedicated field wiring back to the central control room.

At the human-machine interface layer, Honeywell Experion Operator Stations display real-time accumulated counts and discrete input states sourced from the 8C-TDILA1, enabling operators to monitor process events, acknowledge alarms, and generate compliance reports without leaving the control room environment. For installations requiring local panel indication, Honeywell’s HC900 Hybrid Controller or compatible HMI terminals can be integrated to provide localized display of key accumulation parameters.

Terminal block assemblies, such as the Honeywell 8C-TBATH1 or equivalent field termination assemblies, provide the physical interface between field wiring and the 8C-TDILA1’s input channels, ensuring reliable signal termination and simplifying maintenance activities during scheduled outages or unplanned corrective maintenance events.

Industrial Application Notes

The Honeywell 8C-TDILA1 51307141-175 is deployed across a wide range of industrial sectors where precise digital input accumulation is essential to process integrity and regulatory compliance.

In power generation and electrical utilities, the module is used to accumulate pulse outputs from energy meters, turbine speed sensors, and protective relay contact closures, providing the control system with accurate event counts that feed into maintenance planning and fault analysis algorithms. Its optical isolation and FTE communication capabilities make it particularly well-suited for high-voltage substation environments where electrical noise immunity is a primary design requirement.

In oil and gas and petrochemical processing, the 8C-TDILA1 supports flow totalization applications by accumulating pulse outputs from turbine flowmeters, Coriolis meters, and positive displacement meters. The accumulated totals are used by the Experion PKS control system to manage custody transfer calculations, batch loading operations, and pipeline inventory management, all of which require high-accuracy pulse counting with minimal signal loss.

In water and wastewater treatment, the module accumulates flow pulses from electromagnetic flowmeters and pump run-hour signals from motor control centers, enabling the DCS to calculate daily throughput totals, chemical dosing ratios, and equipment utilization metrics. This data supports both process optimization and regulatory reporting requirements imposed by environmental compliance frameworks.

In mining and metallurgical processing, the 8C-TDILA1 is integrated into conveyor belt monitoring systems, crusher control panels, and ore processing lines, where it accumulates discrete signals from proximity sensors, belt speed encoders, and level switches. The accumulated data feeds into production reporting systems and predictive maintenance algorithms, reducing unplanned downtime and improving overall equipment effectiveness (OEE).

In pharmaceutical and food and beverage manufacturing, the module supports batch process control by accumulating discrete input events from filling machines, capping stations, and inspection systems, ensuring that batch records accurately reflect the number of units processed, rejected, or reworked during each production run. This capability is essential for GMP compliance and traceability requirements.

Product Compatibility FAQ

Q1: Is the 8C-TDILA1 51307141-175 compatible with both Honeywell Experion PKS and TDC 3000 control platforms?
A: Yes. The 8C-TDILA1 is designed for the Honeywell 8C Series I/O platform, which is compatible with both the Experion PKS and legacy TDC 3000 distributed control systems. It integrates directly into the 8C Series I/O rack via the standard backplane interface, and its communication protocol is fully supported by both the C300 Controller (Experion PKS) and the HPM (High-Performance Process Manager) used in TDC 3000 architectures. System engineers should verify rack slot assignments and I/O builder configurations in the Experion Configuration Studio or TDC 3000 Engineering Console prior to installation.

Q2: Can the 8C-TDILA1 be installed or replaced without shutting down the entire I/O rack?
A: The 8C Series platform supports hot-swap capability for I/O modules under specific conditions, including the use of compatible field termination assemblies and the activation of the module’s online replacement procedure within the Experion PKS control environment. Before performing a hot-swap, engineers should confirm that the associated control strategy is in manual mode or that redundant I/O paths are active to prevent process upsets. ZYPLC recommends consulting the Honeywell 8C Series I/O Installation and Maintenance Guide and verifying firmware compatibility before proceeding with any online module replacement.

Q3: What does the warranty terms confirmed during quotation cover, and how does ZYPLC support long-term maintenance for the 8C-TDILA1?
A: ZYPLC’s warranty terms confirmed during quotation covers manufacturing defects, functional failures under normal operating conditions, and component-level quality issues identified during the warranty period. Each 8C-TDILA1 unit is tested and inspected prior to dispatch to ensure full functional compliance with Honeywell’s original specifications. For long-term maintenance support, ZYPLC maintains inventory of 8C Series I/O modules to support planned maintenance outages, emergency replacements, and system expansion projects. Customers can contact ZYPLC’s technical support team at plc.sales@zyplc.com or +86 19859288691 for spare parts planning, compatibility verification, and post-warranty repair services.
