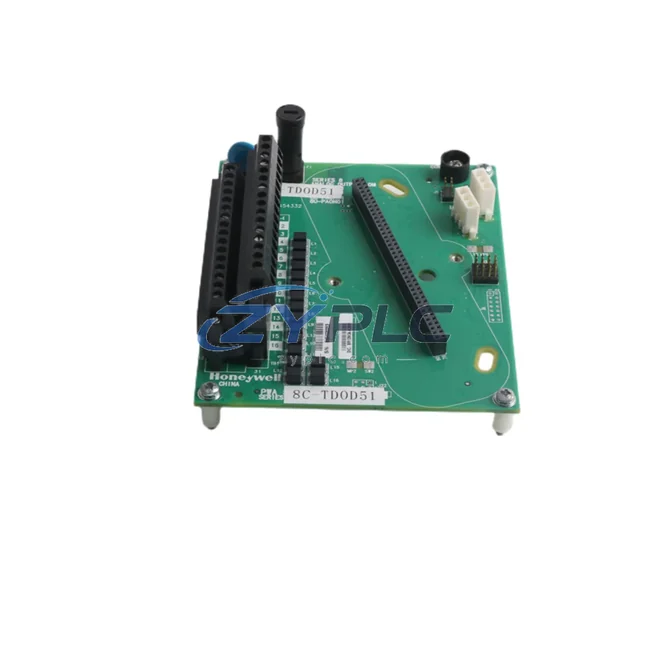

Honeywell 8C-TDOD51 Digital Output Module for C300 Systems

Honeywell 8C-TDOD51 Digital Output Module: Industrial Data Link for Smart Factory Connectivity

The Honeywell 8C-TDOD51 is a high-reliability 8-channel digital output module engineered for the Experion PKS C300 Distributed Control System (DCS). Designed to serve as a critical node in the industrial data chain, the 8C-TDOD51 bridges field-level actuators, solenoid valves, and relay-driven devices with the supervisory control layer — enabling seamless signal transmission, real-time command execution, and deterministic process control across complex manufacturing environments.

In modern smart factory architectures, the integrity of the output data path is as important as the input signal chain. The 8C-TDOD51 operates over Honeywell’s proprietary Fault Tolerant Ethernet (FTE) protocol, a dual-redundant network architecture that ensures zero-packet-loss communication between the C300 Controller and field I/O modules. This redundancy eliminates single points of failure in the control network, making it ideal for continuous process industries including oil & gas, petrochemical refining, power generation, and pharmaceutical manufacturing.

Compatibility & Integration Notes

Connected Automation Data Flow

The 8C-TDOD51 sits at the execution layer of the Experion PKS control hierarchy. Data originates at the supervisory level — from the Experion PKS Server running on a redundant Windows-based platform — and flows downward through the C300 Controller via the FTE network. The C300 processes control logic and issues output commands to the 8C-TDOD51 module over the CIOM-A backplane, which then drives field devices with 24 VDC digital signals.

In a typical process loop, analog input data from Honeywell 8C-TAIX51 Analog Input Modules or 8C-TDID51 Digital Input Modules feeds process variable values into the C300 controller. The controller evaluates the control algorithm and sends discrete output commands to the 8C-TDOD51, which activates solenoid valves, motor starters, or alarm annunciators on the plant floor. This closed-loop data path — from sensor to controller to actuator — forms the backbone of real-time process automation.

For remote monitoring and SCADA integration, the Experion PKS platform connects to Honeywell Station HMI consoles and third-party SCADA systems via OPC-DA or OPC-UA interfaces. Operators can visualize the real-time status of each digital output channel, acknowledge alarms, and issue manual override commands without interrupting the automated control sequence. The Honeywell FTE Switch (FTSS) infrastructure ensures that all network traffic between the C300 and the Experion Server remains fault-tolerant, with automatic failover in under 50 milliseconds.

In expanded plant architectures, the 8C-TDOD51 coexists with Honeywell 8C-TAOX51 Analog Output Modules and 8C-TCNT01 Control Network Interface Modules on the same CIOM-A carrier, allowing engineers to mix signal types within a single I/O enclosure. For safety-critical applications, the module integrates with Honeywell Safety Manager systems via hardwired interlock signals, providing a hardware-enforced safety layer independent of the DCS network. Remote I/O expansion is supported through Honeywell IOLIM (I/O Link Interface Module) configurations, extending the C300’s reach to field junction boxes located hundreds of meters from the control room.

Edge connectivity is further enhanced when the Experion PKS platform is paired with Honeywell Connected Plant solutions or third-party edge gateways supporting MQTT and REST API protocols, enabling cloud-based analytics, predictive maintenance dashboards, and enterprise-level KPI reporting from the same digital output data generated by the 8C-TDOD51.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy DCS environments is protocol fragmentation — where field devices, controllers, and supervisory systems speak different communication languages, creating data silos that prevent plant-wide visibility. The Honeywell 8C-TDOD51, as part of the Experion PKS C300 ecosystem, directly addresses this problem through a unified FTE-based network architecture that standardizes communication from the field device level to the enterprise data layer.

Plants that previously relied on hardwired relay logic or older Honeywell TDC 3000 systems can migrate to the C300 platform while retaining existing field wiring, dramatically reducing retrofit costs. The 8C-TDOD51’s channel isolation ensures that a fault in one output circuit does not propagate to adjacent channels or the control network, maintaining system integrity during partial failures. For remote monitoring, the Experion PKS platform’s built-in alarm management and event journaling capabilities provide operators with a complete audit trail of every digital output state change — critical for regulatory compliance in pharmaceutical and food processing industries.

Production line transparency is achieved through real-time OEE (Overall Equipment Effectiveness) dashboards that pull digital output status data from the C300 via the Experion Historian. Engineers can identify bottlenecks, track actuator cycle counts, and schedule predictive maintenance before equipment failures occur. System expansion is straightforward: additional CIOM-A carriers and 8C-TDOD51 modules can be added to the C300 I/O network without interrupting ongoing production, supporting phased capacity upgrades aligned with business growth.

All units supplied by ZYPLC undergo pre-shipment functional testing, verifying channel continuity, isolation resistance, and FTE communication handshake before dispatch. Inventory is maintained availability confirmed by RFQ for rapid fulfillment, with global shipping available to support urgent MRO (Maintenance, Repair, and Operations) requirements. Every 8C-TDOD51 is backed by a warranty terms confirmed during quotation, covering manufacturing defects and communication failures under normal operating conditions.

Industrial Connectivity FAQ

Q1: What is the communication latency of the 8C-TDOD51 within the Experion PKS C300 network?
The 8C-TDOD51 communicates over the CIOM-A backplane at the I/O module scan rate defined by the C300 Controller, typically achieving deterministic update cycles in the range of 50–100 milliseconds for standard process control applications. The FTE network layer adds negligible latency due to its hardware-switched, dedicated Ethernet topology.

Q2: Is the 8C-TDOD51 compatible with third-party SCADA systems and OPC servers?
Yes. The 8C-TDOD51 integrates with any SCADA platform that supports OPC-DA or OPC-UA connectivity through the Honeywell Experion PKS Server. Third-party HMI and SCADA systems from vendors such as Wonderware, Ignition, and Siemens WinCC can access digital output status data via the Experion OPC interface without requiring additional protocol converters.

Q3: How does the FTE dual-redundant network ensure stability for the 8C-TDOD51 in critical processes?
Fault Tolerant Ethernet operates two parallel network paths simultaneously. If one path experiences a cable fault, switch failure, or packet loss event, the FTE protocol automatically switches all traffic to the redundant path in under 50 milliseconds — transparent to the control application. This ensures that digital output commands from the C300 to the 8C-TDOD51 are never interrupted, even during network maintenance activities.

Q4: What warranty and pre-shipment testing does ZYPLC provide for the 8C-TDOD51?
Every 8C-TDOD51 unit supplied by ZYPLC is tested prior to shipment to verify channel functionality, electrical isolation, and communication integrity. A warranty terms confirmed during quotation is included, covering defects in materials and workmanship. Expedited shipping options are available for emergency MRO requirements, with stock maintained for shipment arranged after confirmation.
