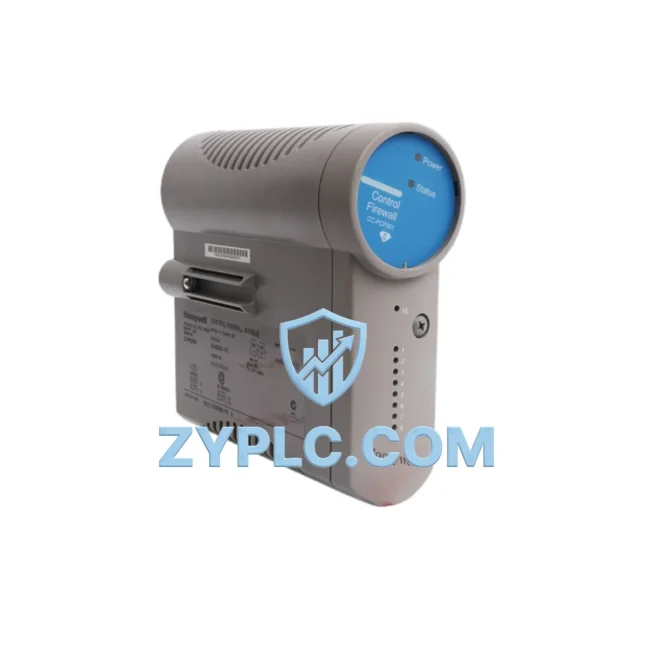

Honeywell CC-PCF901 51405047-175 System-Ready DCS Controller for C300 Architecture

Honeywell CC-PCF901 51405047-175 System-Ready DCS Controller for C300 Architecture

The Honeywell CC-PCF901 51405047-175 is a high-performance DCS controller module engineered for seamless integration within the Honeywell C300 control system architecture. Designed to serve as the central processing backbone of distributed control environments, this module coordinates signal acquisition, logic execution, and real-time communication across all layers of an industrial automation system. Whether deployed in greenfield installations or as a replacement component in an existing Experion PKS platform, the CC-PCF901 delivers the processing consistency and architectural coherence that modern process industries demand.

In a fully layered automation architecture, the CC-PCF901 occupies the control layer — the critical tier that bridges field-level I/O with supervisory systems and operator interfaces. Its role is not simply to execute control logic in isolation, but to act as the coordination hub for upstream and downstream system components. From managing I/O module communication on the C300 chassis to synchronizing data exchange with the Experion PKS server, this controller ensures that every element of the control hierarchy operates with precision and reliability.

System architects integrating the CC-PCF901 into a C300 platform will find it fully compatible with the standard C300 controller chassis, including the CC-PCNT01 chassis backplane and associated power supply modules such as the CC-PWR001. The controller communicates with remote I/O cabinets via the FTE (Fault Tolerant Ethernet) network, enabling deterministic data exchange with distributed I/O nodes. This architecture supports both simplex and redundant controller configurations, making the CC-PCF901 suitable for applications where continuous availability is a non-negotiable requirement.

At the I/O layer, the CC-PCF901 interfaces with a broad range of Honeywell Series C I/O modules, including analog input modules (CC-PAIX01), analog output modules (CC-PAOX01), digital input modules (CC-PDIL01), and digital output modules (CC-PDOB01). These modules connect to the controller via the Series C I/O Link, providing high-speed, deterministic signal processing for both process measurement and final control element actuation. The modular I/O architecture allows engineers to scale the system incrementally, adding I/O capacity without disrupting existing control logic or requiring controller replacement.

At the network layer, the CC-PCF901 leverages Honeywell’s FTE infrastructure, which provides dual-path Ethernet redundancy at the control network level. This design eliminates single points of network failure and ensures that controller-to-server communication remains uninterrupted even during cable faults or switch failures. Integration with Honeywell’s Experion PKS server platform enables full historian connectivity, alarm management, and advanced process control (APC) coordination, supporting plant-wide data visibility and regulatory compliance reporting.

For human-machine interface connectivity, the CC-PCF901 supports integration with Honeywell Experion operator stations and engineering workstations running the Experion PKS software suite. Operators can monitor real-time process values, acknowledge alarms, and execute manual overrides directly from the HMI layer, with all data routed through the FTE network to the C300 controller. This seamless HMI-to-controller communication path reduces operator response time and improves situational awareness during abnormal process conditions.

In redundant system designs, the CC-PCF901 can be paired with a redundant controller module to form a hot-standby pair. The primary and secondary controllers synchronize their internal states continuously, ensuring bumpless transfer in the event of a primary controller fault. This redundancy architecture is particularly valuable in applications such as refinery distillation columns, power generation turbine control, and chemical reactor management, where an unplanned controller outage could result in significant production loss or safety incidents.

From an engineering and commissioning perspective, the CC-PCF901 supports Honeywell’s Control Builder engineering environment, which provides a graphical function block programming interface compliant with IEC 61131-3 standards. Engineers can develop, simulate, and download control strategies directly to the controller without requiring physical access to the panel, reducing commissioning time and minimizing the risk of wiring errors. The controller’s diagnostic capabilities also support online fault detection, enabling maintenance teams to identify and resolve issues before they escalate to process upsets.

Long-term maintenance planning is simplified by the CC-PCF901’s modular design and broad spare parts availability. Facilities managers can maintain a single spare controller module to cover multiple C300 controller nodes across a plant, reducing inventory carrying costs while ensuring rapid recovery from hardware failures. All units supplied by ZYPLC are fully tested, inspected, and covered by a 12-Month Warranty, providing procurement teams with the confidence to source replacement and expansion modules without the lead time uncertainty associated with OEM channels.

Architecture Specification Table

Coordinated Control System Design

A complete C300-based control system built around the CC-PCF901 typically incorporates a structured set of coordinated components across all system layers. At the controller level, the CC-PCF901 operates within the CC-PCNT01 chassis backplane, which provides the physical and electrical interconnection between the controller and its associated I/O modules. Power is supplied by the CC-PWR001 power supply module, which delivers regulated DC power to the controller and I/O bus with built-in overcurrent protection.

At the I/O layer, the CC-PCF901 communicates with Series C analog and digital I/O modules mounted in remote I/O enclosures. Typical configurations include the CC-PAIX01 8-channel analog input module for process variable measurement, the CC-PAOX01 analog output module for control valve positioning, and the CC-PDIL01 and CC-PDOB01 digital I/O modules for discrete signal handling. These modules connect to the controller via the Series C I/O Link, with each remote I/O cabinet housing up to 40 I/O modules per node.

At the network layer, the FTE switch infrastructure — typically Honeywell-qualified managed Ethernet switches — provides the dual-path communication backbone between the CC-PCF901 and the Experion PKS server. This network architecture supports controller-to-controller peer communication, enabling coordinated control strategies across multiple C300 nodes in large-scale plant installations. For legacy system integration, the CC-PCF901 can interface with third-party systems via Modbus TCP or OPC DA/UA gateways, extending its connectivity to older PLCs, RTUs, and SCADA platforms.

At the HMI layer, Honeywell Experion operator stations provide the primary interface for process monitoring and control. Engineering workstations running Control Builder connect directly to the controller via the FTE network for strategy development, download, and online diagnostics. For field-level diagnostics, handheld HART communicators can interface with HART-enabled I/O modules connected to the CC-PCF901, enabling valve and transmitter calibration without interrupting the control loop.

Application in Layered Automation Systems

The CC-PCF901 is deployed across a wide range of process industries where system reliability, scalability, and long-term maintainability are critical requirements. In oil refinery applications, the controller manages distillation column temperature and pressure control loops, coordinating with multiple analog I/O modules and advanced process control (APC) applications running on the Experion PKS server. In power generation facilities, the CC-PCF901 supports turbine control and boiler management systems, where its hot-standby redundancy capability ensures continuous operation during planned and unplanned maintenance events.

In chemical and petrochemical plants, the controller’s IEC 61131-3 compliant programming environment enables the implementation of complex batch and continuous control strategies, including cascade control, ratio control, and model predictive control (MPC) integration. Water and wastewater treatment facilities use the CC-PCF901 to manage pump sequencing, chemical dosing, and filtration process control, leveraging its FTE network connectivity to integrate with plant-wide SCADA systems. In mining and mineral processing operations, the controller’s robust operating temperature range and modular I/O architecture support deployment in harsh industrial environments with high vibration and wide temperature variation.

Packaging and material handling lines benefit from the CC-PCF901’s fast scan cycle times and deterministic I/O response, enabling precise coordination of conveyor drives, robotic pick-and-place systems, and vision inspection stations. In metallurgical and steel mill applications, the controller manages furnace temperature profiles, rolling mill speed control, and cooling water flow regulation, integrating with drive systems and process instrumentation across large plant footprints.

Architecture Engineering FAQ

Q1: Is the CC-PCF901 51405047-175 compatible with existing C300 controller chassis and I/O modules already installed in my plant?
Yes. The CC-PCF901 51405047-175 is fully compatible with the standard Honeywell C300 controller chassis (CC-PCNT01) and the complete range of Series C I/O modules, including analog and digital input/output modules. It integrates directly into existing Experion PKS architectures without requiring firmware upgrades to the I/O layer or changes to the FTE network infrastructure. Before installation, verify the Experion PKS server software version to confirm controller firmware compatibility.

Q2: Can the CC-PCF901 be configured in a redundant controller pair, and what is required for hot-standby operation?
Yes. The CC-PCF901 supports hot-standby redundancy when paired with a second CC-PCF901 module in a redundant chassis configuration. Both controllers must be installed in a redundancy-capable C300 chassis, connected via the FTE network, and configured as a redundant pair in the Control Builder engineering environment. The primary and secondary controllers synchronize their internal states continuously, enabling bumpless transfer with no process disruption in the event of a primary controller fault. No additional hardware is required beyond the second controller module and the redundancy-capable chassis.

Q3: What warranty and long-term support does ZYPLC provide for the CC-PCF901, and how does this benefit multi-year maintenance planning?
All CC-PCF901 51405047-175 modules supplied by ZYPLC are covered by a 12-Month Warranty, which includes replacement or repair of any unit that fails due to manufacturing defects or component failure under normal operating conditions. Units are fully tested and inspected prior to shipment, with functional verification against Honeywell factory specifications. For multi-year maintenance planning, ZYPLC maintains stock of C300 controller modules and associated components, enabling rapid procurement of spare units without the extended lead times typical of OEM channels. Contact ZYPLC at [email protected] or +86 19859288691 to discuss volume pricing and long-term supply agreements.
