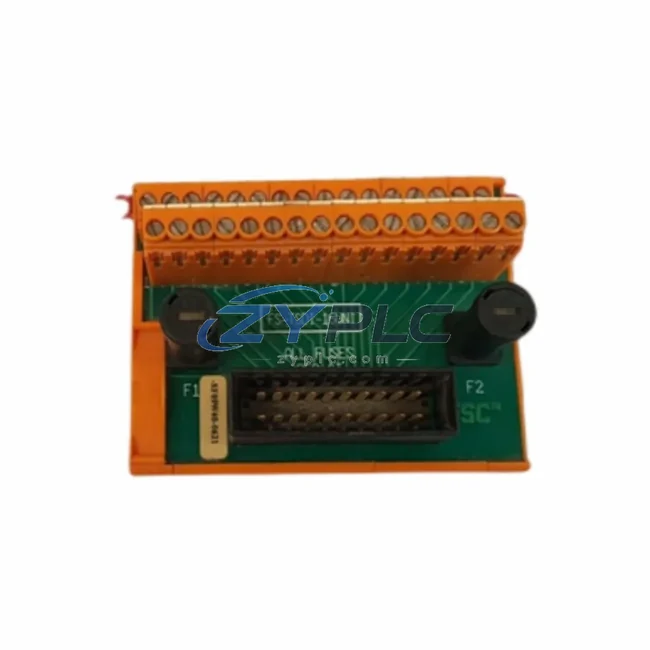

Honeywell FS-TSDI-16UNI Safety I/O Module for FSC Systems

Honeywell FS-TSDI-16UNI Industrial Network Interface for FSC Systems: Bridging Safety Data Across the Smart Factory

The Honeywell FS-TSDI-16UNI is a 16-channel universal field termination assembly module engineered for the Honeywell FSC (Fail-Safe Controller) Series safety systems. Designed to operate at the intersection of field instrumentation and safety-critical control networks, this module serves as a foundational data acquisition and signal conditioning node in process automation, oil & gas, chemical, and power generation environments. With its universal I/O architecture, the FS-TSDI-16UNI accepts a wide range of signal types — including digital inputs, digital outputs, and analog signals — enabling seamless integration across heterogeneous field device ecosystems without the need for additional signal converters.

In modern smart factory deployments, the FS-TSDI-16UNI functions as the critical first link in the industrial data chain. Field sensors, pressure transmitters, flame detectors, and emergency shutdown (ESD) actuators connect directly to this module, which then passes structured, validated safety data upstream to the Honeywell FSC Central Processing Unit via the FSC backplane bus. This deterministic, low-latency data path ensures that safety logic executes within defined SIL 2 and SIL 3 response time windows — a non-negotiable requirement in functional safety architectures governed by IEC 61508 and IEC 61511.

Compatibility & Integration Notes

Connected Automation Data Flow

Understanding how the FS-TSDI-16UNI fits within a complete industrial automation architecture reveals its true value. At the field level, devices such as Honeywell STT850 Smart Temperature Transmitters and Honeywell SPS series pressure sensors deliver process variable data to the FS-TSDI-16UNI’s universal input channels. The module conditions these signals and passes them through the FSC backplane to the Honeywell FSC CPU Module (FS-CPU-II), where safety logic is executed in real time.

For facilities requiring integration with distributed control systems (DCS), the FSC network can be bridged to a Honeywell Experion PKS DCS via a Modbus TCP/IP gateway or a dedicated FSC-to-Ethernet communication module. This allows SCADA operators to monitor safety loop status, valve positions, and alarm states from a centralized Honeywell HMIWeb Display Builder or third-party SCADA platform such as Wonderware InTouch or Ignition SCADA.

In parallel, remote I/O expansion is achievable through Honeywell FSC Remote I/O Modules, which extend the safety network across large plant footprints without signal degradation. For drive-level integration, Honeywell SmartVFD variable frequency drives can be connected via Profibus DP or Modbus RTU, with their operational status and fault data flowing back through the safety network to the FSC CPU for coordinated emergency shutdown logic.

Edge computing nodes — such as an industrial edge gateway running IEC 61131-3 soft PLC logic — can subscribe to real-time data published by the FSC system over OPC-UA, enabling predictive maintenance analytics and digital twin synchronization without interrupting the safety-critical data path. Power integrity across the entire network is maintained by Honeywell industrial DIN-rail power supplies, which provide redundant 24VDC feeds to both the FSC chassis and field termination assemblies, ensuring uninterrupted operation during grid fluctuations.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy process plants is data isolation — safety systems, DCS networks, and field devices operating in separate communication silos with no unified visibility. The FS-TSDI-16UNI directly addresses this by providing a standardized, protocol-agnostic field termination point that can be integrated into multi-protocol network architectures.

Protocol Fragmentation: Many brownfield sites run a mix of HART, Profibus DP, Modbus RTU, and Foundation Fieldbus devices. The FS-TSDI-16UNI’s universal channel architecture accepts signals from all these device types, while upstream gateway modules handle protocol translation to Modbus TCP or OPC-UA for SCADA consumption — eliminating the need for parallel wiring infrastructures.

Remote Monitoring & Diagnostics: With FSC system data accessible via Modbus TCP or Ethernet-based gateways, maintenance engineers can perform remote diagnostics on individual I/O channels, verify signal integrity, and identify wiring faults without physical site visits. This capability is critical for offshore platforms, remote pipeline stations, and unmanned substations where on-site intervention is costly and time-consuming.

Production Line Transparency: By feeding real-time safety loop data into SCADA dashboards, plant managers gain full visibility into ESD valve states, fire and gas detector status, and interlock conditions across the entire production line. This transparency enables faster root-cause analysis during incidents and supports continuous improvement initiatives aligned with IEC 61511 lifecycle requirements.

System Scalability: The FSC modular architecture allows additional FS-TSDI-16UNI modules to be added to the chassis as the safety system expands — supporting new process units, additional field devices, or upgraded safety functions — without redesigning the existing network topology. This scalability protects capital investment and reduces future engineering costs.

All units supplied by ZYPLC are tested before shipment, with full functional verification of I/O channels, communication interfaces, and safety diagnostics. Stock is maintained for shipment arranged after confirmation, and every module is covered by a warranty terms confirmed during quotation from the date of delivery.

Industrial Connectivity FAQ

Q1: What communication protocols does the Honeywell FS-TSDI-16UNI support for SCADA integration?
The FS-TSDI-16UNI interfaces natively with the FSC backplane bus. For SCADA integration, the FSC system supports Modbus RTU and Modbus TCP via communication gateway modules, and can be further extended to OPC-UA or Profibus DP using appropriate protocol converters. This makes it compatible with leading SCADA platforms including Honeywell Experion, Wonderware, and Ignition.

Q2: Is the FS-TSDI-16UNI suitable for SIL 3 safety loops?
Yes. The FS-TSDI-16UNI is certified for use in SIL 2 and SIL 3 safety instrumented functions (SIFs) when deployed within a properly designed FSC safety system architecture in accordance with IEC 61508 and IEC 61511. System-level SIL verification must be performed by a qualified functional safety engineer.

Q3: How does ZYPLC ensure network stability and product quality before shipment?
Every FS-TSDI-16UNI unit undergoes pre-shipment functional testing, including I/O channel verification, communication interface checks, and diagnostic self-test validation. Units are shipped with original manufacturer packaging where available, and all products are backed by a warranty terms confirmed during quotation covering hardware defects and communication failures.

Q4: Can the FS-TSDI-16UNI be expanded as the safety system grows?
Absolutely. The FSC platform is designed for modular expansion. Additional FS-TSDI-16UNI field termination assemblies can be added to the FSC chassis to accommodate new I/O points, additional field devices, or expanded safety functions — without modifying the existing network architecture or requiring a system restart in most configurations.

—
