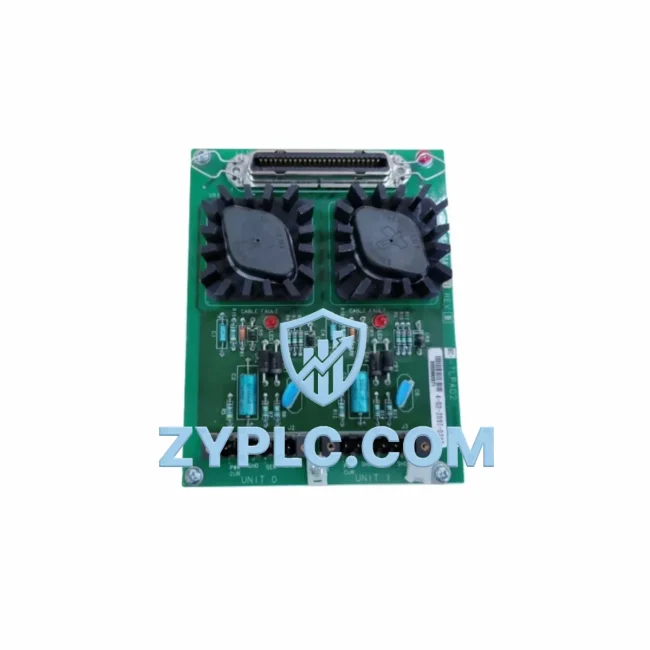

Honeywell MC-TLPA02 51309204-175 System-Ready Power Adapter for MC Series Architecture

Honeywell MC-TLPA02 51309204-175 System-Ready Power Adapter for MC Series Control Architecture

The Honeywell MC-TLPA02 (part number 51309204-175) is a dedicated power adapter engineered for seamless integration within the Honeywell MC Series distributed control system (DCS) architecture. Far from a standalone component, this power adapter occupies a critical position in the power layer of a multi-tier automation hierarchy — ensuring stable, conditioned electrical supply to the controller backplane, I/O modules, and communication interfaces that form the operational backbone of process-critical installations. In industries where unplanned downtime translates directly into production loss, regulatory risk, or safety incidents, the reliability of the power layer is non-negotiable. The MC-TLPA02 is purpose-built to meet that standard.

Within a complete Honeywell MC Series control system, the MC-TLPA02 works in close coordination with the MC-PDIY22 digital input module, MC-PDOY22 digital output module, MC-PAIH03 analog input module, and MC-PAOY22 analog output module — all of which depend on a stable, regulated power source to maintain signal fidelity and scan cycle consistency. The adapter interfaces directly with the MC-RACK system backplane, distributing power across module slots while maintaining electrical isolation between the control bus and field wiring. This architecture-level integration is what distinguishes the MC-TLPA02 from generic industrial power supplies: it is designed to the exact voltage tolerance, inrush current profile, and connector specification of the MC Series platform.

At the controller layer, the MC-TLPA02 supports continuous operation of the MC-CONT02 or compatible MC Series CPU modules, which execute the control logic, manage I/O polling, and maintain communication with the Experion PKS supervisory layer via the FTE (Fault Tolerant Ethernet) network. Stable power delivery at this layer is essential for deterministic scan times and alarm response latency — both of which are audited in regulated process environments such as oil refining, pharmaceutical manufacturing, and power generation. The adapter’s design accommodates the power sequencing requirements of redundant CPU configurations, ensuring that switchover events do not introduce voltage transients that could corrupt module state or trigger spurious I/O transitions.

From a system architecture perspective, the MC-TLPA02 also supports the power requirements of communication gateway modules such as the MC-COMM03, which bridges the MC Series I/O network to higher-level SCADA or historian systems. Maintaining clean, stable power at the gateway level is critical for preserving data integrity across OPC, Modbus, or HART communication channels. In installations where the MC Series rack is co-located with Honeywell Safety Manager components or third-party safety PLCs, the MC-TLPA02’s electrical isolation characteristics help prevent ground loop interference that could compromise safety system integrity.

For engineering teams managing large-scale or geographically distributed control systems, the MC-TLPA02 offers a significant advantage in terms of spare parts standardization. A single adapter model supports multiple rack configurations, reducing the number of unique line items in the maintenance inventory and simplifying the procurement process. When paired with the MC-TLPA01 or other MC Series power components in a redundant power architecture, the MC-TLPA02 enables N+1 power redundancy at the rack level — a configuration commonly specified in critical infrastructure projects where continuous availability is a contractual requirement.

Installation and commissioning of the MC-TLPA02 follow standard Honeywell MC Series procedures, with the adapter mounting directly to the designated power slot on the MC-RACK backplane. No additional wiring harnesses or adapter brackets are required for standard configurations. Field engineers familiar with the MC Series platform will find the replacement procedure straightforward, minimizing mean time to repair (MTTR) in the event of a power adapter fault. All units supplied by ZYPLC are tested prior to shipment and covered by a 12-Month Warranty, providing engineering and procurement teams with the confidence needed for both project commissioning and long-term maintenance planning.

Architecture Specification Table

Coordinated Control System Design

The MC-TLPA02 does not operate in isolation — its value is realized through its role in a coordinated, multi-layer control system. In a typical MC Series installation, the power adapter supports the following architecture layers and associated components:

Controller Layer: The MC-CONT02 CPU module relies on the MC-TLPA02 for stable operating power. In redundant controller configurations, two MC-TLPA02 adapters may be deployed in parallel to support seamless CPU switchover without power interruption. The controller executes the control strategy, manages I/O communication, and maintains the FTE network link to the Experion PKS server.

I/O Layer: Digital and analog I/O modules — including the MC-PDIY22, MC-PDOY22, MC-PAIH03, and MC-PAOY22 — are powered through the backplane from the MC-TLPA02. Consistent power delivery at this layer ensures accurate signal conditioning, correct threshold detection, and reliable output switching across all field devices.

Communication Layer: The MC-COMM03 gateway module, which handles protocol translation and data exchange with SCADA, historian, and asset management systems, requires stable power to maintain continuous communication sessions. Power interruptions at this layer can result in data gaps in the historian or loss of remote monitoring capability.

Terminal and Wiring Layer: MC Series terminal modules and marshalling components interface with field instruments and actuators. The electrical isolation provided by the MC-TLPA02 protects these interfaces from field-side transients, reducing the risk of module damage in environments with high electromagnetic interference.

HMI and Supervisory Layer: While the Experion PKS operator station and engineering workstation are powered independently, the stability of the MC-TLPA02 at the rack level directly affects the quality of real-time data presented to operators. Voltage sags or power interruptions at the controller rack can cause communication timeouts that manifest as stale data or alarm floods at the HMI.

Application in Layered Automation Systems

The MC-TLPA02 is deployed across a wide range of process and discrete manufacturing industries where the Honeywell MC Series DCS platform is the control system of choice:

Oil Refining and Petrochemical: In continuous process units such as crude distillation, catalytic cracking, and hydroprocessing, the MC Series DCS manages thousands of I/O points across multiple controller racks. The MC-TLPA02 provides the power layer reliability required for 24/7 operation in classified hazardous areas, supporting both standard and SIL-rated control loops.

Power Generation: Thermal, hydro, and combined-cycle power plants use the MC Series platform for boiler management, turbine control, and balance-of-plant automation. The MC-TLPA02’s support for redundant power configurations aligns with the high-availability requirements of grid-connected generation assets.

Pharmaceutical and Life Sciences: FDA-regulated manufacturing environments require validated control systems with documented spare parts traceability. The MC-TLPA02, supplied with full documentation and a 12-Month Warranty, supports validation activities and change control processes.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities operating MC Series controllers for pump control, chemical dosing, and filtration management benefit from the MC-TLPA02’s long service life and compatibility with the existing rack infrastructure.

Mining and Metals: In mineral processing and smelting operations, where control system availability directly affects throughput, the MC-TLPA02’s robust design and redundancy support help maintain continuous operation in high-vibration, high-temperature environments.

Architecture Engineering FAQ

Q1: Is the MC-TLPA02 (51309204-175) compatible with all MC Series rack configurations?
The MC-TLPA02 is designed for the Honeywell MC Series backplane and is compatible with standard MC-RACK configurations used in Experion PKS and legacy MC Series DCS installations. For specific rack variants or mixed-generation architectures, consult the Honeywell MC Series hardware compatibility matrix or contact ZYPLC engineering support for pre-sales verification.

Q2: Can the MC-TLPA02 be used in a redundant power architecture, and what is required?
Yes. The MC-TLPA02 supports N+1 redundant power configurations when paired with a compatible secondary power adapter on the same backplane. Redundant power wiring must follow Honeywell MC Series installation guidelines to ensure correct load sharing and automatic switchover. ZYPLC can supply matched pairs of MC-TLPA02 units for redundant deployments.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance?
All MC-TLPA02 units supplied by ZYPLC are functionally tested prior to shipment and covered by a 12-Month Warranty against manufacturing defects and operational failure under normal operating conditions. ZYPLC maintains stock of MC Series power components to support both planned maintenance and emergency replacement requirements. For long-term maintenance contracts or volume procurement, contact the ZYPLC sales team directly.
