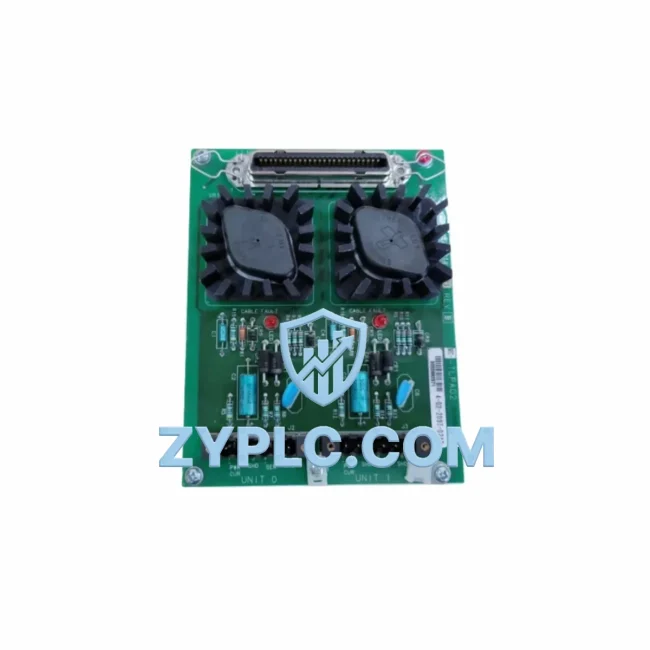

Honeywell MC-TLPA02 System-Ready Redundancy Module for Experion PKS Architecture

Honeywell MC-TLPA02 System-Ready Redundancy Module for Experion PKS Architecture

In high-availability distributed control systems, redundancy is not a luxury — it is the architectural foundation upon which process continuity depends. The Honeywell MC-TLPA02 (cross-reference: 51309204-175) is a dedicated redundancy module engineered for the Experion PKS (Process Knowledge System) platform, enabling seamless controller switchover, bumpless transfer, and sustained process integrity across the full control hierarchy. Whether deployed in continuous chemical processing, power generation, oil and gas upstream operations, or large-scale water treatment infrastructure, the MC-TLPA02 delivers the architectural resilience that modern industrial automation demands.

Architecture Specification Table

Coordinated Control System Design

The MC-TLPA02 does not operate in isolation — its value is realized only within a fully coordinated Experion PKS control architecture. At the controller layer, it pairs directly with the Honeywell C300 Process Controller, forming a redundant controller pair where the primary and secondary units maintain continuous state synchronization through the dedicated Redundancy Link Bus. Should the primary controller encounter a fault — whether from hardware failure, power anomaly, or communication disruption — the MC-TLPA02 orchestrates an instantaneous, bumpless transfer to the secondary C300, with zero process interruption.

Upstream from the controller, the Honeywell EPLCG2 Ethernet Gateway and FTE (Fault Tolerant Ethernet) network infrastructure provide the dual-ring communication backbone that feeds real-time process data to the Experion PKS server. The redundancy architecture extends naturally into the I/O layer, where Honeywell IOTA (I/O Termination Assembly) modules and Series C I/O Link Interface Modules (IOLI) distribute field signals across the control network. These I/O subsystems connect to field instruments — including pressure transmitters, flow meters, temperature sensors, and valve positioners — ensuring that signal integrity is maintained even during controller switchover events.

At the power layer, redundant Honeywell Power Supply Modules (MC-PDPY1) feed the controller chassis, eliminating single points of failure at the electrical supply level. The Experion PKS Series C Chassis itself provides the physical backplane over which all modules — including the MC-TLPA02 — communicate and receive power. For human-machine interface, Honeywell Experion Station workstations and Honeywell HMIWeb Display Builder provide operators with real-time visibility into controller health, redundancy status, and switchover history, enabling proactive maintenance decisions before faults escalate.

In larger architectures, the MC-TLPA02 redundancy scheme integrates with Honeywell Safety Manager systems via the FTE network, ensuring that safety instrumented functions remain coordinated with the process control layer. This cross-system coherence — from field device to safety logic solver to DCS controller to operator station — is the hallmark of a well-engineered Experion PKS installation, and the MC-TLPA02 is the module that makes controller-level redundancy possible within that ecosystem.

Application in Layered Automation Systems

The MC-TLPA02 finds its most critical applications in industries where unplanned downtime carries severe operational, financial, or safety consequences.

In petroleum refining and petrochemical processing, continuous distillation columns, reactor temperature control loops, and compressor surge protection systems cannot tolerate controller failures. The MC-TLPA02 ensures that the C300 controller pair maintains uninterrupted execution of PID loops and advanced process control (APC) strategies, even during hardware maintenance windows.

In power generation — including thermal, combined-cycle, and renewable energy facilities — turbine control, boiler management, and grid synchronization logic demand sub-second fault response. The bumpless switchover capability of the MC-TLPA02 ensures that generator output remains stable and grid codes are met without manual intervention.

In water and wastewater treatment, municipal utilities rely on Experion PKS to manage pump stations, chemical dosing, and filtration sequences across geographically distributed sites. Controller redundancy provided by the MC-TLPA02 ensures that remote unmanned stations continue operating autonomously during communication or hardware faults, reducing the need for emergency field dispatch.

In mining and metals processing, where conveyor systems, crushers, and smelting furnaces operate continuously across multi-shift production schedules, the MC-TLPA02 supports the high-availability architecture required to meet production targets without scheduled controller downtime.

In pharmaceutical and food manufacturing, where batch process integrity and regulatory compliance (FDA 21 CFR Part 11, GMP) are paramount, the MC-TLPA02 provides the controller-level redundancy that supports audit-ready, validated automation systems.

Architecture Engineering FAQ

Q1: Is the MC-TLPA02 compatible with all Honeywell Experion PKS controller generations?
The MC-TLPA02 is specifically designed for use with the Honeywell C300 Process Controller within the Experion PKS Series C architecture. Compatibility with earlier controller generations (e.g., C200, C200E) should be verified against Honeywell’s system compatibility matrix. ZYPLC’s technical team can assist with cross-version compatibility assessment prior to procurement.

Q2: What happens to the process during a redundancy switchover event?
The MC-TLPA02 is engineered for bumpless transfer — the secondary C300 controller maintains a continuously synchronized copy of the primary’s execution state, including all PID outputs, setpoints, and I/O values. Switchover occurs within a single scan cycle, meaning process outputs do not change state and field devices do not receive conflicting commands. Operators are notified via the Experion Station alarm system, but no manual intervention is required to maintain process continuity.

Q3: Does the MC-TLPA02 come with a warranty, and how does ZYPLC verify module condition before shipment?
Yes. Every MC-TLPA02 supplied by ZYPLC is covered by a 12-Month Warranty. Prior to shipment, each module undergoes functional inspection and power-on verification to confirm operational integrity. Modules are packaged in anti-static, shock-protected materials to prevent transit damage. ZYPLC maintains ready stock of Honeywell Experion PKS components to support urgent project timelines and emergency replacement requirements globally.
