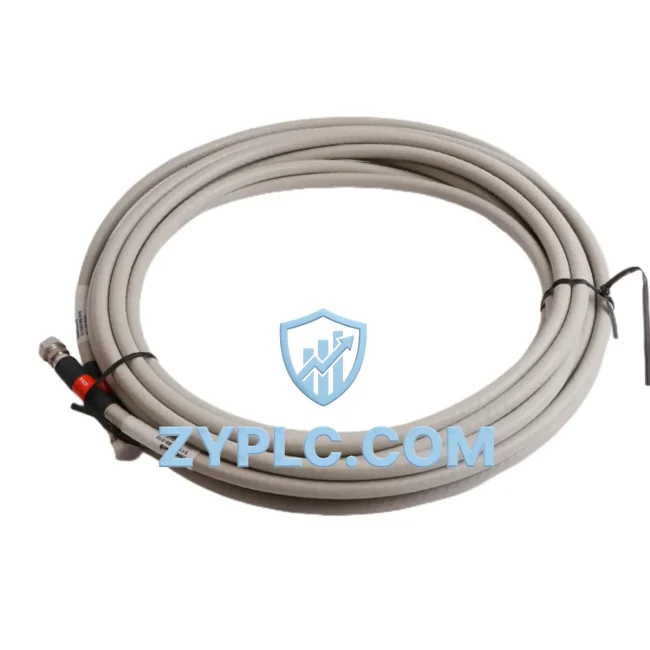

Honeywell MU-KFTA05 51201420-005 System-Ready Power Cable

Honeywell MU-KFTA05 51201420-005 System-Ready Power Cable: Control System Architecture and Upstream-Downstream Coordination

In a fully integrated distributed control system (DCS), every component must fulfill a precise role within the layered automation hierarchy. The Honeywell MU-KFTA05 51201420-005 is a system-ready power supply cable engineered specifically for the Experion PKS and TDC 3000 control platforms. Far from being a passive interconnect, this cable is a critical element of the power distribution layer — the backbone that ensures stable, uninterrupted energy delivery to field controllers, I/O modules, and communication nodes across the entire control architecture.

Modern industrial automation systems demand more than functional components in isolation. They require components that are validated for contextual integration — meaning each part must be electrically, mechanically, and communicatively compatible with the surrounding system architecture. The MU-KFTA05 51201420-005 meets this requirement by design, supporting seamless installation within Honeywell’s modular cabinet and rack environments without the need for field modification or custom adaptation.

Architecture Specification Table

Coordinated Control System Design

The MU-KFTA05 51201420-005 does not operate in isolation — it is a functional node within a multi-layer control architecture. Understanding its role requires examining how it interacts with adjacent system components across the control, I/O, network, power, HMI, and execution layers.

At the control layer, the cable delivers stable power to Honeywell C300 Controller modules and PM/APM (Advanced Process Manager) units, ensuring that the CPU-level logic execution remains uninterrupted during process operations. Any power instability at this layer propagates directly to scan cycle integrity and loop control accuracy — making the quality and compatibility of the power cable a system-critical concern.

Moving to the I/O layer, the MU-KFTA05 supports power distribution to Honeywell IOTA (I/O Termination Assembly) modules and associated FIM (Field Interface Module) cards. These modules handle analog input/output, digital I/O, and HART-enabled field device communication. A stable power feed from a validated cable assembly ensures that signal conditioning and field device polling remain consistent across all I/O channels.

Within the network and communication layer, the power cable indirectly supports the operational stability of Honeywell FTE (Fault Tolerant Ethernet) switches and CEE (Control Execution Environment) nodes. These components rely on clean, regulated power to maintain deterministic communication latency across the FTE network — a dual-ring Ethernet architecture that provides redundant data paths between controllers and the Experion PKS server.

At the power layer, the MU-KFTA05 51201420-005 is designed to interface with Honeywell MU-PSRK01 Power Supply Modules and compatible redundant power supply chassis. In redundant power configurations — common in high-availability process plants — two power supply modules feed the same rail through separate cable assemblies. The MU-KFTA05 is validated for use in these configurations, ensuring that a single cable failure does not interrupt system operation.

The HMI layer benefits indirectly: when the power distribution layer is stable and properly cabled, Experion PKS Operator Stations and Honeywell HMIWeb Display Builder environments receive consistent data from field controllers without communication dropouts or alarm floods caused by power-related controller resets. This is particularly important in continuous process industries where operator visibility must be maintained at all times.

Finally, at the execution layer, field devices including Honeywell SmartLine transmitters, control valves, and variable frequency drives (VFDs) depend on the I/O modules that are powered through this cable assembly. A properly installed MU-KFTA05 ensures that the execution layer receives accurate control signals without the noise or interruption that can result from degraded or non-OEM power cabling.

In summary, the MU-KFTA05 51201420-005 coordinates with components including the C300 Controller, PM/APM modules, IOTA termination assemblies, FIM field interface cards, MU-PSRK01 power supply modules, FTE network switches, CEE nodes, Experion PKS Operator Stations, and SmartLine field transmitters — forming a complete, validated power distribution chain across the full system architecture.

Application in Layered Automation Systems

The Honeywell MU-KFTA05 51201420-005 finds application across a wide range of process industries where the Experion PKS and TDC 3000 platforms are deployed as the primary control infrastructure.

In petroleum refining and petrochemical processing, DCS power cabling must meet stringent reliability standards. Refineries operating continuous distillation columns, catalytic crackers, and heat exchanger networks rely on uninterrupted controller power to maintain safe operating conditions. The MU-KFTA05 supports these environments by providing a validated, OEM-matched power connection that eliminates the risk of incompatible aftermarket cabling.

In power generation and utilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — the Experion PKS platform manages turbine control, boiler management, and grid synchronization. Power supply cables in these environments must withstand high-vibration, high-temperature cabinet conditions while maintaining electrical integrity. The MU-KFTA05 is rated for these demanding installation environments.

In water and wastewater treatment facilities, where Experion PKS manages pump sequencing, chemical dosing, and SCADA integration, the reliability of the power distribution layer directly affects treatment process continuity. Municipalities and industrial water treatment operators benefit from the 12-Month Warranty coverage, which provides assurance of component quality and reduces the risk of unplanned maintenance events.

In mining and metallurgical operations, including ore processing, smelting, and materials handling, DCS systems must operate reliably in dusty, high-humidity environments. The MU-KFTA05’s OEM construction ensures compatibility with Honeywell’s sealed cabinet configurations used in these applications.

In pharmaceutical and food & beverage manufacturing, where batch process control and regulatory compliance are paramount, the use of validated OEM components like the MU-KFTA05 supports audit readiness and system qualification documentation. Engineers can reference the original Honeywell part number in their system validation records without the ambiguity associated with third-party substitutes.

Architecture Engineering FAQ

Q1: Is the MU-KFTA05 51201420-005 compatible with both Experion PKS and TDC 3000 architectures?
Yes. The MU-KFTA05 51201420-005 is an OEM Honeywell power supply cable validated for use in both the Experion PKS and TDC 3000 distributed control system platforms. Both platforms share common cabinet and rack infrastructure in many installations, and this cable is designed to serve power distribution requirements across both system generations. If you are integrating a TDC 3000 legacy system with a newer Experion PKS architecture during a migration project, the MU-KFTA05 can be used in both environments without modification.

Q2: Can this cable be used in a redundant power supply configuration, and what are the installation requirements?
Yes. The MU-KFTA05 51201420-005 is compatible with Honeywell’s redundant power supply configurations, where two MU-PSRK01 or equivalent power supply modules feed a common distribution rail through separate cable assemblies. In redundant configurations, each cable must be routed independently to prevent a single physical event (such as a cable tray failure) from affecting both power feeds simultaneously. Standard Honeywell DCS installation guidelines recommend maintaining physical separation between redundant power cable runs. Our team can provide installation guidance as part of the 12-Month Warranty support service.

Q3: What does the 12-Month Warranty cover, and how does it support long-term system maintenance planning?
The 12-Month Warranty covers manufacturing defects, electrical performance failures, and connector integrity issues identified under normal operating conditions. For maintenance engineers managing long-term DCS lifecycle plans, this warranty provides a documented quality assurance baseline that can be referenced in preventive maintenance schedules and spare parts procurement strategies. In addition, our inventory availability and fast-ship capability mean that replacement units can be sourced quickly in the event of an unplanned failure, minimizing system downtime and supporting continuous process operations.
