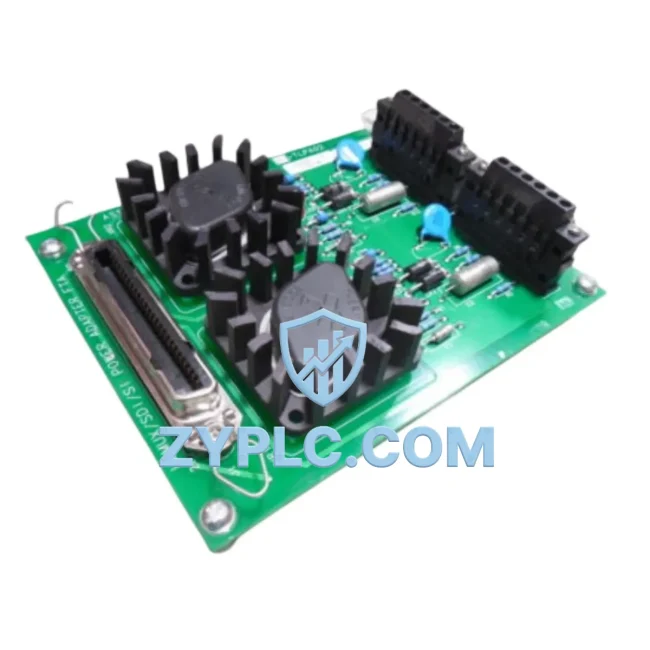

Honeywell MU-TLPA02 51309204-125 System-Ready Power Adapter for Experion PKS

Honeywell MU-TLPA02 51309204-125 System-Ready Power Adapter Board: Control Architecture Backbone for Experion PKS and TPS Systems

The Honeywell MU-TLPA02 (Part No. 51309204-125) is a precision-engineered Power Adapter Board designed to serve as a critical power distribution and signal conditioning component within Honeywell’s TotalPlant Solution (TPS) and Experion Process Knowledge System (PKS) distributed control architectures. In modern industrial automation, power integrity is not a standalone concern — it is the foundation upon which every control layer, I/O subsystem, communication network, and human-machine interface depends. The MU-TLPA02 addresses this requirement by providing stable, conditioned power delivery that supports the full vertical stack of a process control system, from field-level instrumentation through to supervisory control and data acquisition layers.

Within a layered automation architecture, the MU-TLPA02 occupies the power layer — a tier that is often underestimated but is operationally decisive. When paired with Honeywell’s MC-PAIH03 or MC-PAIH02 analog input modules, the board ensures that signal fidelity is maintained across the I/O layer without voltage fluctuation artifacts. In redundant controller configurations using the C300 Process Controller or the HPM (High-Performance Process Manager), the MU-TLPA02 supports the power redundancy scheme that prevents single-point failures from cascading into process shutdowns. This makes it an indispensable component in high-availability architectures deployed in petrochemical refining, power generation, and continuous manufacturing environments.

The board integrates seamlessly into Honeywell’s Universal Control Network (UCN) and FTE (Fault Tolerant Ethernet) communication frameworks. By maintaining stable power to communication gateway modules such as the MU-GAIH02 and associated UCN interface cards, the MU-TLPA02 ensures that real-time data exchange between field devices and the Experion PKS server remains uninterrupted. In systems where the SCADA layer communicates with field PLCs or remote I/O via Modbus or HART protocols, power stability at the adapter board level directly influences the reliability of protocol translation and data acquisition cycles.

From a system architecture perspective, the MU-TLPA02 is typically installed within Honeywell’s standard process control cabinets alongside the MU-TAIH02 termination assemblies and MC-TAIH02 I/O termination modules. Its compact form factor and standardized connector interface allow it to be integrated into existing backplane assemblies without requiring cabinet redesign, which significantly reduces engineering hours during system expansion or retrofit projects. When upgrading legacy TPS installations to Experion PKS R500 or later, the MU-TLPA02 provides backward-compatible power distribution that bridges old and new hardware generations within the same control cabinet.

In terms of system-level redundancy design, the MU-TLPA02 supports N+1 power redundancy configurations when used in conjunction with Honeywell’s redundant power supply modules. This is particularly relevant in critical process industries such as LNG terminals, offshore platforms, and nuclear auxiliary systems, where unplanned downtime carries severe safety and financial consequences. The board’s design accommodates hot-swap capability in supported configurations, allowing maintenance teams to replace or inspect the unit during live system operation without triggering a process interruption — a feature that directly reduces mean time to repair (MTTR) and supports predictive maintenance strategies.

For engineering teams managing multi-cabinet DCS installations, the MU-TLPA02 simplifies spare parts inventory management. A single board model supports multiple I/O module types across the Experion PKS platform, reducing the number of unique spare part SKUs that must be stocked. This is especially valuable in remote or offshore installations where logistics lead times are extended. Combined with our 12-Month Warranty coverage, procurement teams can plan maintenance budgets with confidence, knowing that replacement units are available and performance-guaranteed.

The board’s compatibility with Honeywell’s Series C I/O family — including modules such as the MC-PAIH03 analog input, MC-PDIY22 digital input, and MC-PDOY22 digital output — means that a single MU-TLPA02 can support diverse signal types within the same cabinet. This Contextual Integration capability reduces wiring complexity, simplifies loop checking during commissioning, and accelerates FAT (Factory Acceptance Testing) and SAT (Site Acceptance Testing) procedures. For system integrators and EPC contractors, this translates directly into reduced project schedule risk and lower commissioning costs.

Architecture Specification Table

Coordinated Control System Design

The MU-TLPA02 does not operate in isolation — its value is realized through its role in a coordinated, multi-layer control system. In a typical Experion PKS architecture, the power layer anchored by the MU-TLPA02 supports the following system components working in concert:

• C300 Process Controller — The primary CPU module in Experion PKS, responsible for executing control strategies. Stable power from the MU-TLPA02 ensures deterministic scan cycle performance.
• MC-PAIH03 Analog Input Module — Processes 4–20 mA and HART field signals. Power quality directly affects analog signal resolution and HART communication reliability.
• MC-PDIY22 Digital Input Module — Monitors discrete field signals from limit switches, pressure switches, and valve position feedback. Requires stable 24 VDC power distribution.
• MC-PDOY22 Digital Output Module — Drives solenoid valves, motor starters, and relay coils. Power adapter integrity prevents spurious output activations.
• MU-TAIH02 Termination Assembly — Field wiring termination point for analog I/O modules. Works in conjunction with the MU-TLPA02 within the same cabinet assembly.
• HPM (High-Performance Process Manager) — Legacy TPS controller that shares cabinet infrastructure with the MU-TLPA02 in hybrid TPS/Experion migration projects.
• MU-GAIH02 Communication Gateway — Bridges field device networks to the UCN backbone. Depends on the power layer for continuous gateway availability.
• Experion PKS FTE Switch — Fault Tolerant Ethernet network switch providing redundant controller-to-server communication. Power stability at the cabinet level protects network uptime.
• Honeywell Redundant Power Supply Module — Works alongside the MU-TLPA02 in N+1 configurations to eliminate power as a single point of failure.
• Series C I/O Backplane — The physical mounting and signal distribution backbone for all Series C I/O modules, into which the MU-TLPA02 integrates directly.

Application in Layered Automation Systems

The MU-TLPA02 finds application across a broad spectrum of process industries where Honeywell DCS platforms are the control standard:

Petrochemical & Refining: In crude distillation units and catalytic cracking plants, the MU-TLPA02 supports continuous process control by maintaining power integrity across hundreds of I/O channels monitoring temperature, pressure, flow, and level. Its compatibility with HART-enabled field instruments allows asset health monitoring without additional hardware.

Power Generation: In combined-cycle gas turbine (CCGT) and coal-fired power plants, the board supports boiler management systems and turbine control cabinets where power supply reliability is directly linked to grid stability and regulatory compliance.

Water & Wastewater Treatment: Municipal water treatment facilities using Experion PKS for SCADA-integrated DCS control rely on the MU-TLPA02 to maintain uninterrupted monitoring of dosing systems, filtration stages, and pump control loops.

Mining & Metallurgy: In mineral processing plants and smelting operations, the board supports high-density I/O cabinets managing conveyor systems, crusher controls, and flotation cell automation in harsh electrical environments.

Pharmaceutical & Fine Chemical: GMP-regulated manufacturing environments require validated control systems with traceable hardware. The MU-TLPA02’s standardized part number and 12-Month Warranty support validation documentation and change control processes.

LNG & Offshore: In safety-instrumented environments, the board’s support for redundant power architectures aligns with IEC 61511 functional safety requirements for SIL-rated control loops.

Architecture Engineering FAQ

Q1: Is the MU-TLPA02 51309204-125 compatible with both legacy TPS and current Experion PKS R500+ systems?
Yes. The MU-TLPA02 is designed to operate within Honeywell’s TPS cabinet infrastructure and is forward-compatible with Experion PKS architectures through R500 and later releases. In migration projects where TPS hardware is being phased out in favor of Experion PKS Series C I/O, the MU-TLPA02 can remain in service within the existing cabinet, reducing the scope and cost of hardware replacement. Always verify firmware and backplane revision compatibility with your Honeywell system documentation or contact our technical team prior to installation.

Q2: How does the MU-TLPA02 support redundancy requirements in critical process applications?
The MU-TLPA02 is designed to participate in N+1 power redundancy schemes when paired with Honeywell’s redundant power supply modules. In this configuration, if the primary power supply fails, the adapter board facilitates seamless switchover to the redundant supply without interrupting I/O module operation or controller scan cycles. For SIL-rated applications, the redundancy architecture should be validated against the specific SIL target and proof test interval defined in the safety requirements specification (SRS).

Q3: What does the 12-Month Warranty cover, and what is the process for warranty claims?
Our 12-Month Warranty covers manufacturing defects, functional failures under normal operating conditions, and component-level faults identified during the warranty period. The warranty period begins from the date of shipment. In the event of a warranty claim, contact our support team at [email protected] or +86 19859288691 with your order number and a description of the fault. We will arrange for unit inspection, repair, or replacement as appropriate. Warranty does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification.
