HONEYWELL NTDI21-A Safety I/O Termination Unit for TDI Systems

HONEYWELL NTDI21-A Industrial Network Interface for TDI Systems: Bridging the Industrial Data Link in Smart Factory Environments

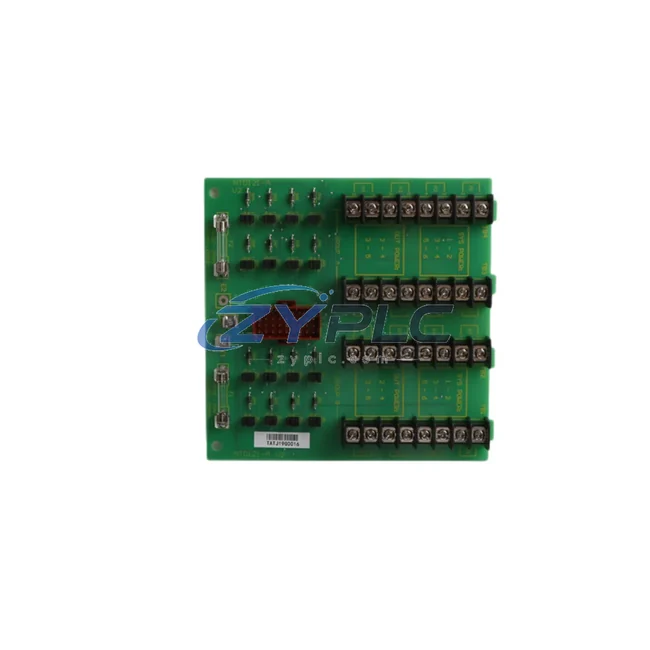

The HONEYWELL NTDI21-A is a high-integrity Safety I/O Termination Unit engineered for the TDI Series safety instrumented system architecture. Designed to serve as the critical junction between field-level safety devices and upper-layer control networks, the NTDI21-A enables seamless signal termination, protocol-compliant data routing, and deterministic communication across Safety Instrumented Systems (SIS), Distributed Control Systems (DCS), and SCADA platforms. In an era where smart factory connectivity demands zero-compromise data integrity, the NTDI21-A stands as a foundational component in industrial network design.

Compatibility & Integration Notes

Connected Automation Data Flow

In a modern smart factory, the HONEYWELL NTDI21-A sits at the heart of the safety data chain. The data flow begins at the field level, where safety sensors — including pressure transmitters, flame detectors, and gas analyzers — generate critical process signals. These signals are routed through the NTDI21-A termination unit, which provides clean, noise-immune signal conditioning before passing data upstream to the HONEYWELL Safety Manager SC or compatible Safety Logic Controllers.

Within the TDI Series architecture, the NTDI21-A works in close coordination with the HONEYWELL NTDI11-A analog input termination unit and the HONEYWELL NTDO21-A digital output termination unit, forming a complete I/O termination backbone. This modular approach allows engineers to expand the safety I/O network without rewiring field devices, dramatically reducing commissioning time and engineering costs.

At the network layer, the NTDI21-A interfaces with HONEYWELL Experion PKS — the process knowledge system that aggregates real-time safety data from multiple TDI nodes across the plant. The Experion PKS platform, acting as the SCADA backbone, collects, processes, and visualizes safety loop status, enabling operators to monitor SIS health from a centralized HMI workstation. Integration with HONEYWELL Safety Builder software further streamlines safety function configuration and validation.

For plants running hybrid architectures, the NTDI21-A supports protocol bridging to PROFIBUS DP and Foundation Fieldbus segments, allowing legacy field instruments to communicate with modern DCS controllers. Industrial gateways such as the HONEYWELL HC900 Hybrid Controller can aggregate data from both safety and process control domains, feeding unified data streams to edge computing nodes for real-time analytics and predictive maintenance applications.

Remote I/O expansion is supported through the TDI Series marshalling cabinet design, where the NTDI21-A acts as the termination interface for distributed I/O racks. This enables plant-wide safety network coverage without the cost of running individual signal cables back to the central control room. Combined with HONEYWELL OneWireless field adapters for wireless sensor integration, the NTDI21-A helps build a fully connected, layered safety network from field device to enterprise system.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where safety systems, process control networks, and enterprise IT systems operate in silos, unable to share real-time information. The HONEYWELL NTDI21-A directly addresses this challenge by providing a standardized, protocol-compliant termination interface that bridges field-level safety signals with higher-level control and monitoring systems.

In plants where legacy instrumentation uses proprietary signal formats, the NTDI21-A’s compatibility with HART and Modbus RTU protocols enables transparent data extraction from existing field devices without hardware replacement. This means that a pressure transmitter or temperature sensor already installed in the field can have its diagnostic data — valve position, loop integrity, device health — surfaced directly in the SCADA system, eliminating the need for manual inspection rounds.

For production line transparency, the NTDI21-A enables real-time safety loop status reporting to Experion PKS HMI screens, giving operators instant visibility into which safety functions are active, which are in bypass, and which require maintenance attention. This level of transparency is essential for achieving IEC 61511 compliance and for passing functional safety audits.

Remote diagnostics capability is another key advantage. Because the NTDI21-A routes safety I/O data through the TDI Series network backbone, maintenance engineers can interrogate individual safety loops from the control room or via remote access VPN, identifying faults, checking signal quality, and verifying loop integrity without entering hazardous areas. This capability reduces mean time to repair (MTTR) and supports continuous production uptime.

System scalability is built into the TDI Series design philosophy. As plant capacity grows, additional NTDI21-A termination units can be added to the marshalling cabinet without disrupting existing wiring or safety logic. This plug-and-expand architecture ensures that the safety network can grow alongside the production facility, protecting the initial capital investment while accommodating future automation upgrades.

Industrial Connectivity FAQ

Q1: What communication protocols does the HONEYWELL NTDI21-A support, and is it compatible with existing DCS networks?
The NTDI21-A supports HART, Modbus RTU, Foundation Fieldbus, and PROFIBUS DP protocols, making it compatible with the majority of DCS and SIS platforms deployed in process industries. It integrates natively with HONEYWELL Experion PKS and Safety Manager SC, and can be configured to interface with third-party DCS systems through standard protocol gateways.

Q2: How does the NTDI21-A ensure network stability and data integrity in high-noise industrial environments?
The NTDI21-A is designed with galvanic isolation and EMI shielding to maintain signal integrity in electrically noisy plant environments. Its deterministic communication architecture ensures that safety-critical data is transmitted with consistent, predictable latency, meeting the timing requirements of IEC 61511 safety instrumented functions.

Q3: Can the NTDI21-A be expanded as the safety I/O network grows, and does it support hot-swap maintenance?
Yes. The TDI Series modular design allows additional NTDI21-A units to be added to the marshalling cabinet without system shutdown. The termination unit supports maintenance procedures aligned with the TDI Series hot-swap guidelines, minimizing production disruption during hardware replacement or expansion activities.

Q4: What does the warranty terms confirmed during quotation cover, and how is the NTDI21-A tested before shipment?
Every HONEYWELL NTDI21-A unit supplied by ZYPLC undergoes pre-shipment functional testing to verify signal termination integrity, communication protocol compliance, and hardware condition. The warranty terms confirmed during quotation covers manufacturing defects and functional failures under normal operating conditions. Our technical team provides post-sale support for installation, configuration, and system integration queries.
