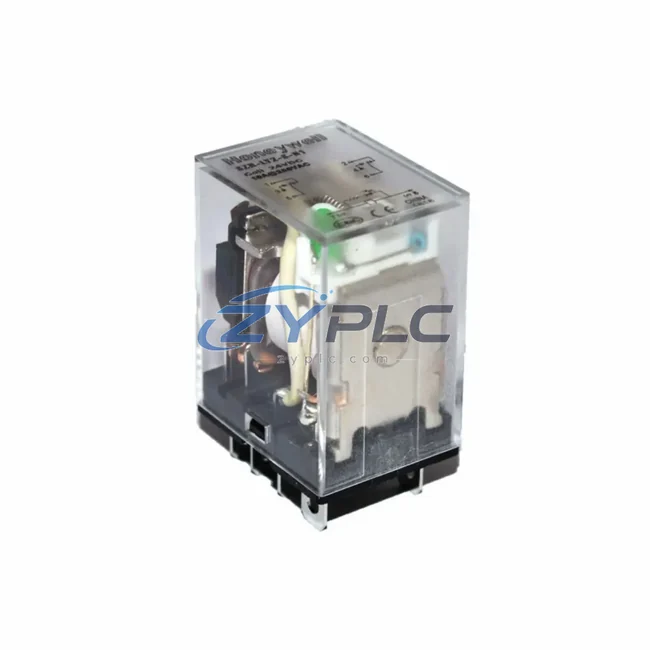

Honeywell SZR-LY2-N1 100VAC Industrial Relay for SZR Systems

Honeywell SZR-LY2-N1 100VAC Industrial Data Link Relay for Smart Factory Connectivity

The Honeywell SZR-LY2-N1 100VAC is a high-reliability DPDT general purpose relay from the SZR Series, engineered to serve as a critical switching and signal isolation node within industrial automation networks. In modern smart factory environments, where field devices, PLC controllers, remote I/O modules, HMI panels, SCADA systems, variable frequency drives, and edge gateways must exchange real-time data without interruption, the SZR-LY2-N1 provides the electromechanical bridge that ensures clean, noise-free signal transitions across control layers. Its 100VAC coil rating makes it ideally suited for integration into mid-voltage control panels where digital output signals from PLC systems must be amplified and isolated before reaching actuators, solenoids, motor starters, or alarm circuits.

In a typical industrial data flow architecture, the SZR-LY2-N1 sits between the PLC digital output card and the field-level load. When a Honeywell HC900 Process Controller or a Siemens S7-1200 PLC issues a discrete command signal, the relay coil energizes, switching the DPDT contacts to route power or signal to downstream devices — whether that is a conveyor motor contactor, a pneumatic valve solenoid, or a status indicator on an HMI touchscreen. This switching action is logged in real time by SCADA platforms such as Wonderware or Ignition, enabling operators to monitor relay state, count switching cycles, and trigger maintenance alerts before contact wear causes unplanned downtime.

The SZR-LY2-N1 is fully compatible with Honeywell’s SZR-LY socket series, including the SZR-LY2-N1 socket base and DIN rail mounting accessories, allowing rapid replacement without rewiring — a key advantage in high-availability production lines where mean time to repair (MTTR) must be minimized. When deployed alongside Honeywell’s SZR-LY4-N1 quad-pole variant or the SZR-LY1-N1 single-pole model, engineers can build scalable relay panels that match the exact I/O density required by each control zone, from a single machine cell to a full production floor.

Within a connected automation architecture, the SZR-LY2-N1 frequently operates in conjunction with remote I/O modules such as the Honeywell XFL521E Ethernet I/O module or third-party Modbus RTU remote I/O blocks, which aggregate discrete relay states and transmit them upstream via industrial Ethernet or RS-485 fieldbus to the plant SCADA server. This integration enables real-time alarm feedback — for example, if a relay fails to energize within the expected response window, the SCADA system can immediately flag the fault, dispatch a maintenance work order, and reroute the control signal through a redundant relay path, all without operator intervention.

For applications involving variable frequency drives (VFDs) such as the Honeywell SmartVFD HVAC or ABB ACS880 series, the SZR-LY2-N1 provides the run/stop interlock signal that prevents simultaneous energization of conflicting drive states. In conveyor systems, packaging lines, and HVAC control panels, this relay acts as the final safety switching element between the PLC output and the drive enable terminal, ensuring that protocol-level commands from the control network are faithfully executed at the physical layer without voltage spikes or contact bounce affecting drive performance.

Remote diagnostics capability is enhanced when the SZR-LY2-N1 is paired with an edge gateway such as the Honeywell Experion PKS distributed control node or a third-party IIoT gateway running OPC-UA or MQTT. These gateways poll relay coil status, contact position feedback, and cycle count data, forwarding it to cloud-based asset management platforms where predictive maintenance algorithms can estimate remaining relay life based on actual switching frequency and load current — transforming a simple electromechanical component into a data-generating node within the Industrial Internet of Things (IIoT) ecosystem.

Compatibility & Integration Notes

Connected Automation Data Flow

In a fully integrated smart factory, the SZR-LY2-N1 100VAC relay participates in every layer of the automation data chain. At the field level, sensors — including Honeywell SPTW series pressure transmitters and photoelectric proximity sensors — feed analog and discrete signals into remote I/O modules. These modules, such as the Honeywell XFL521E Ethernet Remote I/O, aggregate the signals and transmit them via industrial Ethernet to the PLC controller. The PLC — whether a Honeywell HC900 Hybrid Controller, a Rockwell Automation ControlLogix, or a Siemens S7-300 — processes the logic and issues discrete output commands that energize the SZR-LY2-N1 coil, switching the load circuit.

The relay’s contact state is simultaneously fed back to the SCADA system through a digital input module, where Honeywell Experion PKS or a third-party SCADA platform such as Ignition logs the event with millisecond-level timestamp accuracy. HMI panels — including Honeywell Uniformance PHD historian-connected operator stations — display real-time relay status, enabling operators to verify that each switching command has been executed correctly. In multi-zone production environments, relay panels built around the SZR-LY2-N1 and its sibling models (SZR-LY4-N1 for quad-pole applications) are monitored collectively by the SCADA alarm management system, which correlates relay fault events with upstream process variables to identify root causes without requiring manual inspection.

At the network transport layer, edge gateways running OPC-UA or MQTT protocols collect relay state data from the PLC and forward it to cloud-based MES (Manufacturing Execution System) platforms, where production KPIs — including relay switching frequency, uptime percentage, and fault rate — are calculated and displayed on management dashboards. This end-to-end data flow, from the SZR-LY2-N1 contact closure at the field level to the cloud analytics dashboard at the enterprise level, exemplifies the connected automation architecture that defines Industry 4.0 smart factory deployments.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in legacy industrial facilities is data isolation — the inability to aggregate, transmit, and act on discrete switching events from field-level relay panels in real time. The Honeywell SZR-LY2-N1 100VAC addresses this challenge by serving as a standardized, socket-mounted switching node that can be integrated into both legacy hardwired control panels and modern networked I/O architectures without panel redesign.

In facilities where multiple communication protocols coexist — for example, older Modbus RTU devices alongside newer PROFINET or EtherNet/IP networks — the SZR-LY2-N1 provides protocol-agnostic switching that bridges the gap. Because the relay operates at the physical switching layer, it is inherently compatible with any upstream control system regardless of communication protocol, eliminating the need for protocol-specific relay variants and simplifying spare parts inventory management.

For remote monitoring applications, the SZR-LY2-N1’s contact state can be wired to a digital input on a cellular or Ethernet-connected remote I/O module, enabling plant managers to monitor relay status from any location via a web-based SCADA interface. This capability is particularly valuable in unmanned substations, remote pump stations, and distributed manufacturing sites where on-site inspection is costly or impractical. Combined with predictive maintenance algorithms that analyze switching cycle counts and coil energization patterns, the SZR-LY2-N1 transforms from a passive switching component into an active contributor to production line transparency and system uptime optimization.

System expansion is equally straightforward: additional SZR-LY2-N1 relays can be added to existing DIN rail panels using standard SZR-LY socket bases, with no modification to the existing wiring harness. This plug-and-play expandability ensures that as production capacity grows, the relay infrastructure scales proportionally without engineering redesign costs or extended commissioning timelines.

Industrial Connectivity FAQ

Q1: What is the communication latency of the SZR-LY2-N1 in a PLC-controlled switching application?
The SZR-LY2-N1 has a typical operate time of approximately 20ms and a release time of approximately 20ms, which is well within the scan cycle tolerance of most industrial PLCs operating at 10–100ms cycle times. In SCADA-monitored applications, the relay state change is logged within one SCADA polling cycle (typically 500ms–1s), ensuring near-real-time visibility of switching events across the control network.

Q2: Is the SZR-LY2-N1 compatible with both Modbus RTU and EtherNet/IP control systems?
Yes. Because the SZR-LY2-N1 operates at the electromechanical switching layer, it is protocol-agnostic. It can be driven by any PLC digital output — whether the PLC communicates via Modbus RTU, EtherNet/IP, PROFINET, or DeviceNet — making it universally compatible across mixed-protocol industrial environments without any hardware modification.

Q3: How does the SZR-LY2-N1 support network stability and system expansion in large-scale automation projects?
The SZR-LY2-N1’s socket-mount design allows hot-swap replacement without panel rewiring, minimizing network disruption during maintenance. Its standardized DIN rail footprint enables seamless expansion of relay panels as I/O point counts grow, and its compatibility with Honeywell SZR-LY socket accessories ensures that system integrators can source replacement components from a single vendor, reducing supply chain complexity and ensuring long-term network stability.

Q4: What quality assurance and warranty coverage is provided for the SZR-LY2-N1?
Every Honeywell SZR-LY2-N1 100VAC unit supplied by ZYPLC undergoes pre-shipment functional testing, including coil energization verification, contact resistance measurement, and insulation resistance testing. All units are covered by a warranty terms confirmed during quotation against manufacturing defects. Stock is maintained in verified inventory with global shipping via DHL and FedEx, ensuring rapid delivery to industrial sites worldwide. For procurement inquiries, contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com.
