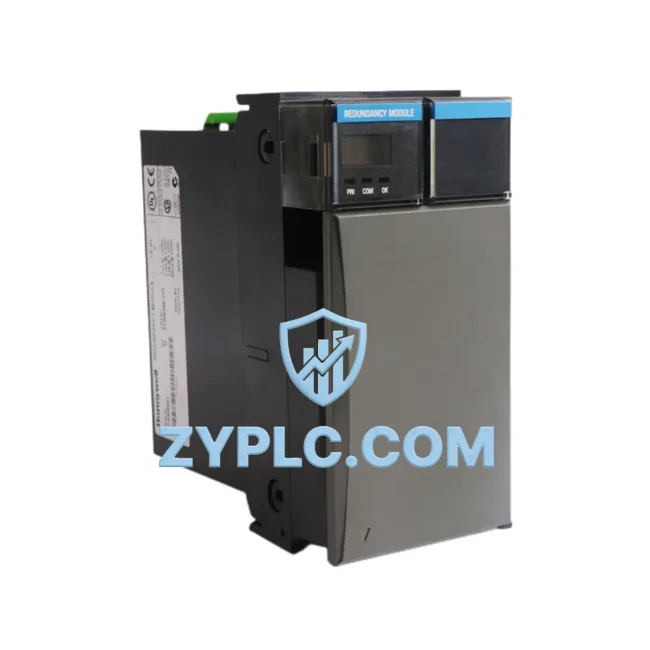

Honeywell TC-PRR021 51309288-225 System-Ready Redundancy Module for Experion PKS Architecture

Honeywell TC-PRR021 51309288-225 System-Ready Redundancy Module for Experion PKS Architecture

In modern distributed control system (DCS) deployments, redundancy is not a luxury — it is a foundational engineering requirement. The Honeywell TC-PRR021 51309288-225 is a dedicated redundancy module engineered for the Experion PKS (Process Knowledge System) platform, one of the most widely deployed DCS architectures in the global process industries. This module enables seamless controller switchover, eliminates single points of failure at the control layer, and ensures continuous process operation even during hardware faults, firmware updates, or scheduled maintenance windows.

Unlike generic redundancy solutions, the TC-PRR021 51309288-225 is purpose-built for the Experion PKS system architecture, providing deterministic failover behavior, synchronized state transfer between primary and backup controllers, and full compatibility with Honeywell’s FTE (Fault Tolerant Ethernet) network infrastructure. When integrated into a complete control system design, this module becomes the cornerstone of high-availability automation — supporting everything from upstream signal acquisition through I/O modules to downstream execution via variable frequency drives and final control elements.

Architecture Specification Table

Coordinated Control System Design

The TC-PRR021 51309288-225 does not operate in isolation — its value is realized only when it is correctly positioned within a fully coordinated Experion PKS control system architecture. At the control layer, this redundancy module pairs directly with the Honeywell CC-PCNT01 or C300 Controller modules, enabling hot-standby operation where the backup controller maintains a continuously synchronized state with the primary. Should the primary controller experience a fault, the TC-PRR021 executes a bumpless transfer to the standby unit in milliseconds, with no disruption to the process.

At the I/O layer, the system relies on distributed I/O modules such as the Honeywell CC-TDIL01 (Digital Input) and CC-TAIX01 (Analog Input) modules, which feed real-time field signals into the controller via the Series C I/O chassis and backplane. The redundancy module ensures that both the primary and backup controllers receive identical I/O data streams, maintaining process state consistency across the failover boundary.

Network integrity is maintained through Honeywell’s FTE (Fault Tolerant Ethernet) infrastructure, which provides dual-path communication between controllers, I/O subsystems, and the supervisory layer. The TC-PRR021 is fully compatible with FTE switch configurations, including managed industrial Ethernet switches that support RSTP (Rapid Spanning Tree Protocol) for network-level redundancy. This dual-layer redundancy — at both the controller and network levels — is a defining characteristic of high-availability Experion PKS deployments.

Power supply redundancy is equally critical. The Honeywell CC-PWR001 power supply module, when deployed in a redundant pair configuration, ensures that neither a controller fault nor a power supply failure can interrupt process control. The TC-PRR021 coordinates with the power architecture to ensure that switchover events do not introduce voltage transients or logic resets in the I/O subsystem.

At the human-machine interface layer, operators interact with the Experion PKS system through Honeywell Experion Station workstations or compatible HMI terminals. The redundancy provided by the TC-PRR021 is transparent to the operator — alarms, trends, and control faceplate data continue to update normally during a failover event, preserving situational awareness and operational continuity. For field-level diagnostics, the Honeywell FDM (Field Device Manager) integrates with the control architecture to provide HART and FOUNDATION Fieldbus device health monitoring without interrupting the redundancy scheme.

Terminal modules and marshalling components, such as the Honeywell CC-TAIM01 analog input termination assembly, provide the physical signal interface between field instruments and the I/O chassis. These components are designed to remain in place during controller or redundancy module replacement, minimizing wiring disturbance during maintenance activities — a key advantage in live process environments where zero-downtime maintenance is a contractual requirement.

Application in Layered Automation Systems

The Honeywell TC-PRR021 51309288-225 is deployed across a wide range of process-critical industries where unplanned downtime carries significant financial, safety, or environmental consequences.

In oil refining and petrochemical facilities, the TC-PRR021 is integrated into Experion PKS architectures controlling distillation columns, reactor temperature loops, and compressor anti-surge systems. Redundant controller configurations are mandatory in SIL-rated applications where a single controller failure could trigger an emergency shutdown sequence. The TC-PRR021 enables these facilities to maintain continuous operation while performing firmware upgrades or hardware replacements on the primary controller.

In power generation and grid substations, the module supports turbine control systems, boiler management systems (BMS), and excitation control loops where millisecond-level failover is required to prevent load shedding or equipment damage. Experion PKS systems with TC-PRR021 redundancy modules are commonly found in combined-cycle gas turbine (CCGT) plants and coal-fired generation facilities undergoing digital transformation.

In water and wastewater treatment plants, the TC-PRR021 supports SCADA-integrated DCS architectures controlling pump stations, chemical dosing systems, and filtration processes. Redundant control ensures that treatment processes continue uninterrupted during controller maintenance, protecting public health infrastructure from automation-related service interruptions.

In mining and minerals processing, the module is deployed in SAG mill control systems, flotation cell automation, and tailings management applications where continuous operation is directly linked to production throughput. The TC-PRR021’s ability to perform bumpless failover without process upset is particularly valued in grinding circuit control, where abrupt controller transitions can cause mill overload or underload conditions.

In pharmaceutical and fine chemical manufacturing, the TC-PRR021 supports batch process control systems where FDA 21 CFR Part 11 compliance requires complete audit trails and uninterrupted data logging. Redundant controller architectures ensure that batch records are never interrupted by hardware faults, supporting regulatory compliance and product quality assurance.

Architecture Engineering FAQ

Q1: Is the TC-PRR021 51309288-225 compatible with all Experion PKS controller generations, and what are the key integration requirements?
The TC-PRR021 is designed for use with Honeywell Experion PKS C300 and compatible controller platforms. Integration requires matching chassis backplane compatibility, correct FTE network configuration with dual-path switch topology, and Experion PKS software version alignment. During commissioning, the redundancy link between primary and backup controllers must be verified using Honeywell’s Control Builder engineering tool, and a controlled failover test should be performed to validate bumpless switchover behavior before the system is placed in service. ZYPLC provides pre-shipment functional verification and full documentation to support site commissioning activities.

Q2: How does the 12-Month Warranty apply to the TC-PRR021, and what does it cover?
All TC-PRR021 51309288-225 modules supplied by ZYPLC are covered by a 12-Month Warranty from the date of shipment. The warranty covers manufacturing defects, functional failures under normal operating conditions, and firmware-related issues identified during the warranty period. In the event of a warranty claim, ZYPLC provides advance replacement service to minimize system downtime, with full technical support available throughout the replacement and re-commissioning process. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or environmental conditions outside the module’s rated specifications.

Q3: What is the recommended spare parts strategy for TC-PRR021 modules in a long-term maintenance program?
For facilities operating Experion PKS systems with TC-PRR021 redundancy modules, ZYPLC recommends maintaining a minimum of one cold-spare unit per control system cluster, with additional spares proportional to the number of redundant controller pairs in the installation. Given the extended lead times associated with OEM procurement channels for legacy DCS components, maintaining an on-site or regionally warehoused spare inventory is the most effective strategy for minimizing mean time to repair (MTTR). ZYPLC maintains a dedicated inventory of TC-PRR021 and related Experion PKS components, with global shipping capability and a 12-Month Warranty on all supplied units, supporting both emergency replacement and planned maintenance programs.
