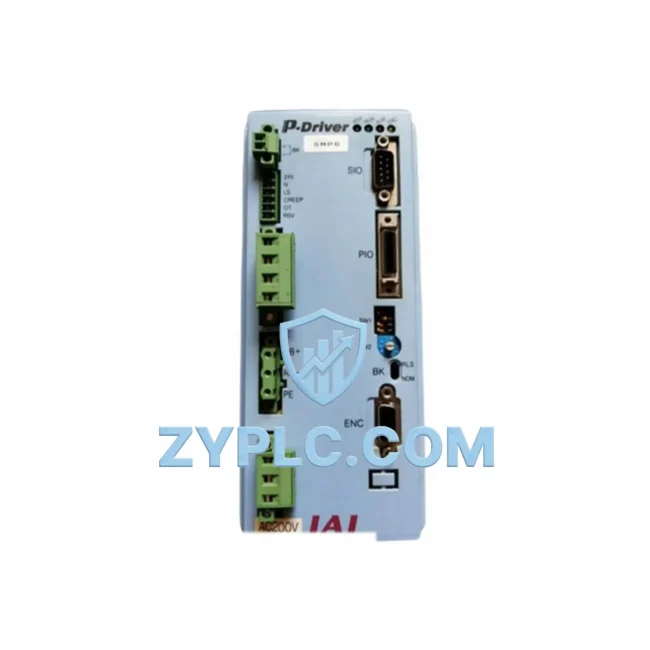

IAI PDR-I-200L-2 Energy-Saving Servo Drive for PCON Automation

IAI PDR-I-200L-2 Energy-Saving Servo Drive for PCON Automation

The IAI PDR-I-200L-2 is a high-performance servo drive module engineered for the PCON series of electric actuator controllers. Designed to maximize energy utilization across demanding industrial production environments, this drive module delivers precise motor control, reduced idle-state power draw, and seamless integration with IAI’s broader automation ecosystem. Whether deployed in assembly lines, semiconductor handling, food processing, or precision dispensing applications, the PDR-I-200L-2 enables factories to achieve measurable gains in equipment utilization rates while simultaneously cutting unnecessary energy expenditure.

Unlike conventional servo drives that operate at fixed output regardless of load demand, the PDR-I-200L-2 dynamically adjusts its power delivery in response to real-time actuator feedback. This load-adaptive behavior directly reduces heat generation, extends component service life, and lowers the total energy consumed per production cycle — a critical advantage in facilities operating multiple axes simultaneously.

Efficiency Performance Table

Energy-Aware Automation Architecture

The PDR-I-200L-2 is most effective when deployed as part of a coordinated automation architecture rather than as a standalone replacement. In a typical IAI-based production cell, the drive module interfaces directly with the PCON-CB controller, which manages position commands, speed profiles, and torque limits for each actuator axis. The PCON-CB’s built-in regenerative energy handling works in tandem with the PDR-I-200L-2 to recover braking energy during deceleration phases — energy that would otherwise be dissipated as heat.

For multi-axis applications, the MSEL multi-axis controller coordinates up to eight actuator axes simultaneously, distributing power loads intelligently across the system. When paired with the PDR-I-200L-2, the MSEL platform enables synchronized motion profiles that minimize peak current draw, reducing strain on upstream power infrastructure and lowering overall facility energy demand.

On the sensing and feedback side, the RCP6 series rod-type electric actuators provide high-resolution encoder feedback that the PDR-I-200L-2 uses to fine-tune its output in real time. This closed-loop interaction ensures that the drive never delivers more power than the mechanical load requires, a key factor in achieving consistent energy efficiency across varying production speeds and payloads.

For applications requiring network-level energy monitoring, the PDR-I-200L-2 is compatible with IAI’s ACON-CB controller and can be integrated into EtherNet/IP or PROFIBUS-based monitoring architectures. When combined with a plant-level SCADA or DCS system, operators gain visibility into per-axis power consumption, enabling data-driven decisions about production scheduling and load balancing.

The PCON-SE simple encoder variant of the PCON controller family is frequently deployed alongside the PDR-I-200L-2 in cost-sensitive applications where absolute positioning is not required. This combination delivers reliable, energy-efficient linear motion at a lower system cost, making it suitable for high-volume repetitive tasks such as pick-and-place, pressing, and clamping.

In facilities using IAI’s PC software (IA-101-X-MW) for parameter configuration and diagnostics, the PDR-I-200L-2 can be tuned remotely to optimize acceleration/deceleration curves for specific load profiles. Reducing unnecessary acceleration peaks is one of the most impactful ways to lower instantaneous power demand without sacrificing cycle time.

For I/O integration, the drive works seamlessly with IAI’s EtherCAT-compatible gateway modules, allowing it to participate in high-speed fieldbus networks where motion commands and energy telemetry are exchanged in real time. This connectivity is essential for factories implementing Industry 4.0 energy management strategies.

Power Optimization in Real Production Lines

In real-world production environments, the PDR-I-200L-2 delivers its most significant energy savings through three mechanisms: elimination of over-torque conditions, reduction of standby power consumption, and improvement of production line takt time.

Over-torque conditions — where a servo drive outputs more force than the mechanical load requires — are a common source of wasted energy in factories using older, fixed-gain drive systems. The PDR-I-200L-2’s adaptive gain control continuously monitors actuator load and adjusts output torque accordingly, preventing energy waste at the drive level before it propagates to the power distribution system.

Standby power reduction is achieved through the drive’s low-power hold mode, which activates automatically when the actuator is stationary and no motion command is pending. In production lines with frequent dwell periods — such as assembly stations waiting for upstream processes — this feature can reduce per-axis standby consumption by a meaningful margin over a full production shift.

Takt time optimization is perhaps the most commercially significant benefit. By enabling faster, more precise acceleration and deceleration profiles, the PDR-I-200L-2 allows production lines to complete more cycles per hour without increasing peak power demand. The result is higher throughput per kilowatt-hour — a direct improvement in the facility’s energy productivity ratio.

From a maintenance perspective, the drive’s built-in diagnostic functions monitor motor current waveforms, encoder signal integrity, and thermal status in real time. Anomalies that indicate bearing wear, cable degradation, or mechanical binding are flagged before they cause unplanned downtime, supporting a predictive maintenance strategy that keeps equipment utilization rates high and maintenance costs low.

All units are sourced from verified supply channels, undergo functional testing prior to shipment, and are covered by a 12-month warranty. Stock is maintained for prompt dispatch to minimize production disruption for customers requiring urgent replacement or system expansion.

Energy Optimization FAQ

Q1: How much energy can the PDR-I-200L-2 save compared to a standard servo drive?
Actual savings depend on application duty cycle, load profile, and line configuration. In applications with frequent dwell periods and variable loads, the adaptive output control and low-power hold mode can meaningfully reduce per-axis energy consumption compared to fixed-output drives. We recommend reviewing your current axis power logs and consulting with our technical team for a site-specific estimate.

Q2: Is the PDR-I-200L-2 compatible with my existing PCON controller?
The PDR-I-200L-2 is designed for use within the IAI PCON series ecosystem, including PCON-CB, PCON-CFA, PCON-PL, and PCON-SE variants. Compatibility depends on your specific controller firmware version and actuator model. Please provide your full system configuration when enquiring so we can confirm compatibility before shipment.

Q3: What is the recommended replacement or upgrade path for older IAI drive modules?
For systems currently using earlier-generation IAI drive modules, the PDR-I-200L-2 is a direct functional replacement in most PCON-series configurations. Parameter migration can be performed using IAI’s PC software suite. Our team can assist with configuration backup and parameter transfer to minimize changeover time.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every PDR-I-200L-2 unit undergoes functional testing prior to dispatch, including power-on verification, encoder signal check, and output stage validation. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units showing signs of physical damage from improper installation or environmental exposure outside rated specifications are not covered. Warranty claims are processed promptly to minimize production impact.
