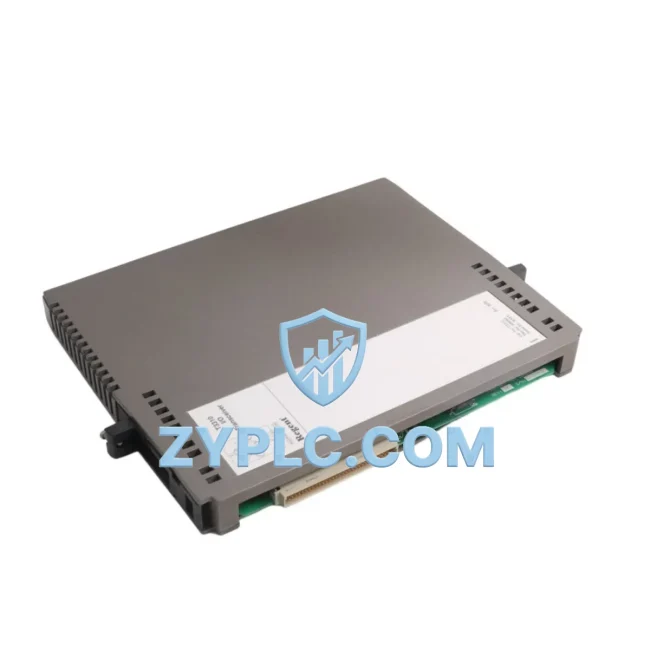

ICS Triplex T3310 I/O Transceiver for TMR

ICS Triplex T3310 I/O Transceiver for TMR Safety

The ICS Triplex T3310 I/O Transceiver Module is a precision-engineered component designed for deployment within Triple Modular Redundancy (TMR) safety control architectures. Rather than functioning as a standalone device, the T3310 occupies a critical position within the layered automation hierarchy — bridging the field I/O layer and the central processing layer to ensure signal fidelity, fault tolerance, and uninterrupted system continuity across demanding industrial environments.

In a fully integrated TMR control system, the T3310 works in concert with the ICS Triplex T3101 Processor Module, which governs the three-channel voting logic at the control layer. Signal inputs from field instruments are routed through the T3310 transceiver, conditioned and transmitted to the processor with full channel isolation. This architecture ensures that any single-channel fault — whether electrical, mechanical, or software-induced — does not propagate to the system output, maintaining SIL 3 integrity throughout the control loop.

The T3310 is rack-mounted within the ICS Triplex T3100 Series chassis, sharing a common backplane with the T3110 Power Supply Module and the T3120 Communication Gateway. This co-location on a unified backplane reduces wiring complexity, minimises signal latency, and simplifies system commissioning. Engineers working on greenfield installations or brownfield upgrades benefit from the T3310’s plug-and-play compatibility with the existing Triplex rack infrastructure, eliminating the need for custom signal conditioning hardware.

At the network layer, the T3310 supports system integration with supervisory systems via the T3120 gateway, which handles Modbus TCP and proprietary Triplex communication protocols. This enables real-time data exchange between the safety layer and the DCS or SCADA platform, supporting alarm rationalisation, historian logging, and remote diagnostics without compromising the safety function. The seamless data pathway from field device through the T3310 to the supervisory network is a key enabler of modern integrated safety and control architectures.

Power delivery to the T3310 is managed through the redundant T3110 Power Supply Module, which provides dual-feed input capability and automatic switchover in the event of a supply failure. This power redundancy, combined with the T3310’s internal voltage regulation, ensures that transceiver operation remains stable across the full industrial temperature range and during grid disturbances — a critical requirement in oil and gas, petrochemical, and power generation applications.

For human-machine interface integration, the T3310’s status outputs are accessible through the T3480 HMI Interface Module, which aggregates channel health, fault codes, and diagnostic data for display on operator workstations. Maintenance engineers can identify transceiver faults, channel deviations, and calibration drift without interrupting the safety function, reducing mean time to repair and supporting predictive maintenance programmes.

At the execution layer, the T3310 interfaces with final control elements — including solenoid valve drivers, motor control relays, and variable speed drives — through the T3200 Series Output Modules. The transceiver’s signal conditioning ensures that output commands are delivered with the precision and repeatability required for process-critical applications, including emergency shutdown (ESD) systems, burner management systems (BMS), and high-integrity pressure protection systems (HIPPS).

All units supplied by ZYPLC are covered by a 12-Month Warranty, with full traceability documentation, functional test reports, and certificate of conformance available upon request. Stock is maintained across multiple distribution hubs to support urgent project timelines and emergency replacement requirements.

Product Specification Table

System Compatibility Notes

The T3310 achieves its full performance potential when deployed as part of a coordinated ICS Triplex TMR system. A typical architecture integrating the T3310 includes the following components working in concert:

The T3101 Processor Module serves as the TMR voting controller, receiving conditioned signals from the T3310 and executing the safety logic across three independent channels. The T3110 Power Supply Module provides redundant 24 VDC power to the backplane, ensuring the T3310 and co-located modules remain energised during primary supply interruptions. The T3120 Communication Gateway bridges the safety network to the plant DCS or SCADA system, transmitting T3310 diagnostic data and process values in real time.

Input signal marshalling is handled upstream of the T3310 by the T3201 Analogue Input Module and T3202 Digital Input Module, which pre-condition field signals before they enter the transceiver path. On the output side, the T3210 Digital Output Module receives voted commands from the processor and drives final control elements, with the T3310 maintaining signal integrity throughout the chain. Terminal block assemblies — such as the T3401 Field Termination Assembly — provide the physical connection point between field wiring and the T3310’s input terminals, simplifying installation and enabling hot-swap maintenance without loop interruption.

For applications requiring extended I/O capacity, the T3300 I/O Expansion Module can be added to the rack alongside the T3310, increasing the system’s field device count without requiring additional processor resources. This modular expansion capability is a defining feature of the T3100 Series architecture, supporting phased project delivery and future capacity growth.

Industrial Application Notes

The ICS Triplex T3310 is deployed across a broad range of safety-critical industries where TMR architecture and SIL 3 compliance are mandatory requirements.

In oil and gas processing, the T3310 forms the I/O backbone of emergency shutdown systems on wellheads, compressor stations, and offshore platforms. Its triple-channel signal path ensures that pressure, temperature, and flow transmitter signals are processed with full fault tolerance, supporting the rapid and reliable actuation of ESD valves in response to process excursions.

In power generation and transmission, the T3310 is integrated into turbine protection systems and generator excitation control panels, where signal accuracy and system availability are equally critical. The module’s compatibility with the T3120 gateway enables seamless integration with maintenance planning systems and substation automation platforms.

In petrochemical and refinery applications, the T3310 supports burner management systems and HIPPS installations, where regulatory compliance with IEC 61511 demands documented SIL verification and full system traceability. ZYPLC provides complete documentation packages to support functional safety assessments and third-party audits.

In water and wastewater treatment, the T3310 is used in pump protection and chemical dosing control systems, where its robust signal conditioning handles the noise-intensive electrical environment typical of large motor installations. In mining and metallurgy, the module supports conveyor safety systems and smelter process controls, operating reliably in high-vibration, high-temperature environments.

Product Compatibility FAQ

Q1: Is the T3310 compatible with both legacy T3100 Series racks and newer ICS Triplex chassis variants?
The T3310 is designed for the ICS Triplex T3100 Series rack architecture and is fully compatible with the standard T3100 backplane. Compatibility with variant chassis configurations should be verified against the specific rack revision and backplane bus specification. ZYPLC’s technical team can assist with compatibility assessment prior to order placement, and all units are supplied with a 12-Month Warranty covering manufacturing defects and functional performance.

Q2: Can the T3310 be replaced online without shutting down the TMR system?
The ICS Triplex TMR architecture is designed to support online module replacement under specific conditions, provided the system remains in a two-out-of-three (2oo3) voting state during the replacement window. The T3310’s hot-swap capability — when used with the T3401 Field Termination Assembly — allows field wiring to remain connected during module exchange, minimising process disruption. Commissioning engineers should follow the ICS Triplex maintenance procedure and verify channel restoration via the T3480 HMI Interface Module before returning the system to full TMR operation.

Q3: What documentation is provided with T3310 units supplied by ZYPLC, and how does the 12-Month Warranty apply?
Each T3310 unit supplied by ZYPLC is accompanied by a functional test report, certificate of conformance, and full traceability documentation including batch and serial number records. The 12-Month Warranty covers all manufacturing defects and functional failures under normal operating conditions, with replacement or repair turnaround coordinated through ZYPLC’s technical support team. Extended warranty and spare parts management programmes are available for long-term maintenance contracts.
