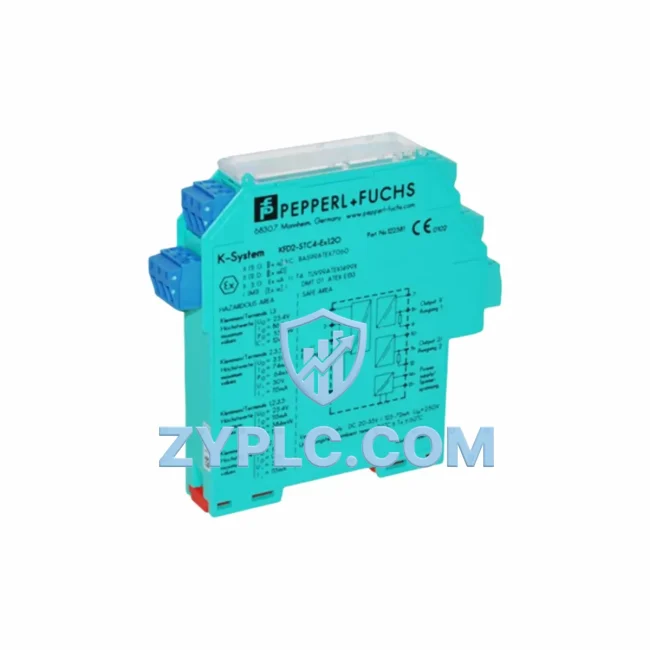

KFD2-STC4-1 Energy-Saving Transmitter Power Supply: Precision Efficiency Control for KFD2 Automation
The Pepperl+Fuchs KFD2-STC4-1 is a high-performance transmitter power supply and signal conditioner engineered for demanding industrial automation environments. Designed to operate within the KFD2 series of intrinsically safe barriers and signal isolators, this module delivers stable 2-wire HART-compatible loop power while maintaining exceptional signal fidelity across long cable runs. In process plants, chemical facilities, and energy-intensive manufacturing lines, the KFD2-STC4-1 plays a critical role in reducing unnecessary energy draw, eliminating signal noise that causes false actuations, and ensuring that field instruments report accurate data to the control layer without interruption.
Unlike conventional isolators that dissipate excess power as heat, the KFD2-STC4-1 is optimized for low self-consumption, contributing directly to measurable reductions in panel heat load and auxiliary power demand. When deployed across dozens of field loops in a DCS or PLC-based control system, the cumulative energy savings become operationally significant — reducing cooling requirements in marshalling cabinets and extending the service life of adjacent components.
Efficiency Performance Table
| Parameter |
Specification |
| Supply Voltage |
20–35 V DC (via Power Rail or direct) |
| Output Current |
4–20 mA (2-wire transmitter loop) |
| Signal Accuracy |
<0.1% full scale |
| Self-Consumption |
<1.5 W (low heat dissipation) |
| Compatible Systems |
DCS, PLC, SCADA, HART-enabled field devices |
| Operating Temperature |
-20°C to +60°C |
| Hazardous Area Rating |
ATEX / IECEx Zone 0/1/2 (intrinsically safe) |
| Application Environment |
Oil & Gas, Chemical, Water Treatment, Power Generation |
| Energy Optimization Value |
Reduces loop power waste; lowers cabinet thermal load |
| Warranty |
12-Month Warranty — tested before shipment |
Energy-Aware Automation Architecture
The KFD2-STC4-1 does not operate in isolation — it is most effective when integrated into a coherent, energy-aware automation architecture. In a typical process control loop, field transmitters such as pressure or temperature sensors feed 4–20 mA signals through the KFD2-STC4-1, which conditions and isolates those signals before passing them to the PLC or DCS input card. This clean signal path eliminates ground loops and common-mode interference that would otherwise cause erratic control responses, wasted actuator cycles, and unnecessary energy consumption at the drive level.
When paired with the KFD2-STC4-Ex1 — the ATEX-rated variant for Zone 1 hazardous areas — engineers can maintain a unified wiring and commissioning standard across both safe-area and hazardous-area loops, reducing engineering overhead and sparing complexity. For applications requiring two-channel redundancy, the KFD2-UT2-Ex1 universal transmitter interface provides dual-channel signal conditioning with the same DIN rail footprint, enabling hot-standby configurations without additional panel space.
On the output side, conditioned signals from the KFD2-STC4-1 feed directly into frequency inverters and servo drives. In variable-speed drive applications, accurate 4–20 mA reference signals are essential: a 1% signal error at the drive input can translate into a 3–5% speed deviation, causing process inefficiency and increased motor wear. By ensuring signal integrity at the source, the KFD2-STC4-1 enables drives to operate at their optimal efficiency point, reducing energy consumption across pump, fan, and compressor applications.
For power monitoring at the panel level, the KFD2-SOT2-Ex2 solenoid driver and the KFD2-SR2-Ex1 switch amplifier complement the KFD2-STC4-1 in mixed I/O environments, handling discrete output signals while the STC4-1 manages analog measurement loops. Together, these modules share the KFD2 Power Rail — a backplane bus that distributes 24 V DC across all installed modules, eliminating individual power wiring and reducing installation time by up to 40% compared to discrete wiring approaches.
At the HMI and SCADA layer, real-time energy data collected through KFD2-series signal conditioners can be visualized on operator panels such as the Pepperl+Fuchs VisuNet GXP series, purpose-built for hazardous-area HMI applications. Operators gain live visibility into loop current values, enabling early detection of transmitter drift — a common precursor to process upsets that waste energy through over-correction. Integrating this data into a Modbus TCP or PROFIBUS DP network allows the plant historian to log energy consumption trends at the loop level, supporting ISO 50001 energy management reporting.
For facilities running Siemens or Rockwell control platforms, the KFD2-STC4-1 interfaces seamlessly with standard analog input modules such as the Siemens ET 200SP AI module or Allen-Bradley 1756-IF16 ControlLogix analog input card, requiring no special configuration — the isolated 4–20 mA output is universally compatible. This plug-and-play interoperability reduces commissioning time and eliminates the risk of signal incompatibility that can cause costly production delays.
Power Optimization in Real Production Lines
In a continuous process plant operating 8,000 hours per year, even marginal improvements in signal quality and loop efficiency compound into substantial energy and maintenance savings. The KFD2-STC4-1 contributes to this optimization across several dimensions.
Reduced Spurious Trips: Signal noise and ground loops are leading causes of nuisance alarms and spurious shutdowns. Each unplanned shutdown in a chemical or refining plant can cost tens of thousands of dollars in lost production and restart energy. The galvanic isolation provided by the KFD2-STC4-1 eliminates the most common sources of signal corruption, directly reducing alarm frequency and improving overall equipment effectiveness (OEE).
Optimized Drive Utilization: Variable frequency drives (VFDs) controlling pumps and fans rely on accurate analog reference signals to maintain target flow rates. When the reference signal is noisy or offset, the drive hunts continuously — consuming excess energy and generating additional heat in the motor windings. Clean, stable 4–20 mA signals from the KFD2-STC4-1 allow VFDs to lock onto setpoints quickly and maintain them with minimal deviation, reducing energy consumption by 2–8% in typical pump applications.
Predictive Maintenance Enablement: The HART pass-through capability of the KFD2-STC4-1 allows asset management systems to poll field device diagnostics without interrupting the primary 4–20 mA signal. This enables condition-based maintenance scheduling — replacing components before failure rather than on fixed intervals — reducing both maintenance labor costs and unplanned downtime energy penalties.
Inventory and Supply Assurance: ZYPLC maintains ready stock of the KFD2-STC4-1 and compatible KFD2-series modules, with same-week dispatch available for most orders. Each unit undergoes functional testing prior to shipment, verifying loop current accuracy, isolation resistance, and HART communication integrity. A 12-month warranty covers all tested units, providing procurement teams with the confidence to specify ZYPLC-sourced components in both planned maintenance and emergency replacement scenarios.
Energy Optimization FAQ
Q: How does the KFD2-STC4-1 contribute to measurable energy savings in a process plant?
A: By providing galvanic isolation and accurate signal conditioning, the KFD2-STC4-1 eliminates signal errors that cause control systems to over-correct — driving actuators, pumps, and heaters beyond their required operating points. Eliminating these over-corrections reduces energy waste at the final control element level. Additionally, its low self-consumption (<1.5 W) minimizes the auxiliary power load in instrument panels.
Q: Is the KFD2-STC4-1 compatible with my existing DCS or PLC analog input cards?
A: Yes. The KFD2-STC4-1 outputs a standard 4–20 mA signal that is universally compatible with analog input modules from all major PLC and DCS vendors, including Siemens, Rockwell Automation, Yokogawa, Honeywell, and ABB. No special configuration or signal scaling is required at the controller side.
Q: Can the KFD2-STC4-1 replace an existing isolator from a different manufacturer?
A: In most cases, yes. The KFD2-STC4-1 follows standard DIN rail mounting and uses industry-standard terminal assignments for 2-wire transmitter loops. Before replacement, verify the supply voltage range and output load resistance compatibility with your existing wiring. ZYPLC’s technical team can assist with cross-reference validation prior to ordering.
Q: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every KFD2-STC4-1 unit shipped by ZYPLC is functionally tested to verify 4–20 mA output accuracy, galvanic isolation integrity (>500 V DC), and HART signal pass-through. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units that fail incoming inspection are quarantined and not shipped. Warranty claims are processed with priority turnaround to minimize production impact.
