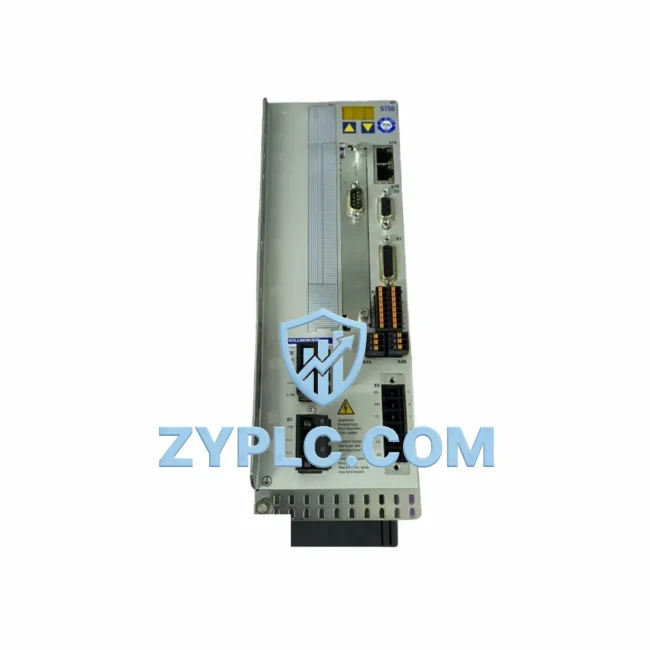

Kollmorgen S70102-NAPMNA Energy-Saving Servo Drive for Optimized GoldLine Automation
The Kollmorgen S70102-NAPMNA is a high-performance servo drive module from the GoldLine series, engineered to deliver precision motion control while minimizing energy consumption across demanding industrial automation environments. Designed for manufacturers seeking to reduce operational energy costs without sacrificing throughput or positioning accuracy, the S70102-NAPMNA integrates seamlessly into multi-axis drive architectures where every watt of consumed power must translate directly into productive mechanical output.
In modern production facilities, energy waste is rarely the result of a single component failure — it accumulates through inefficient motor control, oversized drive sizing, poor regenerative energy handling, and uncoordinated axis motion. The S70102-NAPMNA addresses these challenges at the drive level, providing tightly regulated current output, adaptive torque management, and smooth velocity profiling that collectively reduce reactive power draw and thermal losses across the servo system.
Efficiency Performance Table
| Parameter |
Specification |
| SKU / Part Number |
S70102-NAPMNA |
| Brand / Series |
Kollmorgen / GoldLine |
| Product Category |
Servo Drive Module |
| Rated Output Power |
Matched to GoldLine servo motor series |
| Drive Efficiency Class |
High-efficiency PWM switching topology |
| Compatible Systems |
Kollmorgen GoldLine servo motors, AKD series controllers, SERCOS / analog command interfaces |
| Application Environment |
Industrial automation, CNC machining, packaging lines, material handling, robotics |
| Energy-Saving Value |
Reduced reactive power, regenerative braking support, optimized torque-to-current ratio |
| Origin |
United States |
| Warranty |
12-Month Warranty — tested and verified before shipment |
Energy-Aware Automation Architecture
The S70102-NAPMNA does not operate in isolation — its energy efficiency is best realized when deployed within a coordinated Kollmorgen drive ecosystem. In a typical GoldLine servo system, the S70102-NAPMNA drive module interfaces with Kollmorgen GoldLine brushless servo motors, which are wound for low-loss operation and matched impedance to minimize copper losses at partial load. The drive’s PWM output stage is tuned to the motor’s electrical time constant, reducing switching losses and heat generation during continuous duty cycles.
For multi-axis applications, the S70102-NAPMNA can be paired with Kollmorgen’s AKD servo drives on shared DC bus configurations, enabling regenerative energy from decelerating axes to be redistributed to accelerating axes — a technique that can reduce net energy draw from the AC supply by 15–30% in coordinated motion profiles. The Kollmorgen WorkBench software platform provides real-time monitoring of bus voltage, phase current, and power factor, giving engineers the data needed to fine-tune energy performance without interrupting production.
At the control layer, the S70102-NAPMNA accepts command signals from Kollmorgen’s KAS (Kollmorgen Automation Suite) motion controllers, which support IEC 61131-3 programming and PLCopen motion function blocks. This allows production engineers to implement energy-aware motion profiles — such as velocity rounding, jerk limitation, and standby torque reduction — directly in the PLC logic without requiring custom firmware. Integration with Profibus DP or CANopen fieldbus modules further enables centralized energy monitoring from a SCADA or HMI terminal, such as the Kollmorgen HMI panels or third-party Weintek and Siemens TP series displays.
Power quality at the input stage is managed through compatible line filters and EMC chokes, which reduce harmonic distortion fed back into the facility power grid — a critical consideration in plants where multiple servo axes share a common power distribution panel. Pairing the S70102-NAPMNA with a properly rated Kollmorgen regenerative power supply or a shared bus capacitor bank further stabilizes DC bus voltage during rapid load transients, protecting both the drive and connected servo motors from voltage spikes that cause nuisance faults and unplanned downtime.
Power Optimization in Real Production Lines
On a packaging line running 24/7, the S70102-NAPMNA contributes to energy savings through several mechanisms that compound over time. First, its precise current regulation ensures that the connected GoldLine servo motor draws only the current required to produce the commanded torque — eliminating the excess magnetizing current that plagues oversized or poorly tuned drives. Second, the drive’s velocity loop bandwidth is high enough to track aggressive motion profiles without requiring the motor to overshoot and recover, which wastes energy in unnecessary acceleration-deceleration cycles.
In CNC machining centers, the S70102-NAPMNA’s smooth torque delivery reduces tool chatter and workpiece vibration, which not only improves surface finish quality but also extends cutting tool life — reducing the energy embedded in replacement tooling and the downtime associated with tool changes. On material handling conveyors and gantry systems, the drive’s ability to maintain constant velocity under variable load conditions prevents the speed hunting that causes mechanical wear and increases average motor current draw.
Predictive maintenance is another dimension of energy optimization enabled by the S70102-NAPMNA. By monitoring drive output current, bus voltage ripple, and thermal status through the Kollmorgen WorkBench diagnostic interface, maintenance teams can identify developing motor winding faults, bearing degradation, or coupling misalignment before they cause catastrophic failures. Early intervention reduces both repair costs and the energy wasted running a degraded mechanical system at reduced efficiency.
All units supplied by ZYPLC undergo full functional testing prior to shipment, including load simulation, current loop verification, and communication interface checks. Stock is maintained for immediate dispatch, and each S70102-NAPMNA is covered by a 12-month warranty, ensuring that your production line investment is protected from day one of installation.
Energy Optimization FAQ
Q1: How much energy can the S70102-NAPMNA save compared to a standard servo drive?
A: Actual savings depend on the application duty cycle and load profile. In coordinated multi-axis systems using shared DC bus regeneration, net energy reduction of 15–30% is achievable. In single-axis applications, savings come primarily from reduced reactive power and elimination of over-current conditions caused by poor tuning.
Q2: Is the S70102-NAPMNA compatible with my existing Kollmorgen GoldLine servo motors?
A: Yes. The S70102-NAPMNA is designed for use with Kollmorgen GoldLine series brushless servo motors. Compatibility with specific motor frame sizes and winding configurations should be verified against the Kollmorgen motor-drive compatibility matrix. Contact ZYPLC for application-specific confirmation.
Q3: What is the recommended replacement or upgrade path if my current drive is failing?
A: The S70102-NAPMNA is a direct replacement for compatible GoldLine drive modules. If upgrading from an older analog command interface to a digital fieldbus architecture, additional interface modules may be required. ZYPLC’s technical team can advise on drop-in replacement options and any wiring modifications needed.
Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
A: Every S70102-NAPMNA unit shipped by ZYPLC is tested under load conditions to verify output current accuracy, velocity loop response, and communication interface integrity. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are shipped with test documentation upon request.
