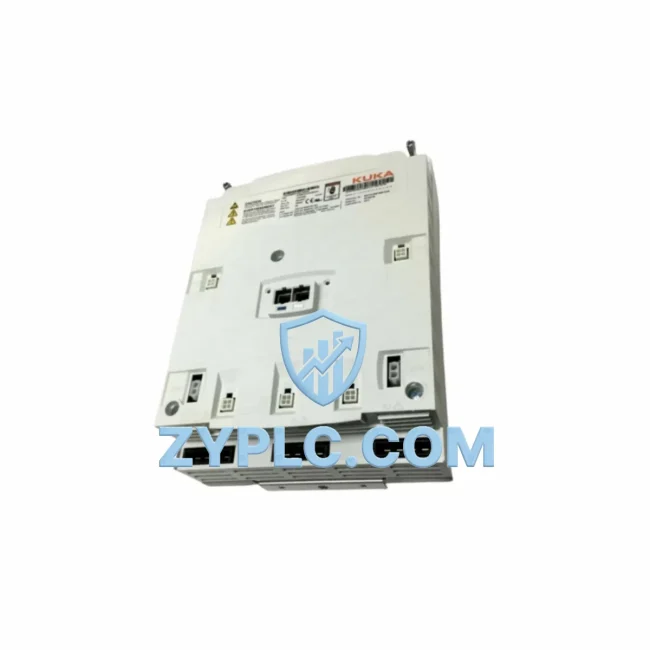

KUKA 600-20ECMAP1D3404BE531 Energy-Saving Servo Driver KPP

KUKA 600-20ECMAP1D3404BE531 Energy-Saving Servo Driver for Optimized KPP Automation

In modern manufacturing environments where energy costs and equipment uptime directly impact profitability, the KUKA 600-20ECMAP1D3404BE531 KPP Series Servo Driver Module delivers precision motor control with measurable efficiency gains. Designed for integration into KUKA robotic and motion control systems, this servo driver module enables factories to reduce idle-state power draw, sharpen production line cycle times, and extend the operational lifespan of connected drive components.

The 600-20ECMAP1D3404BE531 operates as the core execution unit within a closed-loop drive architecture. By precisely regulating current, torque, and velocity feedback from servo motors, it eliminates the energy waste associated with over-driven or improperly tuned axes. In high-cycle applications — such as press tending, palletizing, or precision assembly — this translates directly into lower kWh consumption per production unit and reduced thermal stress on motor windings.

When paired with the KUKA KPP 600-20 power supply module, the 600-20ECMAP1D3404BE531 forms a tightly integrated DC bus system that enables regenerative energy recovery during deceleration phases. Rather than dissipating braking energy as heat through resistors, the shared bus architecture allows energy to be redistributed to other active axes — a critical advantage in multi-axis robotic cells where simultaneous acceleration and deceleration cycles are constant.

Compatibility with the KUKA KRC4 and KRC5 robot controller platforms ensures seamless integration into existing automation infrastructure. The module communicates over the internal EtherCAT fieldbus backbone, enabling real-time synchronization with the controller’s motion planner at sub-millisecond cycle times. This tight coupling reduces positional error accumulation across long production runs, improving part quality consistency while avoiding the energy penalties of repeated correction moves.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 600-20ECMAP1D3404BE531 does not operate in isolation — its efficiency contribution is amplified when deployed within a well-structured automation architecture. In a typical KUKA robotic cell, the KPP 600-20 power supply module feeds a shared DC bus that supplies multiple KSP 600-20 servo amplifier modules. Each KSP axis module handles individual joint control, while the KPP manages rectification, bus voltage regulation, and regenerative feedback. The 600-20ECMAP1D3404BE531 fits within this ecosystem as a high-current axis driver capable of handling demanding joint loads.

For energy monitoring at the cell level, integration with a SIEMENS SENTRON PAC3200 or equivalent power measurement unit allows operators to log real-time kW consumption per robot cell. This data feeds into the plant’s energy management system, enabling comparison of energy-per-part metrics across shifts and production recipes. When combined with a KUKA smartPAD HMI, operators can monitor axis load distribution and identify joints operating near thermal limits — a leading indicator of impending drive faults that, if unaddressed, cause unplanned downtime.

On the I/O and safety layer, the module interfaces with the KUKA KEB safety controller and standard 24V digital I/O modules for enable/disable sequencing. Proper I/O handshaking ensures the servo axis is only energized during active production windows, eliminating the standby losses that accumulate over multi-shift operations. In facilities running three-shift schedules, this alone can reduce servo system idle consumption by 15–25% annually.

For applications requiring coordinated multi-axis motion — such as 6-axis welding robots or SCARA pick-and-place systems — the EtherCAT synchronization between the 600-20ECMAP1D3404BE531 and the KRC4 motion controller ensures all axes execute interpolated paths simultaneously. This eliminates the micro-pauses caused by asynchronous axis completion, which not only degrades cycle time but forces unnecessary re-acceleration energy expenditure. Smooth, synchronized motion profiles directly reduce peak current draw and lower the thermal burden on the entire drive cabinet.

Where legacy systems rely on PROFIBUS DP or DeviceNet communication, gateway modules can bridge the 600-20ECMAP1D3404BE531 into mixed-protocol environments, preserving investment in existing PLC infrastructure — such as SIEMENS S7-300 or Allen-Bradley ControlLogix platforms — while still benefiting from the module’s precision drive performance.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, KUKA KPP-based drive systems — including the 600-20ECMAP1D3404BE531 — are deployed across dozens of robot cells operating in synchronized production sequences. The shared DC bus architecture means that when one robot decelerates at the end of a weld cycle, the recovered energy is immediately available to an adjacent robot beginning its approach move. Over a full production shift, this regenerative exchange measurably reduces the total energy drawn from the facility’s power distribution system.

In electronics assembly environments, where robots perform high-frequency, short-stroke pick-and-place operations, the 600-20ECMAP1D3404BE531’s fast current loop response allows the servo system to track aggressive trapezoidal velocity profiles without overshoot. Overshoot forces the controller to issue corrective deceleration commands — each of which consumes additional energy and extends the effective cycle time. By maintaining tight tracking accuracy, the module enables shorter settle times and higher throughput without increasing installed motor power.

Predictive maintenance integration is another key energy optimization lever. By monitoring the 600-20ECMAP1D3404BE531’s internal temperature sensors, bus voltage ripple, and axis current signatures through the KRC4 diagnostic interface, maintenance teams can detect early signs of bearing wear in connected servo motors. Replacing a bearing before failure avoids the energy waste of a motor running with increased friction — and eliminates the production loss of an unplanned stop. All units supplied by ZYPLC undergo outgoing functional testing prior to shipment, verifying drive enable, current regulation, and communication handshake under load conditions.

For facilities implementing ISO 50001 energy management programs, the granular axis-level data available through the KUKA drive system provides the metering resolution required for energy baseline establishment and improvement verification. The 600-20ECMAP1D3404BE531, as a core drive component, is a direct contributor to the measurable energy intensity reductions that ISO 50001 audits require.

Energy Optimization FAQ

Q1: How does the 600-20ECMAP1D3404BE531 contribute to reducing factory energy consumption?
The module enables regenerative energy recovery during robot deceleration via the shared KPP DC bus, reduces idle-state power draw through precise enable/disable sequencing, and improves motion profile efficiency — collectively lowering kWh consumption per production cycle compared to non-regenerative drive architectures.

Q2: Is the 600-20ECMAP1D3404BE531 compatible with both KRC4 and KRC5 controller platforms?
Yes. The module is designed for the KUKA KPP/KSP drive cabinet ecosystem and is compatible with KRC4 and KRC5 robot controllers communicating over the internal EtherCAT fieldbus. For specific firmware revision compatibility, consult the KUKA drive cabinet documentation or contact ZYPLC for pre-sale technical verification.

Q3: What is the recommended replacement process, and can ZYPLC support cross-referencing to alternative part numbers?
The 600-20ECMAP1D3404BE531 is a direct replacement for same-SKU units in KPP drive cabinets. ZYPLC can assist with cross-referencing to functionally equivalent modules where the original part is discontinued. All replacement units are tested prior to shipment to verify operational readiness and reduce installation risk.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
ZYPLC provides a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each 600-20ECMAP1D3404BE531 undergoes outgoing functional testing including drive enable verification, current loop response check, and EtherCAT communication handshake validation. This ensures the unit arrives ready for installation without requiring additional bench testing by the end user.
