KUKA KPP 600-20 Industrial Drive Power Module for KR C4

KUKA KPP 600-20 Drive Power Module: Industrial Data Link for KR C4 Smart Factory Systems

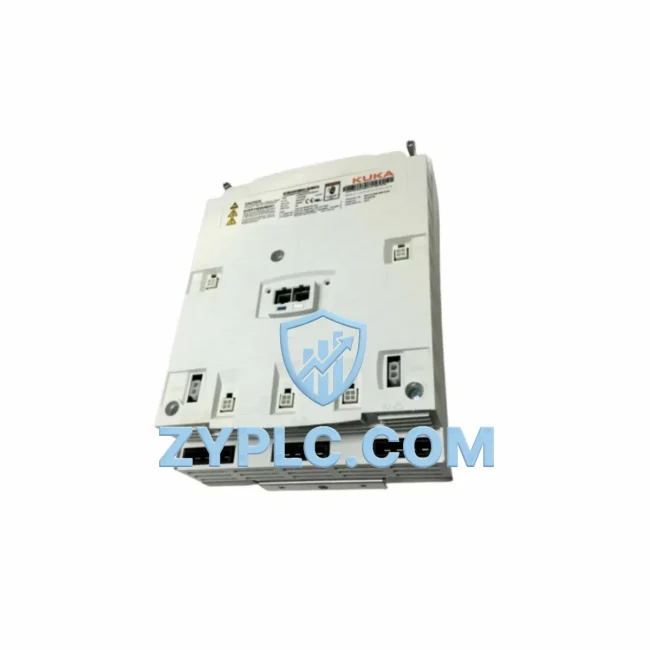

The KUKA KPP 600-20 is a high-performance drive power module engineered for the KUKA KR C4 robot controller platform — one of the most widely deployed robot control architectures in modern smart manufacturing. Available in three configurations — KPP 600-20 2X40 (00-160-152), KPP 600-20 3X20 UL (00-245-213), and KPP 600-20 UL (00-198-259) — this module serves as the centralized power backbone that feeds multi-axis servo drives within the KR C4 cabinet, enabling precise, synchronized motion control across industrial robot arms deployed in welding, assembly, palletizing, and material handling applications.

In a connected smart factory, the KPP 600-20 does not operate in isolation. It is the power foundation upon which the entire KR C4 data and control chain is built. From the moment a motion command is issued by the KUKA KR C4 controller — processed through the real-time EtherCAT-based internal bus — the KPP 600-20 delivers regulated DC bus voltage to the KUKA KSP 600-3×40 servo power modules and KSP 600-3×20 UL axis modules, ensuring that each robot joint receives clean, stable power synchronized with the controller’s motion interpolation cycle. This tight integration between power delivery and motion data is what enables sub-millisecond response times in high-speed production lines.

Network Communication Table

Connected Automation Data Flow

Understanding the KPP 600-20’s role requires tracing the full data and power flow within a KR C4-based automation cell. The process begins at the field level, where KUKA KR AGILUS or KUKA KR QUANTEC robot arms receive motion trajectories from the KR C4 controller. The controller’s real-time processor communicates over an internal EtherCAT ring to the KPP 600-20, which in turn distributes regulated DC bus power to the axis-level KSP 600-3×40 and KSP 600-3×20 UL servo modules. Each servo module drives an individual robot joint motor, with encoder feedback looping back through the EtherCAT bus to the controller for closed-loop position control.

At the supervisory level, the KR C4 controller connects to plant-wide PROFINET or EtherNet/IP networks, enabling the robot cell to exchange production data with Siemens SIMATIC S7-1500 PLCs or Allen-Bradley ControlLogix controllers coordinating the broader production line. SCADA systems — such as Siemens WinCC or Ignition SCADA — receive real-time robot status, cycle counts, fault codes, and power module diagnostics via OPC UA or PROFINET data tags. The KUKA smartPAD HMI provides local operator visibility into drive power status, axis load, and error states, while remote diagnostics can be performed through KUKA.RemoteMonitoring or third-party edge gateways that aggregate robot data into MES and ERP systems.

In multi-robot cells, multiple KR C4 cabinets — each equipped with a KPP 600-20 — are synchronized through the plant PROFINET backbone, with a master PLC or robot controller managing coordinated motion sequences. The KPP 600-20’s stable DC bus architecture ensures that power fluctuations in one axis module do not propagate to others, maintaining data integrity and motion precision across the entire cell. For facilities integrating KUKA.WorkVisual for network configuration and diagnostics, the KPP 600-20’s power state is fully visible within the project topology, enabling engineers to monitor bus voltage, current draw, and thermal status without physical access to the cabinet.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial robot deployments is the fragmentation between robot-level diagnostics and plant-level data systems. When a KPP 600-20 drive power module fails or degrades, the fault is often visible only at the KUKA smartPAD or in the KR C4 error log — invisible to the SCADA operator monitoring the production line from the control room. This data isolation leads to unplanned downtime, delayed fault response, and opaque maintenance workflows.

The KPP 600-20, when integrated with a properly configured KR C4 network architecture, addresses this directly. By exposing drive power diagnostics through the KR C4’s OPC UA server or PROFINET data interface, plant engineers can map power module status — including DC bus voltage, overcurrent events, and thermal warnings — directly into Siemens WinCC or Ignition SCADA dashboards. This transforms the robot cell from a data island into a transparent node on the plant network, enabling real-time alarm forwarding, predictive maintenance scheduling, and remote fault diagnosis without dispatching a technician to the cabinet.

For facilities expanding their robot fleet, the KPP 600-20’s compatibility across the KR C4 family — including KR C4 compact and KR C4 smallsize variants — ensures that new robot cells can be added to the existing network architecture without protocol reconfiguration. The standardized EtherCAT internal bus and PROFINET external interface mean that each new KR C4 cabinet integrates seamlessly into the plant SCADA topology, preserving data continuity and reducing commissioning time. Combined with ZYPLC’s pre-shipment functional testing and 12-month warranty, the KPP 600-20 delivers the reliability and traceability that smart factory operations demand.

Industrial Connectivity FAQ

Q1: What communication protocols does the KUKA KPP 600-20 support for SCADA and PLC integration?
The KPP 600-20 operates within the KR C4 controller cabinet, which supports PROFINET, EtherNet/IP, DeviceNet, and PROFIBUS DP fieldbus interfaces. Drive power module status and diagnostics are accessible to SCADA and PLC systems through these protocols, as well as via the KR C4’s integrated OPC UA server for higher-level MES and ERP connectivity.

Q2: How does the KPP 600-20 affect network stability and real-time performance in multi-axis robot cells?
The KPP 600-20 provides a stable, regulated DC bus to all axis servo modules within the KR C4 cabinet. Its architecture isolates individual axis power domains, preventing cross-axis interference. The internal EtherCAT bus operates at a 4ms interpolation cycle, ensuring deterministic real-time performance for synchronized multi-axis motion — critical for welding, assembly, and high-speed pick-and-place applications.

Q3: Can the KPP 600-20 be used across different KR C4 controller variants, and is it compatible with system expansion?
Yes. The KPP 600-20 is compatible with the full KR C4 family, including KR C4, KR C4 compact, and KR C4 smallsize controllers. This cross-variant compatibility makes it an ideal spare and expansion component for facilities standardizing on the KR C4 platform, supporting seamless addition of new robot cells without protocol or hardware reconfiguration.

Q4: What pre-shipment testing and warranty coverage does ZYPLC provide for the KPP 600-20?
Every KPP 600-20 unit supplied by ZYPLC undergoes functional verification testing prior to shipment, including DC bus output validation and communication interface checks. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch via DHL or FedEx with full tracking, supporting urgent maintenance and production continuity requirements.
