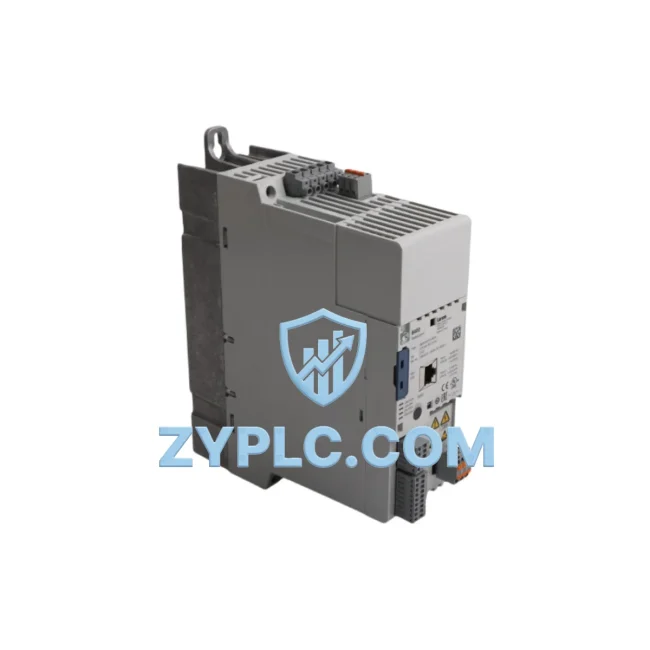

Lenze E84AVSCE7514SX0 Energy-Saving Inverter Drive 8400

Lenze E84AVSCE7514SX0 Energy-Saving Inverter Drive 8400: Precision Motor Control for Optimized Production Lines

The Lenze E84AVSCE7514SX0 is a high-performance variable frequency drive from the renowned Lenze 8400 Series, engineered to deliver measurable energy savings and superior motor control in demanding industrial automation environments. Designed for continuous-duty applications across manufacturing, material handling, packaging, and process industries, this inverter drive module enables factories to reduce unnecessary power consumption, extend motor service life, and achieve tighter synchronization across multi-axis production lines.

At ZYPLC, every E84AVSCE7514SX0 unit is sourced from verified supply channels, subjected to rigorous pre-shipment functional testing, and backed by a 12-month warranty. Stock is maintained on-hand for immediate dispatch, minimizing procurement lead times for maintenance teams and system integrators alike.

Efficiency Performance Table

Energy-Aware Automation Architecture

The Lenze E84AVSCE7514SX0 does not operate in isolation — its true value is realized when integrated into a coordinated energy-aware automation architecture. In a typical Lenze-based drive system, the E84AVSCE7514SX0 works in close coordination with the Lenze L-force Controller c300 or p300 series PLC, which handles real-time motion sequencing and energy scheduling across multiple drive axes. The controller communicates with the inverter via CANopen or EtherCAT fieldbus, enabling sub-millisecond torque and speed response that eliminates energy waste from motor overshooting or coasting.

On the I/O layer, the Lenze I/O system 1000 modules provide distributed digital and analog signal acquisition, feeding process variables — such as conveyor load, pump pressure, and fan airflow — directly into the drive’s adaptive control loop. This closed-loop feedback allows the E84AVSCE7514SX0 to continuously adjust output frequency and voltage to match actual mechanical demand, rather than running at fixed speed regardless of load conditions.

For power quality monitoring, the Lenze EMF2178IB or compatible power filter modules are typically installed upstream of the drive to suppress harmonic distortion and protect the supply network. When paired with a Lenze 8400 HighLine variant or the E84AVSCE series brake chopper option, the system can also recover regenerative braking energy during deceleration phases — a critical feature for high-inertia loads such as centrifuges or large conveyor systems.

At the HMI layer, operators interact with the drive system through the Lenze OP series operator panels or third-party SCADA terminals connected via PROFIBUS DP or Modbus TCP. Real-time energy consumption data — including kWh per production cycle, peak demand events, and drive thermal status — is displayed and logged for continuous improvement analysis. The Lenze Engineer software further enables offline parameter configuration, drive diagnostics, and energy audit reporting without interrupting production.

For multi-drive installations, the E84AVSCE7514SX0 can be mounted in a shared DC bus configuration alongside other Lenze 8400 series drives, allowing energy exchange between motoring and regenerating axes within the same machine frame. This topology is particularly effective in winding/unwinding applications, where one axis brakes while another accelerates, and the net energy drawn from the grid is substantially reduced.

Power Optimization in Real Production Lines

In real-world factory deployments, the Lenze E84AVSCE7514SX0 delivers energy optimization across several key dimensions of production line performance.

Reducing Idle and No-Load Energy Consumption: Traditional fixed-speed motor drives consume near-rated power even during low-demand periods — at line changeovers, product gaps, or scheduled micro-stops. The E84AVSCE7514SX0’s sleep/wake function and automatic energy-saving mode detect low-load conditions and reduce output frequency accordingly, cutting idle power draw by up to 40% without operator intervention.

Optimizing Production Line Throughput: By enabling precise speed ramping — both acceleration and deceleration — the drive eliminates mechanical shock on conveyor belts, roller tables, and gearboxes. Smoother motion profiles reduce product damage rates, extend belt and coupling service life, and allow line speed to be increased incrementally without risking mechanical failure. The result is higher OEE (Overall Equipment Effectiveness) with lower maintenance expenditure.

Predictive Maintenance and Fault Avoidance: The E84AVSCE7514SX0 continuously monitors motor current signature, drive temperature, DC bus voltage, and output frequency deviation. Abnormal patterns — such as rising current draw indicating bearing wear, or voltage fluctuations suggesting supply instability — trigger early warning alarms before catastrophic failure occurs. Maintenance teams can schedule interventions during planned downtime rather than reacting to unplanned stoppages, reducing mean time to repair (MTTR) and protecting production schedules.

Energy Metering and Reporting: Built-in energy metering functions allow the drive to report cumulative kWh consumption, operating hours, and load factor directly to the plant’s energy management system. This data supports ISO 50001 energy audits, carbon footprint reporting, and utility demand management programs — increasingly important for manufacturers operating under energy efficiency mandates.

Inventory Availability and Outgoing Testing: ZYPLC maintains ready stock of the E84AVSCE7514SX0 and related 8400 series components. Each unit undergoes pre-shipment power-on testing, parameter verification, and functional load simulation before dispatch. Units are shipped with original or equivalent packaging to prevent transit damage, and all shipments include a test report and 12-month warranty certificate.

Energy Optimization FAQ

Q1: How much energy can the Lenze E84AVSCE7514SX0 save compared to a direct-on-line motor starter?
A: In variable-torque applications such as pumps and fans, the E84AVSCE7514SX0 can reduce energy consumption by 30–50% by matching motor speed to actual process demand. Even in constant-torque conveyor applications, soft-start capability eliminates inrush current peaks, reducing peak demand charges and extending motor winding life.

Q2: Is the E84AVSCE7514SX0 compatible with third-party PLCs and SCADA systems?
A: Yes. The 8400 series supports multiple fieldbus protocols including CANopen, PROFIBUS DP, DeviceNet, and EtherCAT via optional communication modules. Standard analog (0–10V, 4–20mA) and digital I/O interfaces are also available for integration with non-Lenze control platforms. Parameter mapping and GSD/EDS files are available through Lenze Engineer software.

Q3: Can this drive replace an older Lenze 8200 or 8400 variant without rewiring?
A: In most cases, yes. The E84AVSCE7514SX0 shares the same mounting footprint and terminal layout as many predecessor 8400 series models. Parameter sets from older drives can be imported via the Lenze Engineer tool, significantly reducing commissioning time. ZYPLC’s technical team can advise on cross-reference compatibility before purchase.

Q4: What does the 12-month warranty cover, and what is the return/exchange process?
A: The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and firmware-related malfunctions. It does not cover damage from incorrect installation, overvoltage events, or unauthorized modification. In the event of a warranty claim, ZYPLC provides advance replacement from stock where available, minimizing production downtime. Contact our team at plc.sales@zyplc.com or +86 19859288691 to initiate a claim.
