Mitsubishi A0J2-E28AR System-Ready I/O Module for MELSEC-A

Mitsubishi A0J2-E28AR System-Ready I/O Module for MELSEC-A Architecture

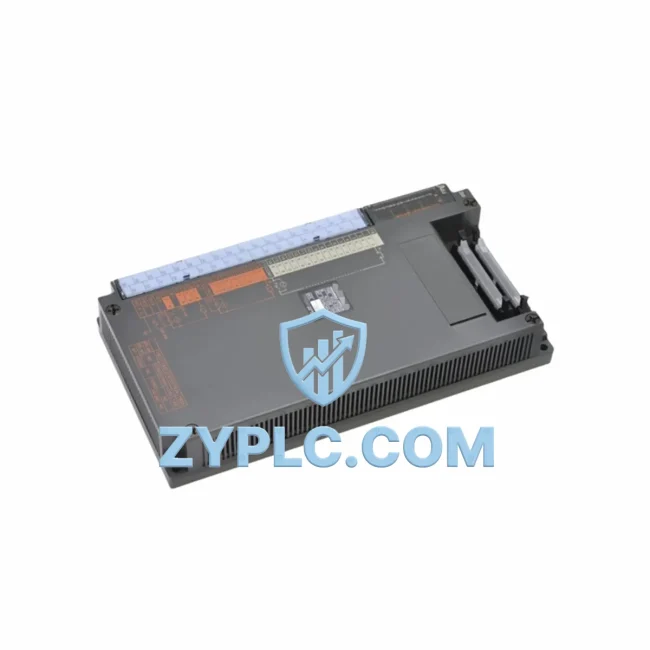

The Mitsubishi A0J2-E28AR is a compact composite I/O module engineered for the MELSEC-A series programmable logic controller platform. Within a layered industrial control system architecture, this module occupies a critical position at the I/O layer, serving as the direct interface between field-level sensors and actuators and the central processing unit. Its integrated design combines both digital input and digital output channels in a single module, reducing rack space requirements and simplifying wiring in control cabinets where density and reliability are paramount.

In a typical MELSEC-A system configuration, the A0J2-E28AR connects to the base unit alongside the CPU module — such as the A2ACPU or A1SCPU — through the backplane bus, ensuring deterministic data exchange with minimal latency. The base unit, for example the A0J2-E56AR or A38B expansion base, provides the physical mounting and power distribution backbone that supports multiple I/O and special-function modules across the rack. Power is supplied through dedicated power supply modules like the A1S61PN or A0J2-PWR, which deliver regulated DC voltage to all modules on the bus, maintaining signal integrity even under fluctuating load conditions.

Architecture Specification Table

Coordinated Control System Design

The effectiveness of the A0J2-E28AR is best understood within the context of a fully coordinated MELSEC-A control system. At the control layer, the CPU module — whether an A2ACPU for mid-range applications or the more capable A2USCPU for complex sequential logic — executes the ladder or structured text programs that read input states from and write output commands to the A0J2-E28AR. For applications requiring additional I/O capacity beyond what a single composite module provides, dedicated input modules such as the A0J2-E32D3 (32-point DC input) or output modules like the A0J2-E56DR (relay output) can be installed in adjacent slots on the same base unit, sharing the common bus and power rail.

Network-layer connectivity is achieved through communication modules such as the AJ71UC24 serial communication module or the AJ71QE71N Ethernet interface module, enabling the MELSEC-A rack to participate in plant-wide SCADA or DCS networks. When the A0J2-E28AR is deployed in a distributed architecture, remote I/O stations connected via CC-Link or MELSECNET can extend the system reach to field locations hundreds of meters from the main control panel, with the A0J2-E28AR handling local I/O at the remote node.

For human-machine interface requirements, Mitsubishi GOT series HMI panels — such as the GT1575-STBA or GT1050-QBBD — connect directly to the CPU via serial or Ethernet links, providing operators with real-time visualization of the I/O states managed by the A0J2-E28AR. This tight integration between the HMI layer and the I/O layer ensures that alarm conditions, diagnostic flags, and process status updates propagate without manual polling overhead.

Redundancy and fault tolerance in critical installations can be enhanced by pairing the composite I/O module with watchdog timers and fail-safe relay modules in the output circuit. The relay-type outputs of the A0J2-E28AR inherently provide galvanic isolation between the PLC logic and the field devices, which is advantageous in electrically noisy environments common in heavy manufacturing, steel processing, and petrochemical facilities.

Application in Layered Automation Systems

In manufacturing environments, the A0J2-E28AR is frequently deployed in packaging lines, material handling conveyors, and assembly stations where a moderate number of discrete signals must be monitored and controlled from a single module. Its composite design reduces the total module count in the rack, which translates to lower spare parts inventory and simplified maintenance procedures during scheduled shutdowns.

In power generation and water treatment plants, the module serves as a reliable interface for pump control, valve actuation, and status monitoring of auxiliary equipment. The relay outputs are well-suited for driving contactors and solenoid valves rated up to the module’s maximum switching capacity, while the DC inputs accept signals from proximity sensors, limit switches, and pressure transmitters with discrete output stages.

For process control applications in petrochemical and metallurgical facilities, the A0J2-E28AR integrates into safety-instrumented systems as a non-safety-rated general-purpose I/O node, handling routine monitoring tasks while dedicated safety controllers manage emergency shutdown functions. This layered approach to system design ensures that the general automation layer and the safety layer remain functionally independent yet coordinated through the plant network.

Long-term maintainability is supported by the wide availability of MELSEC-A series components through authorized distributors and specialist suppliers. ZYPLC maintains ready stock of the A0J2-E28AR and compatible modules, backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions.

Architecture Engineering FAQ

Q1: Is the A0J2-E28AR compatible with all MELSEC-A series base units?
A: Yes, the A0J2-E28AR is designed to mount in any standard MELSEC-A series base unit, including the A0J2-E56AR and A38B expansion bases. Ensure the base unit has an available slot and sufficient power budget from the installed power supply module such as the A0J2-PWR.

Q2: Can this module be used alongside newer MELSEC-Q or iQ-R series components?
A: The A0J2-E28AR is native to the MELSEC-A platform and connects via the A-series backplane bus. It cannot be directly installed in Q or iQ-R series base units. However, MELSEC-A racks can communicate with Q-series systems through gateway modules or network bridges using MELSECNET or CC-Link protocols.

Q3: What warranty and support does ZYPLC provide for this module?
A: ZYPLC provides a 12-Month Warranty on the A0J2-E28AR, covering defects in materials and workmanship. Technical support for system integration, wiring guidance, and architecture planning is available via [email protected] or +86 19859288691.
