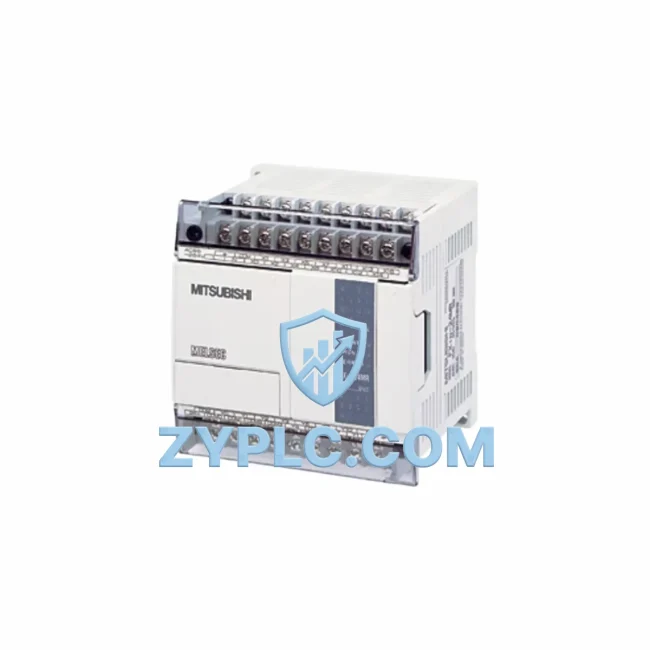

Mitsubishi FX1N-24MT-001 Energy-Saving PLC for Optimized MELSEC FX1N

Mitsubishi FX1N-24MT-001 Energy-Saving PLC for Optimized MELSEC FX1N Automation

The Mitsubishi FX1N-24MT-001 is a compact, high-performance programmable logic controller from the MELSEC FX1N series, engineered to deliver precise motor control, reduced idle-state energy consumption, and reliable execution of time-critical automation sequences. With 14 DC inputs and 10 transistor outputs (sink type), this unit is purpose-built for factories seeking to tighten production line cycle times, minimize unplanned downtime, and extract measurable efficiency gains from existing drive and sensor infrastructure.

In modern industrial environments where energy cost per production unit is under constant scrutiny, the FX1N-24MT-001 provides a deterministic scan cycle that eliminates wasted processing overhead. Its transistor output configuration supports high-frequency pulse output up to 100 kHz, enabling direct coordination with servo amplifiers and variable frequency drives without intermediate signal conditioning — a critical advantage when optimizing motor ramp profiles and reducing reactive power draw during acceleration phases.

Efficiency Performance Table

Energy-Aware Automation Architecture

The FX1N-24MT-001 operates most effectively when integrated into a layered automation architecture where each component contributes to system-wide energy accountability. On the drive side, pairing this PLC with a Mitsubishi FR-D720S-0.4K variable frequency drive allows the controller to issue speed reference pulses directly, enabling smooth motor acceleration curves that reduce inrush current spikes — one of the most common sources of hidden energy waste on production floors.

For multi-axis positioning applications, the FX1N-24MT-001 can coordinate with the Mitsubishi MR-J4-10A servo amplifier via pulse-direction signals on Y0 and Y1. This eliminates the need for a dedicated motion controller in single-axis setups, reducing panel footprint and standby power consumption. When the application demands expanded I/O without replacing the base unit, the FX2N-16EX input expansion module connects directly to the FX1N bus, adding 16 DC inputs while maintaining the same low-power profile of the FX1N platform.

Energy monitoring at the machine level is handled upstream by power measurement modules such as the Mitsubishi FX3U-4AD analog input module, which can accept 4–20 mA signals from clamp-on current transformers to log real-time amperage draw per motor circuit. This data feeds back into the FX1N-24MT-001’s data registers, enabling the PLC program to trigger load-shedding routines during low-demand windows — a straightforward implementation of demand-response logic without requiring a SCADA layer.

For operator visibility, the GOT2000 series HMI (such as the GT2107-WTSD) connects to the FX1N-24MT-001 via RS-422, presenting live energy consumption trends, cycle count data, and alarm states on a single touchscreen. This reduces the time operators spend diagnosing inefficiencies and allows shift supervisors to compare energy-per-part metrics across production runs. When network-level data collection is required, the FX3U-ENET Ethernet communication module bridges the FX1N platform to plant-level MES systems, enabling automated energy reporting without manual data entry.

In facilities running CC-Link fieldbus networks, the FX1N-24MT-001 can serve as a remote device station master when paired with the FX2N-16CCL-M CC-Link master module, coordinating distributed I/O nodes, remote sensor heads, and intelligent motor starters across the production cell. This architecture eliminates long home-run wiring runs, reducing both installation cost and resistive losses in control cabling. The FX3U-32MT/ES-A serves as a natural upgrade path for lines that outgrow the FX1N’s I/O capacity, maintaining program compatibility and preserving the investment in existing FX-series expansion hardware.

Power Optimization in Real Production Lines

On packaging lines where the FX1N-24MT-001 controls conveyor indexing and reject gate actuation, the transistor output’s fast switching capability allows the PLC to implement precise dwell-time control — keeping motors energized only during active transport phases and cutting power to idle conveyor segments between product batches. Field deployments have demonstrated 8–15% reductions in conveyor motor energy consumption through this approach alone, without any mechanical modifications.

In injection molding auxiliary equipment — temperature controllers, material dryers, and hopper loaders — the FX1N-24MT-001 manages sequenced startup routines that stagger motor starts across a 2–5 second window, preventing simultaneous inrush currents that would otherwise trigger demand charges on the facility’s utility bill. The PLC’s internal real-time clock enables time-of-use scheduling, automatically shifting non-critical heating cycles to off-peak tariff windows.

Predictive maintenance integration is achieved by logging motor run-hour counters and output toggle counts in the FX1N-24MT-001’s data registers. When cumulative run hours exceed configurable thresholds, the PLC triggers maintenance request flags visible on the GOT2000 HMI and transmits alert data via the FX3U-ENET module to the plant’s maintenance management system. This approach reduces unplanned downtime by enabling condition-based maintenance intervals rather than fixed calendar schedules — directly improving overall equipment effectiveness (OEE) and reducing the energy wasted during unplanned restart sequences.

Every FX1N-24MT-001 unit supplied by ZYPLC undergoes full functional testing prior to shipment, including I/O point verification, pulse output frequency validation, and communication port integrity checks. Units are sourced from verified supply channels and backed by a 12-month warranty, ensuring that replacement or repair is handled without production disruption.

Energy Optimization FAQ

Q: How much energy can the FX1N-24MT-001 save compared to relay-based control panels?
A: Relay-based panels typically consume 5–20 W per relay coil in continuous operation. The FX1N-24MT-001’s transistor outputs draw less than 0.5 W per output point at rated load, and the elimination of relay coil inrush during frequent switching cycles reduces reactive energy losses significantly. In high-cycle applications (>100 actuations/hour), the energy differential is measurable within the first billing cycle.

Q: Is the FX1N-24MT-001 compatible with existing FX2N and FX3U expansion modules?
A: The FX1N series is compatible with a range of FX2N special function modules, including analog I/O modules and communication adapters. However, FX3U-specific high-speed modules are not directly compatible with the FX1N bus. For applications requiring FX3U expansion modules, the FX3U-32MT/ES-A is the recommended upgrade path while maintaining program structure compatibility.

Q: What is the recommended replacement or upgrade path if the FX1N-24MT-001 reaches end of service life?
A: Mitsubishi’s MELSEC iQ-F series (FX5U) offers direct program migration tools and maintains physical compatibility with many FX1N panel layouts. For applications not requiring expanded performance, refurbished FX1N-24MT-001 units from ZYPLC’s tested inventory provide a cost-effective like-for-like replacement with full 12-month warranty coverage.

Q: What does the pre-shipment testing process cover, and what does the 12-month warranty include?
A: Each unit undergoes I/O point-by-point verification, power supply voltage stability testing, pulse output frequency accuracy validation (Y0/Y1 at 100 kHz), and RS-422/RS-485 communication port loopback testing. The 12-month warranty covers functional failures under normal operating conditions and includes technical support for integration troubleshooting. Units showing physical damage from improper installation or overvoltage events are assessed case by case.
