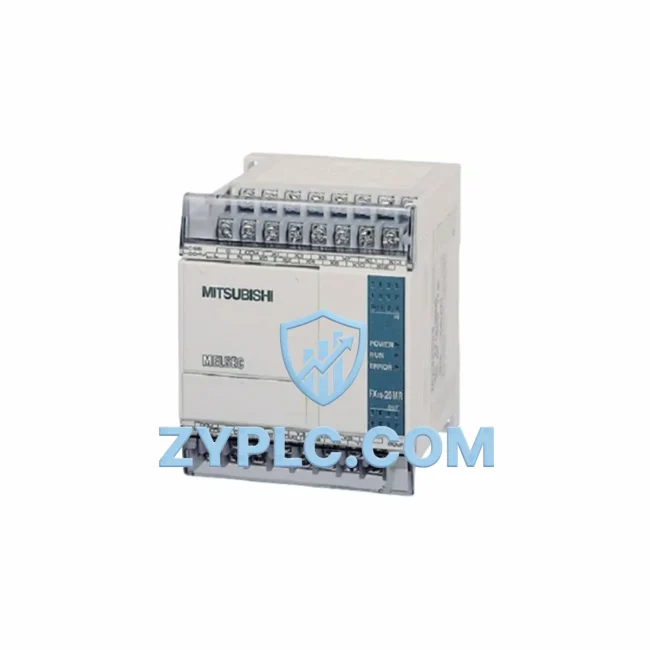

Mitsubishi FX1S-30MT-001 System-Ready Transistor Output PLC for MELSEC FX1S Architecture

Mitsubishi FX1S-30MT-001 System-Ready Transistor Output PLC for MELSEC FX1S Architecture: Control System Architecture and Contextual Integration

The Mitsubishi FX1S-30MT-001 is a compact yet capable transistor output programmable logic controller engineered for seamless integration within the MELSEC FX1S control platform. Designed to serve as the central processing unit in small-to-medium scale automation architectures, this module delivers reliable digital control across a wide range of industrial environments — from discrete manufacturing lines to process control panels. Its role within a layered automation system extends far beyond standalone operation; the FX1S-30MT-001 is purpose-built to coordinate with upstream and downstream components, ensuring signal integrity, communication stability, and long-term maintainability across the entire control hierarchy.

In a complete MELSEC FX1S-based control architecture, the FX1S-30MT-001 occupies the controller layer, interfacing directly with I/O expansion modules, communication adapters, and human-machine interface terminals. Its 16 DC input points and 14 transistor output points provide sufficient I/O density for compact panel designs, while its internal relay ladder logic execution engine supports structured programming for both sequential and conditional control tasks. The transistor output configuration — as opposed to relay output variants — enables high-frequency switching, making it particularly well-suited for pulse output applications such as stepper motor positioning and servo drive coordination.

System architects integrating the FX1S-30MT-001 into a broader MELSEC platform will find it fully compatible with the FX-EEPROM-8L memory cassette for program retention during power loss events, and with the FX1S-E8X expansion block for additional digital input capacity. When communication with upstream SCADA systems or distributed I/O networks is required, the FX1N-232-BD RS-232C communication board or the FX1N-485-BD RS-485 adapter can be mounted directly to the main unit, enabling Modbus RTU or MELSEC protocol data exchange without the need for external gateways. This native communication expandability is a key factor in the module’s suitability for multi-tier automation architectures.

At the power layer, the FX1S-30MT-001 operates on a 24 VDC supply, and system designers typically pair it with a Mitsubishi S8VK-series or equivalent DIN-rail power supply to ensure stable voltage regulation across the control cabinet. Proper power architecture — including surge suppression and grounding — is essential when the PLC is deployed alongside variable frequency drives, servo amplifiers such as the MR-J4 series, or high-inductive load switching circuits. The transistor outputs of the FX1S-30MT-001 are particularly sensitive to inductive kickback, and the use of flyback diodes or snubber circuits at the output terminal block is a standard engineering practice in such configurations.

For human-machine interface integration, the FX1S-30MT-001 communicates natively with Mitsubishi GOT1000 and GOT2000 series HMI panels via the RS-422 port, enabling real-time process visualization, alarm management, and parameter adjustment without additional protocol conversion hardware. This direct HMI connectivity simplifies cabinet wiring, reduces communication latency, and supports a unified engineering environment when combined with GX Works2 or GX Works3 programming software. The ability to manage both PLC logic and HMI screen design within a single software ecosystem significantly reduces commissioning time and long-term maintenance overhead.

In redundancy-sensitive applications, the FX1S-30MT-001 can be deployed in a hot-standby or warm-standby configuration using external watchdog relays and dual-channel I/O wiring strategies. While the FX1S series does not natively support CPU redundancy in the manner of larger MELSEC Q or iQ-R platforms, system-level redundancy can be achieved through careful architecture design, including the use of the FX3U-16CCL-M CC-Link master module in expanded systems where network-level fault tolerance is required. For applications demanding higher availability, migration pathways to the MELSEC iQ-F FX5U series — which shares programming compatibility — are well-documented and supported.

The FX1S-30MT-001 is supplied with a 12-Month Warranty covering manufacturing defects, firmware integrity, and electrical performance under specified operating conditions. Each unit undergoes functional verification prior to dispatch, including I/O point testing, communication port validation, and power consumption measurement. This quality assurance process ensures that replacement units integrate into existing control architectures without requiring re-commissioning of the broader system.

Architecture Specification Table

Coordinated Control System Design

The FX1S-30MT-001 achieves its full architectural potential when deployed as part of a coordinated MELSEC FX1S system. In a typical panel configuration, the main CPU is supported by the FX1S-E8X digital input expansion block, which extends the available input points for sensor-dense applications such as conveyor position detection or multi-zone temperature monitoring. Output-side expansion is commonly achieved using the FX1S-E8Y transistor output block, maintaining signal consistency across all output channels.

Communication architecture is extended through the FX1N-485-BD RS-485 board, enabling Modbus RTU connectivity to third-party devices including variable frequency drives, smart meters, and remote I/O stations. For applications requiring Ethernet connectivity, the FX3U-ENET-ADP Ethernet adapter — used in compatible FX3U-based hybrid architectures — provides TCP/IP communication to SCADA and MES systems. At the HMI layer, the Mitsubishi GOT2000 GT2107 touch panel interfaces directly with the FX1S-30MT-001 via RS-422, providing operators with real-time process data and alarm visualization.

Power distribution within the control cabinet is typically managed by a Mitsubishi S8VK-C24024 or equivalent 24 VDC DIN-rail power supply, with surge protection provided by a dedicated SPD module at the cabinet entry point. For motion control applications, the FX1S-30MT-001’s pulse output channels connect to Mitsubishi MR-J4-10A servo amplifiers or compatible stepper drivers, enabling closed-loop positioning without an external motion controller. Terminal block wiring is standardized using Mitsubishi A6CON1 or equivalent connector assemblies, ensuring consistent signal routing and simplified maintenance access.

Application in Layered Automation Systems

The FX1S-30MT-001 is deployed across a broad spectrum of industrial automation environments. In discrete manufacturing, it controls assembly line sequencing, part detection, and reject sorting on packaging lines and component assembly stations. Its compact form factor and DIN-rail mounting make it ideal for integration into space-constrained control panels common in food processing and pharmaceutical packaging machinery.

In power distribution and electrical infrastructure applications, the FX1S-30MT-001 manages switchgear sequencing, transformer tap control, and feeder protection logic in medium-voltage substations and industrial power panels. Its transistor outputs provide the high-speed switching required for capacitor bank control and reactive power compensation systems.

Within water treatment and environmental control facilities, the module coordinates pump sequencing, valve actuation, and flow rate monitoring across multiple process zones. Its RS-485 communication capability enables integration with remote telemetry units and SCADA systems managing geographically distributed pump stations.

In mining and metallurgical applications, the FX1S-30MT-001 is used for conveyor belt control, crusher sequencing, and ore sorting logic. Its wide operating temperature range and robust construction support reliable operation in dusty, high-vibration environments typical of mineral processing facilities.

Architecture Engineering FAQ

Q1: Is the FX1S-30MT-001 compatible with existing MELSEC FX1S expansion modules and communication boards?
Yes. The FX1S-30MT-001 is fully compatible with the FX1S expansion I/O blocks (FX1S-E8X, FX1S-E8Y) and supports the FX1N-232-BD and FX1N-485-BD communication boards via the dedicated expansion board slot. This ensures seamless integration into existing FX1S-based control architectures without hardware modification.

Q2: Can the FX1S-30MT-001 be used as a direct replacement in an existing MELSEC FX1S control panel without re-commissioning the entire system?
In most cases, yes. The FX1S-30MT-001 maintains full hardware and firmware compatibility with other FX1S series CPUs. Program transfer via GX Works2 or GX Developer is straightforward, and I/O wiring is identical across the FX1S range. Minor parameter verification — particularly for communication baud rates and pulse output settings — is recommended as part of the replacement procedure.

Q3: What does the 12-Month Warranty cover, and how is it applied in a system replacement scenario?
The 12-Month Warranty covers manufacturing defects, I/O point failures, communication port malfunctions, and power supply irregularities attributable to the unit itself. In a system replacement scenario, the warranty applies from the date of dispatch. Each unit is functionally tested prior to shipment, and warranty claims are processed with priority to minimize system downtime. Replacement units are dispatched with full documentation to support rapid re-integration into the existing control architecture.
