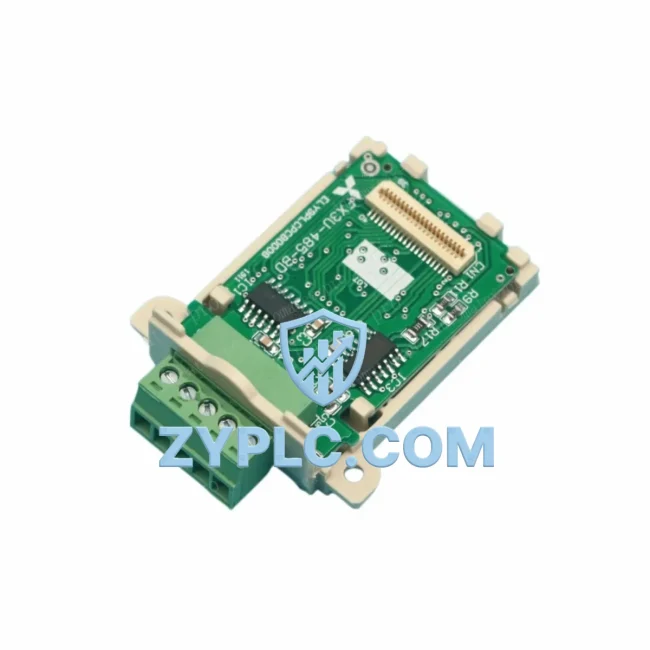

Mitsubishi FX3U-485-BD System-Ready RS-485 Board for FX3U Architecture

Mitsubishi FX3U-485-BD System-Ready RS-485 Communication Board for FX3U Architecture: Control System Architecture and Upstream-Downstream Coordination

The Mitsubishi FX3U-485-BD is a dedicated RS-485 serial communication expansion board engineered for seamless integration into the MELSEC FX3U programmable logic controller platform. Within a layered industrial automation architecture, this board occupies a critical position at the communication layer, bridging the FX3U CPU unit with field devices, remote I/O stations, inverter drives, and supervisory control systems. Its role is not simply to add a port — it is to extend the communication reach of the entire control node, enabling the FX3U to participate in multi-drop RS-485 networks that span the full width of a production line or process plant.

In modern industrial control system design, the FX3U-485-BD is selected not in isolation but as part of a coordinated architecture. Engineers deploying the FX3U-32MR/ES, FX3U-64MT/ES, or FX3U-128MT/ESS CPU units rely on this board to establish RS-485 links to MODBUS RTU-compatible devices, including variable frequency drives, smart sensors, and remote terminal units. The board mounts directly onto the FX3U main unit’s left-side expansion connector, consuming no DIN rail space and maintaining the compact footprint that makes the FX3U series a preferred choice for panel-mounted and cabinet-integrated applications.

From a system architecture perspective, the FX3U-485-BD supports half-duplex RS-485 communication at baud rates up to 115,200 bps, with configurable data length, parity, and stop bits to match the protocol requirements of downstream devices. This flexibility allows a single FX3U CPU to communicate simultaneously with multiple field instruments across a daisy-chained RS-485 bus, reducing wiring complexity and improving signal integrity across long cable runs in electrically noisy industrial environments such as motor control centers, switchgear rooms, and process skids.

Architecture Specification Table

Coordinated Control System Design

The FX3U-485-BD achieves its full value when considered within the broader context of a coordinated FX3U control system. A typical architecture built around this communication board includes the following coordinated components:

At the CPU layer, the FX3U-64MT/ES or FX3U-128MT/ESS serves as the central processing unit, executing ladder logic, structured text, or function block programs while managing I/O scanning and communication scheduling. The FX3U-485-BD plugs directly into this CPU’s expansion slot, adding RS-485 capability without requiring an external communication module or additional rack space.

At the power layer, the FX3U-1PSU-5V power supply expansion unit supports extended I/O configurations, ensuring stable 5 VDC supply to the CPU and all expansion boards including the FX3U-485-BD. Stable power delivery is essential for maintaining communication integrity, particularly in systems where the RS-485 bus carries time-sensitive MODBUS RTU polling cycles.

At the I/O layer, FX3U-16EX/ES digital input expansion modules and FX3U-16EYT/ES transistor output modules extend the FX3U’s I/O capacity to match the signal density of the controlled process. These modules communicate with the CPU via the FX3U’s internal high-speed bus, while the FX3U-485-BD handles external RS-485 field communication independently — ensuring that I/O scan cycles and serial communication cycles do not interfere with each other.

At the analog layer, the FX3U-4AD analog input module and FX3U-4DA analog output module provide process variable acquisition and setpoint transmission for temperature, pressure, flow, and level control loops. These modules are often paired with RS-485-connected field transmitters, with the FX3U-485-BD serving as the communication bridge between the FX3U CPU and MODBUS RTU-capable smart transmitters or positioners.

At the drive layer, Mitsubishi FR-E740 and FR-D740 series variable frequency drives are commonly integrated via the RS-485 bus managed by the FX3U-485-BD. Using Mitsubishi’s dedicated inverter communication protocol or MODBUS RTU, the FX3U can read drive status, set frequency references, monitor fault codes, and execute start/stop commands — all over the same two-wire RS-485 cable, eliminating the need for discrete analog speed reference wiring.

At the HMI layer, GOT2000 series graphic operation terminals (such as the GT2107-WTSD or GT2310-VTBA) connect to the FX3U via a separate RS-422 or Ethernet port on the CPU, leaving the FX3U-485-BD’s RS-485 port dedicated to field device communication. This separation of HMI traffic from field bus traffic is a fundamental principle of robust FX3U system architecture, preventing HMI polling from disrupting time-critical device communication cycles.

At the network gateway layer, the FX3U-ENET Ethernet communication board can be installed alongside the FX3U-485-BD (using the right-side expansion slot), enabling simultaneous RS-485 field communication and Ethernet SCADA connectivity. This dual-port architecture allows the FX3U to serve as a protocol gateway, collecting RS-485 device data and forwarding it to an upstream SCADA or MES system via TCP/IP — a configuration widely used in water treatment, energy management, and building automation applications.

Application in Layered Automation Systems

The FX3U-485-BD finds application across a broad range of industrial sectors where RS-485 serial communication remains the dominant field bus standard.

In manufacturing and packaging lines, the board enables FX3U controllers to communicate with servo drive parameter units, barcode readers, and vision system controllers over RS-485, coordinating motion sequences and quality inspection data within a single control node. In power distribution and energy management applications, the FX3U-485-BD connects the FX3U to MODBUS RTU-capable power meters, circuit breakers with communication interfaces, and UPS systems, enabling centralized energy monitoring and demand management from a compact PLC platform.

In water and wastewater treatment plants, the board supports multi-drop RS-485 networks connecting the FX3U to submersible level transmitters, chemical dosing pump controllers, and flow meters distributed across pump stations and treatment basins. The 500-meter cable range of RS-485 is particularly valuable in these geographically distributed installations. In petrochemical and process industries, the FX3U-485-BD integrates with HART-to-MODBUS converters, enabling the FX3U to access diagnostic data from smart field instruments without requiring a dedicated HART master device.

In mining and metallurgical applications, the board’s robust electrical specification — including resistance to vibration and wide operating temperature range — supports reliable communication in environments characterized by heavy machinery, electrical interference, and temperature extremes. In HVAC and building automation, the FX3U-485-BD enables integration with BACnet MS/TP or MODBUS RTU-compatible chillers, air handling units, and variable air volume controllers, providing a cost-effective PLC-based alternative to dedicated building management system controllers.

Architecture Engineering FAQ

Q1: Can the FX3U-485-BD be used simultaneously with other expansion boards such as the FX3U-232-BD or FX3U-USB-BD?
A: The FX3U main unit provides a single left-side expansion board slot, which means only one communication expansion board (FX3U-485-BD, FX3U-232-BD, or FX3U-USB-BD) can be installed at a time. If multiple serial communication ports are required, engineers should consider using the FX3U-485ADP-MB adapter in combination with the FX3U-CNV-BD conversion board, which occupies the left-side slot while freeing the right-side slot for the FX3U-ENET Ethernet board. This configuration supports simultaneous RS-485 and Ethernet communication within a single FX3U system.

Q2: What is the maximum number of MODBUS RTU slave devices that can be connected to the FX3U-485-BD, and how does this affect system scan time?
A: The RS-485 standard supports up to 32 electrical nodes per segment without repeaters. In MODBUS RTU master mode, the FX3U-485-BD can poll multiple slave devices sequentially, with the total polling cycle time determined by the number of slaves, the baud rate, and the data volume per transaction. For time-sensitive applications, engineers should configure the baud rate at 19,200 bps or higher and minimize the number of registers read per transaction. For systems requiring more than 32 nodes, RS-485 repeaters can extend the network while maintaining electrical integrity.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed for FX3U-485-BD in ongoing production systems?
A: All FX3U-485-BD units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and functional failures under normal operating conditions. Units are tested for communication functionality, electrical integrity, and mechanical fit prior to dispatch. For long-term production systems, ZYPLC recommends maintaining a minimum of one spare FX3U-485-BD per installed system to ensure rapid replacement in the event of board failure, minimizing unplanned downtime. Our inventory management team can advise on bulk procurement and consignment stock arrangements for high-volume or multi-site deployments. Contact our technical sales team at plc.sales@zyplc.com or +86 19859288691 for spare parts planning support.
