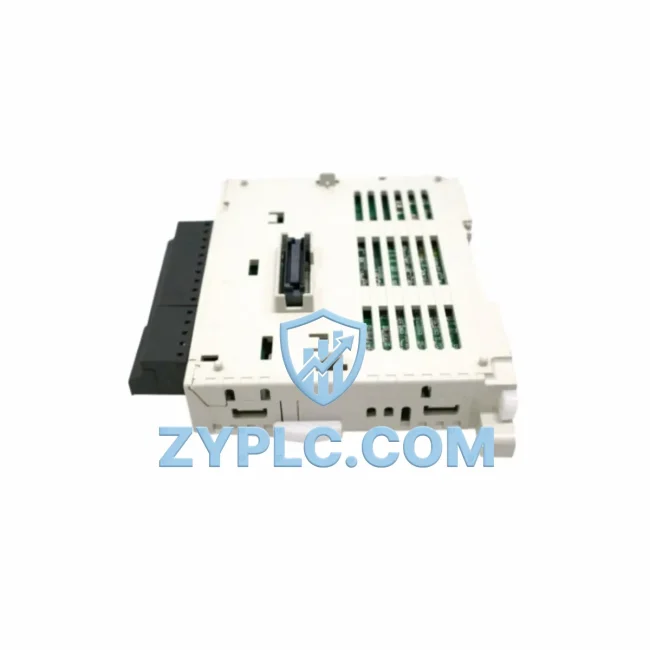

Mitsubishi FX3U-4DA System-Ready Analog Output for FX3U Architecture

Mitsubishi FX3U-4DA System-Ready Analog Output for FX3U Architecture: Control System Architecture and Upstream-Downstream Coordination

The Mitsubishi Electric FX3U-4DA is a 4-channel analog output expansion module purpose-built for the MELSEC FX3U programmable logic controller platform. Within a layered industrial automation architecture, this module occupies a critical position at the I/O layer, translating digital control signals generated by the FX3U CPU into precise analog voltage or current outputs that drive field-level actuators, variable frequency drives, proportional valves, and process controllers. Its role is not simply to convert signals — it is to maintain signal fidelity, timing consistency, and system-wide coherence across every layer of the control hierarchy.

Understanding the FX3U-4DA requires viewing it as a node within a complete control system rather than a standalone device. From the control layer, the FX3U-32MT/ES or FX3U-64MT/ESS CPU module executes the ladder logic or structured text program and passes digital output values to the FX3U-4DA via the FX3U high-speed bus. The module then converts these values to analog signals — either 0–10 V DC voltage or 4–20 mA current — with 12-bit resolution, enabling smooth, continuous control of downstream field devices. This tight coupling between the CPU and the analog output module ensures deterministic response times and eliminates the latency that would otherwise compromise closed-loop process control.

At the power layer, the FX3U-4DA draws its operating power from the FX3U main unit’s internal bus, supplemented by an external 24 V DC supply for the analog output circuits. Proper coordination with the FX3U-1PSU-5V power supply unit or the integrated power supply of the FX3U base unit is essential to ensure stable analog output performance, particularly in environments with fluctuating load conditions or high electromagnetic interference. Engineers designing control cabinets for chemical dosing systems, HVAC automation, or precision motion control must account for the combined current draw of all expansion modules, including communication adapters such as the FX3U-485ADP-MB for Modbus RTU connectivity or the FX3U-ENET for Ethernet/IP integration.

At the network and communication layer, the FX3U-4DA does not operate in isolation. In distributed control architectures, the FX3U CPU may receive setpoint data from a SCADA system or DCS via the FX3U-ENET adapter, process the data in real time, and relay the resulting analog output commands to the FX3U-4DA. This chain — from network layer to control layer to I/O layer — must be engineered with attention to scan cycle times, communication latency, and data integrity. The FX3U-4DA supports this architecture by providing stable, repeatable output with minimal drift, ensuring that the analog signals reaching field devices accurately reflect the digital values computed by the CPU.

At the human-machine interface layer, operators monitoring a GOT2000 series HMI panel or a GOT1000 series terminal connected to the FX3U CPU can visualize real-time analog output values, adjust setpoints, and trigger alarm conditions based on output deviation. The FX3U-4DA’s output values are mapped directly to data registers in the FX3U CPU’s memory, making them fully accessible for HMI display, data logging, and trend visualization without additional configuration overhead.

At the execution layer, the FX3U-4DA’s four independent analog output channels can simultaneously drive four separate field devices — for example, a variable frequency drive controlling a pump motor, a proportional control valve regulating flow, a positioner adjusting a damper, and a current-to-pressure converter managing pneumatic actuator pressure. This multi-channel capability reduces the number of expansion modules required in a control cabinet, simplifies wiring, and improves overall system reliability by minimizing the number of inter-module connections.

For applications requiring redundancy, the FX3U-4DA can be deployed in architectures where a secondary FX3U CPU module monitors the primary CPU’s health and assumes control in the event of a fault. While the FX3U platform does not natively support hot-standby redundancy at the hardware level, engineers can implement software-based redundancy strategies using the FX3U-CNV-BD communication board and appropriate ladder logic to ensure continuity of analog output signals during CPU switchover events.

From a maintenance and lifecycle perspective, the FX3U-4DA is designed for long-term deployment in industrial environments. Its compact form factor, DIN-rail-compatible mounting via the FX3U expansion connector, and compatibility with the broader MELSEC FX3U ecosystem — including the FX3U-32MR/ES relay output base unit and FX3U-4AD analog input module — mean that system expansions, module replacements, and firmware updates can be carried out without redesigning the control cabinet. Spare module availability, combined with ZYPLC’s 12-Month Warranty and in-stock inventory, ensures that maintenance teams can restore system operation quickly following an unexpected module failure.

Architecture Specification Table

Coordinated Control System Design

The FX3U-4DA achieves its full potential when integrated within a coordinated FX3U control system. At the CPU layer, the FX3U-64MT/ESS transistor output CPU module serves as the processing core, executing control algorithms and writing output values to the data registers mapped to the FX3U-4DA’s four channels. Alongside the analog output module, the FX3U-4AD analog input module provides closed-loop feedback by reading process variables — such as temperature, pressure, or flow rate — and returning them to the CPU for PID computation. This input-output pairing forms the backbone of continuous process control in applications ranging from chemical reactor temperature regulation to boiler feedwater flow management.

At the communication layer, the FX3U-485ADP-MB Modbus RTU adapter enables the FX3U CPU to receive setpoint commands from a supervisory SCADA system or distributed control system, while the FX3U-ENET Ethernet adapter supports higher-level integration with MES platforms and remote monitoring systems. The FX3U-4DA’s output values, once written by the CPU, are transmitted to field devices without additional communication overhead, ensuring that network-layer latency does not degrade analog output accuracy.

At the power layer, the FX3U-1PSU-5V power supply unit provides supplemental 5 V DC power when multiple expansion modules — including the FX3U-4DA, FX3U-4AD, and FX3U-8EX digital input module — are connected to a single FX3U base unit, preventing voltage sag that could compromise analog output stability. At the terminal and wiring layer, FX3U-CNV-BD conversion boards and appropriate shielded twisted-pair cables ensure signal integrity between the FX3U-4DA’s output terminals and the field devices they control. At the HMI layer, a GOT2000 series panel connected via RS-422 or Ethernet provides operators with real-time visibility into analog output values, enabling manual setpoint adjustment and alarm acknowledgment without interrupting the control program.

Application in Layered Automation Systems

In manufacturing and assembly line automation, the FX3U-4DA is commonly deployed to control variable frequency drives (VFDs) that regulate conveyor belt speed, robotic arm positioning actuators, and servo amplifier reference inputs. The module’s 12-bit resolution ensures smooth speed ramps and precise positioning, reducing mechanical wear and improving product quality consistency across high-volume production runs.

In power generation and electrical substation automation, the FX3U-4DA provides analog reference signals to automatic voltage regulators (AVRs), excitation controllers, and load dispatch systems. Its stable 4–20 mA current output is preferred in these environments due to its immunity to voltage drop across long cable runs between the control room and field equipment.

In petrochemical and refinery process control, the FX3U-4DA drives proportional control valves, flow control loops, and pressure regulation systems. Integrated within a FX3U-based DCS node, it enables precise manipulation of process variables in hazardous area applications where signal accuracy and long-term stability are critical to both product quality and operational safety.

In water and wastewater treatment plants, the FX3U-4DA controls chemical dosing pump speeds, aeration blower output, and UV disinfection intensity. Its ability to simultaneously manage four independent analog outputs allows a single FX3U control panel to coordinate multiple treatment stages, reducing hardware costs and simplifying system integration.

In mining, metallurgy, and heavy industry, the FX3U-4DA is used to control hydraulic proportional valves, furnace temperature controllers, and ore conveyor drive systems. Its robust operating temperature range and vibration resistance make it suitable for deployment in harsh industrial environments where standard I/O modules may fail prematurely.

Architecture Engineering FAQ

Q1: How many FX3U-4DA modules can be connected to a single FX3U CPU, and what are the system architecture constraints?
The FX3U CPU supports up to 8 special function modules (including analog I/O modules such as the FX3U-4DA and FX3U-4AD) connected via the FX3U expansion bus. Each FX3U-4DA occupies one special function module slot and is assigned a unit number (0–7) automatically based on its physical position in the expansion chain. Engineers must account for the total current draw of all connected expansion modules to ensure the FX3U main unit’s internal power supply is not overloaded; supplemental power from the FX3U-1PSU-5V unit should be added when the combined load exceeds the base unit’s rated output. All modules supplied by ZYPLC include a 12-Month Warranty and are tested prior to shipment to verify correct unit number assignment and output calibration.

Q2: Is the FX3U-4DA compatible with FX3UC and FX3G CPU platforms, and what adapters are required for Contextual Integration?
The FX3U-4DA is designed for direct connection to FX3U series CPU modules via the FX3U expansion connector. Connection to FX3UC series CPUs requires the FX2NC-CNV-IF conversion interface, while FX3G series CPUs do not support special function module expansion and are therefore not compatible with the FX3U-4DA. For Contextual Integration within a mixed-platform architecture — for example, where an FX3U node communicates analog setpoints derived from a higher-level FX5U or Q-series controller — the FX3U-485ADP-MB or FX3U-ENET adapter provides the necessary communication bridge, enabling seamless data exchange between control hierarchy layers without requiring hardware redesign.

Q3: What long-term maintenance practices are recommended for the FX3U-4DA in continuous process control applications, and how does the 12-Month Warranty support system uptime?
For continuous process control applications, Mitsubishi Electric recommends periodic verification of analog output accuracy using a calibrated current or voltage reference meter, particularly after the module has been in service for 12–18 months or following any significant ambient temperature change in the control cabinet. Output drift exceeding ±1% of full scale typically indicates capacitor aging or internal reference degradation and warrants module replacement. ZYPLC’s 12-Month Warranty covers manufacturing defects and premature failure under normal operating conditions, providing engineering teams with a guaranteed replacement pathway that minimizes unplanned downtime. Maintaining a spare FX3U-4DA module in the plant’s critical spare parts inventory — alongside the FX3U-4AD, FX3U-32MT/ES CPU, and FX3U-1PSU-5V power supply — is strongly recommended for facilities operating continuous processes where control system availability is directly linked to production output and safety compliance.
