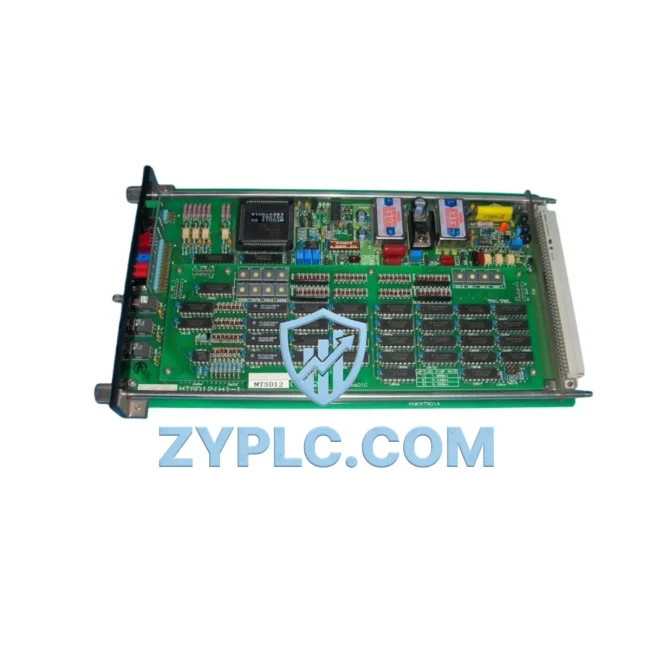

Mitsubishi MTSD12 Energy-Saving PLC Board | Melsec

Mitsubishi MTSD12 Energy-Saving PLC Board | Melsec: Precision Energy Control for Optimized Production Lines

The Mitsubishi MTSD12 is a high-efficiency PLC board module from the Mitsubishi Electric Melsec series, engineered to deliver precise, low-waste control across demanding industrial automation environments. As factories face increasing pressure to reduce energy consumption without sacrificing throughput, the MTSD12 provides a reliable, field-proven foundation for energy-aware automation architecture. Whether deployed in discrete manufacturing, process control, or mixed-mode production lines, this module enables engineers to tighten control loops, reduce idle-state power draw, and extend the operational lifespan of connected drive and motor systems.

At its core, the MTSD12 functions as a central coordination node within a Melsec-based control platform. It interfaces seamlessly with Mitsubishi’s broader ecosystem — including the Q Series CPU modules, L Series compact PLCs, and iQ-R Series controllers — allowing system integrators to build scalable, energy-monitored automation cells without introducing compatibility risk. The board’s deterministic scan cycle ensures that control commands reach actuators and drives with minimal latency, which directly translates to reduced overshoot in motor acceleration profiles and lower reactive power demand on the facility’s electrical infrastructure.

Efficiency Performance Table

Energy-Aware Automation Architecture

Deploying the MTSD12 within a complete Melsec automation cell unlocks a layered approach to energy optimization. In a typical installation, the MTSD12 board coordinates with Mitsubishi FR-A800 Series variable frequency drives (VFDs) to regulate motor speed in real time based on actual load demand rather than fixed setpoints. This dynamic speed regulation alone can reduce motor energy consumption by 20–50% in variable-torque applications such as conveyor systems, fans, and pumps.

On the sensing and monitoring side, the MTSD12 integrates with Mitsubishi ME96 Series power monitoring units to capture real-time energy consumption data at the machine level. This data feeds back into the PLC logic, enabling the controller to make autonomous decisions — such as reducing drive output during low-demand periods or triggering predictive maintenance alerts when power draw deviates from baseline. Paired with Mitsubishi GOT2000 Series HMI panels, operators gain a live dashboard of energy KPIs, motor load trends, and fault histories without requiring a separate SCADA layer.

For I/O expansion and distributed control, the MTSD12 works alongside Mitsubishi AJ65SBTB1-16D CC-Link remote I/O modules, enabling energy data collection from remote field devices across large production floors. The CC-Link communication backbone ensures low-latency data exchange between the MTSD12 and peripheral nodes, including Mitsubishi MR-J4 Series servo amplifiers used in precision positioning and high-cycle assembly applications. The MR-J4’s built-in regenerative energy recovery function, when coordinated through the MTSD12’s control logic, can return braking energy to the DC bus — further reducing net energy consumption in high-inertia servo axes.

Power supply stability is maintained through Mitsubishi Q61P Series power supply modules, which provide regulated DC power to the MTSD12 and co-located I/O modules with high conversion efficiency. In multi-rack configurations, the MTSD12 communicates with Mitsubishi QJ71E71-100 Ethernet interface modules to enable remote monitoring, parameter backup, and OEE (Overall Equipment Effectiveness) data logging via standard TCP/IP infrastructure — eliminating the need for proprietary communication hardware and reducing integration cost.

Power Optimization in Real Production Lines

In real-world production environments, the MTSD12 delivers measurable energy savings through three primary mechanisms: load-adaptive motor control, intelligent standby management, and predictive fault detection.

Load-Adaptive Motor Control: By continuously reading process feedback signals — such as conveyor load cells, pressure transducers, or flow meters — the MTSD12 adjusts VFD output frequency in real time. This eliminates the energy waste associated with running motors at full speed during partial-load conditions, which is one of the most common sources of avoidable energy consumption in manufacturing facilities. In a typical automotive parts assembly line, this approach has been shown to reduce motor energy consumption by 15–35% compared to fixed-speed operation.

Intelligent Standby Management: The MTSD12 supports programmable idle-state logic that automatically reduces drive output, dims HMI backlights, and suspends non-critical I/O polling during scheduled breaks or unplanned line stoppages. This standby management capability reduces parasitic energy draw during non-productive periods — a factor that can account for 10–20% of total facility energy consumption in multi-shift operations.

Predictive Fault Detection and Maintenance Cost Reduction: By monitoring motor current signatures, drive temperature trends, and communication error rates through the Melsec network, the MTSD12 enables condition-based maintenance scheduling. Early detection of bearing wear, insulation degradation, or drive overload conditions allows maintenance teams to intervene before catastrophic failure — reducing unplanned downtime, emergency repair costs, and the energy waste associated with restarting cold production lines. All units are tested prior to shipment and backed by a 12-month warranty, ensuring that replacement modules perform to specification from day one.

Production Line Rhythm Optimization: The MTSD12’s high-speed scan cycle supports tight synchronization between servo axes, conveyor drives, and robotic end-effectors. By minimizing inter-device latency, the controller enables shorter cycle times without increasing peak power demand — effectively improving throughput per kilowatt-hour and raising the facility’s overall energy productivity ratio.

Energy Optimization FAQ

Q1: How much energy can the MTSD12 help save in a typical production environment?
A: Energy savings depend on the application, but in motor-intensive environments — such as conveyor systems, pump stations, or HVAC-integrated production cells — coordinating the MTSD12 with Mitsubishi FR-A800 VFDs typically yields 20–40% reductions in motor energy consumption. Standby management logic can add a further 10–15% reduction during non-productive periods.

Q2: Is the MTSD12 compatible with existing Melsec Q Series and iQ-R Series installations?
A: Yes. The MTSD12 is designed for integration within the Mitsubishi Melsec platform and is compatible with Q Series and iQ-R Series CPU modules, GX Works2 and GX Works3 programming environments, and standard CC-Link and MELSECNET communication backbones. Always verify firmware revision compatibility with your system integrator before installation.

Q3: What is the recommended replacement or upgrade path for aging Melsec control boards?
A: For facilities running legacy Melsec A Series or FX Series boards, the MTSD12 offers a cost-effective upgrade path that preserves existing wiring infrastructure while delivering improved processing speed and energy monitoring capability. A full system audit — including I/O mapping, communication protocol review, and drive compatibility check — is recommended before migration.

Q4: What testing and warranty coverage is included with the MTSD12?
A: Every MTSD12 unit undergoes functional testing prior to shipment, covering power-on self-test, I/O channel verification, and communication interface validation. The module is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch, supporting rapid line recovery in the event of an unplanned control board failure.
