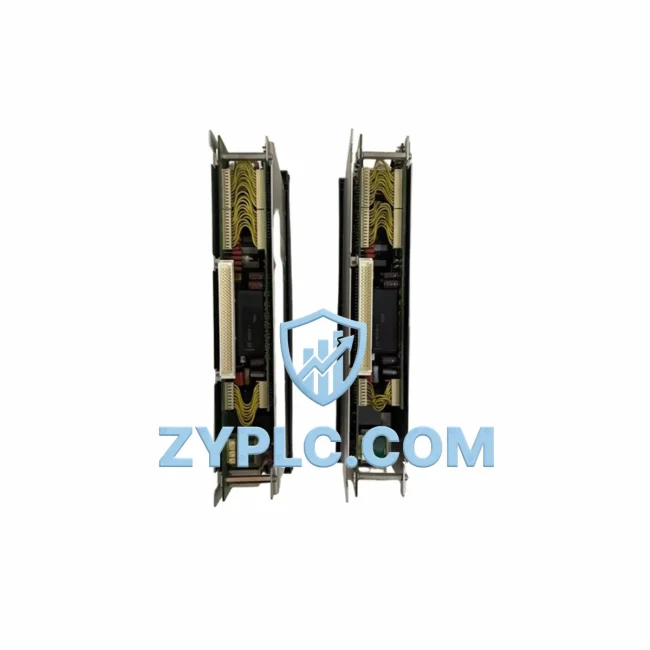

Mitsubishi PD21B System-Ready Power Supply for MELSEC-A Architecture

Mitsubishi PD21B System-Ready Power Supply for MELSEC-A Architecture

In any industrial automation environment, the power supply module is not merely a component — it is the foundational layer upon which the entire control system depends. The Mitsubishi PD21B Power Supply Module is engineered specifically for integration within the MELSEC-A Series programmable logic controller architecture, delivering stable, regulated DC power to the CPU, I/O modules, and communication units mounted within the A-Series base unit. Understanding the PD21B’s role requires viewing it not in isolation, but as a critical node within a layered, multi-tier control system where every module depends on consistent power delivery to maintain operational integrity.

The MELSEC-A Series platform, developed by Mitsubishi Electric, represents one of the most widely deployed legacy PLC architectures in manufacturing, power generation, petrochemical processing, and infrastructure automation. The PD21B is designed to slot directly into the A-Series main base unit — such as the A38B or A68B — providing the regulated 5 VDC and 24 VDC rails required by the CPU module (e.g., A3CPU, A2UCPU) and the full complement of I/O and special function modules installed in the rack. Its role in the system architecture is non-negotiable: without a properly functioning power supply, no other module in the rack can operate reliably.

Architecture Specification Table

Coordinated Control System Design

The PD21B does not operate in a vacuum. Its value is fully realized when considered alongside the complete MELSEC-A system architecture. In a typical A-Series control panel, the PD21B powers the main base unit, which may house an A3CPU or A2UCPU central processing unit responsible for executing the ladder logic program and managing all I/O scan cycles. Alongside the CPU, digital input modules such as the AX40 or AX80 and digital output modules such as the AY40 or AY80 are mounted in the same rack, all drawing regulated power from the PD21B’s 5 VDC bus.

For systems requiring analog signal processing — common in process control applications involving temperature, pressure, or flow — analog I/O modules such as the AD61 or DA62 are integrated into the rack. These modules depend on the PD21B’s stable power output to maintain signal accuracy and prevent drift in critical measurement loops. In extended systems where the I/O count exceeds the capacity of the main base, an A68B extension base unit paired with an additional power supply module ensures that remote I/O racks maintain the same power quality as the main rack.

Communication within the MELSEC-A architecture is handled by dedicated network modules. The A1SJ71AP23Q MELSECNET/MINI-S3 master module or the A1SJ71UC24-R4 serial communication module may be installed in the same rack, enabling data exchange with SCADA systems, HMI panels, or upstream MES platforms. The PD21B’s stable power delivery is essential for these communication modules to maintain uninterrupted network connectivity — any power fluctuation at the rack level can cause communication timeouts or data loss that propagates across the entire control network.

At the human-machine interface layer, GOT series HMI panels — such as the GT2510-VTBA — connect to the MELSEC-A CPU via RS-232 or MELSECNET, providing operators with real-time visibility into process variables, alarm states, and system diagnostics. The reliability of this HMI connection is directly tied to the stability of the power supply module feeding the CPU and communication modules in the rack.

Application in Layered Automation Systems

The Mitsubishi PD21B finds application across a broad spectrum of industrial sectors where the MELSEC-A platform remains the backbone of legacy control infrastructure. In manufacturing and assembly lines, the PD21B sustains the power architecture of multi-axis motion control systems, conveyor sequencing, and robotic cell coordination. In power generation and distribution facilities, it supports the control panels governing switchgear, transformer protection relays, and substation automation — environments where power supply reliability is a safety-critical requirement.

In petrochemical and refinery applications, the PD21B is deployed in control rooms managing continuous process loops for distillation columns, heat exchangers, and compressor control systems. The module’s compatibility with the full MELSEC-A I/O range allows engineers to maintain existing control architectures without costly platform migrations. In water treatment and municipal infrastructure, A-Series systems with PD21B power supplies manage pump station sequencing, chemical dosing control, and SCADA telemetry — often running continuously for years without interruption.

For mining and metallurgical operations, the PD21B supports control panels in harsh environments where vibration, dust, and temperature extremes demand robust, proven hardware. The module’s industrial-grade design ensures consistent performance even under demanding ambient conditions. In packaging and material handling applications, the PD21B powers the control racks governing high-speed sorting systems, palletizing robots, and conveyor drive coordination — where any power interruption translates directly to production downtime and revenue loss.

Architecture Engineering FAQ

Q1: Is the PD21B compatible with all MELSEC-A Series base units and CPU modules?
The PD21B is designed for use with the MELSEC-A Series main base units, including the A38B, A68B, A38HB, and A68HB. It is compatible with the full range of MELSEC-A CPU modules, including the A3CPU, A2UCPU, A1SCPU, and A2ACPU variants. Before installation, engineers should verify the total power consumption of all modules installed in the rack against the PD21B’s rated output capacity to ensure the power budget is not exceeded. For systems with high I/O density or multiple special function modules, a power budget calculation is recommended as part of the commissioning process.

Q2: How does the PD21B support long-term maintenance and system continuity in legacy MELSEC-A installations?
Maintaining a stock of PD21B modules is a recognized best practice for facilities operating MELSEC-A systems, as the power supply is one of the highest-wear components in any PLC rack due to its continuous operation and thermal cycling. ZYPLC maintains tested inventory of PD21B modules to support planned maintenance cycles, emergency replacements, and system expansions. All units supplied by ZYPLC are covered by a 12-Month Warranty, providing engineering teams with confidence in the reliability of replacement hardware. Contextual Integration support is available to assist with compatibility verification and installation guidance.

Q3: Can the PD21B be used in redundant power supply configurations for high-availability systems?
The MELSEC-A architecture supports redundant system configurations through the use of dual base units and redundant CPU modules in applicable system variants. In high-availability applications, engineering teams typically deploy redundant power supply modules across separate base units to eliminate the power supply as a single point of failure. ZYPLC’s technical team can advise on redundant architecture design for MELSEC-A systems, including module selection, base unit configuration, and wiring practices that comply with industrial safety standards. Contact our team for system-specific consultation.
