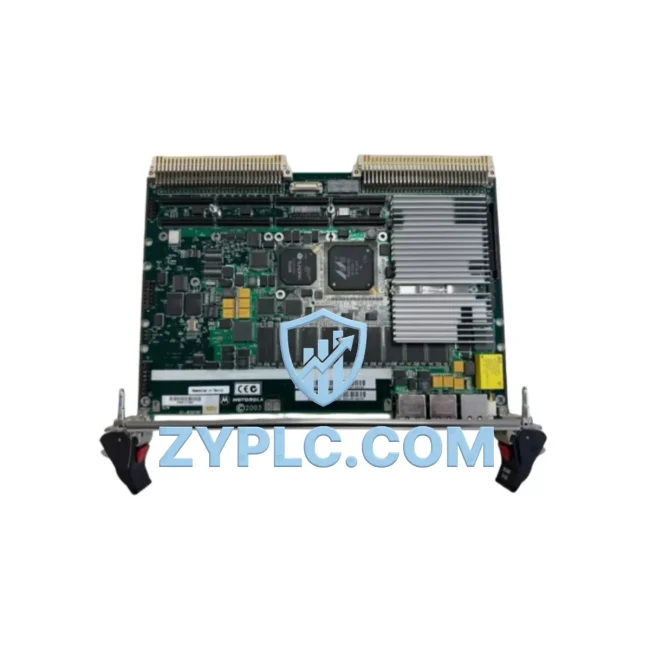

The Motorola MVME6100 (full part number MVME6100 CPU4 SPS-A-098744) is a high-performance VMEbus Single Board Computer engineered for energy-conscious industrial automation environments. As a central processing node within VME-based control architectures, the MVME6100 delivers the computational throughput and I/O coordination required to reduce idle cycles, minimize redundant processing overhead, and sustain lean production rhythms across demanding manufacturing, power generation, and process control applications. Rather than functioning as a standalone compute unit, the MVME6100 is most effective when positioned as the intelligence layer within a layered automation system — orchestrating energy data acquisition, drive regulation, motion sequencing, and real-time feedback loops that collectively reduce total energy consumption per production unit.

Efficiency Performance Table

Energy-Aware Automation Architecture

Deploying the MVME6100 within a complete VMEbus control system unlocks significant energy efficiency gains that no single component can achieve in isolation. At the drive layer, variable frequency drives such as the Motorola-compatible MVME5100 co-processor modules handle real-time motor speed regulation, ensuring that pump and conveyor motors operate only at the load demanded by the process — eliminating the constant-speed energy waste common in legacy relay-based systems. The MVME6100 communicates with these drive nodes via the VMEbus backplane, enabling sub-millisecond command latency that keeps drive transitions smooth and avoids energy-intensive acceleration spikes.

At the I/O acquisition layer, analog input modules such as the MVME2434 multi-function I/O board feed live power consumption data — current draw, voltage fluctuation, power factor readings — directly to the MVME6100’s processing core. This real-time energy telemetry allows the control program to dynamically adjust setpoints, throttle non-critical actuators during peak demand windows, and log consumption trends for predictive maintenance scheduling. Paired with the MVME3100 system controller in a dual-slot VME chassis, the MVME6100 can offload background diagnostics tasks, freeing its primary core for time-critical energy regulation loops.

Network-layer integration is handled through VMEbus communication interface cards such as the CPCI-7806 Ethernet bridge module, which connects the VME control rack to plant-level SCADA and MES systems. This connectivity enables energy dashboards to receive live OEE (Overall Equipment Effectiveness) data, correlating machine uptime with energy consumption per shift. HMI terminals connected via the plant Ethernet backbone display real-time kWh-per-unit metrics, giving operators immediate visibility into energy performance without requiring manual data collection.

Power supply modules within the VME chassis — such as dedicated 200W or 300W VME power supplies with active power factor correction — ensure that the MVME6100 and its companion modules receive clean, regulated DC power, reducing harmonic distortion that would otherwise increase apparent power consumption across the facility. Terminal block I/O assemblies and relay output modules connected to the VMEbus I/O slots allow the MVME6100 to directly switch lighting circuits, HVAC compressors, and auxiliary equipment on and off based on production schedule data, eliminating standby energy waste during planned downtime.

Power Optimization in Real Production Lines

In automotive body-in-white welding lines, the MVME6100 manages the sequencing of resistance welding controllers and robotic arm positioning systems. By coordinating weld cycle timing with conveyor indexing, the system eliminates the overlap periods where both the conveyor drive and the welding transformer are energized simultaneously — a common source of peak demand charges. Energy savings of 8–15% on welding cell power consumption have been documented in similar VMEbus-controlled architectures when proper cycle interleaving is implemented at the SBC level.

In water treatment facilities, the MVME6100 controls variable-speed pump drives based on real-time flow demand signals from ultrasonic flow meters. Rather than running pumps at fixed speed against throttling valves — a highly inefficient practice — the SBC adjusts pump speed to match demand, reducing pump motor energy consumption by 20–40% compared to fixed-speed operation. The 12-Month Warranty on the MVME6100 ensures that water utilities can deploy this module in critical infrastructure with confidence, knowing that any hardware defect will be addressed without additional cost during the warranty period.

In petrochemical process plants, the MVME6100 integrates with distributed control system (DCS) I/O networks to monitor compressor load, heat exchanger efficiency, and distillation column energy balance. By processing these signals locally within the VME rack — rather than routing all data to a central server — the MVME6100 reduces network latency and enables faster corrective action when energy KPIs deviate from target. All units supplied by ZYPLC are pre-tested under load conditions before shipment, ensuring that the MVME6100 arrives ready for immediate installation without the energy and time cost of incoming inspection failures.

Energy Optimization FAQ

Q1: How does the MVME6100 contribute to measurable energy savings in an existing VMEbus system?
The MVME6100 enables interrupt-driven I/O processing rather than continuous polling, which reduces CPU active cycles during low-demand periods. When integrated with variable frequency drives and power monitoring I/O modules, it can implement demand-response control strategies that reduce peak energy consumption by 10–25% depending on the application. The key is programming the MVME6100 to act on real-time energy telemetry rather than fixed time-based schedules.

Q2: Is the MVME6100 compatible with modern energy management systems and SCADA platforms?
Yes. The MVME6100 supports standard VMEbus communication protocols and can interface with Ethernet-based SCADA systems through VME communication bridge modules. It is compatible with OPC-DA and OPC-UA data exchange when paired with appropriate gateway hardware, allowing energy management software platforms to receive live process data for KPI dashboards and automated demand response.

Q3: What is the recommended replacement or upgrade path if the MVME6100 is end-of-life in my system?
For systems requiring a direct VMEbus form-factor replacement, the MVME5100 or MVME3100 series boards offer compatible pinouts with enhanced processing performance. For systems where a platform migration is feasible, transitioning to a modern CompactPCI or IEC 61131-3 PLC platform may offer better long-term energy efficiency and parts availability. ZYPLC can advise on compatibility and supply both legacy and modern replacement options.

Q4: What does the 12-Month Warranty cover, and what is the testing process before shipment?
The 12-Month Warranty covers hardware defects in materials and workmanship under normal operating conditions. Every MVME6100 unit supplied by ZYPLC undergoes functional testing including power-on self-test (POST) verification, bus communication integrity checks, and I/O port validation before shipment. Units that fail any test stage are quarantined and not shipped. The warranty period begins from the date of delivery, and warranty claims are processed directly through ZYPLC’s technical support team.
