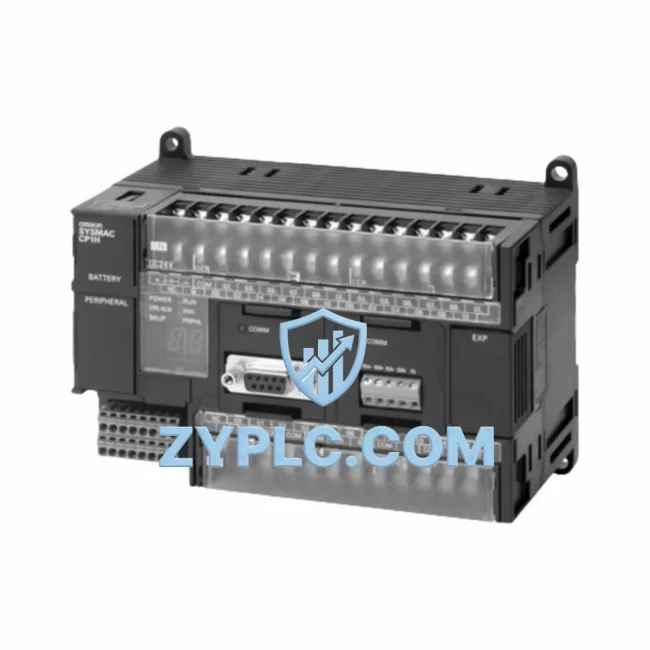

Omron CP1H-X40DR-A Programmable Controller for CP1H

Omron CP1H-X40DR-A Programmable Controller for CP1H

The Omron CP1H-X40DR-A is a high-performance, system-compatible programmable controller engineered as the central processing unit within the CP1H control architecture. Rather than functioning as a standalone device, the CP1H-X40DR-A is designed to operate as the command nucleus of a layered automation system — coordinating signal flow across I/O expansion modules, communication gateways, power supply units, human-machine interfaces, and field-level actuators. Its architecture-first design philosophy makes it an ideal choice for engineers building scalable, redundancy-aware, and long-term maintainable industrial control systems across manufacturing, power distribution, petrochemical processing, water treatment, mining, metallurgy, packaging lines, and process control environments.

With 40 built-in I/O points (24 DC inputs, 16 relay outputs), the CP1H-X40DR-A provides a robust foundation for mid-range control tasks while supporting seamless expansion through the CP1W peripheral module ecosystem. Its dual built-in serial ports enable simultaneous communication with upstream SCADA systems and downstream field devices, ensuring uninterrupted data exchange across all system layers. The unit supports multiple communication protocols including Host Link, NT Link, and Modbus RTU, making it compatible with a wide range of third-party sensors, drives, and HMI panels without requiring additional protocol converters.

From a system architecture perspective, the CP1H-X40DR-A occupies the control layer — receiving process data from the I/O layer, executing ladder logic or structured text programs, and issuing commands to the execution layer. Its 128K-step program memory and 32K-word data memory capacity allow engineers to implement complex control sequences, PID loops, motion coordination, and data logging routines within a single compact unit. This eliminates the need for auxiliary co-processors in many mid-scale applications, reducing cabinet footprint and simplifying system commissioning.

Product Specification Table

System Compatibility Notes

The CP1H-X40DR-A achieves its full architectural potential when deployed alongside a coordinated suite of Omron CP1H-series and CP1W-series components. In a typical control cabinet configuration, the CP1H-X40DR-A CPU is paired with the CP1W-PA204 or an equivalent AC power supply module to ensure stable, noise-filtered power delivery to the entire rack. Discrete I/O expansion is handled by modules such as the CP1W-16ER (16-point relay output expansion) and CP1W-20EDT (20-point transistor I/O), which extend the system’s field connectivity without increasing CPU complexity.

For analog signal acquisition — critical in process control and temperature regulation applications — the CP1W-AD041 (4-channel analog input) and CP1W-MAD11 (mixed analog I/O) modules integrate directly into the CP1H expansion bus, feeding real-time process values into the CPU’s data registers for closed-loop PID control. Temperature measurement is further supported by the CP1W-TS002 thermocouple input module, enabling direct sensor wiring without external signal conditioners.

Communication architecture is extended through the CP1W-CIF01 RS-232C adapter and CP1W-SRT21 CompoBus/S master unit, which allows the CP1H-X40DR-A to manage distributed I/O nodes across a CompoBus/S network — ideal for geographically spread field devices in large-scale panel installations. For human-machine interface integration, the system pairs naturally with Omron’s NS8-TV01B-V2 touchscreen HMI, which communicates with the CPU via NT Link protocol, providing operators with real-time process visualization, alarm management, and parameter adjustment without interrupting PLC execution cycles.

In applications requiring a secondary controller or a redundant processing path, the CP1H-Y20DT-D variant can be deployed in parallel, sharing I/O data via serial link to provide warm-standby redundancy for critical process segments. This architecture ensures that a single CPU failure does not result in unplanned production downtime — a key requirement in continuous process industries such as petrochemical refining and water treatment.

Industrial Application Notes

In discrete manufacturing environments — such as automotive assembly, electronics production, and packaging lines — the CP1H-X40DR-A manages conveyor sequencing, robotic cell coordination, and quality inspection triggers. Its relay output configuration is particularly suited to controlling solenoid valves, motor starters, and indicator lamps directly from the CPU without intermediate relay panels, reducing wiring complexity and improving fault traceability.

In power distribution and electrical substation applications, the CP1H-X40DR-A handles protection relay logic, load shedding sequences, and energy metering data collection via Modbus RTU from smart meters and power analyzers. Its dual serial ports allow simultaneous upstream reporting to SCADA and downstream polling of field instruments — a critical capability in substations where communication latency directly affects grid stability response times.

In water treatment and municipal infrastructure projects, the CP1H-X40DR-A controls pump station sequencing, chemical dosing systems, and level monitoring loops. Its compact form factor and wide operating temperature range make it suitable for installation in outdoor control kiosks and remote pump houses where space and environmental conditions are constrained.

In mining and metallurgical operations, the CP1H-X40DR-A is deployed in conveyor belt management, crusher control, and ore sorting systems. Its robust relay outputs handle the high-inrush loads associated with heavy industrial motors, while its serial communication capability enables integration with weighing systems, belt scales, and metal detectors along the processing line.

Product Compatibility FAQ

Q1: How many CP1W expansion modules can be connected to the CP1H-X40DR-A, and what types are supported?
The CP1H-X40DR-A supports up to 7 CP1W expansion units connected directly to its right-side expansion bus. Supported module types include digital I/O (CP1W-16ER, CP1W-20EDT), analog I/O (CP1W-AD041, CP1W-MAD11), temperature input (CP1W-TS002), and communication adapters (CP1W-CIF01, CP1W-SRT21). This modular expansion architecture allows engineers to tailor the I/O configuration precisely to the application without over-specifying the base CPU.

Q2: Is the CP1H-X40DR-A compatible with Omron NS-series HMI panels, and what communication protocol is used?
Yes. The CP1H-X40DR-A communicates natively with Omron NS-series HMI panels — including the NS8-TV01B-V2 — via the NT Link protocol over the built-in RS-232C serial port. This direct CPU-to-HMI link supports high-speed data exchange, alarm synchronization, and recipe management without requiring an intermediate communication gateway, simplifying both system architecture and commissioning effort.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term system maintenance?
All CP1H-X40DR-A units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal industrial operating conditions. ZYPLC maintains dedicated inventory of CP1H-series CPUs and CP1W expansion modules to support rapid replacement in the event of field failures, minimizing system downtime. For long-term maintenance planning, ZYPLC’s technical team can assist with spare parts identification, firmware compatibility verification, and system architecture review to ensure continued operational reliability throughout the product lifecycle.
