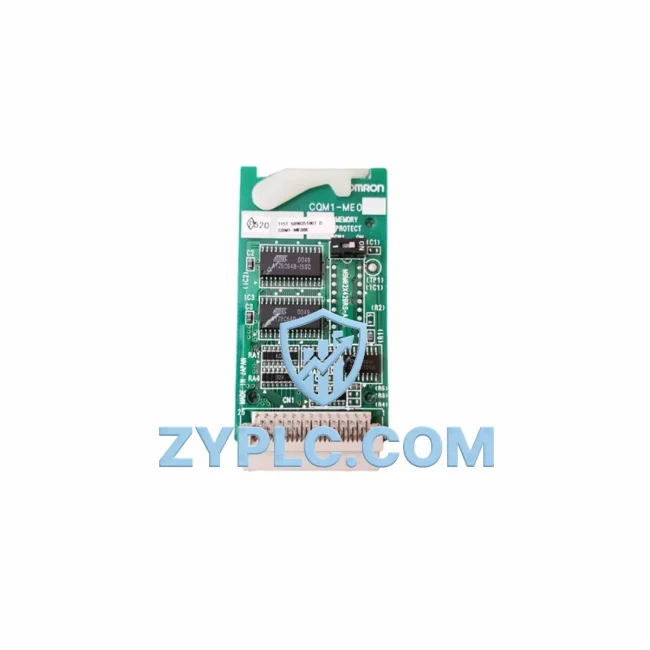

OMRON CQM1-ME04K PLC Memory Module for CQM1 Systems

OMRON CQM1-ME04K: Industrial Data Link and Smart Factory Connectivity for CQM1 Systems

The OMRON CQM1-ME04K is a high-reliability EEPROM memory module engineered for the CQM1 programmable logic controller series, delivering stable program storage, seamless data retention, and robust industrial network integration across modern smart factory environments. As manufacturing sites evolve toward fully connected automation architectures, the CQM1-ME04K serves as a critical data anchor — preserving ladder logic, I/O configuration, and communication parameters that drive uninterrupted production across distributed control networks.

In today’s industrial landscape, data continuity between field devices and upper-level systems is non-negotiable. The CQM1-ME04K ensures that the CQM1 CPU — such as the CQM1-CPU43-EV1 — retains its operational program even through power cycles, firmware updates, or emergency maintenance events. This memory persistence is the foundation upon which reliable SCADA integration, HMI visualization, and remote diagnostic workflows are built.

Compatibility & Integration Notes

Connected Automation Data Flow

The CQM1-ME04K operates at the heart of a layered industrial communication chain. At the field level, sensors and actuators feed real-time signals into the CQM1-ID212 digital input module and CQM1-OC222 output module, where the CQM1 CPU processes I/O states according to the ladder program stored in the CQM1-ME04K. This stored program governs every control decision — from conveyor sequencing to temperature regulation — ensuring deterministic response times critical to production stability.

Communication upward through the network begins at the CQM1-CIF02 RS-232C interface unit, which bridges the CQM1 CPU to host computers, HMI panels, and SCADA gateways using OMRON’s Host Link (C-mode) protocol. For multi-drop RS-422/485 topologies, the CQM1-CIF11 extends connectivity across longer cable runs and multi-node configurations, enabling a single SCADA server to poll multiple CQM1 controllers simultaneously without signal degradation.

Where Ethernet integration is required, an upstream CJ1W-EIP21 EtherNet/IP unit or a dedicated industrial Ethernet gateway translates FINS commands into standard TCP/IP packets, allowing the CQM1 system to participate in plant-wide MES and ERP data flows. This architecture supports real-time production monitoring, alarm forwarding, and remote parameter adjustment from centralized control rooms or cloud-based SCADA platforms.

For temperature and process control loops, the CQM1-TC001 temperature control unit works in tandem with the CQM1-ME04K’s stored PID parameters, maintaining precise setpoint control across furnaces, dryers, and injection molding machines. Analog signals from pressure transmitters and flow sensors are digitized through the CQM1-SEN sensor interface, feeding live process values into the SCADA historian for trend analysis and predictive maintenance scheduling.

Power integrity across the CQM1 rack is maintained by the CQM1-PA206 power supply unit, which provides stable 5 VDC to all modules including the CQM1-ME04K. In distributed remote I/O architectures, the CPM2A-40CDR-A compact PLC can operate as a subordinate controller, exchanging data with the CQM1 master via DeviceNet or Host Link, with all network parameters and I/O mapping tables safely stored in the CQM1-ME04K for rapid system recovery.

Edge gateway devices aggregate data from multiple CQM1 nodes and forward structured datasets to cloud analytics platforms, enabling KPI dashboards, OEE calculations, and remote diagnostics without interrupting live production. The CS1W-SCB21 serial communications board further extends the CQM1 ecosystem’s reach into legacy RS-232C and RS-422 device networks, ensuring backward compatibility with existing instrumentation while the CQM1-ME04K preserves all communication configuration data reliably.

Solving Data Isolation in Industrial Sites

One of the most persistent challenges in industrial automation is data isolation — the condition where field devices, PLCs, HMI panels, and upper-level systems operate in disconnected silos, preventing real-time visibility and coordinated control. The OMRON CQM1-ME04K directly addresses this challenge by ensuring that the CQM1 controller’s communication programs, network addresses, and protocol parameters are permanently retained and instantly recoverable, eliminating the risk of configuration loss that leads to network dropouts and production stoppages.

Protocol fragmentation is another common barrier. Legacy sites often run a mix of Host Link, DeviceNet, RS-232C, and Ethernet protocols across different generations of equipment. The CQM1-ME04K stores the complete communication ladder logic that manages protocol handshaking, data formatting, and error handling, allowing the CQM1 CPU to act as a protocol bridge between older field devices and modern Ethernet-based SCADA systems. This reduces the need for costly protocol converters and simplifies network architecture.

Remote monitoring and transparent production line management become achievable when the CQM1-ME04K ensures zero-loss program integrity. Maintenance engineers can remotely access live PLC data via FINS commands over the Host Link network, diagnose faults, adjust setpoints, and retrieve alarm histories — all without physical access to the control panel. This capability is essential for multi-site operations where rapid remote response reduces mean time to repair (MTTR) and minimizes unplanned downtime.

System expansion is equally simplified. When adding new I/O modules, communication units, or upgrading to higher-capacity CPUs within the CQM1 family, the stored program in the CQM1-ME04K can be transferred to the new CPU in minutes, preserving years of refined control logic and network configuration. This makes the CQM1-ME04K an indispensable asset for phased factory upgrades and production line reconfigurations.

Industrial Connectivity FAQ

Q1: Does the OMRON CQM1-ME04K support real-time data transfer to SCADA systems?
A: The CQM1-ME04K stores the communication programs that enable the CQM1 CPU to exchange real-time data with SCADA and HMI systems via OMRON Host Link (C-mode) and FINS protocols. When paired with an Ethernet gateway or the CJ1W-EIP21 EtherNet/IP unit, live process data can be streamed to SCADA historians and MES platforms with cycle times as low as 10 ms, supporting real-time monitoring and alarm management.

Q2: Is the CQM1-ME04K compatible with DeviceNet and other industrial network protocols?
A: The CQM1-ME04K is an internal memory module that stores the PLC program governing all communication functions. The CQM1 series supports DeviceNet, Controller Link, Host Link, and RS-232C/RS-422 protocols through dedicated communication units. The CQM1-ME04K retains all network configuration parameters for these protocols, ensuring consistent and reliable communication after power cycles or module replacements.

Q3: How does the CQM1-ME04K contribute to network stability and system reliability?
A: By providing non-volatile EEPROM storage, the CQM1-ME04K eliminates the risk of program loss due to battery failure or power interruption — a common cause of unexpected network dropouts in industrial environments. All ladder logic, I/O assignments, and communication settings are preserved indefinitely, ensuring the CQM1 controller resumes normal network operation immediately upon restart without manual reprogramming.

Q4: What warranty and pre-shipment testing does the CQM1-ME04K come with?
A: Every OMRON CQM1-ME04K supplied by ZYPLC undergoes pre-shipment functional testing to verify read/write integrity and communication compatibility. All units are covered by a 12-month warranty from the date of shipment. In-stock inventory is available for immediate dispatch, with global shipping options to support urgent production requirements. Contact our team for lead times, quantity pricing, and technical support.
