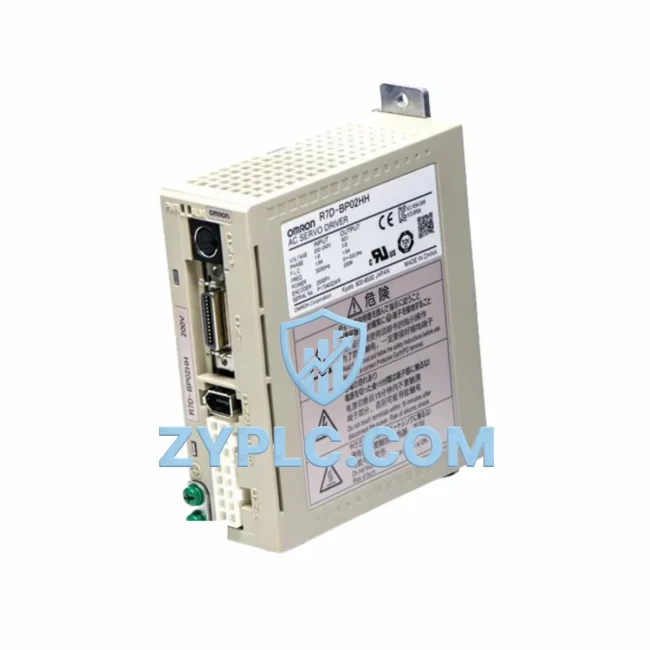

OMRON R7D-BP02HH-Z Energy-Saving Servo Drive for Optimized R7D Automation

OMRON R7D-BP02HH-Z Energy-Saving Servo Drive for Optimized R7D Automation

The OMRON R7D-BP02HH-Z is a high-performance AC servo drive engineered for precision motion control and energy-efficient operation in demanding industrial automation environments. As part of OMRON’s proven R7D series, this servo drive delivers exceptional torque response, reduced power consumption, and seamless integration with OMRON’s broader control ecosystem — making it a cornerstone component for factories seeking to improve equipment utilization, reduce idle energy losses, and optimize production line throughput.

Designed for applications where every watt counts, the R7D-BP02HH-Z supports regenerative braking energy recovery, minimizing heat dissipation and lowering overall system power draw. Its compact form factor and wide input voltage tolerance make it suitable for retrofitting legacy servo systems as well as deploying in new energy-conscious automation architectures. Every unit is sourced from verified supply channels, undergoes full functional testing prior to shipment, and is backed by a 12-month warranty — ensuring operational confidence from day one.

Efficiency Performance Table

Energy-Aware Automation Architecture

Achieving genuine energy efficiency in a production environment requires more than a single high-efficiency drive — it demands a coordinated automation architecture where every layer, from the controller to the field device, contributes to reducing unnecessary power consumption. The R7D-BP02HH-Z is designed to operate as an integral node within such a system.

At the control layer, the OMRON CJ2M-CPU31 programmable logic controller provides the real-time motion sequencing and energy-aware program logic that governs when the R7D-BP02HH-Z accelerates, decelerates, or enters low-power standby. Paired with the NX1P2-1140DT compact machine controller, engineers can implement distributed control topologies that reduce wiring overhead and localize decision-making closer to the drive, cutting response latency and unnecessary bus traffic.

For operator visibility and energy monitoring at the machine level, the NS8-TV01B-V2 HMI panel provides real-time display of drive status, current draw, and fault diagnostics. Operators can monitor the R7D-BP02HH-Z’s operating parameters directly from the panel, enabling rapid identification of inefficient operating conditions such as excessive regenerative events or abnormal torque demand spikes.

The R7D-BP02HH-Z pairs directly with OMRON R88M-K series servo motors, which are engineered for high torque density and low rotor inertia — a combination that reduces the energy required to accelerate and decelerate loads, directly improving cycle time efficiency. For applications requiring higher power, the R88D-KN04H-ECT EtherCAT servo drive from the G5 series can be deployed in parallel axes, sharing the same control network and enabling synchronized multi-axis motion with minimal energy overhead.

At the I/O layer, the CJ1W-PA202 power supply unit and associated CJ-series I/O modules provide stable, low-ripple power distribution to sensors and actuators throughout the control cabinet, ensuring that signal integrity is maintained even under variable load conditions. The E5CC-RX2ASM-800 digital temperature controller can be integrated into the thermal management loop, monitoring drive enclosure temperature and triggering cooling systems only when necessary — avoiding the continuous energy draw of always-on cooling fans.

For safety and energy isolation, the G9SP-N20S safety controller enables safe torque-off (STO) functionality, allowing the R7D-BP02HH-Z to be de-energized during machine idle periods without a full system shutdown — a critical feature for reducing standby power consumption in multi-shift manufacturing environments.

Power Optimization in Real Production Lines

In real-world production environments, the R7D-BP02HH-Z delivers measurable energy savings through several interconnected mechanisms. First, its regenerative braking capability captures kinetic energy during deceleration phases — energy that would otherwise be dissipated as heat — and feeds it back into the DC bus, reducing net power draw from the supply grid. In high-cycle applications such as pick-and-place, press feeding, or conveyor indexing, this regenerative recovery can account for a significant portion of total drive energy consumption.

Second, the drive’s auto-standby torque reduction feature automatically lowers holding current when the motor is stationary and no motion command is active. This is particularly valuable in assembly line applications where workpieces dwell at stations for inspection, joining, or labeling — periods during which a conventional drive would maintain full excitation current unnecessarily.

Third, the R7D-BP02HH-Z’s high-resolution encoder feedback enables tighter position control with fewer correction micro-movements, reducing the cumulative energy consumed by oscillatory motion around the setpoint. This directly improves production line beat time by eliminating settling delays and reducing mechanical wear on connected tooling and fixtures.

From a maintenance perspective, the drive’s built-in diagnostic registers provide early warning of bearing wear, insulation degradation, and overload conditions in the connected R88M-K servo motor. By integrating these diagnostics into a predictive maintenance workflow — accessible via the CJ2M-CPU31 or an upper-level SCADA system — maintenance teams can schedule interventions during planned downtime rather than responding to unplanned failures, dramatically reducing the energy and productivity cost of emergency stops.

All units are tested under load prior to shipment, with functional verification of speed loop response, position accuracy, and regenerative braking performance. This pre-shipment testing protocol ensures that the R7D-BP02HH-Z arrives ready for immediate commissioning, minimizing installation time and the associated energy cost of extended startup procedures. The 12-month warranty covers all manufacturing defects and provides a clear support pathway for any performance issues identified during the warranty period.

Energy Optimization FAQ

Q1: How much energy can the R7D-BP02HH-Z save compared to a standard induction motor drive?
In typical servo positioning applications, replacing an uncontrolled induction motor with the R7D-BP02HH-Z and a matched R88M-K servo motor can reduce motor system energy consumption by 30–60%, depending on duty cycle and load profile. The combination of regenerative braking, auto-standby current reduction, and precise speed control eliminates the energy waste inherent in throttled or slip-controlled induction drives.

Q2: Is the R7D-BP02HH-Z compatible with my existing OMRON PLC and network infrastructure?
Yes. The R7D-BP02HH-Z supports pulse train and RS-422 command interfaces, making it directly compatible with OMRON CJ2M, CP1H, and NX1P2 series PLCs without additional gateway hardware. For EtherCAT-based networks, consider pairing it with the R88D-KN series drives on the same machine, using the R7D-BP02HH-Z for axes where pulse-train control is preferred.

Q3: What is the recommended replacement or upgrade path for aging R7D series drives?
The R7D-BP02HH-Z is a direct drop-in replacement for earlier R7D-AP and R7D-BP series drives with equivalent power ratings. Motor cables and encoder connectors are compatible with existing R7M and R88M-K motor installations, minimizing rewiring effort. For applications requiring EtherCAT connectivity or higher dynamic performance, the R88D-KN04H-ECT represents the recommended upgrade path within the OMRON servo ecosystem.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every R7D-BP02HH-Z unit undergoes a full functional test including power-on verification, speed loop tuning check, position command response test, and regenerative braking validation before shipment. The 12-month warranty covers all manufacturing defects, component failures, and performance deviations from published specifications. Warranty claims are processed directly, with replacement units dispatched upon fault confirmation to minimize production downtime.
