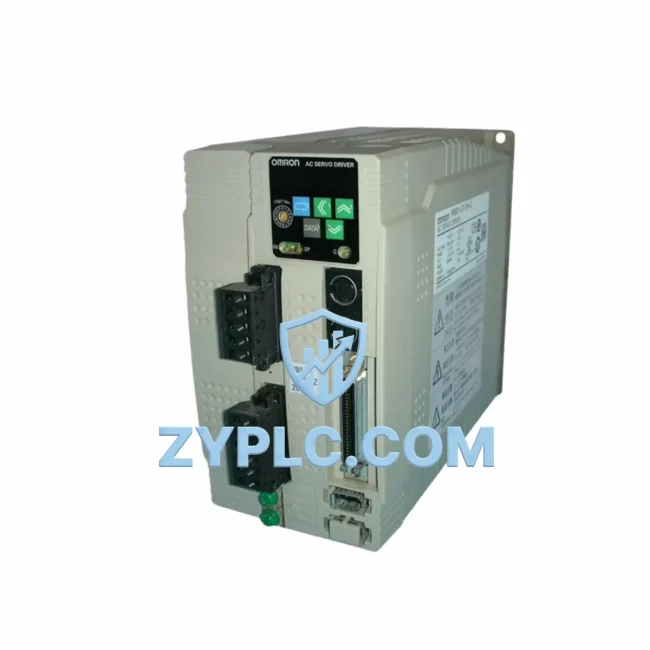

The Omron R88D-MT80 is a high-performance AC servo driver engineered for seamless integration within Omron’s R88D-MT Series servo architecture. Rather than functioning as a standalone component, the R88D-MT80 is designed to operate as a coordinated element within a layered industrial control system — connecting the control layer, I/O layer, motion execution layer, and power distribution infrastructure into a unified, high-reliability automation platform. For system integrators, OEM machine builders, and plant engineers managing complex motion control environments, the R88D-MT80 delivers the architectural consistency, signal fidelity, and long-term serviceability that demanding industrial applications require.

In modern industrial automation, servo drives are not selected in isolation. The R88D-MT80 is positioned within the motion control layer of a multi-tier architecture, receiving position, velocity, and torque commands from an upstream controller — typically an Omron CJ2M or NX102 series CPU — and translating those commands into precise electrical output to drive an R88M-M series AC servo motor. This tight coupling between the controller, drive, and motor ensures deterministic response times, minimized following error, and consistent throughput across high-cycle production environments.

At the I/O layer, the R88D-MT80 interfaces with NX-series or CJ-series digital I/O modules to receive enable signals, fault resets, and external interlock inputs. These signals are routed through the system’s safety and logic layer before reaching the drive, ensuring that the servo axis operates only under validated system conditions. This architecture supports both standard and safety-rated control topologies, making the R88D-MT80 suitable for machinery that must comply with IEC 62061 or ISO 13849 functional safety requirements.

Network connectivity is a critical dimension of the R88D-MT80’s system role. The drive supports EtherCAT-based motion networks when paired with compatible Omron motion controllers, enabling sub-millisecond cycle synchronization across multi-axis systems. In installations where MECHATROLINK-II or MECHATROLINK-III communication is used, the R88D-MT80 integrates directly into the motion bus, allowing the host controller to manage position loops, homing sequences, and interpolated multi-axis trajectories without additional gateway hardware. This reduces wiring complexity, improves diagnostic transparency, and simplifies commissioning.

Power distribution for the R88D-MT80 is typically sourced from a dedicated servo power supply or a shared DC bus configuration, depending on the machine’s energy profile. In multi-axis cabinets, the drive is often installed alongside regenerative resistor units and line filters to manage inrush current and harmonic distortion. Proper power layer design — including appropriate breaker sizing, EMC filtering, and grounding — is essential to achieving the drive’s rated performance and protecting upstream power infrastructure.

At the human-machine interface layer, the R88D-MT80’s operational status, alarm codes, and parameter sets are accessible through Omron’s NS-series or NB-series HMI panels, or via Sysmac Studio software running on an engineering workstation. This visibility allows operators to monitor real-time servo performance, adjust gain parameters, and diagnose faults without interrupting production. For multi-drive systems, centralized parameter management through Sysmac Studio significantly reduces commissioning time and ensures configuration consistency across all axes.

Architecture Specification Table

Coordinated Control System Design

The R88D-MT80 achieves its full performance potential when deployed within a coordinated Omron control architecture. A typical system configuration includes an Omron NX102 or CJ2M CPU as the master controller, managing program execution, motion sequencing, and network coordination. The CPU communicates with the R88D-MT80 via an EtherCAT motion network, synchronizing position commands across multiple axes with microsecond-level precision.

Motor-side, the R88D-MT80 is paired with an R88M-M750H-S2 or R88M-M1K030H-S2 AC servo motor, selected based on the application’s torque and inertia requirements. The encoder feedback from the motor is processed by the drive’s internal position loop, enabling closed-loop control without additional external hardware.

For I/O integration, NX-ID5342 digital input modules and NX-OD5256 digital output modules provide the interlock and status signals required for safe servo operation. These modules connect to the NX102 CPU via the EtherCAT I/O bus, ensuring deterministic signal delivery within the control cycle.

Cabinet power is distributed through an S8VK-series power supply for 24V DC control circuits, while the servo drive’s main circuit is fed from a dedicated transformer or line filter assembly. A 3G3MX2-series inverter may be installed in parallel for auxiliary fan or pump drives within the same control cabinet, sharing the common power infrastructure.

For operator interaction, an NS12-TS01B-V2 HMI panel provides the graphical interface for alarm management, recipe selection, and axis monitoring. Engineering access is provided through Sysmac Studio software, which supports online parameter editing, trace recording, and multi-axis motion program development. A CJ1W-SCU41-V1 serial communication unit may be added to the CPU rack for legacy device integration, ensuring backward compatibility in mixed-generation control architectures.

Application in Layered Automation Systems

The R88D-MT80 is deployed across a wide range of industrial sectors where precise motion control and system-level reliability are non-negotiable. In semiconductor and electronics manufacturing, the drive controls pick-and-place axes, dispensing stages, and inspection gantries where positioning repeatability within microns is required. The drive’s high-resolution encoder interface and low-latency EtherCAT communication make it well-suited for these high-precision applications.

In packaging and converting machinery, the R88D-MT80 manages registration control, web tension axes, and cam-synchronized cut-to-length operations. Its ability to execute electronic cam profiles under master controller coordination eliminates mechanical cam assemblies, reducing maintenance intervals and improving format changeover speed.

For power generation and utilities, the drive is used in valve actuator control, turbine governor systems, and auxiliary equipment positioning where reliable, repeatable motion is required under continuous duty conditions. The drive’s robust thermal management and wide operating temperature range support installation in industrial enclosures without additional cooling infrastructure.

In water treatment and process industries, the R88D-MT80 controls dosing pump drives, agitator axes, and filter press mechanisms. Its compatibility with Omron’s process control PLCs allows seamless integration into SCADA-connected automation systems, supporting remote monitoring and predictive maintenance workflows.

Architecture Engineering FAQ

Q1: Is the R88D-MT80 compatible with Omron NX-series and CJ-series controllers for multi-axis motion systems?
Yes. The R88D-MT80 is designed for use within Omron’s servo architecture and is compatible with NX102, CJ2M, and other Omron motion controllers via EtherCAT or MECHATROLINK communication. Multi-axis configurations are supported through the host controller’s motion task management, allowing synchronized interpolation across multiple R88D-MT drives within a single control program.

Q2: What installation and commissioning considerations apply when integrating the R88D-MT80 into an existing control cabinet?
The R88D-MT80 requires adequate panel spacing for thermal dissipation, proper EMC grounding, and a dedicated line filter on the main circuit input. During commissioning, gain tuning should be performed using Sysmac Studio’s auto-tuning function with the actual load connected. Parameter backup should be completed before going live, and all safety interlock wiring should be verified against the machine’s functional safety assessment.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance for the R88D-MT80?
The 12-Month Warranty covers manufacturing defects and verified functional failures under normal operating conditions. ZYPLC maintains stock of R88D-MT80 units and compatible R88M-M series motors to support rapid replacement in the event of drive failure. Our technical team provides pre-sales architecture consultation, commissioning support, and post-sale troubleshooting to ensure system continuity throughout the product lifecycle. Contact us at +86 19859288691 or [email protected] for availability and lead time confirmation.
