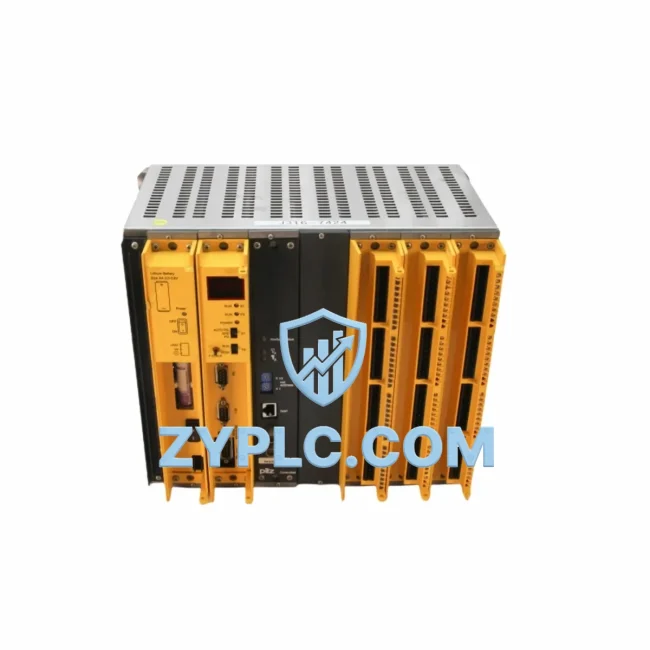

Pilz PSS1 BMP 5/2GRUNDTRAGER System-Ready Base Rack for PSS1 Architecture

Pilz PSS1 BMP 5/2GRUNDTRAGER System-Ready Base Rack for PSS1 Architecture

The Pilz PSS1 BMP 5/2GRUNDTRAGER RGH22 X50F00 839-034095-001 / 839-034098-001 is a safety-rated base rack module engineered as the structural and electrical backbone of the Pilz PSS1 programmable safety system. In modern industrial control architectures, the base rack is far more than a passive mounting frame — it defines the physical topology of the control layer, governs the internal bus communication between safety CPUs and I/O modules, and determines the scalability and redundancy capacity of the entire safety platform. This module is designed to deliver long-term system consistency, simplified maintenance, and reliable Contextual Integration across multi-zone safety architectures in demanding industrial environments.

Within a layered automation system, the PSS1 BMP 5/2GRUNDTRAGER occupies the foundational position of the control layer. It provides the mechanical housing and internal backplane bus for the PSS1 CPU modules — such as the Pilz PSS1 CPU 1 (Part No. 312 000) and PSS1 CPU 2 (Part No. 312 001) — enabling direct high-speed communication between the processor and all installed I/O modules without external wiring. This internal bus architecture eliminates signal latency between the safety controller and its peripherals, which is critical in applications requiring SIL 3 / PLe response times.

The base rack supports the integration of Pilz PSS1 digital input modules such as the PSS1 ES 4 DO 0.5 and PSS1 ES 8 DI, as well as analog I/O modules for process variable acquisition. When combined with the Pilz PSS1 DP (PROFIBUS-DP gateway module), the rack becomes the node point for fieldbus communication, connecting the safety controller to distributed I/O stations, variable frequency drives, and remote safety devices across the plant floor. This enables the PSS1 system to participate in a broader PROFIBUS or PROFINET network topology without compromising the integrity of the safety bus.

For power distribution, the PSS1 BMP 5/2GRUNDTRAGER interfaces directly with the Pilz PSS1 PS (24 VDC power supply module), which provides regulated, monitored power to all rack-mounted modules. The power layer is designed with internal diagnostics that report supply faults to the CPU, enabling the safety system to initiate a controlled shutdown or safe-state transition before a power anomaly can propagate to the process. This tight coupling between the power layer and the control layer is a defining characteristic of the PSS1 architecture and is fully supported by this base rack.

In redundant safety architectures, the PSS1 BMP 5/2GRUNDTRAGER can be deployed in parallel rack configurations where a secondary CPU and I/O set mirror the primary system. This hot-standby or dual-channel architecture is commonly required in applications governed by IEC 61508 SIL 3 or EN ISO 13849 PLe, such as emergency stop circuits, light curtain monitoring, two-hand control systems, and safety gate interlocks. The base rack’s mechanical design accommodates the physical separation required for redundant channel routing, ensuring that a single-point failure in one channel does not compromise the integrity of the parallel channel.

From a human-machine interface perspective, the PSS1 system connected through this base rack can be monitored and configured using the Pilz PSSuniversal HMI or third-party SCADA systems via the PROFIBUS gateway. Operators can view real-time diagnostic data, module status, and safety function states without interrupting the running process. This visibility is essential for predictive maintenance strategies and for reducing mean time to repair (MTTR) during unplanned shutdowns.

The PSS1 BMP 5/2GRUNDTRAGER is also compatible with Pilz PSS1 terminal modules and PSS1 relay output modules, which extend the system’s ability to interface with actuators, solenoid valves, motor contactors, and other field devices in the execution layer. The clean separation between the safety logic layer (CPU + base rack) and the execution layer (relay outputs + field wiring) simplifies both initial commissioning and ongoing maintenance, as individual output modules can be replaced without disturbing the safety program or the base rack wiring.

For engineering teams managing multi-site or multi-machine installations, maintaining a standardized base rack model across all safety panels reduces spare parts inventory complexity and accelerates fault recovery. The PSS1 BMP 5/2GRUNDTRAGER, with its dual part number designation (839-034095-001 / 839-034098-001), ensures backward compatibility across PSS1 system revisions, protecting the capital investment in existing safety infrastructure while allowing incremental upgrades to CPU firmware and I/O module types.

All units supplied by ZYPLC undergo functional verification and are covered by a 12-Month Warranty, ensuring that replacement modules perform identically to factory-new components within your validated safety architecture. Our inventory is sourced from verified industrial channels, and each unit is inspected prior to dispatch to confirm mechanical integrity, connector condition, and backplane bus continuity.

Architecture Specification Table

Coordinated Control System Design

The PSS1 BMP 5/2GRUNDTRAGER functions as the integration hub for a complete Pilz PSS1 safety control system. A typical coordinated architecture built around this base rack includes the following components working in concert:

The Pilz PSS1 CPU 1 (312 000) or PSS1 CPU 2 (312 001) mounts directly into the base rack and executes the safety program, performing cyclic self-tests and cross-channel comparisons at every scan cycle. The PSS1 PS 24VDC power supply module feeds regulated power to the backplane, while the PSS1 ES 8 DI digital input module collects signals from E-stop buttons, safety gates, and light curtains. Output control is handled by the PSS1 ES 4 DO 0.5 digital output module, which drives safety relays and contactors in the execution layer.

For fieldbus connectivity, the PSS1 DP PROFIBUS gateway extends the safety system’s reach to remote I/O stations and variable speed drives distributed across the machine or plant. In larger installations, Pilz PSSuniversal multi-function modules may supplement the PSS1 rack with additional I/O capacity or protocol bridging. Terminal modules such as the Pilz PNOZ m B0 base unit or standalone PNOZ X safety relays are commonly used in the same control cabinet to handle auxiliary safety functions that do not require programmable logic, providing a cost-effective complement to the PSS1 programmable safety controller.

This coordinated architecture ensures that every layer — from the safety CPU through the I/O modules, fieldbus gateway, power supply, and output relays — operates within a validated, documented system topology that supports both initial certification and long-term maintenance audits.

Application in Layered Automation Systems

The Pilz PSS1 BMP 5/2GRUNDTRAGER base rack is deployed across a wide range of industrial sectors where functional safety is a regulatory and operational requirement.

In automotive manufacturing and general machine building, the PSS1 system built on this base rack manages robot cell access control, press brake guarding, and conveyor interlocking, where SIL 2/3 response times are mandated by machinery directive compliance. In power generation and electrical utilities, the PSS1 architecture provides the safety logic for turbine overspeed protection, switchgear interlocking, and substation access control systems.

In petrochemical and oil & gas facilities, the PSS1 base rack supports safety instrumented systems (SIS) for burner management, emergency shutdown (ESD), and high-integrity pressure protection systems (HIPPS), where IEC 61511 compliance requires a fully documented and validated safety PLC architecture. Water and wastewater treatment plants use the PSS1 system for pump station safety interlocking and chemical dosing system protection, where the modular rack design simplifies maintenance in remote or unmanned installations.

In mining and metallurgy, the PSS1 BMP 5/2GRUNDTRAGER is found in conveyor belt safety systems, hoist control panels, and crusher protection circuits, where the rugged backplane design and wide operating temperature range ensure reliable operation in dusty, vibration-prone environments. Packaging and food processing lines use the PSS1 architecture for guarding systems on high-speed filling, sealing, and labeling machines, where frequent format changes require a flexible yet certified safety platform.

Architecture Engineering FAQ

Q1: Is the PSS1 BMP 5/2GRUNDTRAGER (839-034095-001) compatible with both PSS1 CPU 1 and CPU 2 modules, and can it be used in a dual-CPU redundant configuration?
A: Yes. The PSS1 BMP 5/2GRUNDTRAGER base rack is designed to accept both the PSS1 CPU 1 (312 000) and PSS1 CPU 2 (312 001) modules. In dual-channel redundant architectures, two separate base racks — each hosting an independent CPU and I/O set — are used in parallel, with cross-monitoring between channels performed at the CPU level. The base rack itself does not impose restrictions on redundancy topology; the redundancy logic is managed by the PSS1 CPU firmware and the safety program structure.

Q2: What I/O modules and communication gateways are directly compatible with this base rack, and how does Contextual Integration work within the PSS1 system?
A: The PSS1 BMP 5/2GRUNDTRAGER supports all standard PSS1 I/O modules, including digital input modules (PSS1 ES 8 DI), digital output modules (PSS1 ES 4 DO 0.5), and the PSS1 DP PROFIBUS gateway. Contextual Integration in the PSS1 architecture means that each module inserted into the base rack is automatically recognized by the CPU during startup, and its configuration is validated against the safety program. This plug-and-verify approach reduces commissioning time and ensures that module replacements during maintenance do not introduce configuration mismatches.

Q3: What does the 12-Month Warranty from ZYPLC cover, and how does it support long-term maintenance planning for PSS1 safety systems?
A: The 12-Month Warranty provided by ZYPLC covers functional defects in the PSS1 BMP 5/2GRUNDTRAGER base rack under normal operating conditions. If the module fails to perform its specified backplane bus, power distribution, or mechanical mounting functions within the warranty period, ZYPLC will provide a replacement unit. For maintenance planners, this warranty period aligns with typical annual safety system inspection and revalidation cycles, ensuring that spare modules held in inventory are covered for the duration of a standard maintenance interval. For extended support requirements, contact ZYPLC directly to discuss multi-year supply agreements.
