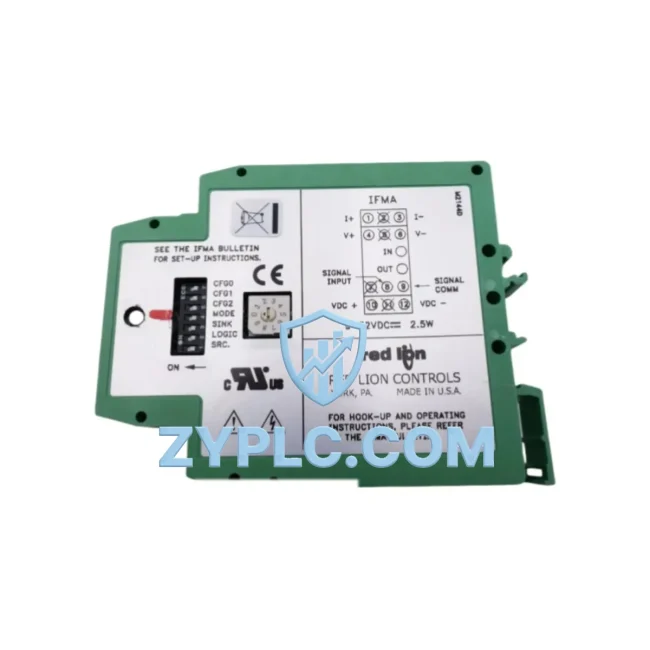

Red Lion IFMA0035 Energy-Saving I/O Module Modular Controller

Red Lion IFMA0035 Energy-Saving I/O Module for Optimized Modular Controller Automation

The Red Lion IFMA0035 is a high-performance analog input I/O module engineered for the Red Lion Modular Controller platform. Designed to meet the demanding requirements of modern industrial automation, the IFMA0035 delivers precise signal acquisition, low-latency data transmission, and seamless integration with energy monitoring and motor control architectures. Whether deployed in discrete manufacturing, process control, or utility management environments, this module serves as a critical node in reducing unnecessary energy consumption, improving equipment utilization rates, and enabling data-driven production line optimization.

In energy-intensive industrial facilities, unmonitored analog signals from field devices — including temperature sensors, pressure transmitters, flow meters, and current transducers — often go unprocessed or are sampled too infrequently to support real-time corrective action. The IFMA0035 addresses this gap by providing high-resolution analog input channels that feed directly into the Red Lion Modular Controller’s processing core, enabling continuous energy-aware feedback loops across the entire automation system.

Efficiency Performance Table

Energy-Aware Automation Architecture

The IFMA0035 is most effective when deployed as part of a layered energy-aware automation architecture. At the field level, analog signals from current transformers and power transducers are wired directly into the IFMA0035’s input channels. These signals are then processed by the Red Lion Modular Controller CPU module — such as the CSMSTRSX or compatible master module — which executes PID control loops and energy optimization algorithms in real time.

For variable-speed drive applications, the analog output data from the IFMA0035 can be used to command Red Lion IFMA0050 analog output modules, which in turn send 4–20mA reference signals to variable frequency drives (VFDs). This closed-loop configuration allows the controller to dynamically adjust motor speed based on actual process demand rather than running motors at fixed full-load conditions — a primary source of industrial energy waste.

On the communications side, the Modular Controller platform supports Modbus RTU and Modbus TCP protocols natively, enabling the IFMA0035’s data to be aggregated by energy management systems (EMS) or SCADA platforms such as Red Lion Crimson-based HMI panels (e.g., the G315 or G10 series). These HMIs provide operators with real-time energy dashboards, alarm management, and trend logging — all essential for identifying inefficiency patterns and scheduling predictive maintenance interventions.

For digital I/O coordination, the IFMA0035 works alongside Red Lion IFDIS modules (discrete input modules) and IFDOS modules (discrete output modules) on the same controller backplane. This mixed I/O configuration supports complex interlocking logic — for example, shutting down non-essential loads during peak demand periods or sequencing motor starts to avoid inrush current spikes that inflate energy bills.

Power supply integrity is maintained by Red Lion IFPWR power supply modules, which provide regulated 24VDC to the backplane and field devices. Stable power delivery is critical for accurate analog signal acquisition; voltage fluctuations at the supply level directly degrade ADC accuracy and can cause false readings that lead to inefficient control decisions.

For facilities requiring Ethernet-based energy data integration, the Red Lion IFECAT Ethernet communication module extends the Modular Controller’s connectivity to plant-level MES and ERP systems, enabling automated energy reporting and KPI tracking without manual data entry.

Power Optimization in Real Production Lines

In real-world production environments, the IFMA0035 delivers measurable energy savings by transforming raw analog field data into actionable control intelligence. Consider a typical HVAC or pump station application: without real-time analog feedback, chillers and pumps often run at fixed speeds regardless of actual thermal or flow demand. By connecting temperature and pressure sensors to the IFMA0035 and feeding that data into the Modular Controller’s PID loops, facility engineers can implement variable-speed control strategies that reduce motor energy consumption by 20–40% compared to fixed-speed operation.

In conveyor and material handling systems, the IFMA0035 monitors motor current draw in real time. When current readings exceed baseline thresholds — indicating mechanical friction, belt slippage, or overloading — the controller can trigger alarms, reduce line speed, or initiate a controlled stop before a catastrophic failure occurs. This predictive maintenance capability directly reduces unplanned downtime, which is one of the most significant hidden costs in industrial operations.

For production line rhythm (takt time) optimization, the IFMA0035 enables continuous monitoring of cycle times and equipment throughput rates. By correlating analog sensor data with production counts, the Modular Controller can identify bottlenecks and automatically adjust upstream feed rates or downstream buffer speeds to maintain optimal line balance — reducing idle energy consumption at waiting stations while maximizing overall equipment effectiveness (OEE).

Every IFMA0035 unit supplied by ZYPLC undergoes a comprehensive outgoing functional test prior to shipment, verifying channel accuracy, signal linearity, and communication integrity. This ensures that the module performs to specification from day one of installation, eliminating the energy and productivity losses associated with faulty or out-of-calibration I/O hardware. All units are backed by a 12-month warranty, with in-stock availability supporting rapid deployment and minimal lead times.

Energy Optimization FAQ

Q1: How does the IFMA0035 contribute to measurable energy savings in industrial applications?
The IFMA0035 provides high-resolution analog input data that enables the Red Lion Modular Controller to implement demand-responsive control strategies. By continuously monitoring process variables such as motor current, temperature, and pressure, the controller can reduce motor speeds, shed non-critical loads, and optimize equipment duty cycles — directly lowering kWh consumption and peak demand charges.

Q2: Is the IFMA0035 compatible with third-party VFDs, SCADA systems, and energy management platforms?
Yes. The IFMA0035 operates within the Red Lion Modular Controller backplane and communicates via Modbus RTU/TCP, which is supported by the vast majority of industrial VFDs, SCADA platforms, and energy management systems. Analog output modules on the same backplane can provide 4–20mA or 0–10V reference signals to any compatible drive or actuator.

Q3: Can the IFMA0035 replace other analog input modules from different manufacturers?
The IFMA0035 is designed specifically for the Red Lion Modular Controller platform and is not a direct drop-in replacement for modules from other controller families. However, if you are migrating from a legacy system, ZYPLC’s technical team can assist with compatibility assessment and system redesign to integrate the IFMA0035 into your existing automation architecture.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
All IFMA0035 units are tested for analog channel accuracy, input range calibration, backplane communication, and signal isolation before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. ZYPLC maintains in-stock inventory of the IFMA0035 to support fast order fulfillment, with typical lead times of 1–3 business days for stocked units.
