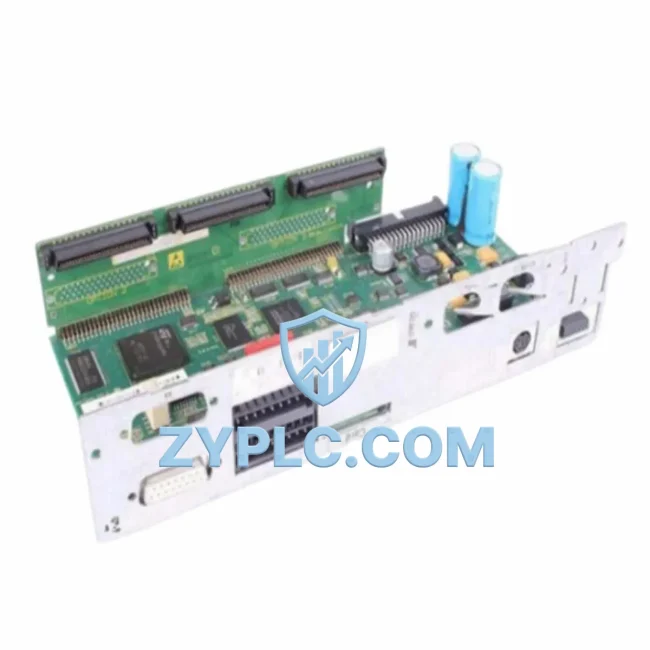

Rexroth CSB01.1C-SE-ENS-EN1-NN-S-NN-FW System-Ready Servo Drive for CSB01 Architecture

Rexroth CSB01.1C-SE-ENS-EN1-NN-S-NN-FW System-Ready Servo Drive for CSB01 Control System Architecture

The Bosch Rexroth CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is a high-performance servo drive module engineered for seamless integration within the Rexroth IndraDrive CSB01 control system architecture. Designed to operate as a coordinated axis node within multi-axis motion control platforms, this drive delivers precise torque, velocity, and position control across demanding industrial automation environments. Rather than functioning as a standalone component, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is purpose-built to serve as a synchronized element within layered automation systems — contributing to control consistency, system redundancy, and long-term maintainability across the full automation stack.

In modern industrial control architectures, servo drives occupy a critical position at the intersection of the control layer and the execution layer. The CSB01.1C-SE-ENS-EN1-NN-S-NN-FW receives motion commands from higher-level controllers, processes real-time feedback from encoder and resolver interfaces, and delivers precisely regulated power to servo motors — all within a tightly synchronized communication cycle. Its EtherNet/IP (ENS) and SERCOS (EN1) dual-network capability ensures that it can be deployed in both legacy SERCOS-based motion buses and modern Ethernet-based control topologies, making it a versatile asset for system architects managing mixed-generation automation infrastructure.

From a system integration perspective, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is designed to work in close coordination with the Rexroth IndraDrive supply unit HMV01 or HMV02, which provides the DC bus power rail shared across multiple drive axes. The drive’s DC bus connection architecture allows it to participate in energy regeneration schemes alongside companion axis drives such as the CDB01 double-axis module or additional CSB01 single-axis nodes, reducing overall energy consumption and improving power efficiency at the cabinet level. This coordinated power architecture is a fundamental design principle of the IndraDrive platform and directly influences cabinet layout, busbar sizing, and thermal management planning.

At the I/O and signal layer, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW interfaces with the system’s feedback devices through its integrated encoder evaluation circuitry, supporting Hiperface, EnDat, and resolver-based feedback systems. This flexibility allows system engineers to select the most appropriate feedback technology for each axis without changing the drive hardware. Digital and analog I/O terminals on the drive provide direct connectivity to safety relays, limit switches, and process sensors, reducing the need for external I/O modules and simplifying cabinet wiring. When integrated with a Rexroth IndraControl L or IndraControl V controller platform, the drive participates in a fully coordinated motion and logic control environment where axis synchronization, cam profiles, and electronic gearing are managed at the controller level and executed with sub-millisecond precision at the drive.

For system architects designing redundant or high-availability automation cells, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW supports safe torque off (STO) and safe stop 1 (SS1) safety functions in accordance with IEC 62061 and ISO 13849, enabling integration with safety PLCs and safety relay modules without requiring additional external safety hardware on each axis. This built-in functional safety capability simplifies the overall safety architecture and reduces component count in safety-critical applications such as press lines, robotic cells, and high-speed packaging machinery.

In terms of network layer coordination, the EtherNet/IP interface (ENS suffix) allows the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW to be addressed as a standard EtherNet/IP device on the plant network, enabling integration with Allen-Bradley ControlLogix or CompactLogix controllers, Siemens S7 systems via EtherNet/IP gateway modules, or any EtherNet/IP-compatible SCADA and DCS platform. This cross-platform communication capability makes the drive a practical choice for facilities operating mixed-vendor control environments, where standardized network protocols are preferred over proprietary fieldbus solutions.

From a maintenance and lifecycle management perspective, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is supported by Rexroth’s IndraWorks engineering software, which provides drive parameterization, axis commissioning, diagnostic logging, and firmware management from a single engineering environment. Maintenance engineers can retrieve fault histories, monitor thermal load trends, and perform guided commissioning procedures without specialized hardware tools, reducing mean time to repair (MTTR) and minimizing unplanned downtime. All units supplied by ZYPLC are covered by a 12-Month Warranty, ensuring operational confidence throughout the post-installation period and supporting long-term spare parts planning for maintenance teams.

Architecture Specification Table

Coordinated Control System Design

The CSB01.1C-SE-ENS-EN1-NN-S-NN-FW achieves its full performance potential when deployed as part of a coordinated IndraDrive system architecture. At the power supply level, the HMV01.1E or HMV01.1R supply unit provides the regulated DC bus voltage that feeds the CSB01 drive and any co-installed axis modules. In multi-axis configurations, the CDB01 double-axis drive module can be installed alongside the CSB01 to increase axis density within the same cabinet footprint, sharing the common DC bus and reducing the total number of supply units required.

At the controller level, the IndraControl L45 or IndraControl L65 motion logic controller manages axis coordination, executing synchronized motion programs that command the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW and its companion axes via the SERCOS or EtherNet/IP motion bus. For applications requiring human-machine interface integration, the IndraControl VCP series operator panels connect directly to the controller network, providing real-time axis status visualization, alarm management, and recipe-based parameter switching at the machine level.

At the I/O layer, Rexroth IndraDrive Mi motor-integrated drive components can be combined with the CSB01 cabinet drives to create hybrid architectures where high-power axes are managed centrally and distributed axes are handled at the motor. Rexroth MSK servo motors with integrated Hiperface encoders are the preferred motor pairing for CSB01 drives, providing closed-loop position feedback with single-cable motor connection capability when used with appropriate hybrid motor cables. Terminal modules such as the Rexroth R-IB IL 24 DI 8/HD-PAC I/O terminals can be integrated into the same EtherNet/IP network segment, extending digital I/O capacity without adding separate fieldbus infrastructure.

For safety architecture, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW’s STO input connects directly to a safety relay module or safety PLC output, such as the Pilz PNOZ or Sick Flexi Soft series, enabling zone-based safety shutdown without removing power from the entire DC bus — a critical capability for machines requiring partial-stop safety zones. This architecture preserves DC bus energy in non-stopped axes, reducing restart time and improving overall machine availability.

Application in Layered Automation Systems

In automotive manufacturing and press line automation, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is deployed in transfer press systems where multiple servo axes must execute synchronized stroke, feed, and transfer motions with sub-millisecond timing accuracy. The drive’s SERCOS III interface ensures deterministic motion bus communication, while its STO safety function enables rapid zone isolation during die change or maintenance access without full machine shutdown.

In packaging and converting machinery, the CSB01 drive controls registration, cut-to-length, and tension control axes in high-speed web processing lines. Its ability to execute electronic cam profiles under IndraMotion MLD control allows complex motion sequences to be programmed and modified without hardware changes, reducing changeover time and improving format flexibility on multi-product packaging lines.

In petrochemical and process control applications, the drive’s robust thermal management and wide operating temperature range make it suitable for deployment in climate-controlled control rooms adjacent to process areas. Its EtherNet/IP connectivity allows integration with DCS platforms managing broader process control loops, while the servo axes handle precise valve actuation, metering pump control, and agitator speed regulation.

In metal processing and rolling mill applications, the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW manages tension control and speed synchronization across multi-stand rolling configurations. The drive’s high dynamic response and precise torque control capability ensure consistent material thickness and surface quality across varying material grades and rolling speeds.

In water treatment and utility automation, the drive controls pump and blower servo axes in variable-flow systems where precise speed regulation and energy efficiency are primary design objectives. Its EtherNet/IP integration with SCADA systems enables remote monitoring of drive health parameters, supporting predictive maintenance programs that reduce unplanned outages in critical utility infrastructure.

Architecture Engineering FAQ

Q1: Is the CSB01.1C-SE-ENS-EN1-NN-S-NN-FW compatible with both SERCOS and EtherNet/IP control systems in the same installation?
Yes. The ENS+EN1 suffix combination indicates that this drive is equipped with both EtherNet/IP (ENS) and SERCOS (EN1) communication interfaces. In practice, one interface is typically designated as the primary motion bus while the other serves as a secondary diagnostic or parameter access channel. System architects should consult the Rexroth IndraWorks project configuration to assign interface priorities and ensure correct network topology during commissioning.

Q2: What supply unit and DC bus configuration is required to support multiple CSB01 drives in a single cabinet?
Multiple CSB01 drives share a common DC bus supplied by an HMV01 or HMV02 supply unit. The supply unit must be sized to cover the peak power demand of all connected axis drives simultaneously, accounting for regenerative energy recovery from decelerating axes. Rexroth’s DriveTop or IndraWorks sizing tools should be used to calculate the correct supply unit rating based on axis load profiles, duty cycles, and regeneration capacity. Busbar cross-sections and cabinet thermal management must also be validated against the total drive heat dissipation at maximum load.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term spare parts availability for CSB01 drives?
All CSB01.1C-SE-ENS-EN1-NN-S-NN-FW units supplied by ZYPLC are covered by a 12-Month Warranty against manufacturing defects and operational failures under normal operating conditions. ZYPLC maintains dedicated inventory of CSB01 series drives and compatible IndraDrive components to support rapid replacement in the event of drive failure, minimizing production downtime. For long-term maintenance planning, ZYPLC’s technical team can assist with spare parts forecasting, firmware version compatibility assessment, and cross-reference identification for discontinued drive variants. Contact ZYPLC at +86 19859288691 or plc.sales@zyplc.com for availability and lead time confirmation.
