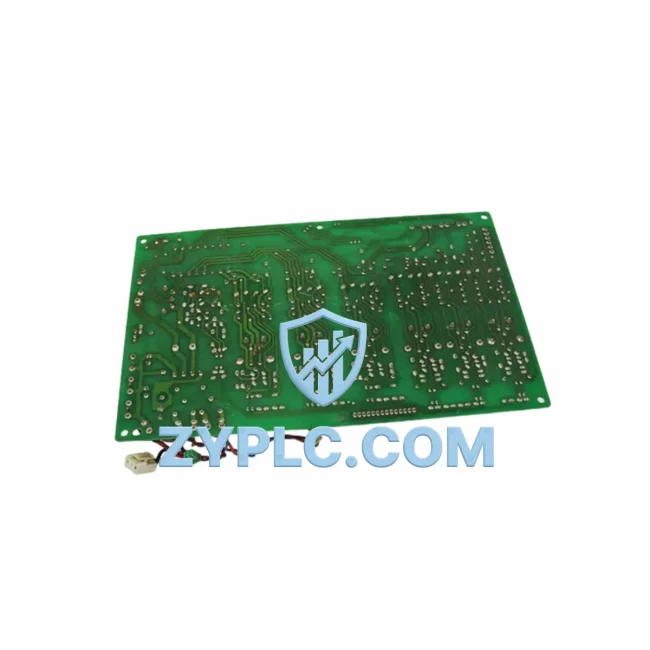

Sanken DK14256A System-Ready Board for Inverter Architecture

Sanken DK14256A System-Ready Board for Inverter Architecture: Control System Coordination and Upstream-Downstream Synergy

In modern industrial automation, no component operates in isolation. The Sanken DK14256A inverter drive circuit board is engineered as a system-ready module designed to occupy a precise functional position within layered control architectures — bridging the command layer, power conversion layer, and motor execution layer with consistent signal integrity and reliable switching performance. Whether deployed in variable frequency drive (VFD) enclosures, servo amplifier platforms, or distributed motor control centers, the DK14256A delivers the gate drive and feedback coordination that keeps multi-axis and multi-zone systems operating in synchrony.

Understanding the DK14256A’s role requires viewing it not as a standalone repair component, but as a functional node within a broader control hierarchy. From the PLC or DCS command layer down through the I/O interface, power supply bus, drive board, and ultimately to the motor shaft, each layer depends on the integrity of the one below it. The DK14256A sits at the critical junction between digital control signals and high-power switching events — a position that demands precision, thermal stability, and long-term reliability.

Architecture Specification Table

Coordinated Control System Design

The DK14256A does not function in isolation — its performance is directly shaped by the components upstream and downstream in the control chain. In a typical Sanken-based drive system, the board interfaces with the Sanken SVF-series main control board, which handles speed reference generation and PID loop execution. The DK14256A receives PWM switching commands from this control board and translates them into isolated gate signals for the IGBT power module stack.

On the power side, the DK14256A works in conjunction with the Sanken EF0609 power supply board, which provides the regulated DC bus voltage required for stable gate drive operation. Voltage ripple or transient spikes from an aging power board can directly compromise the DK14256A’s switching accuracy — making power board condition a critical co-maintenance item during any drive servicing cycle.

For systems using Sanken SHF-series intelligent power modules (IPMs), the DK14256A serves as the interface layer between the DSP control core and the IPM gate inputs. The IPM’s built-in protection logic — including overcurrent, overvoltage, and thermal shutdown — feeds status signals back through the DK14256A’s fault detection circuitry, enabling the main controller to execute safe-state responses without manual intervention.

In multi-drive architectures, such as those found in coordinated conveyor systems or multi-pump water treatment stations, the DK14256A-equipped drives are often synchronized via a Sanken RS-485 communication card or a third-party Modbus RTU gateway. This allows a single PLC — such as a Mitsubishi Q-series or Siemens S7-300 — to issue speed and torque references to multiple drives simultaneously, with each DK14256A board maintaining local switching fidelity regardless of network latency.

The human-machine interface layer, typically a Weintek or Proface HMI panel connected via RS-485 or Ethernet, reads drive status registers that are populated in part by feedback signals processed through the DK14256A. Accurate current feedback, fault codes, and thermal status all depend on the board’s signal conditioning circuits remaining within calibration. A degraded DK14256A can produce misleading HMI readings, complicating fault diagnosis and extending downtime.

Terminal modules — such as Phoenix Contact or Weidmuller DIN rail terminal blocks — are used at the I/O layer to route analog speed references and digital enable signals into the drive enclosure. Proper shielding and grounding at these terminal points is essential to prevent common-mode noise from corrupting the low-level signals that the DK14256A processes. Engineers should verify terminal block integrity and cable shielding continuity as part of any DK14256A replacement procedure.

For redundancy-critical applications, some system integrators deploy a hot-standby drive configuration using two Sanken drives with automatic switchover relays. In this topology, the DK14256A in the standby drive must be maintained in equal condition to the active unit — including firmware version alignment and periodic power-on testing — to ensure seamless failover without production interruption.

Application in Layered Automation Systems

The Sanken DK14256A finds application across a wide range of process and discrete manufacturing environments where inverter drive reliability is non-negotiable.

In petrochemical and refinery facilities, the DK14256A supports pump and compressor drives operating in hazardous-area control panels. These systems demand continuous operation with minimal maintenance windows, making the board’s thermal stability and fault isolation capability especially valuable. Replacement boards are kept in on-site spare parts inventories to minimize mean time to repair (MTTR).

In municipal water treatment plants, variable-speed pump drives controlled by SCADA systems rely on the DK14256A to maintain precise flow rates across multiple pump stations. The board’s compatibility with analog 4–20 mA reference signals and RS-485 communication makes it straightforward to integrate into existing SCADA architectures without requiring drive parameter reconfiguration.

In metallurgical and steel rolling mills, high-cycle duty drives subject the DK14256A to sustained thermal and electrical stress. Preventive replacement on a scheduled maintenance cycle — rather than reactive replacement after failure — is the recommended strategy in these environments. ZYPLC’s 12-Month Warranty provides assurance that replacement boards will perform to specification throughout the maintenance interval.

In packaging and material handling lines, the DK14256A supports multi-axis coordinated motion where conveyor speeds must be synchronized to within tight tolerances. Any drift in gate timing caused by a degraded drive board can produce product misalignment or jam events. Maintaining a verified spare DK14256A on the production floor is standard practice in high-throughput packaging facilities.

In mining and mineral processing, crusher and mill drives operate under extreme load variation. The DK14256A’s robust optocoupler isolation protects the control electronics from the high-frequency electrical noise generated by large motor loads, ensuring that the PLC command layer remains unaffected by power-side disturbances.

Architecture Engineering FAQ

Q1: Is the Sanken DK14256A compatible with third-party PLC platforms such as Siemens S7 or Mitsubishi Q-series?
A: Yes. The DK14256A operates within the Sanken drive enclosure and interfaces with external PLCs via the drive’s standard analog (0–10V / 4–20mA) and digital I/O terminals, or via RS-485 Modbus RTU if a communication card is installed. The board itself does not require PLC-specific configuration — compatibility is managed at the drive parameter level, not the board level. This makes the DK14256A suitable for integration into any PLC-controlled system that supports standard drive communication protocols.

Q2: What is the recommended procedure for replacing the DK14256A in a live production environment to minimize downtime?
A: The recommended approach is a planned replacement during a scheduled maintenance window. Before replacement, record all drive parameters using the keypad or PC software tool. Power down the drive completely and verify zero voltage on the DC bus capacitors before handling the board. Install the replacement DK14256A, restore saved parameters, and perform a no-load test run before returning the drive to production. ZYPLC supplies tested and verified DK14256A boards with 12-Month Warranty, reducing the risk of infant failure on reinstallation.

Q3: Does the 12-Month Warranty cover the DK14256A if it fails due to upstream power supply issues?
A: ZYPLC’s 12-Month Warranty covers manufacturing defects and component failures under normal operating conditions. Failures caused by confirmed upstream power anomalies — such as sustained overvoltage from a faulty power supply board — are assessed on a case-by-case basis. To protect warranty coverage and extend board service life, ZYPLC recommends verifying the condition of the Sanken EF0609 or equivalent power supply board before installing a replacement DK14256A. Our technical team is available to assist with pre-installation system checks.
