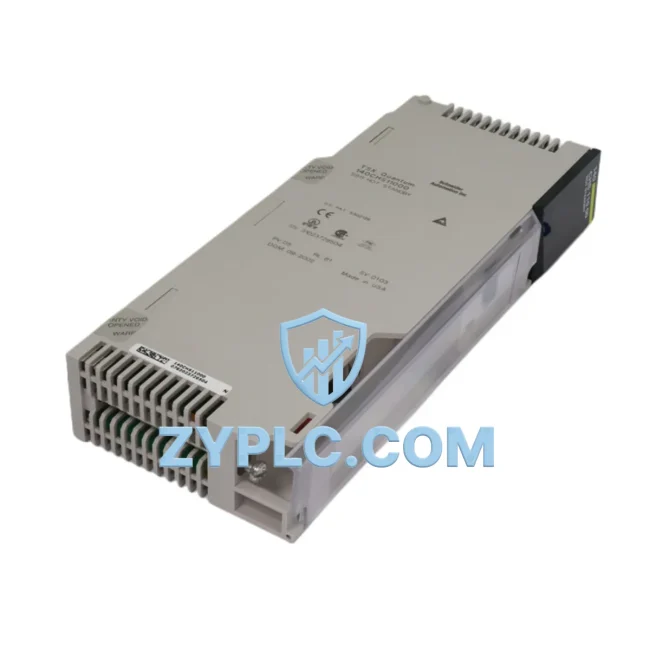

Schneider 140CHS32000 Energy-Saving PLC Splitter Quantum: Precision Redundancy for Optimized Automation Control

The Schneider Electric 140CHS32000 is a Hot Standby Splitter Kit engineered for the Modicon Quantum PLC platform — one of the most robust and energy-aware programmable logic controller architectures deployed in heavy industrial environments. Designed to eliminate single points of failure in critical control loops, the 140CHS32000 enables seamless switchover between primary and standby CPUs without interrupting process execution, directly contributing to reduced energy waste caused by unplanned shutdowns, restart cycles, and idle-state overconsumption.

In modern manufacturing and process automation, energy efficiency is not achieved solely through variable-speed drives or power factor correction — it is equally dependent on the continuity and precision of the control layer. When a PLC system trips unexpectedly, the downstream impact cascades through motor restarts, thermal cycling of actuators, and uncontrolled ramp-up sequences that spike energy demand. The 140CHS32000 addresses this at the architecture level by ensuring the control system never goes dark.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 140CHS32000 does not operate in isolation — it is the redundancy backbone of a broader energy-optimized control architecture built around the Modicon Quantum platform. In a typical high-availability production cell, the splitter kit works in tandem with the 140CPU67160 primary CPU and its standby counterpart, maintaining synchronized memory states so that the transition between controllers is invisible to the field devices.

On the drive side, Altivar 71 and Altivar 61 variable frequency drives receive uninterrupted speed references from the Quantum CPU via Modbus TCP/IP, ensuring that motor ramp-up and ramp-down profiles — carefully tuned for energy efficiency — are never disrupted by a controller fault. A sudden CPU failover without hot standby would force the Altivar drives to execute a fault-stop and restart sequence, consuming 3–6× the normal running current during re-acceleration.

The 140NOE77101 Ethernet communication module, installed in the same Quantum rack, maintains the real-time data link between the PLC and the SCADA or energy management system. This ensures that power consumption data collected by PM5350 power meters and iEM3255 energy meters continues to flow without interruption during a standby switchover — preserving the integrity of energy monitoring dashboards and demand-response calculations.

On the I/O side, 140ACI04000 analog input modules and 140DDO35300 discrete output modules remain fully active during switchover, as the 140CHS32000 ensures the new primary CPU inherits the exact I/O state of its predecessor. This is critical for processes where even a single missed output pulse — such as a solenoid valve command or a conveyor speed reference — can cause material waste, product defects, or energy-intensive rework cycles.

For facilities using Unity Pro or EcoStruxure Control Expert as the programming environment, the hot standby configuration managed by the 140CHS32000 is fully supported with built-in diagnostics, switchover event logging, and energy-state preservation across CPU transitions. Integration with EcoStruxure Power Monitoring Expert further enables correlation between PLC switchover events and energy consumption anomalies — a key capability for ISO 50001 energy management compliance.

Power Optimization in Real Production Lines

Consider a continuous process line — a paper mill, a chemical dosing system, or a water treatment facility — where the Modicon Quantum PLC governs dozens of motor-driven pumps, compressors, and conveyors. Each of these loads is controlled with precision: speed references are tuned to match actual process demand, reducing energy consumption by 20–40% compared to fixed-speed operation. This optimization is only sustainable if the control system itself is continuously available.

With the 140CHS32000 installed, a CPU fault triggers an automatic, bumpless transfer to the standby controller in less than one PLC scan cycle. The Altivar drives continue executing their current speed profiles. The PM5350 power meters continue logging. The HMI — typically a Magelis XBTGT or Vijeo Designer-based panel — shows no alarm. The production line does not stop. Energy consumption does not spike.

Beyond fault tolerance, the hot standby architecture enabled by the 140CHS32000 supports predictive maintenance workflows. Because the system never needs to be taken offline for CPU replacement or firmware updates (the standby CPU can be updated while the primary runs), maintenance windows are eliminated as a source of unplanned energy waste. Planned shutdowns can be scheduled during off-peak energy tariff periods, and the system can be brought back online with a controlled, energy-efficient ramp sequence rather than an emergency restart.

Facilities that have deployed the Modicon Quantum Hot Standby architecture with the 140CHS32000 report measurable improvements in Overall Equipment Effectiveness (OEE), with availability components increasing from typical 94–96% to 99%+ in critical process areas. Each percentage point of availability improvement directly translates to reduced energy waste from restart cycles, reduced scrap from process interruptions, and reduced wear on motor-driven equipment — all of which have quantifiable energy and cost implications.

All units supplied by ZYPLC are sourced from verified supply channels, undergo functional testing prior to shipment, and are covered by a 12-month warranty. Stock is maintained for prompt dispatch, supporting both planned maintenance schedules and emergency replacement requirements.

Energy Optimization FAQ

Q1: How does the 140CHS32000 contribute to energy savings on the production line?
By enabling bumpless CPU switchover, the 140CHS32000 prevents the energy spikes associated with emergency stops and motor restarts. Variable frequency drives such as the Altivar 71 maintain their optimized speed profiles through a CPU fault event, preserving the energy savings already programmed into the drive parameters. Over a year of operation, eliminating even a handful of unplanned restarts on large motor loads can represent significant kWh savings.

Q2: Is the 140CHS32000 compatible with my existing Modicon Quantum rack and CPU?
The 140CHS32000 is designed specifically for the Modicon Quantum Hot Standby architecture and is compatible with Quantum Hot Standby CPUs including the 140CPU67160 and 140CPU67261. It requires a Quantum XBP series backplane and is not compatible with Modicon M340, M580, or Premium platforms. If you are unsure about compatibility, contact our technical team with your existing CPU and rack references.

Q3: What is the recommended replacement and testing procedure for the 140CHS32000?
Replacement can be performed while the standby CPU is offline, without interrupting the primary control system. After installation, Unity Pro / EcoStruxure Control Expert provides built-in Hot Standby diagnostics to verify synchronization status and switchover readiness. ZYPLC recommends a functional switchover test after installation to confirm bumpless transfer performance. All units shipped by ZYPLC are pre-tested before dispatch.

Q4: What warranty and after-sales support does ZYPLC provide for the 140CHS32000?
All 140CHS32000 units supplied by ZYPLC are covered by a 12-month warranty from the date of shipment. Units undergo outgoing quality testing before dispatch. In the event of a warranty claim, ZYPLC provides replacement or repair support. For technical pre-sales questions, compatibility verification, or urgent replacement requirements, contact our team directly.
