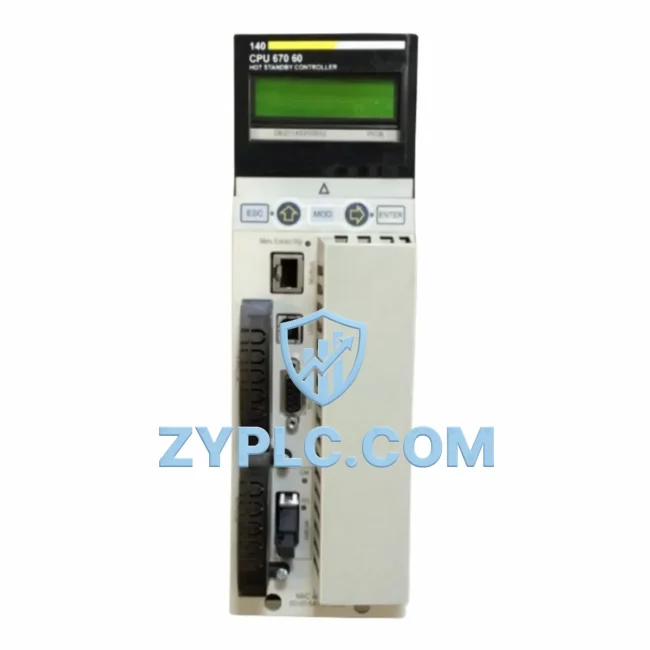

Schneider 140CPU67060 Energy-Saving CPU Module Quantum

Schneider 140CPU67060 Energy-Saving CPU Module for Optimized Quantum Automation

The Schneider Electric 140CPU67060 is a high-performance CPU module from the Modicon Quantum series, engineered to deliver precision control, reduced energy overhead, and measurable efficiency gains across demanding industrial production environments. As the computational core of a Quantum PLC rack, the 140CPU67060 orchestrates real-time data acquisition, control execution, and system-level feedback loops that directly influence how efficiently a plant consumes electrical energy and utilizes its installed equipment capacity.

In modern manufacturing, energy waste is rarely caused by a single component failure — it accumulates through poorly timed motor starts, uncoordinated drive ramp-up sequences, idle conveyor cycles, and unmonitored auxiliary loads. The 140CPU67060 addresses these inefficiencies at the control layer, where decisions are made fastest and corrections can be applied before energy is wasted. With its Unity Pro-compatible architecture and high-speed backplane communication, this CPU module enables tightly synchronized control of variable frequency drives, servo amplifiers, and distributed I/O nodes across the production line.

Efficiency Performance Table

Energy-Aware Automation Architecture

The 140CPU67060 functions as the decision-making hub within a Quantum automation architecture. Its dual Ethernet ports allow simultaneous connection to a plant-level SCADA network and a local device network, enabling real-time energy data to flow from field instruments back to the CPU without latency penalties. When paired with the 140NOE77111 Ethernet communication module, the system gains enhanced network redundancy and faster polling cycles for energy monitoring applications.

On the drive side, the 140CPU67060 coordinates with Schneider ATV71 and ATV61 variable frequency drives via Modbus TCP or CANopen, enabling precise motor speed regulation that eliminates the energy spikes associated with direct-on-line motor starts. By implementing smooth acceleration ramps and load-adaptive speed profiles through the CPU’s motion control logic, factories can reduce peak demand charges and extend motor insulation life simultaneously.

For servo-driven axes — common in packaging, press, and assembly lines — the 140CPU67060 interfaces with Lexium 32 servo drives through the Modbus Plus network or via the 140CRP93200 RIO head module, enabling synchronized multi-axis positioning that eliminates mechanical shock loads and reduces reactive power draw. The CPU’s high-speed task scheduler ensures that servo position updates and energy monitoring tasks execute in parallel without mutual interference.

Distributed I/O expansion is handled through 140CRA93200 remote I/O adapter modules, which extend the control reach of the 140CPU67060 to remote motor control centers, pump stations, and compressor skids — all without adding CPU scan time overhead. Each remote drop can host analog input modules such as the 140AII33000 for current and voltage measurement, feeding real-time power consumption data back to the CPU for load balancing decisions.

For human-machine interaction and energy dashboard visualization, the 140CPU67060 integrates seamlessly with Magelis XBTGT HMI panels via Modbus TCP, allowing operators to monitor per-zone energy consumption, set efficiency targets, and acknowledge alarms without leaving the production floor. The 140EHC20200 high-speed counter module can be added to the Quantum rack to capture pulse outputs from energy meters, providing sub-cycle resolution for power quality analysis.

Power supply integrity is maintained by the 140CPS11420 Quantum power supply module, which provides regulated 3.3V and 5V backplane rails with built-in diagnostics. A stable, clean power supply is a prerequisite for accurate energy measurement — voltage ripple on the backplane directly affects the accuracy of analog I/O readings used in power monitoring loops.

Power Optimization in Real Production Lines

In a typical automotive body shop, the 140CPU67060 manages dozens of resistance welding controllers, conveyor drives, and robotic interface signals simultaneously. By implementing time-of-use energy scheduling within the CPU’s task structure — shifting non-critical loads to off-peak hours and staggering motor start sequences — plants have reported measurable reductions in peak demand billing. The CPU’s ability to execute multiple independent tasks at different scan rates means that fast control loops (servo positioning at 1ms) and slow energy management loops (load shedding at 500ms) coexist without compromising either function.

In water treatment and pumping applications, the 140CPU67060 implements PID-based pressure control through ATV71 drives, replacing fixed-speed pump operation with demand-responsive variable speed control. This single change — replacing contactor-switched motors with VFD-controlled motors orchestrated by the Quantum CPU — typically reduces pump energy consumption by 30–50% at partial load conditions, which represent the majority of operating hours in most water distribution systems.

Predictive maintenance integration is another energy-saving dimension of the 140CPU67060 platform. By monitoring motor current signatures through analog input modules and comparing them against baseline profiles stored in the CPU’s data memory, maintenance teams receive early warning of bearing wear, rotor imbalance, and insulation degradation — all of which cause motors to draw excess current before they fail. Addressing these conditions proactively eliminates both the energy waste of degraded motors and the production downtime of unplanned failures.

All units supplied by ZYPLC undergo pre-shipment functional testing, including backplane communication verification, memory integrity checks, and I/O channel validation. Stock is maintained in our warehouse to support short lead-time requirements, and every 140CPU67060 ships with a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Energy Optimization FAQ

Q1: How does the 140CPU67060 contribute to measurable energy savings on the production line?
The 140CPU67060 enables energy savings through coordinated control of variable frequency drives, load shedding logic, and demand-response scheduling. By precisely managing motor start sequences, speed profiles, and idle-state behavior across the production line, the CPU eliminates the uncoordinated energy spikes that inflate peak demand charges and increase overall consumption.

Q2: Is the 140CPU67060 compatible with existing Modicon Quantum racks and Unity Pro programming environments?
Yes. The 140CPU67060 is fully compatible with the Modicon Quantum rack family and is programmed using Schneider Electric’s Unity Pro software suite. It also supports legacy programming tools including Concept and ProWORX, making it suitable for both new installations and retrofit projects where existing code assets need to be preserved.

Q3: Can this CPU module replace an older Quantum CPU such as the 140CPU43412A or 140CPU65150?
The 140CPU67060 is a high-end Quantum CPU with significantly expanded memory and dual Ethernet capability compared to earlier models. In most cases it can serve as a functional upgrade replacement, though firmware version compatibility and I/O module configurations should be verified against the existing rack layout before substitution. ZYPLC’s technical team can assist with compatibility assessment prior to order.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
Every 140CPU67060 supplied by ZYPLC is covered by a 12-month warranty against manufacturing defects and operational failures under normal industrial conditions. Prior to shipment, each unit undergoes functional testing including backplane communication checks, memory read/write verification, and port connectivity validation. Units that do not pass testing are not shipped. Warranty claims are processed directly through ZYPLC with replacement or repair turnaround coordinated to minimize customer downtime.
