Schneider ATS48C32Y Soft Starter for Altistart 48 Systems

Schneider ATS48C32Y: Industrial Data Link for Altistart 48 Smart Factory Systems

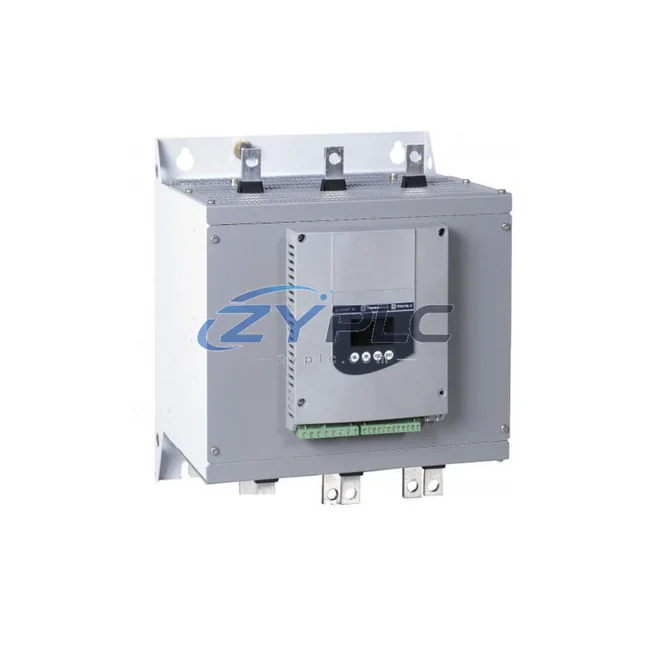

The Schneider Electric ATS48C32Y is a high-capacity soft starter from the Altistart 48 series, rated at 320A and 690V, engineered to deliver controlled motor acceleration and deceleration across demanding industrial environments. Beyond its core motor control function, the ATS48C32Y serves as a critical node in the industrial data chain — bridging field-level drive signals with supervisory control systems through its native Modbus RTU communication interface. In smart factory deployments, this unit enables seamless data exchange between motor-driven equipment and upper-level SCADA, DCS, and HMI platforms, eliminating the data isolation that plagues legacy automation sites.

From signal acquisition at the motor terminal to real-time status reporting at the control room, the ATS48C32Y participates in every layer of the industrial communication stack. Its Modbus RTU port connects directly to programmable logic controllers such as the Schneider Modicon M340 or M580 series, transmitting live parameters including motor current, thermal state, run/stop status, and fault codes. This continuous data stream feeds into SCADA systems — whether Wonderware, Ignition, or Schneider EcoStruxure — enabling operators to monitor motor health, configure ramp profiles remotely, and respond to alarms without physical intervention on the factory floor.

Compatibility & Integration Notes

Connected Automation Data Flow

In a typical smart factory topology, the ATS48C32Y sits at the intersection of power distribution and data communication. Motor start commands originate from a Schneider Modicon M580 PLC, transmitted over the Modbus RTU network to the ATS48C32Y, which then executes a controlled voltage ramp to protect the connected pump, compressor, or conveyor motor from inrush current damage. Simultaneously, the soft starter reports back real-time thermal load data, enabling the PLC to make dynamic decisions about load shedding or maintenance scheduling.

For sites requiring Ethernet-level connectivity, the ATS48C32Y integrates with the VW3A8306 Modbus TCP/IP communication card or the TCSEGDB23F24FA Ethernet gateway, bridging the RS-485 Modbus RTU segment to the plant’s Ethernet backbone. This allows the Schneider EcoStruxure Plant Hub or a third-party SCADA platform to poll the soft starter’s registers at millisecond intervals, feeding dashboards with live amperage trends, start counts, and thermal history.

Remote I/O modules such as the Schneider TM3 series extend digital and analog signal collection from field sensors — temperature transmitters, pressure switches, and vibration probes — back through the same Modbus RTU segment, creating a unified data bus that the ATS48C32Y shares with other network participants. HMI panels running Vijeo Designer or Wonderware InTouch display motor status pages sourced directly from the ATS48C32Y’s register map, giving line operators instant visibility into soft starter performance without navigating complex SCADA screens.

In multi-drive architectures, the ATS48C32Y coexists on the same RS-485 segment with Schneider Altivar ATV320 or ATV630 variable frequency drives, each assigned a unique Modbus node address. The Modicon M340 PLC master polls all devices sequentially, aggregating motor data into a unified energy management report. This architecture supports up to 247 Modbus slave devices on a single RS-485 segment, making the ATS48C32Y a scalable component in large-scale motor control centers (MCCs).

For edge computing applications, the ATS48C32Y’s Modbus RTU data stream can be captured by an industrial edge gateway such as the Schneider EcoStruxure Machine Advisor or a third-party IIoT gateway, converting register data into MQTT or OPC-UA payloads for cloud-based analytics platforms. This enables predictive maintenance algorithms to analyze motor thermal trends, start frequency, and fault history — reducing unplanned downtime and extending motor service life.

Solving Data Isolation in Industrial Sites

Many industrial facilities operate with a fragmented automation landscape: legacy soft starters with no network interface, proprietary protocols that cannot communicate with modern SCADA systems, and field devices that generate data but cannot transmit it upstream. The ATS48C32Y directly addresses these challenges through its built-in Modbus RTU interface and optional protocol gateway accessories.

Protocol unification is achieved by connecting the ATS48C32Y to a Modbus RTU-to-Profibus DP gateway or a Modbus TCP/IP bridge, allowing the soft starter to participate in Profibus or Ethernet-based control architectures without replacing existing infrastructure. This eliminates the data silos created when different vendors’ equipment uses incompatible communication standards.

Remote monitoring becomes practical when the ATS48C32Y’s Modbus registers are mapped into the plant SCADA system. Operators at a central control room — or even remotely via VPN — can read motor current, thermal state, and fault codes in real time, configure acceleration ramp times, and reset faults without dispatching a technician to the motor control panel. This capability is particularly valuable in hazardous or hard-to-access installation environments such as offshore platforms, mining operations, and chemical processing plants.

Production line transparency is enhanced by integrating ATS48C32Y data into MES (Manufacturing Execution System) platforms. Start counts, running hours, and energy consumption data exported from the soft starter’s registers provide the raw material for OEE (Overall Equipment Effectiveness) calculations, helping production managers identify bottlenecks and optimize maintenance intervals. System expansion is straightforward: additional ATS48C32Y units or Altivar drives can be added to the Modbus segment with minimal reconfiguration, supporting phased capacity increases without disrupting existing network architecture.

Every unit supplied by ZYPLC undergoes pre-shipment functional testing, verifying communication register accessibility, motor control response, and protection relay operation before dispatch. Stock is maintained for rapid fulfillment, with DHL and FedEx express options available for urgent industrial procurement requirements.

Industrial Connectivity FAQ

Q1: What is the communication latency of the ATS48C32Y over Modbus RTU?
The ATS48C32Y supports Modbus RTU baud rates up to 19,200 bps on RS-485. At standard polling intervals, register read cycles complete in under 50ms per device, making it suitable for real-time motor monitoring applications. For time-critical control loops, Modbus TCP/IP via the VW3A8306 gateway reduces latency further to under 10ms on a 100Mbps Ethernet segment.

Q2: Is the ATS48C32Y compatible with third-party SCADA and PLC systems?
Yes. The ATS48C32Y uses standard Modbus RTU protocol (IEC 61158), which is supported by virtually all industrial SCADA platforms including Ignition, Wonderware, iFIX, and WinCC, as well as PLCs from Siemens, Allen-Bradley, Mitsubishi, and Omron. Protocol gateway accessories enable Profibus DP and DeviceNet compatibility for legacy control architectures.

Q3: How does the ATS48C32Y maintain network stability in electrically noisy industrial environments?
The RS-485 physical layer used by Modbus RTU provides differential signaling with high common-mode noise rejection, suitable for cable runs up to 1,200 meters in industrial environments. The ATS48C32Y’s communication interface includes built-in surge protection and supports network termination resistors to prevent signal reflections. For installations with severe EMI, fiber optic Modbus converters can be used to achieve complete galvanic isolation.

Q4: What warranty and testing does ZYPLC provide for the ATS48C32Y?
All ATS48C32Y units supplied by ZYPLC carry a warranty terms confirmed during quotation covering manufacturing defects and communication interface failures. Each unit undergoes pre-shipment functional testing including Modbus register verification, motor control response testing, and protection relay checks. RFQ responses are provided within 24 hours, and express shipping via DHL or FedEx is available for urgent procurement requirements.
