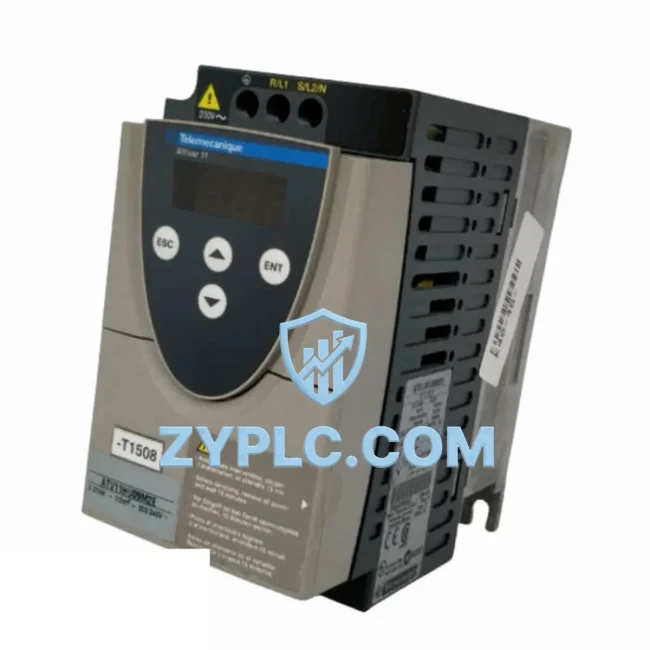

Schneider ATV11HU09M2E System-Ready VSD for Altivar 11 Architecture

Schneider ATV11HU09M2E System-Ready VSD for Altivar 11 Architecture

The Schneider Electric ATV11HU09M2E is a compact, system-ready variable speed drive engineered for seamless integration within the Altivar 11 control architecture. Rated at 0.09 kW and designed for single-phase 200–240 V supply networks, this drive occupies a precise position within the automation hierarchy — bridging the execution layer and the control layer to deliver consistent motor management across a wide range of industrial applications. Rather than functioning as a standalone component, the ATV11HU09M2E is conceived as a coordinated element within a broader system, where its performance is amplified by the surrounding architecture of controllers, I/O modules, communication gateways, and power conditioning equipment.

In modern layered automation systems, the drive’s role extends well beyond simple speed regulation. It participates in the signal flow from the control layer — receiving setpoint commands from a Modicon M221 or Modicon M241 programmable logic controller — and translates those commands into precise voltage-frequency output to the connected motor. This tight coupling between the PLC and the drive ensures deterministic response times, reduced commissioning effort, and a unified diagnostic environment accessible through SoMachine or EcoStruxure Machine Expert software platforms.

The ATV11HU09M2E supports integration into control cabinets where space efficiency is paramount. Its compact DIN-rail-compatible footprint allows it to be mounted alongside Zelio Logic smart relays, TeSys D contactors, and Acti9 circuit protection devices within a single enclosure, maintaining a coherent electrical architecture without requiring additional panel space. The drive’s analog and digital I/O terminals accept signals from upstream sensors and field devices, enabling closed-loop process control without additional signal conditioning hardware.

From a network and communication perspective, the ATV11HU09M2E is compatible with Modbus RTU serial communication when paired with optional communication cards, allowing it to be supervised by SCADA systems or integrated into a broader EcoStruxure Plant architecture. This connectivity ensures that drive status, fault codes, output frequency, and motor current data are continuously available to the control layer, supporting predictive maintenance strategies and reducing unplanned downtime across the production line.

Power layer coordination is equally important. The drive is designed to operate in conjunction with Phaseo power supplies and Acti9 iC60 miniature circuit breakers, which provide upstream protection and stable DC bus voltage under varying load conditions. Proper power layer design ensures that the ATV11HU09M2E maintains its rated performance envelope even during transient load events, protecting both the drive and the connected motor from voltage spikes and harmonic disturbances.

At the human-machine interface layer, the drive’s operating parameters can be monitored and adjusted through a Magelis HMI terminal or through the SoMove PC configuration tool, enabling engineers to fine-tune acceleration ramps, deceleration profiles, and protection thresholds without interrupting production. This integration with the HMI layer reduces the skill barrier for field technicians and accelerates fault resolution during maintenance windows.

Long-term maintainability is a core design principle of the Altivar 11 platform. The ATV11HU09M2E shares a common parameter structure with other drives in the Altivar family, meaning that engineers familiar with the ATV12 or ATV31 series can transition to this model with minimal retraining. Spare parts availability, firmware compatibility, and documented replacement procedures ensure that the drive can be serviced or replaced within a planned maintenance cycle, supporting the operational continuity requirements of critical industrial processes.

Every ATV11HU09M2E supplied by ZYPLC is covered by a 12-Month Warranty and undergoes functional testing prior to dispatch. Our inventory management system ensures consistent stock availability, supporting both urgent replacement orders and planned procurement schedules for system integrators and OEM customers worldwide.

Architecture Specification Table

Coordinated Control System Design

The ATV11HU09M2E achieves its full potential when deployed as part of a coordinated control system rather than as an isolated component. In a typical machine automation cell, the drive receives its speed reference from a Modicon M221 PLC via analog output or Modbus RTU, while discrete run/stop commands are issued through the controller’s transistor output module. The M221’s I/O expansion — such as the TM3DI16 digital input module — handles upstream sensor signals, ensuring that the drive responds to process conditions rather than fixed setpoints alone.

Cabinet-level integration typically pairs the ATV11HU09M2E with a TeSys D LC1D09 contactor for upstream motor isolation and a GV2ME06 motor circuit breaker for short-circuit and overload protection. These devices, mounted on the same DIN rail, form a coherent motor starter assembly that meets IEC 60947-4-1 coordination requirements. A Phaseo ABL8REM24030 power supply provides stable 24 V DC to the control circuit, ensuring that the drive’s logic board and the PLC’s I/O modules share a common, well-regulated power reference.

For applications requiring remote monitoring, the drive can be connected to a Modbus-to-Ethernet gateway such as the EGX100 or integrated into an EcoStruxure architecture via a Magelis GTO advanced panel, which displays real-time drive status, output frequency, and fault history. In redundant system designs, a secondary ATV11HU09M2E unit can be pre-configured and held in warm standby, with changeover managed by the PLC logic and a Zelio Logic SR3B261BD smart relay acting as a local backup controller during communication loss events.

Terminal block coordination is handled through Linergy TB terminal blocks, which provide a clean, labeled wiring interface between the drive’s control terminals and the field device cabling. This approach simplifies troubleshooting and supports modular replacement without disturbing adjacent wiring, a critical advantage in high-availability production environments.

Application in Layered Automation Systems

The ATV11HU09M2E is deployed across a broad spectrum of industrial sectors where compact, reliable motor control is essential to process integrity. In packaging and material handling lines, the drive controls conveyor belt speeds and indexing mechanisms, synchronizing product flow with upstream filling or labeling stations. Its fast acceleration ramp configuration ensures smooth product transfer without mechanical shock, reducing wear on conveyor components and extending service intervals.

In water and wastewater treatment facilities, the drive manages small pump and blower motors in aeration and dosing systems, where precise flow control directly impacts treatment efficiency and chemical consumption. The drive’s built-in motor protection functions — including thermal overload modeling and phase loss detection — reduce the risk of motor failure in unmanned remote pump stations.

Within HVAC and building automation systems, the ATV11HU09M2E controls fan and small pump motors in air handling units, contributing to energy savings through variable-speed operation rather than fixed-speed throttling. Its compatibility with BACnet or Modbus-based building management systems (via gateway) allows facility managers to monitor and adjust drive parameters from a central control room.

In light manufacturing and assembly automation, the drive is integrated into robotic workcell support systems — controlling coolant pumps, part ejection conveyors, and tool change actuators — where its compact size and DIN-rail mounting simplify integration into existing control cabinets without requiring panel redesign.

For mining and mineral processing auxiliary systems, the drive operates in dusty, high-vibration environments where its sealed terminal compartment and robust PCB coating provide adequate protection for auxiliary conveyor and ventilation fan applications at the lower end of the power range.

Architecture Engineering FAQ

Q1: Is the ATV11HU09M2E compatible with Modicon M221 and M241 PLCs for closed-loop speed control?
Yes. The ATV11HU09M2E accepts a 0–10 V or 4–20 mA analog speed reference directly from the analog output module of a Modicon M221 or M241 PLC. For Modbus RTU communication, an optional communication card is required. The drive’s parameter structure is fully compatible with SoMove and EcoStruxure Machine Expert, enabling unified commissioning and diagnostics within the same software environment used for the PLC. ZYPLC provides pre-commissioning parameter files upon request to accelerate system integration.

Q2: Can this drive be used in a redundant architecture, and what is the recommended changeover strategy?
Yes. A redundant configuration is achievable by pre-configuring a standby ATV11HU09M2E with identical parameters and connecting it to the motor circuit via a TeSys D changeover contactor assembly. The PLC monitors the active drive’s fault output relay and triggers contactor changeover upon fault detection, typically within one PLC scan cycle. Both drives should share the same Phaseo power supply rail and be wired to the same Linergy terminal block assembly to minimize changeover wiring complexity. ZYPLC recommends maintaining one spare unit per control panel as part of a standard critical spares inventory strategy, supported by our 12-Month Warranty coverage.

Q3: What does the 12-Month Warranty cover, and how does ZYPLC support long-term maintenance procurement?
ZYPLC’s 12-Month Warranty covers manufacturing defects, component failure under normal operating conditions, and firmware-related malfunctions identified during the warranty period. Each unit is functionally tested prior to dispatch. For long-term maintenance planning, ZYPLC maintains consistent stock of the ATV11HU09M2E and related Altivar 11 series components, supporting both emergency replacement orders and scheduled procurement cycles. Our technical team provides application support for system integration, parameter configuration, and compatibility verification with existing control architectures. Contact us at plc.sales@zyplc.com or +86 19859288691 for procurement and technical inquiries.
