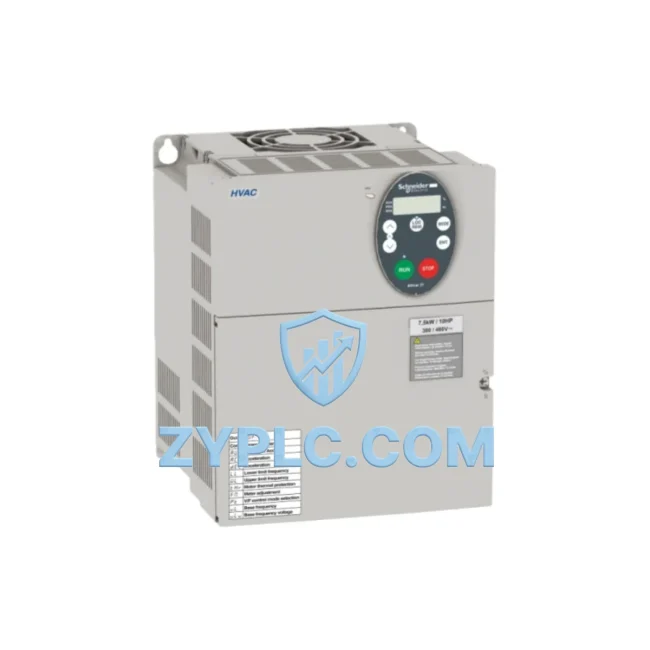

The Schneider ATV21HD18N4 is an 18.5 kW three-phase variable speed drive (VFD) from Schneider Electric’s ATV21 series, engineered specifically for pump and fan applications where energy efficiency, motor protection, and process stability are critical. Operating on a 380–460 V / 50–60 Hz supply, this drive delivers precise motor speed regulation that directly translates into measurable reductions in energy consumption — often 30–50% compared to fixed-speed operation — by matching motor output to actual process demand rather than running at full load continuously.

In modern industrial facilities, uncontrolled motor starts and fixed-speed operation are among the largest sources of avoidable energy waste. The ATV21HD18N4 eliminates this inefficiency through smooth ramp-up and ramp-down control, eliminating mechanical shock on pumps, fans, and compressors while simultaneously reducing peak current draw. This directly lowers electricity costs, extends motor and mechanical component lifespan, and reduces unplanned downtime — all of which contribute to a lower total cost of ownership across the equipment lifecycle.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ATV21HD18N4 does not operate in isolation — its greatest value is realized when integrated into a coordinated automation architecture where every component contributes to system-wide energy awareness. In a typical pump station or HVAC plant, the drive receives speed reference signals from a Modicon M340 PLC (e.g., BMX P34 2020) via Modbus RTU, which continuously adjusts motor speed based on process feedback such as pressure transducer readings or flow sensor data. This closed-loop control ensures the motor never consumes more energy than the process actually requires.

For facilities requiring higher processing power and multi-axis coordination, the ATV21HD18N4 integrates equally well with the Modicon M580 platform, which supports Ethernet-based communication and enables real-time energy data exchange across the plant network. Alongside the drive, a PowerLogic PM5000 series power meter can be installed at the motor feeder to capture granular consumption data — kWh, power factor, harmonic distortion — providing the baseline measurements needed to quantify energy savings and identify further optimization opportunities.

On the operator interface side, a Magelis GTO series HMI panel provides plant operators with real-time visibility into drive status, motor current, frequency setpoint, and accumulated run hours. This visibility is essential for proactive maintenance scheduling and for detecting early signs of motor degradation before they result in unplanned stops. When combined with a Zelio Logic smart relay or a dedicated I/O expansion module such as the TM3 I/O series, the system can automate start/stop sequences, interlocks, and fault responses without requiring manual intervention.

For multi-drive installations — common in water treatment plants, cooling tower arrays, or multi-pump booster stations — the ATV21HD18N4 can be networked alongside other drives in the ATV21 family, such as the ATV21HD11N4 (11 kW) and ATV21HD22N4 (22 kW), allowing a single PLC to orchestrate load sharing and duty/standby rotation. This approach maximizes equipment utilization, prevents any single drive from accumulating disproportionate run hours, and enables predictive maintenance based on actual operating data rather than fixed time intervals.

Where harmonic distortion is a concern — particularly in facilities with multiple VFDs on the same bus — the drive can be paired with a Schneider AccuSine PCS+ active harmonic filter to maintain power quality within IEEE 519 limits, protecting sensitive instrumentation and reducing transformer losses. Communication to the plant SCADA or building management system is handled via the native Modbus RTU port or, with the addition of a VW3A3608 BACnet/IP option card, directly over the facility’s Ethernet backbone.

Power Optimization in Real Production Lines

In a real-world chilled water circulation system serving a manufacturing facility, replacing a direct-on-line (DOL) started 18.5 kW pump motor with an ATV21HD18N4-controlled drive typically yields an immediate reduction in annual energy consumption of 40,000–70,000 kWh, depending on load profile and operating hours. At an industrial electricity rate of HKD 1.20/kWh, this represents annual savings of HKD 48,000–84,000 — a payback period well under 24 months in most installations.

Beyond energy savings, the drive’s soft-start capability eliminates the mechanical water hammer effect that causes premature seal and bearing failure in centrifugal pumps. Maintenance teams report a 60–70% reduction in pump seal replacements after VFD retrofits, directly reducing spare parts consumption and the labor costs associated with emergency repairs. The drive’s built-in motor thermal protection, phase loss detection, and overcurrent monitoring further reduce the risk of motor burnout, which is one of the most costly failure modes in continuous-process industries.

In production line applications such as conveyor systems or cooling fans, the ATV21HD18N4 enables production rate adjustments without mechanical intervention. Line speed can be ramped up during peak demand periods and reduced during low-throughput shifts, optimizing energy consumption in direct proportion to actual production output. This flexibility also supports predictive maintenance strategies: by monitoring drive output frequency and current trends over time, maintenance engineers can detect bearing wear, impeller fouling, or belt slippage weeks before a failure occurs, scheduling corrective action during planned downtime rather than responding to emergency breakdowns.

All units supplied by ZYPLC undergo pre-shipment functional testing, including power-on verification, parameter upload confirmation, and output voltage balance checks. Each ATV21HD18N4 is covered by a 12-month warranty from the date of shipment, with technical support available for commissioning assistance, parameter configuration, and fault diagnosis.

Energy Optimization FAQ

Q1: How much energy can the ATV21HD18N4 realistically save in a pump application?
In variable-torque applications such as centrifugal pumps and fans, energy consumption follows the affinity laws — reducing motor speed by 20% reduces power consumption by approximately 49%. In practice, facilities operating pumps at 70–80% of rated speed for the majority of their duty cycle typically achieve 30–50% reductions in motor energy consumption. Actual savings depend on the load profile, operating hours, and the baseline (fixed-speed) energy consumption of the replaced system.

Q2: Is the ATV21HD18N4 compatible with existing Schneider PLC and SCADA systems?
Yes. The drive communicates natively via Modbus RTU, making it directly compatible with Modicon M340, M580, and Premium PLC platforms without additional hardware. For Ethernet-based integration with SCADA or BMS systems, optional communication cards (CANopen: VW3A3608; BACnet/IP: VW3A3619) are available. The drive is also compatible with SoMove configuration software for parameter backup, upload, and remote diagnostics.

Q3: Can the ATV21HD18N4 replace other 18.5 kW drives from different manufacturers?
In most cases, yes. The ATV21HD18N4 is a standard 18.5 kW / 400 V class VFD with industry-standard terminal layouts and control signal interfaces (0–10 V, 4–20 mA, digital I/O). It can replace drives from other manufacturers in the same power class provided the motor specifications, supply voltage, and control wiring are compatible. ZYPLC’s technical team can assist with cross-reference verification and parameter migration guidance prior to installation.

Q4: What does the 12-month warranty cover, and what is the testing process before shipment?
The 12-month warranty covers manufacturing defects, component failures under normal operating conditions, and firmware-related malfunctions. It does not cover damage resulting from incorrect installation, supply voltage anomalies, or environmental conditions outside the drive’s rated specifications. Prior to shipment, every unit undergoes a functional test sequence including power-on self-test, output phase verification, and parameter integrity check. A test report is available upon request. For warranty claims, contact ZYPLC directly at plc.sales@zyplc.com or +86 19859288691.
