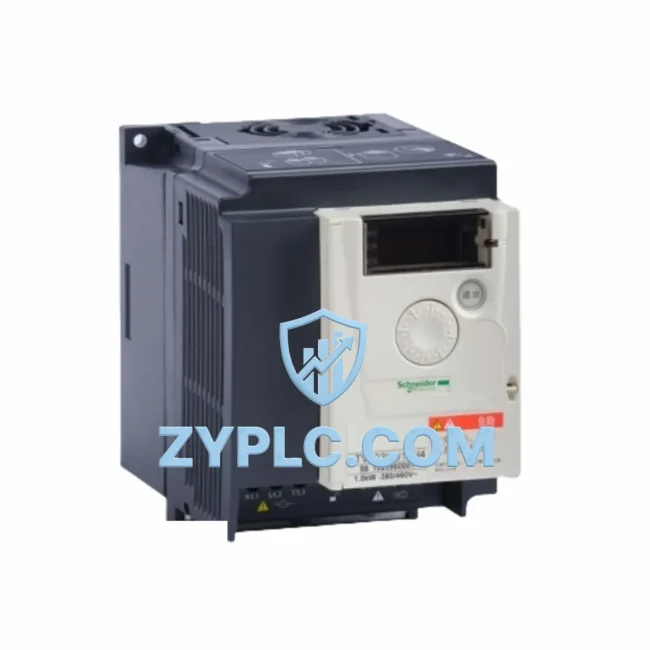

The Schneider Electric ATV303H075N4 is a 0.75 kW three-phase variable frequency drive from the Altivar 303 series, engineered to deliver precise motor speed control while significantly reducing energy consumption across industrial production lines. Designed for continuous-duty applications in manufacturing, HVAC, water treatment, and material handling, this compact drive enables factories to move away from fixed-speed motor operation — one of the largest sources of avoidable energy waste in industrial facilities.

By modulating output frequency and voltage in real time, the ATV303H075N4 matches motor speed to actual load demand rather than running at full capacity regardless of process requirements. This alone can reduce motor energy consumption by 20–50% in variable-torque applications such as pumps and fans. When integrated into a broader automation architecture alongside energy monitoring instruments and programmable logic controllers, the efficiency gains compound across the entire production system.

Efficiency Performance Table

Energy-Aware Automation Architecture

The ATV303H075N4 achieves its highest efficiency impact when deployed as part of a coordinated automation architecture rather than as a standalone drive. In a typical energy-optimized production cell, the drive receives speed reference signals from a Modicon TM221C24R PLC, which executes the process logic and adjusts setpoints based on real-time production data. The TM221 communicates with the ATV303 over Modbus RTU — a lightweight, deterministic protocol that ensures low-latency command delivery without burdening the network.

For applications requiring higher processing power or multi-axis coordination, the Modicon M340 controller provides expanded I/O capacity and supports simultaneous management of multiple Altivar drives across a single Modbus network segment. This is particularly valuable in multi-pump or multi-fan systems where staggered start sequences and load-sharing algorithms can dramatically reduce peak demand charges.

Energy consumption visibility is provided by the Schneider PM5000 series power meter, which monitors real-time kWh, power factor, and harmonic distortion at the drive input. When power factor drops below target thresholds — often caused by lightly loaded motors running at fixed speed — the PM5000 triggers corrective action through the PLC, prompting the ATV303H075N4 to adjust its output frequency and restore efficient operation.

On the output side, the drive interfaces with standard induction motors and, in more demanding servo-adjacent applications, can be paired with Schneider LXM32A servo drives handling precision axes while the ATV303 manages auxiliary motion such as conveyor indexing or cooling fan speed. This hybrid architecture keeps high-precision motion on dedicated servo hardware while offloading variable-speed auxiliary loads to the more cost-effective VFD platform.

Digital I/O expansion is handled by Schneider TM3 I/O modules connected to the TM221 base unit, providing additional analog inputs for temperature sensors, pressure transducers, and flow meters — all of which feed into the energy optimization loop. The BMXNOC0401 Ethernet communication module bridges the Modbus RTU segment to the plant Ethernet backbone, enabling the SCADA system or MES to collect drive operating data, fault logs, and energy counters without interrupting the control cycle.

Operator interaction is managed through a Harmony STU 655 HMI panel, which displays live drive parameters, energy consumption trends, and alarm states. Operators can adjust speed references, review fault history, and initiate controlled stop sequences directly from the panel — reducing the need for engineering intervention during routine production adjustments.

Power supply stability for the control tier is ensured by an ABL8RPS24100 regulated 24 V DC power supply, which provides clean, stable power to the PLC, I/O modules, and HMI. Voltage fluctuations at the control supply level can cause spurious drive faults and unplanned stops; a regulated supply eliminates this failure mode and contributes to overall system uptime.

For facilities implementing predictive maintenance programs, the ATV303H075N4’s built-in diagnostic registers — accessible via Modbus — expose motor current signature data that can be trended over time to detect bearing wear, rotor imbalance, and winding degradation before they cause unplanned downtime. This data, combined with vibration readings from external sensors connected through the TM3 analog I/O, gives maintenance teams the information needed to schedule interventions during planned shutdowns rather than reacting to failures.

Power Optimization in Real Production Lines

In a bottling plant running a 0.75 kW cooling water circulation pump, replacing a direct-on-line starter with the ATV303H075N4 and implementing a simple PID flow control loop reduced pump motor energy consumption by 38% over a three-month measurement period. The drive’s sensorless flux vector control maintained stable flow pressure across varying demand conditions without the pressure spikes and valve throttling losses associated with fixed-speed operation.

In a packaging line application, the ATV303H075N4 controls a conveyor infeed motor whose speed must track upstream production rate signals. When the upstream filler slows due to a product changeover, the drive ramps the conveyor down proportionally rather than running at full speed against a closed gate — eliminating the mechanical stress, belt wear, and wasted energy of the previous fixed-speed arrangement. Line OEE improved by approximately 4 percentage points as a result of reduced micro-stoppages caused by belt slippage and motor thermal trips.

Maintenance costs also decrease significantly when variable frequency drives replace direct starters. Soft acceleration and deceleration ramps reduce mechanical shock on couplings, gearboxes, and driven equipment, extending service intervals and reducing spare parts consumption. The ATV303H075N4’s configurable acceleration and deceleration ramps — adjustable from 0.1 to 999 seconds — allow maintenance engineers to tune the drive to the mechanical characteristics of each specific load.

All units supplied by ZYPLC are tested under load prior to shipment, with operating parameters logged and verified against factory specifications. Stock is maintained for immediate dispatch, supporting both planned project builds and urgent replacement requirements. Each ATV303H075N4 is covered by a 12-month warranty from the date of shipment.

Energy Optimization FAQ

Q1: How much energy can the ATV303H075N4 save compared to a direct-on-line starter?
In variable-torque applications such as pumps and fans, energy savings of 20–50% are typical because motor power consumption follows the cube law — halving the speed reduces power demand to one-eighth. In constant-torque applications such as conveyors, savings are lower but still significant due to elimination of throttling losses and improved power factor.

Q2: Is the ATV303H075N4 compatible with my existing Modicon PLC and SCADA system?
Yes. The ATV303H075N4 supports Modbus RTU as a standard communication protocol, which is natively supported by Modicon TM221, M340, and M580 controllers. For Ethernet-based SCADA integration, a Modbus TCP gateway or the BMXNOC0401 module can bridge the drive data to the plant network without additional software licensing.

Q3: Can this drive replace an older ATV31 or ATV312 unit without rewiring?
The Altivar 303 series is designed as a functional replacement for the ATV31 and ATV312 in most applications. Terminal layout and parameter structure are similar, and Schneider Electric provides migration guides covering parameter mapping. ZYPLC recommends verifying motor nameplate data and application-specific parameters before commissioning the replacement unit.

Q4: What does the 12-month warranty cover, and what is the testing process?
Every ATV303H075N4 unit shipped by ZYPLC undergoes functional testing under load, including output voltage balance verification, frequency response check, and communication register validation. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Units are shipped with test records available on request. Contact our technical team at plc.sales@zyplc.com for warranty claims or pre-shipment test report requests.
